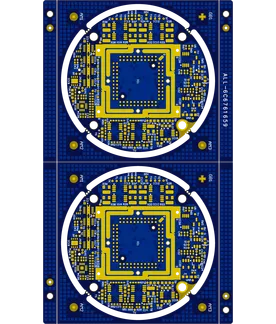

6 Layer HDI PCB Production Record #HDI-20251022-0006

Start HDI PCB Quote

PCB Specifications

Parameter Value Parameter Value
PCB Type HDI PCB Quantity 5 pcs
Layers 6 Layers Board Type Panel PCB
Dimensions 68 x 116 mm Copper Weight 1oz
Thickness 1 mm Min Track / Spacing 4/4mil
Surface Finish ENIG (Immersion Gold) Min Hole Size 0.15mm
Solder Mask Blue Silkscreen White
HDI Structure 2 Blind/Buried Vias Yes

Manufacturing Timeline

Order Created
Sep 06 02:15
Files Ready
Sep 06 02:15
Engineering Review Completed
Sep 06 02:34
Payment down
Sep 09 22:33
Production Started
Sep 09 22:36
Production Completed
Oct 08 14:18
Progress: 0/6
Engineering Review time: 0.4 h
Production time: 28.7d

Logistics Information

Production Completed→Shipping : 13.9d
Carrier
FedEx IP
Destination
ISRAEL
Shipping Method
Express Air
Shipping Time
Oct 22 11:19

Key Manufacturing Processes

01
Engineering Review
02
Material Preparation
03
Inner Layer Imaging
04
Circuit Imaging & Etching
05
Layer Stack Alignment
06
High Pressure Lamination
07
Sequential Lamination
08
Laser Microvia Drilling
09
Via Filling & Plating
10
Solder Mask Application
11
Electroless Nickel Deposition
12
Immersion Gold Deposition
13
Electrical Testing

Manufacturing Summary

This production record covers five panels of 6-layer High-Density Interconnect board with blind vias, built to dimensions of 68 x 116 mm and 1.0 mm thickness using 1 oz copper layers. The HDI structure required sequential lamination after initial layers, combined with laser microvia drilling to create the blind vias at a minimum hole size of 0.15 mm. We processed the 4/4 mil track and spacing through detailed circuit imaging and etching, maintaining feature accuracy across the panels.



Blue soldermask and white silkscreen were applied after lamination, followed by electroless nickel deposition and immersion gold ENIG to deliver a flat, reliable surface finish. Via filling and plating steps ensured solid interconnects within the microvias. Final electrical testing confirmed continuity and isolation on every panel.



The full manufacturing sequence from material preparation through high-pressure lamination and testing was executed to support the tighter geometry and HDI requirements, resulting in consistent quality for this specific order.
