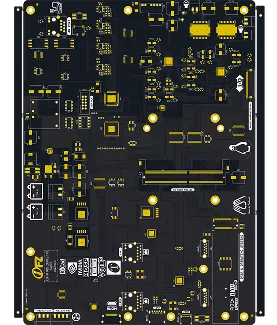

6 Layer HDI PCB Production Record #HDI-20260331-044

Start HDI PCB Quote

PCB Specifications

Parameter Value Parameter Value
PCB Type HDI PCB Quantity 50 pcs
Layers 6 Layers Board Type Panel PCB
Dimensions 216 x 280 mm Copper Weight 1oz
Thickness 1.6 mm Min Track / Spacing 4/4mil
Surface Finish ENIG (Immersion Gold) Min Hole Size 0.3mm↑
Solder Mask Matte Black Silkscreen White

Manufacturing Timeline

Order Created
Mar 01 23:07
Files Ready
Mar 01 23:07
Engineering Review Completed
Mar 03 14:29
Payment down
Mar 02 16:56
Production Started
Mar 03 14:31
Production Completed
Mar 13 19:18
Progress: 0/6
Engineering Review time: 1.7d Multiple File Revisions
Production time: 10.2d With Engineering Questions

Logistics Information

Production Completed→Shipping : 18.2d
Carrier
DHL
Destination
THAILAND
Shipping Method
Express Air
Shipping Time
Mar 31 22:39

Key Manufacturing Processes

01
Engineering Review
02
Material Preparation
03
Inner Layer Imaging
04
Circuit Imaging & Etching
05
Layer Stack Alignment
06
High Pressure Lamination
07
Solder Mask Application
08
Electroless Nickel Deposition
09
Immersion Gold Deposition
10
Electrical Testing

Manufacturing Summary

Manufacturing of this batch of 50 six-layer HDI panel PCBs focused on the specific demands of a 216 by 280 mm panel size and 4/4 mil minimum track and spacing. At 1.6 mm thickness with 1 oz copper, the tighter geometries called for detailed engineering review and optimized exposure parameters during inner layer imaging to avoid any deviations in the etched circuits.



The process continued with careful material preparation, followed by layer stack alignment and high pressure lamination to bond the six layers securely. Matte black solder mask was applied uniformly, complemented by white silkscreen for contrast. An immersion gold ENIG surface finish was then selectively deposited to provide oxidation resistance and reliable soldering points.



Final electrical testing of all panels verified electrical integrity. This execution for the panelized configuration produced stable outcomes matching the customer's stackup and feature requirements within the scheduled 10.2-day production window.
