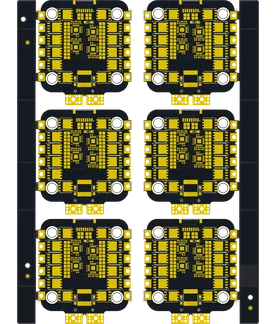

8 Layer HDI PCB Production Record #HDI-20260701-0001

Start HDI PCB Quote

PCB Specifications

Parameter Value Parameter Value
PCB Type HDI PCB Quantity 500 pcs
Layers 8 Layers Board Type Panel PCB
Dimensions 152.5 x 114 mm Copper Weight 2oz
Thickness 1.8 mm Min Track / Spacing 6/6mil↑
Surface Finish ENIG (Immersion Gold) Min Hole Size 0.2mm
Solder Mask Matte Black Silkscreen White
HDI Structure 3 Blind/Buried Vias Yes

Manufacturing Timeline

Order Created
Jun 02 00:58
Files Ready
Jun 02 00:58
Engineering Review Completed
Jun 02 16:58
Payment down
Jun 02 16:59
Production Started
Jun 02 16:59
Production Completed
Jun 30 00:07
Progress: 0/6
Engineering Review time: 0.6d
Production time: 27.3d

Logistics Information

Production Completed→Shipping : 1.5d
Carrier
UPS
Destination
HONG KONG,CHINA
Shipping Method
Express Air
Shipping Time
Jul 01 10:58

Key Manufacturing Processes

01
Engineering Review
02
Material Preparation
03
Inner Layer Imaging
04
Circuit Imaging & Etching
05
Layer Stack Alignment
06
High Pressure Lamination
07
Sequential Lamination
08
Laser Microvia Drilling
09
Via Filling & Plating
10
Thick Copper Electroplating
11
Controlled Copper Etching
12
Solder Mask Application
13
Electroless Nickel Deposition
14
Immersion Gold Deposition
15
Panelization Optimization
16
Batch AOI Inspection
17
Yield Control Management
18
Electrical Testing

Manufacturing Summary

The manufacturing of these 8-layer HDI boards involved processing 500 panels, each measuring 152.5 by 114 mm with a finished board thickness of 1.8 mm. A custom stackup with 2oz copper weight supported the 3-step HDI structure that included blind vias. Sequential lamination combined with laser microvia drilling and via filling ensured precise interconnections across the layers.



Standard 6/6 mil geometry allowed conventional imaging and etching processes despite the heavier copper. Matte black soldermask and white silkscreen were applied over the surface, followed by immersion gold ENIG finishing to deliver reliable pad quality and protection. Thick copper electroplating steps were carefully controlled to maintain trace integrity.



Electrical testing and batch AOI inspection verified all 500 panels over the 47-day production period. This execution delivered consistent HDI PCB results matching the specified custom requirements without impedance control.

Real Production Records

Order ID PCB Type Layers Dimensions Solder Mask Surface Finish Quantity Action
HDI-20260729-036 HDI PCB 8 97 x 93.4 Black ENIG (Immersion Gold) 100 View detail
HDI-20260720-0001 HDI PCB 8 188 x 100 Matte Black ENIG (Immersion Gold) 125 View detail
HDI-20260718-0002 HDI PCB 4 37 x 26.6 Green ENIG (Immersion Gold) 20 View detail
