What Is a Rogers PCB? High-Frequency Material Built for RF Signal Integrity
What This Video Covers
This video explains Rogers PCB technology and why it is the material of choice for high-frequency and RF designs. It covers the key advantages of Rogers laminates — low dielectric loss, stable dielectric constant, and consistent impedance — that allow signals to travel with minimal energy loss and distortion.
Unlike standard FR-4, Rogers materials maintain waveform integrity even at microwave frequencies, making them essential for applications where signal quality cannot be compromised. The video also addresses the structural similarities to conventional PCBs while highlighting the critical differences in material behavior, cost considerations, and tighter processing requirements.
Real-world examples include RF modules, antennas, and high-speed communication equipment used in aerospace, telecommunications, and industrial systems. For immediate pricing on Rogers-based designs, use our PCB quote tool. Engineers can review full specifications on our dedicated Rogers PCB page or explore related high-frequency solutions at high frequency PCB.
Key Highlights
- Rogers materials provide low dielectric loss and stable dielectric constant for clean high-frequency signal transmission.
- Consistent impedance and reduced distortion outperform FR-4 in RF modules, antennas, and microwave applications.
- Higher cost and specialized processing are justified only when signal integrity at high frequencies is critical.
Rogers Laminates vs FR-4: Material Property Comparison
| Property | Standard FR-4 | Rogers (e.g., RO4350B, RT/duroid) | Impact on High-Frequency Performance |
|---|---|---|---|
| Dielectric Constant (Dk) | 4.0–4.8 (varies with frequency) | 2.2–3.5 (highly stable) | Better impedance control, lower propagation delay |
| Dissipation Factor (Df) | ~0.020 at 1 GHz | 0.0009–0.0037 at 10 GHz | Significantly reduced signal attenuation |
| Operating Frequency Range | Up to ~1–2 GHz effectively | 10 GHz to mmWave | Superior for RF/microwave applications |
| Thermal Stability | Moderate | Excellent CTE match to copper | Reduced warpage and delamination risk |
Key Material Properties Driving High-Frequency Performance
Rogers laminates, such as the RO4000 and RT/duroid series, utilize ceramic-filled PTFE or hydrocarbon composites engineered for precise electrical characteristics. These materials deliver a tightly controlled dielectric constant that remains stable across wide frequency and temperature ranges, unlike FR-4 where Dk can shift noticeably.
This stability enables accurate impedance matching for controlled-impedance traces, critical in RF designs. Low dissipation factors minimize conversion of signal energy into heat, preserving amplitude and phase integrity over trace lengths common in antennas and modules. In production, these properties translate to lower insertion loss and better return loss measurements during validation.
From a manufacturing standpoint, consistent material behavior supports tighter tolerances in etching and plating, reducing variability in final board performance. Engineers benefit from predictable simulation-to-fabrication correlation, minimizing design iterations.
Real-World Applications in RF and Microwave Systems
Rogers PCBs excel in 5G base station antennas, phased-array radars, satellite communications, and automotive radar sensors. In these systems, even minor signal degradation can lead to reduced range, increased bit error rates, or complete link failure.
For example, in RF power amplifiers and high-speed communication modules, the low-loss characteristics maintain efficiency and thermal performance under continuous operation. Aerospace and defense applications further leverage the material’s dimensional stability across extreme environments.
Procurement teams should evaluate hybrid stackups—using Rogers only for critical high-frequency layers bonded with FR-4 cores—to optimize cost without sacrificing performance where it matters most.

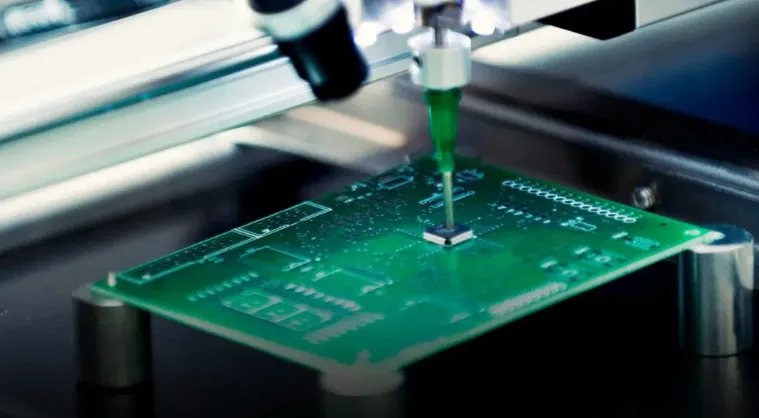

Manufacturing Challenges and DFM Best Practices for Rogers PCBs
Rogers materials demand specialized processing due to their sensitivity to moisture, heat, and mechanical stress. Common issues include delamination from trapped moisture or improper lamination pressures, poor copper adhesion on PTFE-based variants requiring plasma etching or specialized desmear, and accelerated drill wear leading to rough hole walls or smear.
DFM Recommendations:
- Provide detailed stackup drawings and target impedance values early to the fabricator.
- Specify appropriate surface finishes like ENIG for reliable RF performance.
- Account for material-specific etching compensation and tighter registration tolerances.
- Bake cores prior to layup and use controlled lamination cycles to prevent voids or separation.
- For hybrid designs, ensure compatible bonding prepregs and verify CTE alignment to avoid warpage.
Failure to address these can result in yield loss, impedance deviations, or field reliability problems such as cracking under thermal cycling. Early CAM engineering review of Rogers designs significantly improves first-pass success.
Cost Considerations and When to Specify Rogers Materials
While Rogers laminates cost significantly more than FR-4 (often 5–10x per square inch depending on series and volume), the investment is justified when operating frequencies exceed a few GHz or when signal integrity directly impacts system performance. Hybrid constructions help balance costs.
Evaluate total ownership cost: reduced field failures, fewer design revisions, and higher yields in high-reliability applications often offset the premium. Consult with manufacturers for material availability and lead times, as some specialized grades have longer procurement cycles.
FAQ
Q1: How does Rogers material compare to FR-4 for high-frequency performance?
A1: Rogers laminates offer significantly lower dielectric loss and a more stable dielectric constant than standard FR-4. This results in less signal attenuation, better impedance control, and cleaner waveforms at microwave and RF frequencies, making Rogers the preferred choice when signal integrity is critical.
Q2: When should engineers choose Rogers PCB over standard FR-4 despite the higher cost?
A2: Engineers should select Rogers PCB when the design operates above a few GHz, involves RF modules, antennas, or high-speed communication systems where FR-4 would cause excessive signal loss, distortion, or impedance variation. It is typically used only when high-frequency performance requirements cannot be met with conventional materials.
Q3: What manufacturing processes are required to produce reliable Rogers PCBs?
A3: Reliable Rogers PCB production requires precise lamination control to preserve material properties, specialized drilling and etching parameters, and high-performance surface finishes such as ENIG. These tighter process controls ensure consistent dielectric performance and long-term reliability in demanding RF and microwave applications.
Q4: What are the most common DFM issues encountered with Rogers PCBs and how can they be avoided?
A4: Frequent issues include warpage in asymmetric stackups, via reliability problems due to CTE mismatch, and inconsistent impedance from dielectric thickness variation. These are best avoided through symmetric designs, generous annular rings, detailed stackup documentation, and collaboration with an experienced fabricator early in the design phase.
Q5: Can Rogers PCBs be used in hybrid constructions with FR-4?
A5: Yes. Hybrid Rogers/FR-4 boards are common for cost optimization. Critical high-frequency traces and components are routed on Rogers layers while the rest of the circuitry uses standard FR-4. Proper transition design and impedance simulation are essential to prevent discontinuities at material boundaries.
Why do some PCBs stay stable at very high frequencies?
That's often a Rogers PCB.
Rogers PCBs are designed for high-frequency and RF applications.
Unlike standard FR-4, Rogers materials have low dielectric loss and stable dielectric constant.
This means signals lose less energy as they travel.
Waveforms stay clean, and impedance remains consistent across the board.
Structurally, a Rogers PCB still looks familiar —copper layers on top, dielectric material in the middle.
The difference lies in the material itself.
Rogers laminates minimize high-frequency signal loss and distortion.
That's why Rogers PCBs are commonly used in RF modules, antennas, and high-speed communication systems.
The trade-off is higher cost and tighter processing requirements.
So engineers don't use Rogers by default —only when signal integrity at high frequency truly matters.
