SMD Capacitor Removal: Professional Techniques for Safe PCB Rework
What This Video Covers
This video demonstrates professional best practices for safely removing capacitors from a PCB while protecting board integrity. Capacitor removal requires careful thermal management due to the risk of pad damage or delamination.
The process starts with applying flux for even heat distribution, followed by using a hot air rework station at controlled temperatures. Heat is applied steadily until the solder fully liquefies, allowing the capacitor to be lifted gently without stressing the pads. The video then covers post-removal cleanup: using a lint-free wipe and isopropyl alcohol to completely remove flux residue, preventing long-term corrosion and ensuring a clean surface for the replacement component.
These techniques are critical for maintaining reliability during repairs, modifications, or rework in PCB assembly processes. Proper execution minimizes risks in high-value applications such as medical devices, automotive electronics, industrial control systems, and consumer electronics. The guide helps engineers and technicians achieve consistent, high-quality results while extending PCB lifespan.
Key Highlights
- Flux & Controlled Heating: Apply flux and use a hot air rework station for even heating until solder liquefies, preventing pad damage.
- Gentle Component Removal: Lift the capacitor only after solder is fully molten to avoid mechanical stress on delicate PCB pads.
- Thorough Post-Removal Cleaning: Remove all flux residue with isopropyl alcohol and lint-free wipes to prevent corrosion and ensure reliable new component soldering.

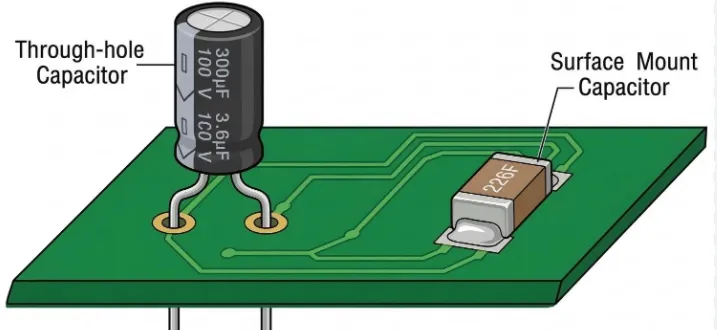

Understanding Thermal and Mechanical Risks in SMD Capacitor Removal
SMD capacitors, particularly multilayer ceramic types, are sensitive to thermal shock and mechanical stress. Rapid heating or uneven temperature distribution can cause cracking of the capacitor body, delamination of copper pads from the substrate, or trace lifting—common issues observed in high-volume rework environments.
In production settings, improper removal often leads to micro-fractures in the PCB laminate that may not appear immediately but compromise signal integrity or long-term reliability under thermal cycling. DFM principles emphasize symmetrical pad design and adequate thermal relief where possible, yet during rework, operators must maintain nozzle distance and airflow to achieve uniform heating across both terminations.
Real manufacturing data shows that exceeding 300–350°C localized temperatures for extended periods significantly increases the risk of pad detachment, especially on thin boards or those with high Tg materials. Gentle lifting only after full solder reflow prevents shear forces that tear pads, preserving the board for reliable new component attachment. Technicians should always preheat the board area gradually to minimize thermal gradients.
Essential Tools and Materials for Reliable Capacitor Rework
Professional SMD capacitor removal relies on temperature-controlled hot air rework stations (typically 100–500°C range with adjustable airflow), no-clean or rosin-based flux optimized for rework, precision tweezers, and high-purity isopropyl alcohol (IPA 99%+).
Recommended Hot Air Rework Parameters
| Parameter | Typical Setting | Notes / DFM Insight |
|---|---|---|
| Nozzle Temperature | 280–320°C | Adjust based on capacitor size and board thickness |
| Airflow Rate | Low to Medium (20–40 L/min) | Prevents component displacement or pad damage |
| Nozzle Distance | 5–10 mm | Ensures even heat without scorching nearby components |
| Preheat Board Temp | 100–150°C | Reduces thermal shock risk |
Using low-quality flux or insufficient cleaning solvents often results in ionic contamination, leading to electrochemical migration in humid environments. Selection of ESD-safe tools further protects sensitive circuitry during the process.
Step-by-Step Professional Removal Process
The optimized process begins with flux application to both terminals to improve heat transfer and solder flow. A controlled hot air station then heats the area uniformly until the solder reaches liquidus temperature. The capacitor is lifted vertically with minimal force using tweezers once both sides are molten.
Post-lift inspection under magnification verifies pad integrity and absence of lifted traces. This methodical approach aligns with IPC standards for rework and significantly reduces scrap rates in repair operations.
Post-Removal Cleaning and Pad Preparation Best Practices
Thorough removal of flux residue is non-negotiable. Residual flux, especially activated types, promotes corrosion and dendrite growth over time, leading to field failures. Use lint-free wipes soaked in IPA, followed by compressed air drying and optional ultrasonic cleaning for complex assemblies.
Visual and electrical inspection of cleaned pads ensures flatness and solderability before installing a replacement capacitor. In high-reliability manufacturing, this step often includes ionic contamination testing to verify cleanliness levels meet industry thresholds.
Common Manufacturing Challenges and Failure Modes
Overheating represents one of the primary failure modes, causing tombstoning of nearby components or blistering of the solder mask. Insufficient flux leads to cold solder bridges or incomplete reflow, while aggressive mechanical removal frequently results in pad tearing—particularly problematic on dense layouts with fine-pitch components.
DFM recommendations include designing with larger pad extensions where rework is anticipated and specifying rework-friendly capacitor packages. Production teams benefit from standardized work instructions and regular operator training to maintain first-pass success rates above 95% in rework stations.
FAQ
Q1: Why is flux important when removing capacitors from a PCB?
A1: Flux ensures even heat distribution and better solder flow, reducing the risk of overheating, cold joints, or damage to pads and traces during the rework process.
Q2: What happens if flux residue is not properly cleaned after capacitor removal?
A2: Leftover flux can cause long-term corrosion, dendrite growth, and electrical shorts, compromising the reliability and lifespan of the repaired PCB.
Q3: What tools are recommended for professional capacitor rework?
A3: A temperature-controlled hot air rework station, quality flux, soldering tools for cleanup, and isopropyl alcohol with lint-free wipes are essential for safe and effective removal.
Q4: How can overheating during SMD capacitor removal be prevented?
A4: Use gradual preheat, maintain proper nozzle distance and airflow settings, and monitor localized temperatures. Board preheat to 100–150°C minimizes thermal gradients that crack components or delaminate pads in multilayer PCBs.
Q5: What are the risks of mechanical force during capacitor removal?
A5: Applying force before full solder reflow commonly causes pad lift-off or trace damage, especially on high-density boards. Always confirm both terminations are molten and lift vertically with controlled pressure.
Removing a capacitor might seem simple, but protecting the PCB's integrity requires a professional touch. To do it right, we start with a dab of flux to ensure even heat distribution. Using a hot air rework station at a controlled temperature, we apply steady heat until the solder fully liquefies, allowing the component to be lifted without any stress on the delicate pads.
But the job isn't finished until it's clean. We use a lint-free wipe and isopropyl alcohol to meticulously remove every trace of flux residue. This prevents long-term corrosion and leaves a pristine surface for the new component. Precision removal, professional cleanup—that's the AIVON standard.
