In this real-world engineering case from our CAM department, a 4-layer 1.6mm FR-4 board (#FR4-20260407-029) triggered multiple critical engineering questions during production data review. What started as a standard 10-piece prototype run quickly revealed several manufacturability risks that could have led to scrap, delayed delivery, or field failures if left unaddressed.
As a senior CAM engineer with over 15 years in PCB fabrication, I've seen how small oversights in design data translate into significant production problems. This case highlights the gap between design intent and actual manufacturing capability, particularly around panelization, V-CUT processing, and fine-feature tolerances.
Order Overview
The board measured 150 × 120 mm with a standard 4-layer stackup using TG130 FR-4 material at 1.6mm finished thickness. Copper weight was 1oz inner/outer layers. The design specified 100% flying probe electrical testing, 0.25mm minimum hole size, green solder mask, white silkscreen, and lead-free HASL surface finish. Impedance control was required, with panelization noted as 1x1 but with additional panelization instructions in the data package.
Delivery was requested within 11 days. While the basic parameters looked straightforward, detailed CAM analysis of the Gerber, drill, and fabrication files revealed several areas needing clarification before releasing to production.
Main Engineering Questions Found During CAM Review
1. V-CUT Clearance Violations – High Risk of Exposed Copper and Edge Defects
Our engineer immediately flagged multiple locations where component pads and copper features were positioned too close to the V-CUT lines. Specifically, highlighted pads (D8, D9, D10 area) and adjacent copper pours violated standard V-scoring clearance requirements.
We noticed the copper features were within 0.3mm of the V-CUT path in several spots. According to typical manufacturing tolerances for V-scoring on 1.6mm boards, this proximity creates significant risk during depanelization. If ignored, the mechanical stress from scoring and breaking could cause copper lifting, exposed edges, or "卷铜" (copper peeling at edges).
Had we proceeded without adjustment, the finished boards could have shown exposed copper along the panel edges after separation. This would likely result in assembly shorting risks, poor cosmetic appearance, and potential rejection under IPC-A-600 Class 2 inspection criteria. Our team recommended adjusting the copper clearance and confirming the final V-CUT positions with the customer.

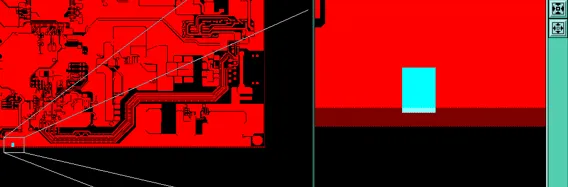

Figure 1: V-CUT Clearance Violation
2. 0.25mm Via Spacing and Drillability Concerns
Another critical issue involved clusters of 0.25mm vias with insufficient spacing or apparent overlapping in the production data. Our drilling engineer raised this immediately — at this hole size, minimum web thickness between holes becomes a major constraint for drill bit integrity.
Figure 2: 0.25mm vias with insufficient spacing or apparent overlapping
We noticed that several via pairs were either connected or had spacing below our safe manufacturing threshold for reliable drilling. Continuing without clarification would almost certainly cause frequent drill breakage, incomplete holes, or severe hole breakout on inner layers. The result: high scrap rate, extended production time, and potential signal integrity issues from poorly plated vias.
Our CAM team prepared a modified production file showing adjusted via positioning where possible and requested customer confirmation on intent versus tolerance flexibility.
3. Layer Naming Conflicts and Gerber Data Ambiguity
The Gerber package contained two second-layer files: GP1 and G1. This duplication created immediate confusion during CAM setup. Our engineer had to verify which file represented the actual production layer and whether one was a backup or revision artifact.
Figure 3: G1-gerber data
Figure 4: GP1-gerber data
Figure 5: G1 & GP1 gerber
Additionally, the GKO (outline) layer showed circular features that did not perfectly align with the corresponding non-plated holes in the drill file. Such mismatches often lead to outline routing errors or unintended copper features near board edges.

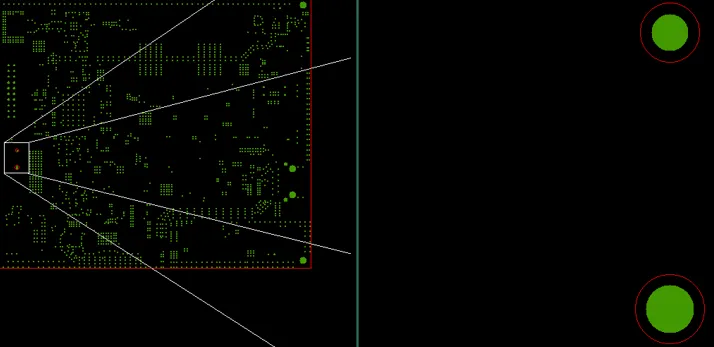

Figure 6: Different-sized holes on the GKO layer
These types of data conflicts are common triggers for engineering questions because they directly impact layer registration and final board geometry.
4. Component Pad Modifications and Stackup/Impedance Confirmation
The customer requested changes to pads for MBRS240LT3G diodes (D8, D9, D10). Our team prepared revised production files, but because the changes were substantial, we sent them back for verification to avoid introducing new DFM issues.

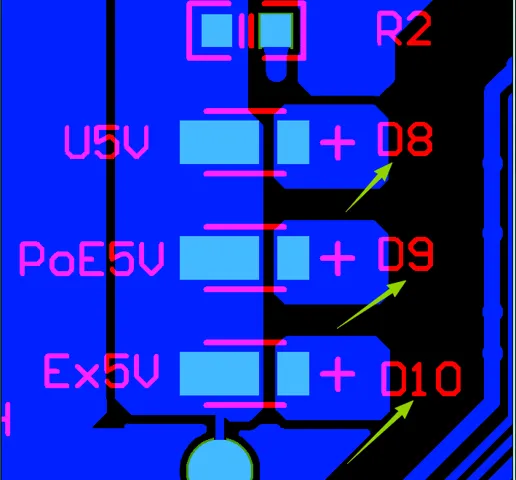

Figure 6: Pads for MBRS240LT3G diodes (D8, D9, D10)
We also provided our calculated stackup and impedance reference based on the 4-layer TG130 material and 1oz copper. The customer's impedance diagram showed potential differential pairs that needed confirmation to ensure our modeling matched design intent.

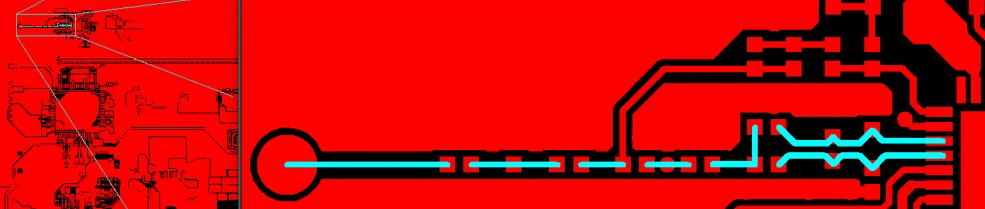

Figure 7: Required impedance diagram

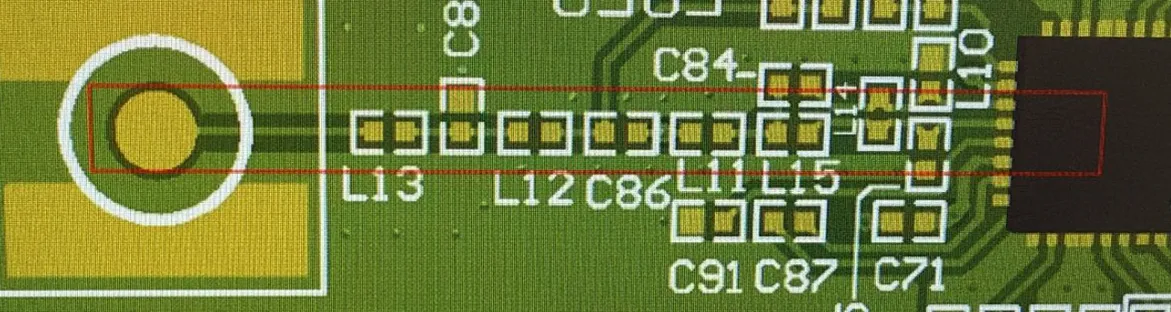

Figure 8: Detailed potential differential pairs
Suggested EQ Categories
File & Manufacturing Data Issues
- Duplicate layer files (GP1 vs G1)
- GKO vs drill feature mismatch
- Impedance diagram interpretation
Panelization & Process Optimization
- V-CUT copper clearance violations
- Process edge fiducials and copper pour confirmation
- Board thickness tolerance standardization
Hole & Tolerance Issues
- 0.25mm via spacing and drill risk
- Non-plated hole alignment
Solder Mask & Component Data
- Pad size modification verification for power diodes
Manufacturing Risks and DFM Insights
This case perfectly illustrates why thorough CAM review exists. V-CUT clearance violations are among the most frequent causes of edge-related defects in panelized boards. Without intervention, depanelization stress can cause copper to lift, creating exposed edges prone to oxidation and shorting during assembly or in the field.
The 0.25mm via spacing issue represents a classic drillability problem. At this scale, even minor deviations in hole positioning can exceed tool tolerance, leading to broken drills, resin smear, or plating voids. These defects often only appear during electrical testing or later in assembly, resulting in costly rework or complete batch rejection.
Layer data conflicts, while seemingly administrative, can cause misalignment between layers, resulting in open circuits or impedance deviations that compromise signal performance.
How the Engineering Team Resolved the Issues
Our CAM team prepared a complete set of revised production files addressing the V-CUT clearances, via optimization, and layer selection. For the diode pads, we provided before-and-after comparisons to ensure the modifications maintained proper solderability while respecting minimum annular ring requirements.
We standardized the board thickness callout to 1.6mm ±10% per IPC-6012 Class 2 and confirmed the panelization layout including fiducials, tooling holes, and process edge copper. The impedance stackup was aligned with the customer's requirements and documented for production.
After two rounds of clarification, all engineering questions were resolved. The final production data package was approved and released.
Final Manufacturing Outcome
Engineering clarification was completed successfully. Production parameters were optimized for manufacturability while preserving design intent. The 10-piece order was released for fabrication with reduced technical risk.
Key Takeaways for PCB Designers
- Always maintain adequate copper clearance (typically ≥0.5mm) from V-CUT lines to prevent edge defects after depanelization.
- For 0.25mm and smaller holes, verify via-to-via spacing against your fabricator’s drill chart before finalizing layout.
- Use consistent layer naming conventions in Gerber output. Avoid duplicate or conflicting files.
- When requesting pad modifications, provide reference component datasheets and expected footprint dimensions.
- Clearly document impedance requirements with target layers, trace widths, and reference planes.
- Include detailed panelization drawings when ordering panelized boards rather than relying solely on notes.
- Review GKO/outline layers against drill files for alignment of slots, cutouts, and non-plated features.
FAQ
Q: Why do PCB factories pay so much attention to copper near V-CUT lines?
A: During the mechanical scoring and breaking process, stress concentrates at the V-groove. Copper too close to this line can peel or lift, exposing base material and creating shorting or cosmetic defects. Proper clearance prevents these issues and ensures cleaner edges.
Q: What happens if via spacing is too tight for 0.25mm holes?
A: Drill bits can break, holes may not drill cleanly, or web material between holes can be insufficient for reliable plating. This leads to open circuits, high scrap rates, and production delays.
Q: Why is layer naming consistency important in Gerber files?
A: Conflicting or duplicate layers (like GP1 and G1) force CAM engineers to guess which data is authoritative. Wrong layer selection can cause missing traces, short circuits, or completely incorrect inner layer patterns.
Q: Should designers always follow standard board thickness tolerances?
A: Yes. Non-standard tolerances increase material and process costs. Using industry standard 1.6mm ±10% for 4-layer boards helps maintain consistent impedance, warpage control, and availability.
Q: How can designers reduce the number of engineering questions during CAM review?
A: Provide complete fabrication drawings, clear impedance tables, consistent file naming, and panelization details. Review data against your fabricator’s DFM guidelines before submission.
