This 3-layer flexible PCB order (76.2 × 457.2 mm, 0.15mm total thickness, 5 pieces with FR4 stiffener, yellow solder mask, ENIG finish) presented unique manufacturing challenges due to its extreme thinness and complex assembly requirements including double-sided EMI shielding film. The customer note specified precise dielectric thickness, stiffener application, and preferences, prompting a thorough DFM evaluation focused on feasibility and reliability risks before production.
Ultra-Thin Construction and Substitution Concerns
From a DFM perspective, the specified 50µm dielectric with double-sided EMI shielding film and 0.15mm overall thickness pushed the limits of standard flexible PCB ( #FPC-20260516-007 ) processing. Our engineering team observed that achieving such thinness while maintaining structural integrity and reliable lamination with the required shielding film was not feasible with available capabilities. Additionally, the requested DuPont Pyralux AP in this exact specification was not stocked, leading to a proposed substitution with Shengyi SF202.

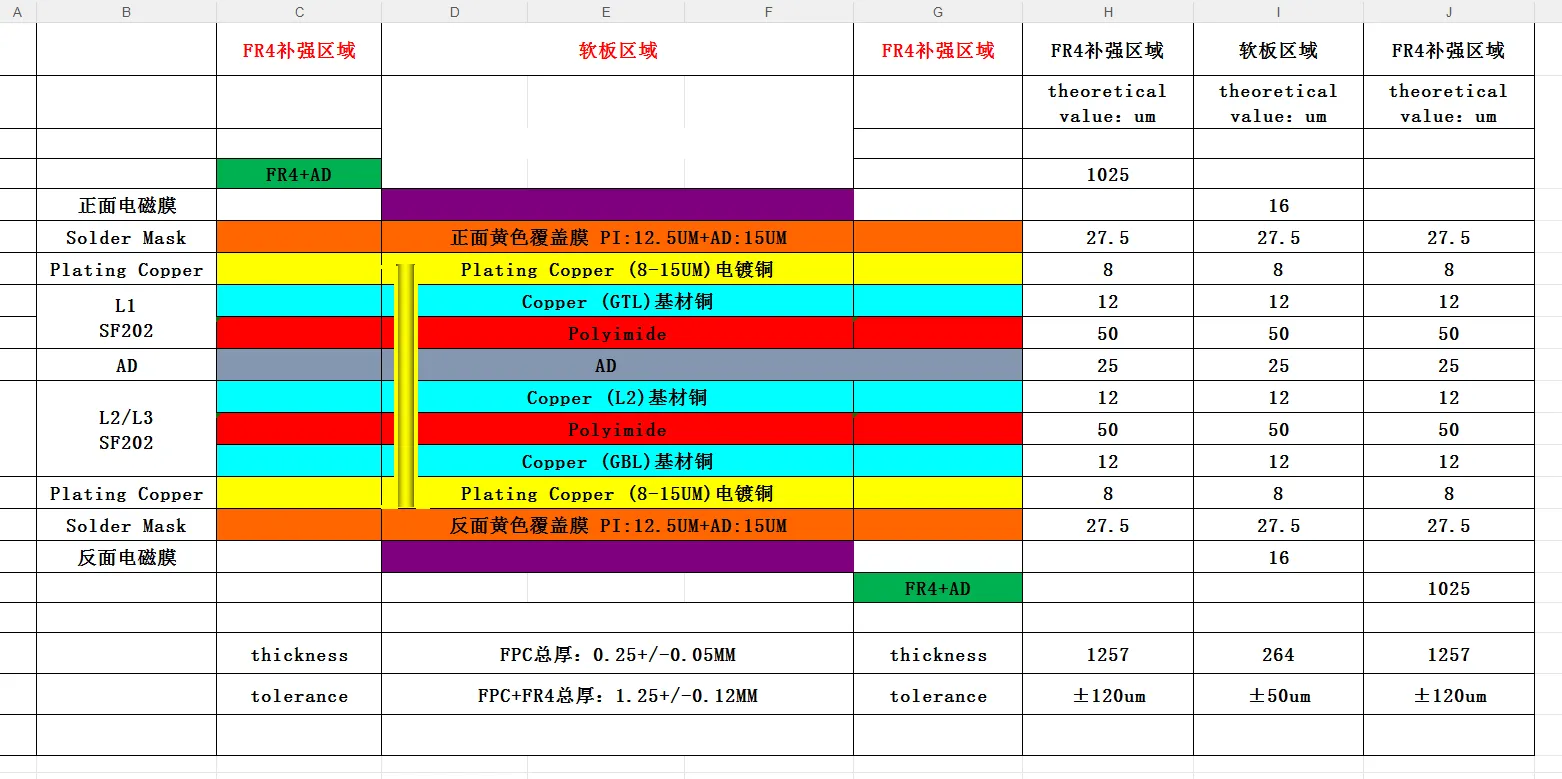

Figure 1: Shengyi SF202 stackup
The stackup was revised and shared for confirmation. This step was critical because and thickness deviations can significantly affect flexibility, thermal performance, and long-term adhesion of the EMI film and stiffener.
PTH vs NPTH Hole Definition Ambiguity
In the drilling data, all holes were initially defined as PTH. However, two specific holes (indicated in the files) only had via pads on the bottom layer, which would result in NPTH after production. This inconsistency triggered an immediate EQ to clarify the functional intent. Proper classification is essential for plating decisions, as treating NPTH holes as PTH could lead to unnecessary plating or, conversely, unplated functional vias causing open circuits.

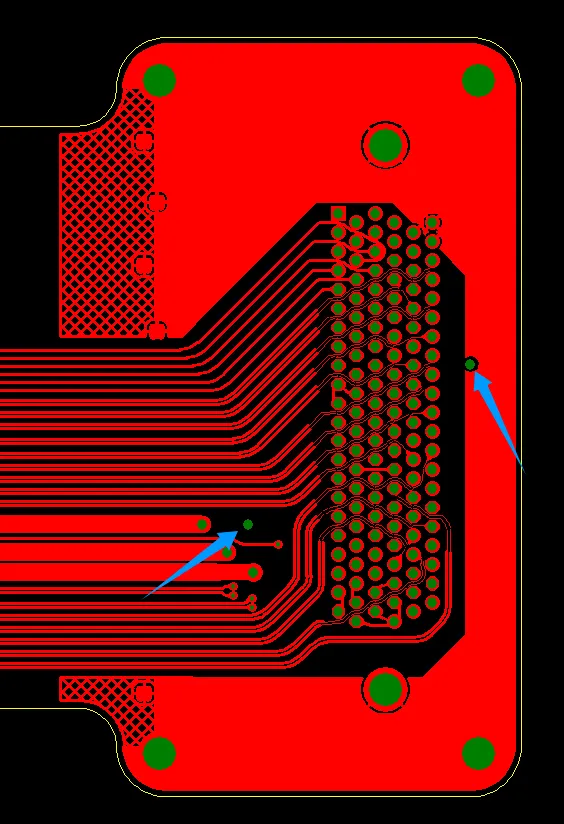

Figure 2: 2 holes (indicated by the arrow) only have via pad on the bottom layer
FR4 Stiffener Alignment and Hole Coverage Issues
The most significant risk involved the FR4 stiffener design. The stiffener outline was specified to match the board outline exactly, and it lacked any corresponding holes for the board's features. During CAM review, our engineer immediately noticed that when the stiffener was applied, it would completely cover all underlying holes on the flex circuit and extend slightly beyond the board edges. This created a major barrier to both functionality and assembly.

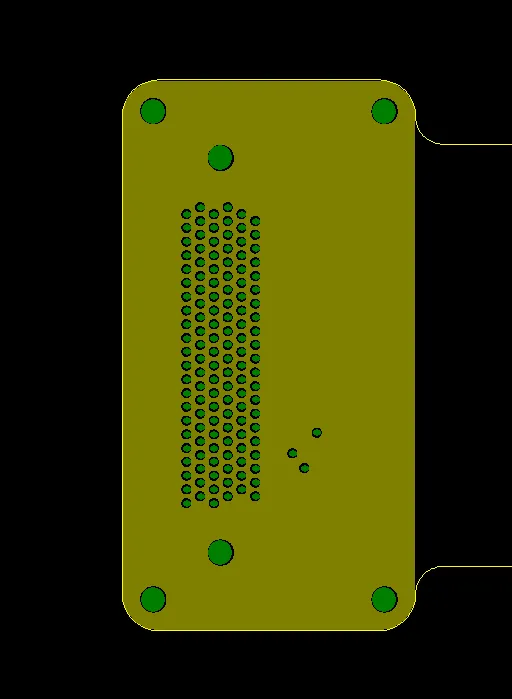

Figure 3: the FR-4 stiffener's outline is same as board outline
Further verification of the customer note and fabrication requirements confirmed the issue. The stiffener was intended to provide mechanical reinforcement, but without proper hole alignment and a slightly smaller outline, it would block component mounting holes, vias, and other features. For this thin 0.15mm flex design with double-sided EMI shielding film, such coverage would render the board unusable. We also noted the need for specific hole sizes on the stiffener (e.g., 3.5/1.2mm for larger board holes) while omitting the smallest 0.38mm holes.

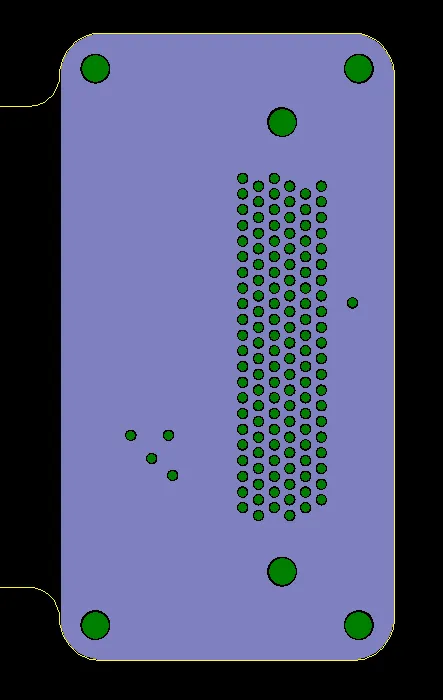

Figure 4: there is no holes on the stiffener
This mismatch became a priority Engineering Question because production could not proceed safely. If ignored, the stiffener application would lead to blocked holes, preventing electrical connectivity and component assembly. In realistic manufacturing outcomes, this often results in complete scrap boards or severe rework. The EQ proposed shrinking the stiffener outline inward by 0.15mm and adding aligned holes, along with careful application guidelines to maintain 1-1.5mm gaps for the EMI shielding film. The customer reviewed the suggestions and confirmed the adjustments, allowing the design to move forward with reliable stiffener integration.
| Feature | Provided Design | Manufacturing Concern | Risk Level |
|---|---|---|---|
| Stiffener Outline | Same as board | Covers holes, overhang | High |
| Stiffener Holes | None aligned | Blocked features | High |
| Hole Type | All listed as PTH | Inconsistent with pads | Medium |
Table 1: Critical Stiffener and Hole Risks. The table captures the primary mismatches that required immediate clarification to avoid production failure in this thin flex design.
Potential Impacts on Yield and Long-Term Reliability
Proceeding without stiffener adjustments would likely result in blocked holes, preventing component insertion or electrical connectivity. The overhang could cause assembly misalignment or mechanical stress concentrations. For such a thin flex circuit with EMI shielding, these defects would lead to high scrap rates and potential delamination or shielding failure over time.
Incorrect hole plating (PTH vs NPTH) risks either unnecessary cost and process complexity or functional opens. substitution, while necessary, required validation to ensure compatibility with the EMI film adhesion and overall flexibility requirements.
Failure Scenarios the Engineering Team Sought to Prevent
If the stiffener was applied as originally designed, it would cover all holes, rendering the board unusable for assembly and causing complete scrap of the 5-piece order. In field use, misaligned or oversized stiffeners could create stress points leading to flex cracking or EMI shielding delamination under bending.
Unresolved PTH/NPTH confusion might produce boards with plated holes where none were needed (increasing cost and potential shorts) or unplated functional vias causing open circuits. These issues, common in thin flex designs, often only surface during final testing or customer assembly, resulting in costly delays and reputation impact.
Recommended Adjustments and Collaborative Resolution
We proposed shrinking the stiffener outline inward by 0.15mm and adding corresponding holes (e.g., 3.5/1.2mm for larger board holes, omitting smallest ones). For the two ambiguous holes, we recommended adding top-layer pads and openings to fabricate them as PTH. substitution to Shengyi SF202 was confirmed after stackup review, with attention to EMI film application gaps of 1-1.5mm.
The customer reviewed the proposed stackup and adjustments, providing confirmation that enabled production release. These changes respected the thin 0.15mm target while ensuring practical manufacturability and assembly compatibility.
| Issue | Recommendation | Benefit |
|---|---|---|
| Stiffener Design | Shrink outline + add holes | Prevents hole coverage |
| Hole Classification | Add pads for PTH | Correct plating |
| & Thickness | Shengyi SF202 stackup | Feasible production |
Table 2: DFM Recommendations Summary. Targeted changes ensured the thin flex PCB with stiffener and EMI shielding could be produced reliably.
Importance of Early DFM for Thin Flexible Circuits
This case illustrates how seemingly minor design details in stiffener and hole definitions can become critical barriers in ultra-thin flex production. Proactive review and customer collaboration prevented assembly failures and ensured the boards met both mechanical and electrical requirements. For projects involving flexible circuits with stiffeners and shielding, early DFM engagement is particularly valuable to align expectations with manufacturing realities.
FAQ
Q1: Why is stiffener outline alignment critical in flex PCB designs?
A1: An oversized or un-holed stiffener can cover board features, block holes, and create edge overhang, leading to assembly failures or mechanical stress that causes delamination or cracking.
Q2: What problems occur when PTH and NPTH holes are not clearly defined?
A2: Misclassification can result in incorrect plating, blocked features, or open circuits. Proper pad and mask definition ensures the right holes are plated and functional.
Q3: Why might substitution be necessary for thin flex boards?
A3: Specific high-performance s like certain DuPont variants may not be readily available in the exact thickness required. Compatible alternatives must be validated for adhesion, flexibility, and shielding performance.
Q4: How does DFM review benefit thin flexible PCB projects with stiffeners?
A4: It identifies mismatches in stiffener design, hole treatment, and feasibility early, preventing scrap, assembly problems, and reliability issues in the final product.
