A standard 4-layer FR4 PCB order with TG150 material and 1.6mm thickness entered production review. The design included HASL surface finish, mechanical forming, and specific solder mask and silkscreen requirements. During CAM data verification, several interpretation challenges emerged around silkscreen marking sizes and solder mask window placements relative to pads and traces. These issues prevented confident progression to manufacturing without customer input.
With a 15-day delivery schedule and 100% flying probe testing specified for electronics application, alignment of all visual and protective layers was critical. The presence of extremely small silkscreen elements and mismatched via/pad mask configurations raised questions about achievable outcomes versus stated design intent.
Understanding the Original Design Intent
The customer aimed for a reliable 4-layer board ( #FR4-20260420-106 ) with standard 1oz copper, 0.3mm minimum holes, and green solder mask with white silkscreen. Fabrication notes and data files indicated specific via treatments and marking requirements. The design appeared straightforward for typical electronic use, with single-piece panelization and no special impedance controls. However, detailed layer review uncovered areas where visual markings and mask openings did not align with typical process capabilities.
Order parameters called for HASL finish and mechanical forming. Production numbering addition was noted, alongside potential layer elements that might not contribute to the final board. The intent seemed focused on functional assembly marking and protection, but certain feature sizes suggested a need for clarification on acceptable tolerances.
Engineering Findings During Initial CAM Review
Our CAM engineer observed multiple small silkscreen features measuring approximately 1mil, which fell below reliable production thresholds. Additionally, certain pads showed no solder mask opening while nearby traces had apparent gaps. Via configurations also presented conflicts between requested cover oil and actual data showing windowed openings on both sides.
Figure 1: silkscreen at the white highlighted area is only 1mil in size
These observations, combined with proposed production numbering placement and questions about certain layer elements, indicated that the manufacturing interpretation of the visual and protective layers required confirmation to avoid defects.
| Observation | Data Source | Primary Concern |
|---|---|---|
| 1mil silkscreen dots | Silkscreen layer | Manufacturability limit |
| Solder mask vs pad/trace alignment | Mask data & Gerber | Coverage vs exposure conflicts |
Primary Conflict: Silkscreen Feature Size and Mask Opening Interpretation
The dominant issue was a Manufacturing Interpretation Conflict centered on silkscreen marking dimensions and their interaction with solder mask openings. Extremely small 1mil features in the silkscreen layer could not be reliably produced, while several pads lacked expected openings and would likely be covered by ink. Nearby trace-to-pad gaps added further ambiguity to the intended visual and assembly characteristics.

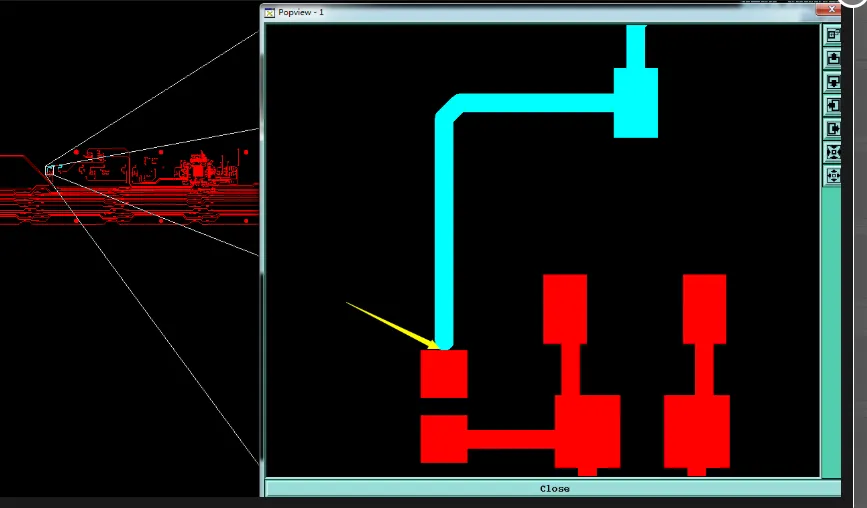

Figure 2: the trace and pad at the arrow are disconnected with a small gap
Data verification showed that these elements created uncertainty in how the board would appear and function during PCB assembly. Production could not confidently proceed because the design files suggested outcomes outside standard process capabilities for legibility and solderability. Ignoring this risked boards with missing or illegible markings and pads that could impede component attachment.
"During data verification, we identified that certain silkscreen features could not be manufactured as drawn," our team noted. This was compounded by via cover oil requests conflicting with windowed data, highlighting a broader challenge in aligning customer expectations with achievable results.

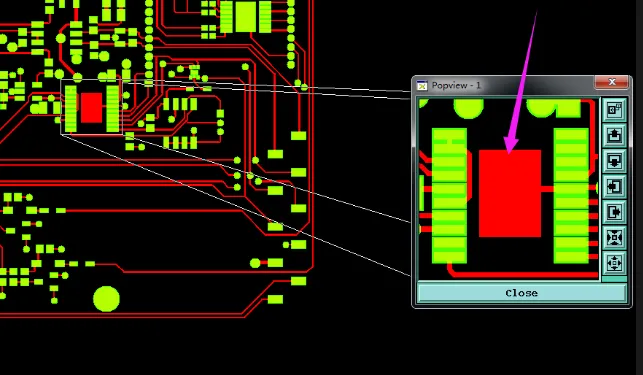

Figure 3: the pad at the arrow has no solder mask opening and will be covered by oil
According to IPC-A-600 acceptability criteria, such small markings often lead to incomplete or blurred results, while unintended mask coverage on pads can affect solder joint reliability. The engineering team evaluated these as critical for the final product's usability.
Supporting Layer and Numbering Observations
Additional findings included proposed addition of production numbering on the top silkscreen layer and questions regarding certain arrow-marked layers that appeared unrelated to the functional board. Some characters overlapped with windowed pads and had no space for relocation. These elements supported the main investigation by illustrating the need for comprehensive visual layer clarification.

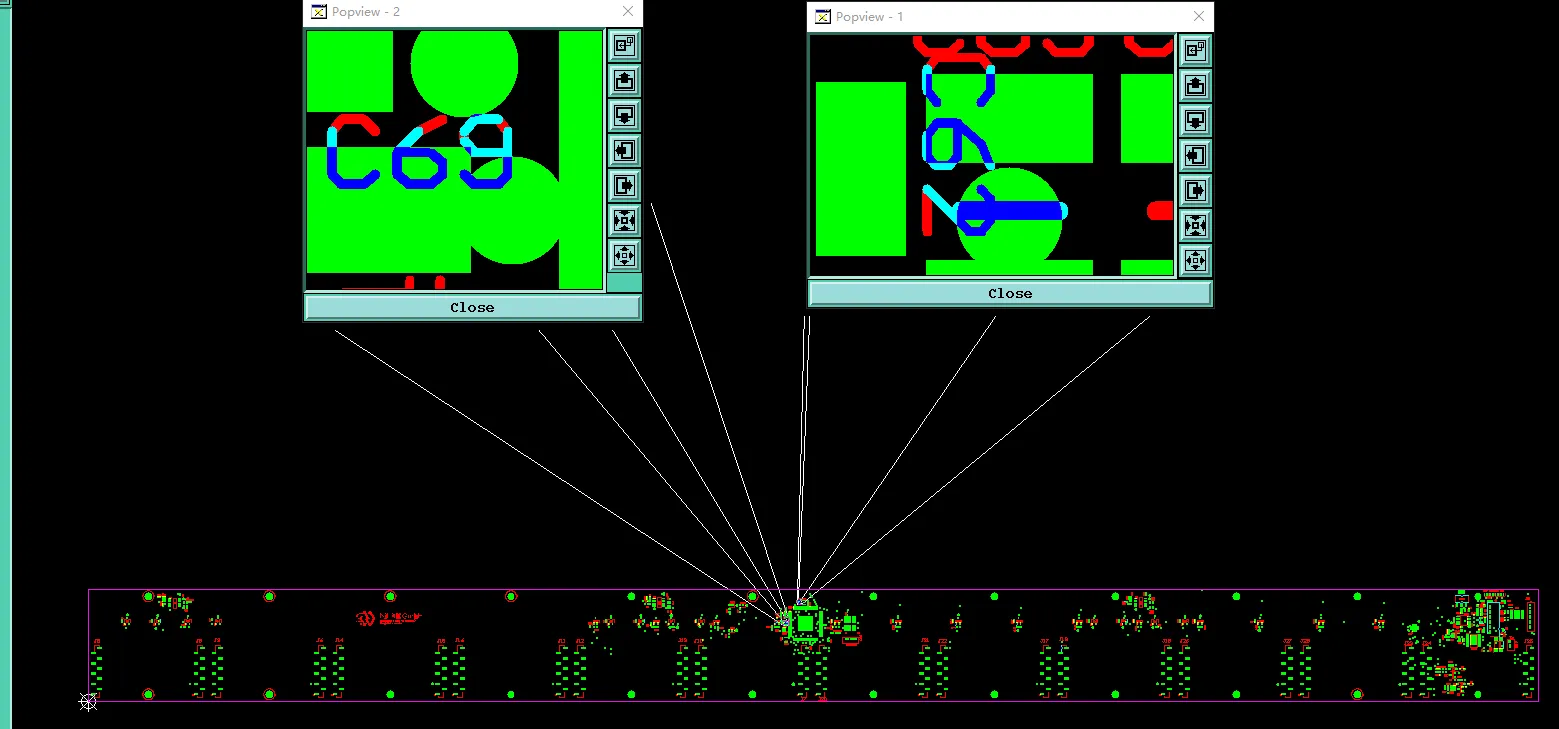

Figure 4: some character on the solder pads and no space to move
While not the primary blockers, they reinforced potential assembly and identification issues if left unaddressed.
Engineering Clarification and Final Resolution
The EQ package presented annotated views of the problematic silkscreen features, mask openings, and via configurations. We proposed adjustments such as increasing minimum silkscreen sizes where possible, confirming acceptable coverage or openings on pads, aligning via treatments with email requirements, and placing production numbering in a non-interfering location. Layers deemed non-functional were flagged for potential removal.
Customer confirmation was received on the proposed handling, including acceptance of adjusted markings and mask configurations. Revised data files incorporated these agreements, ensuring all layers now aligned with manufacturing reality.
Key Design Lessons for 4-Layer PCB Designers
- Maintain minimum silkscreen feature sizes above reliable process thresholds (typically well above 1mil) for legibility.
- Ensure solder mask openings align precisely with component pads to prevent unintended ink coverage.
- Coordinate via cover oil or tenting requirements clearly between documentation and layer data.
- Provide space around silkscreen characters near pads for potential CAM adjustments.
- Clearly specify or confirm production identification numbering placement early.
- Review all layers for elements that may not contribute to the final board function.
- Cross-check trace-to-pad clearances in both routing and mask data for consistency.
- Validate all visual elements against factory process capabilities before submission.
FAQ
Q1: Why can't very small silkscreen features like 1mil dots be produced reliably?
A1: Process limitations in ink application and resolution make such tiny markings prone to incompleteness or invisibility on the finished board.
Q2: What problems arise when solder mask covers pads unexpectedly?
A2: Covered pads can prevent proper soldering during assembly, leading to open joints or reliability issues in the final product.
Q3: How should via cover oil requests be documented?
A3: Clearly state the requirement in fabrication notes and ensure layer data matches. Conflicts with windowed designs require explicit confirmation.
Q4: Why review silkscreen placement near pads during design?
A4: Overlapping or tight placements often need movement or removal in CAM, and early consideration prevents unexpected character loss.
Q5: What is the purpose of confirming non-functional layers?
A5: Removing irrelevant elements reduces processing complexity and potential errors during etching or imaging stages.
