Why Are Personalized Hearing Aids Essential for Patients?
In medical technology, tailoring solutions to individual patients is increasingly vital, particularly for devices like hearing aids. Every person experiences hearing loss uniquely, differing in severity, affected frequency ranges, and personal sound preferences. Generic hearing aids often fall short of fully addressing these diverse needs, highlighting the importance of personalized approaches.
Customized hearing aids offer a bespoke experience, significantly improving comfort, sound clarity, and overall usability. The core of this personalization lies in custom Printed Circuit Board (PCB) design. By developing patient-specific PCBs, manufacturers can seamlessly integrate features such as adjustable frequency responses, sophisticated noise reduction algorithms, and wireless connectivity, all while ensuring the device fits comfortably within the user's ear. This level of customization not only enriches the user's auditory experience but also boosts their confidence and overall quality of life.
How Does Custom PCB Design Facilitate Hearing Aid Personalization?
PCBs serve as the fundamental electronic framework for all electronic devices, including hearing aids, housing components responsible for sound processing, power regulation, and connectivity. For personalized hearing aids, custom PCB design enables precise control over these functions, aligning them with a patient’s specific requirements.
Adapting to Specific Hearing Profiles
For example, an individual with high-frequency hearing loss needs a device that specifically amplifies certain sound ranges. A fast turn custom PCB can be engineered to support microprocessors and Digital Signal Processing (DSP) chips that prioritize these frequencies. Similarly, patients who are sensitive to background noise benefit from PCBs integrated with advanced noise-cancellation circuitry to filter out unwanted sounds effectively.
Conforming to Unique Physical Constraints

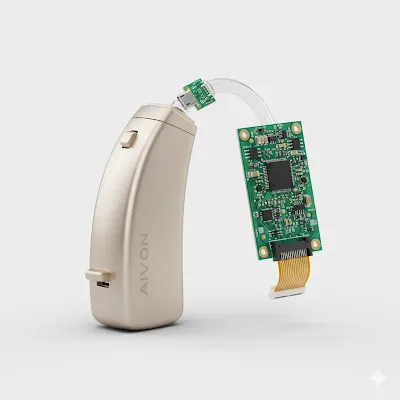

Furthermore, the physical configuration of the PCB often requires adaptation to fit within the incredibly small, custom-molded shells of hearing aids. This necessitates the use of designs in the flexible PCB or rigid-flex PCB, which can conform to irregular shapes without compromising performance. AIVON specializes in crafting such intricate designs, ensuring both optimal functionality and wearer comfort.
Key Advantages of Patient-Specific Hearing Aid PCBs
Designing PCBs with an emphasis on individual patient needs offers several significant advantages. These benefits make patient-specific PCBs indispensable for modern hearing aid technology.
● Enhanced Sound Customization: Patient-specific PCBs allow for precise sound processing, ensuring the hearing aid amplifies the correct frequencies for each user. For instance, a PCB might be programmed to boost sounds between 2,000 and 4,000 Hz—a common range for speech clarity—based on an individual’s audiogram data.
● Improved Comfort and Fit: Smaller, custom-designed PCBs enable the creation of more compact hearing aid models, reducing bulk and improving wearability, particularly for users with unique ear canal shapes.
● Optimized Power Efficiency: Given that hearing aids rely on tiny batteries, efficient power management is crucial. Custom PCBs can optimize power consumption, potentially extending battery life to 5-7 days on a single charge for some devices.
● Integration of Advanced Features: Personalized PCBs facilitate the inclusion of modern functionalities, such as Bluetooth connectivity for direct audio streaming from a smartphone or adaptive algorithms that automatically adjust to varying listening environments.
Design Variations for Individual Needs
Each patient presents a unique set of requirements, and custom PCB design offers the flexibility to create variations that precisely address these differences. Here are some common design adaptations tailored for individual hearing aid users:
Tailored Frequency Response
Hearing impairment frequently impacts specific frequency ranges. Some individuals struggle with low-frequency sounds, while others face difficulties with high-frequency tones. Custom PCBs can be engineered to support amplifiers and filters specifically targeting these ranges. For example, a PCB might incorporate a bandpass filter with a cutoff frequency between 1,000 Hz and 3,000 Hz to enhance speech sounds for a particular user.
Advanced Noise Reduction and Feedback Control
Background noise and acoustic feedback (whistling sounds) are persistent challenges for hearing aid users. Patient-specific PCBs can integrate advanced DSP chips that employ real-time algorithms to suppress unwanted noise and cancel feedback. These chips often operate at signal processing speeds of up to 100 MHz to ensure seamless and instantaneous sound adjustments.
Diverse Connectivity Options
Many contemporary hearing aids offer wireless connectivity for audio streaming or linking to mobile applications for control. Custom PCBs can incorporate low-power Bluetooth modules with impedance values carefully matched to the antenna (typically around 50 ohms) to ensure reliable signal transmission without excessive battery drain.
Form Factor Adaptation
The physical configuration of the PCB must align with the hearing aid’s form factor, which is often determined by the patient’s unique ear anatomy. Flexible PCBs or multi-layer designs can be utilized to fit into restricted spaces, with layer thicknesses as low as 0.1 mm to maintain an ultra-slim profile. Engineers should also review medical electronics design standards before finalizing custom layouts to ensure biocompatibility and reliability.
These variations ensure each device is functionally and physically unique to the individual.
Rigid, Flexible, and Rigid-Flex PCBs: Choosing the Right Type
| PCB Type | Best Use Case | Typical Dimensions | Key Advantages | Limitations |
|---|---|---|---|---|
| Rigid | Larger behind-the-ear (BTE) models | 15–25 mm length | Lower cost, easier assembly, excellent thermal performance | Limited flexibility for deep insertion |
| Flexible (FPC) | Completely-in-canal (CIC/IIC) | <10 mm × 10 mm | Conforms to irregular ear shapes, ultra-thin (0.1–0.2 mm) | Higher manufacturing complexity |
| Rigid-Flex | Premium receiver-in-canal (RIC) and hybrid designs | Variable | Combines rigidity for components with flexibility for fit; superior reliability | Higher cost, requires specialized expertise |
Rigid-flex solutions are increasingly preferred for high-end personalized hearing aids because they balance performance, durability, and ergonomic fit.
Technical Challenges and Solutions in Custom Hearing Aid PCB Design
While the benefits of personalized hearing aids are evident, designing custom PCBs for these devices presents distinct technical challenges. Engineers must overcome several hurdles to ensure optimal performance.
● Miniaturization: Hearing aids are exceptionally small, often demanding PCBs with dimensions under 10 mm x 10 mm. This necessitates high-density interconnect (HDI) designs with trace widths as narrow as 0.075 mm to accommodate all essential components. See our guide to rigid-flex PCBs for medical devices for detailed stackup and bend-radius strategies that support extreme miniaturization.
● Power Constraints: Given the limited battery capacity (frequently zinc-air batteries with voltages around 1.4V), PCBs must be engineered for ultra-low power consumption. This involves selecting components with quiescent currents in the microampere range.
● Signal Integrity: Audio signals processed by hearing aids must remain pristine and free from interference. PCB layouts must minimize crosstalk and electromagnetic interference (EMI), often achieved by employing ground planes and maintaining signal trace impedances around 50-75 ohms.
● Durability: Hearing aids are exposed to moisture and earwax, which can damage electronics. Custom PCBs frequently require conformal coatings or moisture-resistant materials to ensure a lifespan of 3-5 years under daily use.
AIVON addresses these challenges by employing advanced manufacturing techniques and rigorous testing protocols to deliver high-quality, dependable PCBs for hearing aid applications.
What Does the Future Hold for Custom Hearing Aid PCB Design?
The field of hearing aid technology is advancing rapidly, with custom PCB design at the forefront of this evolution. Emerging trends point towards even greater personalization and functionality in the coming years. For instance, integrating artificial intelligence (AI) into hearing aids could enable devices to learn a user’s listening habits and automatically adjust settings. Custom PCBs will need to support AI processors with clock speeds exceeding 200 MHz while maintaining minimal power consumption.
Moreover, advancements in 3D printing and flexible electronics are paving the way for fully customized hearing aid shells with integrated PCBs. This could potentially reduce production times and costs, making personalized hearing aids more accessible to a broader population. As these technologies mature, the significance of patient-specific PCBs will undoubtedly continue to grow.
How Does AIVON Support Custom Hearing Aid PCB Development?
AIVON is dedicated to equipping medical device manufacturers with cutting-edge PCB solutions. Our expertise in custom PCB design allows us to create patient-specific PCBs that meet the rigorous demands of hearing aid applications. From high-density layouts to flexible designs, we offer a comprehensive range of services to bring personalized hearing aids to fruition.
Our process commences with a thorough understanding of the client’s requirements, including the patient’s audiogram data and lifestyle needs. We then utilize advanced design tools to craft PCBs with precise specifications, ensuring optimal performance in sound processing, power management, and durability. With rapid prototyping capabilities and stringent quality control, we empower manufacturers to iterate quickly and confidently introduce their products to the market.
Manufacturing Process for Custom Hearing Aid PCBs
The production of patient-specific boards follows a tightly controlled workflow:
- Audiogram-Driven Design: Translate patient data into schematic and layout specifications.
- HDI Layout and Simulation: Optimize for signal integrity, power, and EMI using advanced EDA tools.
- Material Selection: Choose medical-grade polyimide or FR-4 substrates with appropriate dielectric constants.
- Fabrication: Laser drilling of microvias, precise plating, and application of flexible circuits.
- Assembly: High-precision SMT placement, underfill, and wire bonding where needed.
- Conformal Coating and Encapsulation: Apply parylene, silicone, or acrylic coatings for moisture and earwax protection.
- Testing and Validation: Electrical, acoustic, environmental stress, and biocompatibility testing under ISO 13485 protocols.
- Traceability and Certification: Full lot traceability and documentation for regulatory submission.
Biocompatibility, Coatings, and Long-Term Reliability
Custom hearing aid PCBs must withstand harsh biological environments. Medical-grade materials, combined with conformal coatings such as parylene C or specialized silicone, provide excellent barrier protection against moisture, salts, and cerumen while maintaining flexibility. Accelerated life testing typically targets 3–5 years of daily use. Surface finishes like ENIG and careful selection of components ensure both biocompatibility (ISO 10993) and consistent electrical performance over the device lifetime.
Future Trends: AI, 3D Integration, and Advanced Personalization
The next generation of custom hearing aid PCBs will integrate AI processors capable of learning user preferences and adapting in real time. 3D printed electronics and embedded component technology will further reduce size while increasing functionality. Edge AI for on-device noise suppression, health monitoring (e.g., fall detection via accelerometers), and seamless connectivity with smartphones and smart home ecosystems are becoming standard. These advancements will make personalized hearing solutions more effective, affordable, and widely accessible.
The Impact of Design on the Hearing Experience
Custom PCB design is transforming how hearing aids address individual patient needs. By prioritizing patient-specific PCBs and diverse design variations, manufacturers can create personalized hearing aids that deliver superior sound quality, enhanced comfort, and improved functionality. From frequency customization to noise reduction and wireless connectivity, the possibilities are vast when PCBs are meticulously tailored to the user.
Conclusion
Custom hearing aid PCB design represents the cornerstone of truly personalized auditory healthcare. By integrating patient-specific audiogram data, advanced DSP, flexible and rigid-flex technologies, robust coatings, and full regulatory compliance, engineers can create devices that dramatically improve sound quality, comfort, and quality of life.
As the hearing aids market continues its strong growth, manufacturers who master patient-centric PCB design will lead in innovation, clinical outcomes, and market share. The combination of technical precision, regulatory rigor, and forward-looking features ensures that personalized hearing solutions will become increasingly effective and accessible in the years ahead.
