6 Layer HDI PCB Production Record #HDI-20251208-0037

Start HDI PCB Quote

PCB Specifications

Parameter Value Parameter Value
PCB Type HDI PCB Quantity 10 pcs
Layers 6 Layers Board Type Panel PCB
Dimensions 121 x 164 mm Copper Weight 1oz
Thickness 0.8 mm Min Track / Spacing 4/4mil
Surface Finish ENIG (Immersion Gold) Min Hole Size 0.15mm
Solder Mask Green Silkscreen White
HDI Structure 2 Blind/Buried Vias No

Manufacturing Timeline

Order Created
Nov 06 00:56
Files Ready
Nov 06 00:56
Engineering Review Completed
Nov 10 09:24
Payment down
Nov 10 09:24
Production Started
Nov 10 09:24
Production Completed
Dec 04 17:13
Progress: 0/6
Engineering Review time: 4.6d
Production time: 24.4d

Logistics Information

Production Completed→Shipping : 4.1d
Carrier
FedEx IP
Destination
TURKEY
Shipping Method
Express Air
Shipping Time
Dec 08 17:56

Key Manufacturing Processes

01
Engineering Review
02
Material Preparation
03
Inner Layer Imaging
04
Circuit Imaging & Etching
05
Layer Stack Alignment
06
High Pressure Lamination
07
Sequential Lamination
08
Laser Microvia Drilling
09
Via Filling & Plating
10
Solder Mask Application
11
Electroless Nickel Deposition
12
Immersion Gold Deposition
13
Electrical Testing

Manufacturing Summary

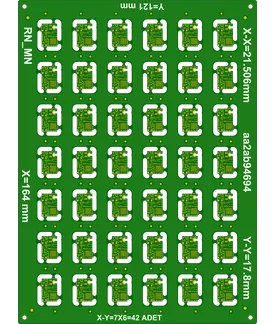

We manufactured this 6-layer HDI PCB as panels, producing a quantity of 10 units sized 121 x 164 mm with an overall thickness of 0.8 mm and 1 oz copper. The 2-step HDI structure required sequential lamination and laser microvia drilling together with via filling and plating to form the interconnections at 4/4 mil minimum track and spacing. Material preparation and custom stackup planning preceded high-pressure lamination and layer stack alignment to maintain registration across the thin construction.



Green soldermask and white silkscreen were applied prior to surface finishing. We performed electroless nickel deposition followed by immersion gold deposition to create the ENIG finish, delivering a flat, solderable surface suited to the board geometry. Final electrical testing confirmed continuity and isolation across all microvias and traces.



The 24.4-day production window allowed measured execution of each process stage, resulting in consistent panels that matched the specified HDI parameters and custom stackup without deviation.
