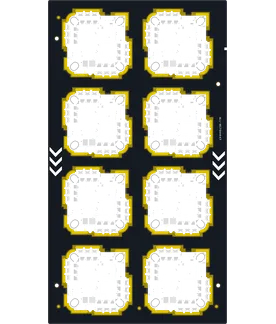

8 Layer HDI PCB Production Record #HDI-20260213-0017

Start HDI PCB Quote

PCB Specifications

Parameter Value Parameter Value
PCB Type HDI PCB Quantity 125 pcs
Layers 8 Layers Board Type Panel PCB
Dimensions 170 x 100 mm Copper Weight 1oz
Thickness 1.6 mm Min Track / Spacing 5/5mil
Surface Finish ENIG (Immersion Gold) Min Hole Size 0.15mm
Solder Mask Matte Black Silkscreen White
HDI Structure 3 Blind/Buried Vias Yes

Manufacturing Timeline

Order Created
Jan 18 09:59
Files Ready
Jan 18 09:59
Engineering Review Completed
Jan 19 11:28
Payment down
Jan 19 11:29
Production Started
Jan 19 11:29
Production Completed
Feb 12 13:53
Progress: 0/6
Engineering Review time: 1.2 d Multiple File Revisions
Production time: 24.1d

Logistics Information

Production Completed→Shipping : 1.2d
Carrier
FedEx IP
Destination
HONG KONG,CHINA
Shipping Method
Express Air
Shipping Time
Feb 13 16:56

Key Manufacturing Processes

01
Engineering Review
02
Material Preparation
03
Inner Layer Imaging
04
Circuit Imaging & Etching
05
Layer Stack Alignment
06
High Pressure Lamination
07
Sequential Lamination
08
Laser Microvia Drilling
09
Via Filling & Plating
10
Solder Mask Application
11
Electroless Nickel Deposition
12
Immersion Gold Deposition
13
Electrical Testing

Manufacturing Summary

For this HDI circuit board order, 125 panels were produced with an 8-layer construction and 3-step HDI structure incorporating blind vias. The 170 x 100 mm boards at 1.6 mm thickness utilized a custom stackup with 1 oz copper weight. Sequential lamination and laser microvia drilling were employed to achieve the required interconnects while meeting the 5/5 mil track and spacing on this tighter geometry design.



A matte black soldermask paired with white silkscreen created the specified visual finish. Immersion gold ENIG was selected as the surface finish, with electroless nickel deposition and immersion gold steps ensuring uniform coverage on pads and vias. Following via filling, plating, and solder mask application, each panel underwent thorough electrical testing to verify performance.



The production flow, spanning 24 days, maintained alignment and registration throughout the high-pressure lamination stages. This resulted in reliable delivery of the custom HDI boards that fully satisfied the technical requirements for this project.
