PCB Thickness: More Than Just 1.6 mm
What This Video Covers
PCB thickness is far more than a standard 1.6 mm default — it is a fundamental engineering parameter defined by your complete layer stack-up. This video explains how total board thickness, composed of copper foil, core materials, prepreg, and lamination, directly influences electrical and mechanical performance.
Key topics include the effects of thickness on controlled impedance, signal integrity, current-carrying capacity, board warpage, connector alignment, and structural rigidity. The content highlights why decisions made during stack-up planning — such as core selection, copper distribution, and layer count — must be addressed early rather than left as an afterthought.
Getting thickness wrong can lead to impedance mismatches, mechanical stress, enclosure fit issues, and reliability failures under real-world conditions. Proper planning ensures optimal thermal management and long-term durability across FR4 PCB, Flexible PCB, HDI PCB, and high-frequency designs.
These principles are vital for applications ranging from compact IoT devices to demanding aerospace PCB and medical devices.
Key Highlights
- Engineering Impact: PCB thickness affects impedance control, signal integrity, current capacity, warpage risk, and mechanical strength far beyond simple dimensions.
- Stack-Up Foundation: Total thickness results from core, prepreg, copper weight, layer count, and lamination choices made during early design.
- Design Integration: Define thickness requirements early alongside signal integrity analysis to prevent connector issues, stress, and reliability problems.
Understanding PCB Thickness in Layer Stack-Up Design
Total PCB thickness results from the cumulative effects of dielectric cores, prepreg layers, copper foils, and the number of layers in the stack-up. Standard 1.6 mm boards typically use combinations like 0.5–1 oz copper with specific core and prepreg thicknesses (e.g., 0.36 mm cores and 0.18 mm prepregs in a balanced 4-layer configuration). Custom thicknesses, such as 0.8 mm for compact devices or 2.0–3.2 mm for high-rigidity applications, require precise material selection during the initial design phase.
In manufacturing, lamination pressure, temperature profiles, and resin flow directly affect final thickness uniformity. Variations in prepreg resin content or copper distribution can lead to deviations outside typical tolerances (±0.1–0.2 mm for standard boards, wider for thicker ones). Early stack-up definition allows CAM engineers to verify compatibility with fabrication processes, including drilling aspect ratios and plating uniformity.
Engineering Impacts of Non-Standard PCB Thickness
PCB thickness significantly influences controlled impedance. Thicker dielectrics increase trace-to-plane spacing, requiring wider traces for the same impedance target (e.g., 50Ω), which affects routing density. In high-frequency designs, inconsistent thickness across the panel can cause impedance variations exceeding ±10% tolerances, leading to signal reflections and integrity issues.
Mechanically, thicker boards provide greater rigidity and better resistance to bending but increase warpage risk due to CTE mismatches during thermal cycling. Thinner boards suit flexible or space-constrained applications yet may suffer from reduced current-carrying capacity and higher susceptibility to vibration-induced fatigue. Connector alignment and enclosure fit also depend on precise thickness control to avoid assembly stress.
Thermal management benefits from optimized thickness through improved heat spreading in thicker copper-clad constructions, while excessive thickness can hinder heat dissipation in densely packed assemblies.
Common Manufacturing Challenges and Failure Modes

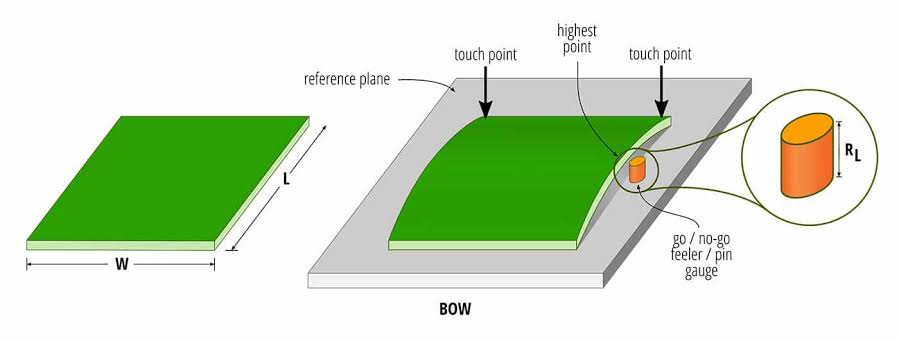

Uneven copper distribution or asymmetrical stack-ups frequently cause board warpage or bow, complicating SMT processes and leading to solder joint failures. Thick boards challenge high-aspect-ratio drilling, increasing risks of hole breakout, plating voids, or incomplete copper deposition. Thinner boards risk delamination or tear during handling and routing.
Real production cases show that ignoring material-specific thickness effects in HDI or flexible PCBs results in impedance mismatches, reduced yield, and field reliability problems such as intermittent connections under thermal stress. Panelization choices, including V-cut or tab-routing depth, must also account for final thickness to prevent edge damage.
DFM Best Practices for Optimal Thickness Selection
Collaborate with manufacturers early to define stack-up based on impedance requirements, mechanical constraints, and process capabilities. Use symmetrical designs with balanced copper weights on opposite layers to minimize warpage. Select core and prepreg combinations that achieve target thickness while maintaining dielectric constants suitable for signal integrity.
Specify tolerances clearly and request stack-up drawings for review. For multilayer boards, verify via aspect ratios (typically <10:1) against chosen thickness. Consider copper weight impacts on etching and plating, opting for 1 oz outer layers in most cases unless high-current demands dictate otherwise.
Thickness Selection Guide
| Thickness (mm) | Typical Applications | Key Considerations | Common Layer Counts |
|---|---|---|---|
| 0.8–1.2 | IoT, wearables, compact devices | High density routing, flexibility | 2–6 layers |
| 1.6 | General electronics, standard designs | Balanced performance and cost | 4–8 layers |
| 2.0–3.2 | Aerospace, industrial, high-power | Rigidity, thermal management, durability | 6–12+ layers |
Applications Across Industries and PCB Types
In aerospace and medical devices, custom thicker boards ensure structural integrity under extreme conditions, vibration, and thermal cycling. Flexible PCBs often use thinner constructions (0.2–0.8 mm) for dynamic bending reliability, while HDI designs balance microvia depth with overall thickness for density. Industrial and automotive applications prioritize thicker profiles for current handling and mechanical robustness.
Proper thickness planning supports long-term reliability across these sectors by mitigating risks from environmental stressors and assembly processes.
FAQ
Q1: Why does PCB thickness matter beyond the standard 1.6 mm?
A1: Thickness influences impedance matching, board warpage, mechanical durability, connector fit, and current handling. Incorrect choices can cause signal integrity issues and field failures.
Q2: How does layer stack-up determine final PCB thickness?
A2: Stack-up defines total thickness through core material, prepreg layers, copper weights, and overall layer count. Early planning ensures the board meets both electrical and mechanical requirements.
Q3: When should I specify custom PCB thickness?
A3: Specify custom thickness early when standard 1.6 mm does not meet impedance, rigidity, thermal, or enclosure constraints — especially for high-frequency, HDI, or space-limited designs.
Q4: What are common causes of PCB warpage related to thickness?
A4: Asymmetrical copper distribution, unbalanced stack-ups, or improper lamination parameters lead to warpage. Thicker boards amplify CTE mismatch effects during reflow or thermal cycling, potentially causing assembly defects or reliability failures. Balanced symmetric designs and early DFM review mitigate these risks.
Q5: How does PCB thickness affect controlled impedance in multilayer boards?
A5: Dielectric thickness between signal traces and reference planes directly determines characteristic impedance. Variations in total board thickness or layer spacing require trace width adjustments. Manufacturers recommend verifying stack-up with impedance calculators and requesting test coupons for validation.
Why can 0.2 mm decide if your PCB works — or fails?
PCB thickness isn't just a number.
It's the total height of your board — copper plus dielectric — from top to bottom.
It comes from your stack-up.
Core selection.
Prepreg lamination.
Copper distribution.
Layer count.
And even standards like the common 1.6 mm baseline.
Get it wrong?
You risk impedance mismatch.
Board warpage.
Connector misalignment.
Mechanical stress.
Thickness also affects current capacity, controlled impedance, structural strength, and enclosure fit.
So don't leave it for later.
Define PCB thickness early — with stack-up planning and signal integrity analysis.
Because PCB thickness isn't just a dimension.
It's an engineering decision.
