USB Type-C Connector Removal: Professional Rework Techniques
What This Video Covers

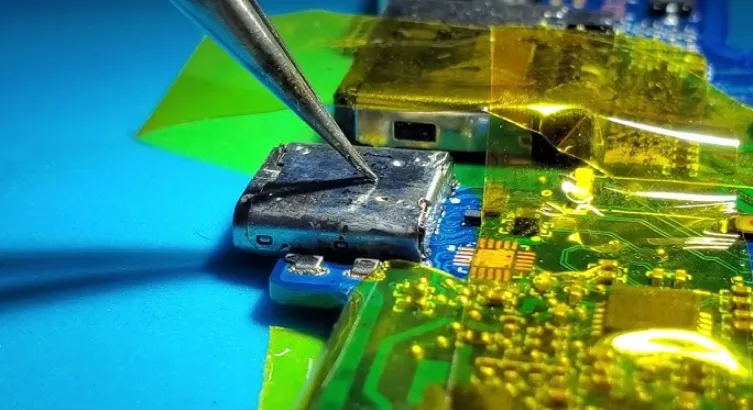

This video demonstrates safe plastic connector removal during PCB rework and repair. It focuses on the critical balance of temperature and exposure time to prevent melting while achieving clean separation from pads and traces.
The content highlights engineering best practices that protect multilayer, HDI, and rigid-flex board structures, preserving signal integrity and long-term reliability. Proper connector removal is essential when modifying or repairing high-value assemblies used in aerospace, automotive electronics, medical devices, and industrial control systems.
OEM engineers and repair teams will gain actionable insights for minimizing damage during rework. For pricing on assembly or rework projects, request an instant PCB assembly quote or explore full PCB assembly services.
Key Highlights
- Strict temperature and time control prevents melting of plastic connectors while protecting pads, traces, and underlying layers on multilayer and HDI PCBs.
- Clean removal techniques minimize mechanical stress and maintain board integrity for reliable performance in aerospace, automotive, and medical electronics.
- These methods support high-yield rework and repair of industrial control and IoT assemblies without compromising signal integrity or thermal management.
Understanding Thermal Challenges in PCB Plastic Connector Removal
Plastic connectors in modern PCBs often use materials such as PA, PBT, or LCP that have relatively low glass transition temperatures. During removal, excessive heat can cause housing deformation, pin misalignment, or contamination of solder joints. In multilayer and HDI constructions, prolonged heat exposure risks via delamination, pad lifting, and inner-layer separation, particularly in boards with high copper weights or dense via arrays.
Real production environments show that even minor overheating—often by 20–30°C above optimal—can initiate micro-cracks in FR-4 laminates or weaken plated through-holes. These defects may pass initial visual inspection but lead to field failures under thermal cycling or vibration, common in automotive and aerospace applications. Effective DFM requires early consideration of connector types, housing profiles, and pin densities to facilitate future rework.
Key Process Parameters for Damage-Free Connector Extraction
Successful PCB plastic connector removal depends on precise control of hot-air temperature, airflow rate, nozzle selection, and dwell time. Typical recommended settings range from 280–320°C with low-to-medium airflow for most connectors, adjusted according to housing size and board thermal mass.
Connector Removal Parameters
| Connector Type | Recommended Temperature (°C) | Max Exposure Time (s) | Preferred Tool | Key Risk if Exceeded |
|---|---|---|---|---|
| Standard 2.54mm Pin Headers | 280–300 | 8–12 | Hot-air station with 5–7mm nozzle | Housing melt, pad lift |
| High-Density Board-to-Board | 290–310 | 6–10 | Precision hot-air with preheater | Via damage, trace delamination |
| Automotive-grade Sealed Connectors | 300–320 | 10–15 | IR-assisted rework system | Moisture-induced popcorning |
| Rigid-Flex Assemblies | 270–295 | 5–8 | Low-temperature hot-air | Flex layer separation |
Preheating the entire board to 100–120°C significantly reduces localized thermal shock and improves removal success rates.
Step-by-Step Safe Removal Methods for Multilayer and HDI Boards
Begin by documenting connector orientation and surrounding components. Apply flux to solder joints and use a preheater to stabilize board temperature. Direct controlled hot air at the connector pins while gently applying minimal mechanical assistance once solder reaches liquidus. Avoid prying before full reflow to prevent trace tearing.
Post-removal, clean residual solder with wick or vacuum desoldering tools, then inspect pads and vias under magnification for cracks or lifting. For HDI boards, X-ray or flying-probe testing may be necessary to verify inner-layer integrity. These procedures maintain the original design intent and support repeated rework cycles when required by engineering change orders.
Common Failure Modes and Prevention Strategies
The most frequent issues include partial melting of connector housings that leaves residue on pads, lifted pads due to excessive force, and hidden delamination that appears only during functional testing or environmental stress screening. Prevention centers on strict adherence to documented thermal profiles, operator training, and use of calibrated equipment.
DFM recommendations include specifying rework-friendly connector footprints with adequate clearance and thermal reliefs where possible. In high-volume production, implementing automated optical inspection (AOI) after rework helps catch subtle defects early.
Industry-Specific Considerations for High-Reliability Applications
Aerospace and medical device assemblies often require full process validation, including thermal profiling reports and traceability of rework tools. Automotive applications under IATF 16949 emphasize zero-defect goals, making controlled PCB plastic connector removal critical for warranty performance. Industrial systems benefit from these techniques to extend product life in harsh environments.
FAQ
Q1: Why is flux and even heating critical when removing USB Type-C connectors?
A1: USB Type-C connectors have high thermal mass. Proper flux activation and uniform heating prevent cold joints, pad damage, or board delamination during removal.
Q2: What is the best way to clean pads after USB-C connector removal?
A2: Use a soldering iron and high-quality solder wick to thoroughly remove residual solder, creating flat, pristine pads that ensure excellent alignment and soldering quality for the new connector.
Q3: Can improper USB Type-C rework damage the PCB?
A3: Yes. Forcing the connector, uneven heating, or insufficient flux can cause lifted pads, trace damage, or delamination — especially on multilayer or high-density boards.
Q4: What temperature range is typically used for USB Type-C connector removal?
A4: Hot air stations are generally set between 350–400°C for lead-free solder alloys, with precise airflow control. Always reference the specific solder paste and connector manufacturer guidelines to avoid exceeding the PCB material’s glass transition temperature (Tg).
Q5: How does proper USB Type-C rework impact PCBA reliability?
A5: Correct techniques preserve pad geometry and surface finish, enabling strong mechanical anchorage and low-resistance electrical connections in the replacement component. This is particularly important for high-vibration or thermal-cycling environments such as automotive and industrial applications.
USB Type-C rework is a masterclass in thermal management. To remove a connector the right way, start with high-quality flux and a professional hot air station. Because of the high thermal mass, even heating is essential. Once the solder reaches its liquidus state, lift the connector gently—never force it.
Next comes the critical prep: using a soldering iron and premium solder wick, we carefully wick away the residual solder. This leaves the pads perfectly flat and pristine, ensuring a flush seat for the replacement component. Precision removal followed by meticulous cleaning—that's how you guarantee a reliable, long-lasting repair.
