PCB Panelization: Optimizing Small Board Production for Cost and Efficiency
What This Video Covers
Small individual PCBs often cost far more than expected because factories process them one-by-one, making each drilling, plating, solder mask, and assembly step inefficient. This video explains PCB panelization — the standard manufacturing technique of combining multiple boards into a single larger panel for simultaneous processing.
The content covers the two primary depaneling methods: V-cut (ideal for straight, regular boards and high-volume runs due to speed and low cost) and mouse bites (better for irregular shapes or when components sit near the edge, offering reduced mechanical stress at a slightly higher price).
Viewers learn critical design considerations including assembly stability, routing clearance, fiducials, tooling holes, and preventing board cracking during separation. Proper panelization planning is a key part of Design for Manufacturability (DFM) and directly impacts yield and reliability.
These practices are vital whether producing simple FR4 PCB prototypes or scaling complex multilayer boards for aerospace, automotive electronics, or medical devices.
Key Highlights
- Cost Efficiency: Panelization allows factories to process multiple boards together, significantly reducing per-unit fabrication and assembly costs compared to single small PCBs.
- Depaneling Methods: V-cut offers fast, low-cost separation for straight boards, while mouse bites provide flexibility and lower stress for complex or edge-sensitive designs.
- Manufacturability Impact: Good panelization affects assembly stability, clearances, fiducials, and prevents damage during depaneling — essential for reliable production.
Why Single Small PCBs Drive Up Manufacturing Costs
Processing tiny individual boards leads to disproportionate setup costs and reduced equipment utilization. Each board requires individual handling through CNC drilling, electroless plating, imaging, etching, solder mask application, and surface finishing, resulting in higher per-unit time and material overhead. Factories often apply minimum panel size charges or treat small orders as low-efficiency runs, inflating pricing significantly even for prototypes.
In high-mix, low-volume scenarios common in IoT and medical devices, single-board fabrication also complicates SMT assembly. Pick-and-place machines and reflow ovens achieve optimal throughput on standardized panels, while loose small boards increase alignment errors, vacuum issues, and handling damage. These inefficiencies compound across the production chain, directly affecting final pricing and lead times.
Understanding Panelization in PCB Fabrication

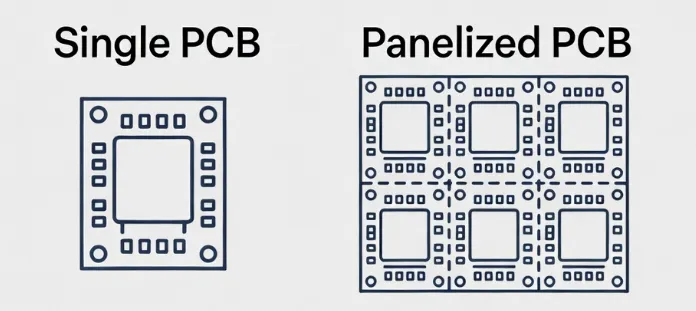

PCB panelization arranges multiple identical or different boards onto a larger production panel, typically framed with rails for automated handling. This approach maximizes material utilization from standard laminate sheets (e.g., 18” x 24” or 24” x 36”) and enables batch processing through all fabrication steps. Panelization is fundamental to both prototype runs and mass production, directly supporting economies of scale.
Key panel elements include breakaway tabs or scoring, fiducial markers for precise alignment, and tooling holes for secure fixturing during assembly. Proper panelization also incorporates copper balancing, thermal relief considerations, and sufficient clearance between boards to accommodate routing or V-grooving tools.
V-Cut vs Mouse Bites: Choosing the Right Depaneling Method
V-Cut (V-Scoring) creates angled grooves on both sides of the panel, allowing clean snap separation along straight lines. It is the most cost-effective and fastest method for rectangular boards with aligned edges, minimizing post-processing labor in high-volume runs. However, it introduces mechanical stress and requires minimum distances from components and traces.
Mouse Bites (Tab Routing or Perforated Tabs) use small drilled holes connected by narrow tabs, offering greater design flexibility for irregular shapes or boards with components near edges. This method reduces stress on sensitive areas but requires additional routing time and leaves small rough edges that may need cleaning.
Depaneling Method Comparison
| Depaneling Method | Best For | Cost Level | Mechanical Stress | Shape Flexibility | Typical Applications |
|---|---|---|---|---|---|
| V-Cut | Straight rectangular boards | Low | Higher | Low | Consumer electronics, high-volume |
| Mouse Bites | Irregular or edge-sensitive designs | Medium-High | Lower | High | Medical devices, IoT modules |
Critical DFM Considerations for Reliable Panel Design
Effective panelization requires careful attention to board spacing, tab placement, and fiducial positioning. Fiducials must be placed on the panel rails and individual boards for accurate SMT alignment. Tooling holes ensure stable clamping during wave soldering or selective processes. Designers should maintain adequate clearance (typically 5-10 mm) between boards for depaneling tools and account for material shrinkage or warpage in multilayer stacks.
Additional factors include panel thickness consistency, copper distribution for even etching, and orientation to optimize solder flow. Ignoring these can lead to misalignment, incomplete solder joints, or board damage during separation.
Real-World Production Challenges and Failure Prevention
Common issues in poorly panelized designs include board cracking during manual or automated depaneling, especially near V-cuts close to fragile components or in rigid-flex constructions. Insufficient tab strength may cause premature separation during assembly, while overly robust tabs can induce stress fractures in mouse bite designs.
Other risks involve fiducial misalignment causing placement errors, inadequate routing clearance leading to trace damage, and panel warpage affecting solder mask registration. Manufacturers frequently encounter these in prototypes transitioning to production, resulting in yield drops and costly redesigns.
To mitigate, conduct thorough DFM reviews focusing on panel layout, perform sample depaneling tests, and specify clear instructions for breakaway methods. Collaboration with the fabricator early in the design phase prevents most issues.
Best Practices for High-Yield Panelization in Modern Applications
For IoT, medical, and industrial devices, prioritize standardized panel sizes compatible with assembly lines. Use 3D modeling to simulate depaneling forces and thermal profiles. In high-reliability applications, prefer mouse bites near sensitive MEMS sensors or fine-pitch components. Always verify annular ring integrity and solder mask bridge clearances around panel features.
Implementing these practices consistently improves first-pass yields, reduces scrap rates, and shortens time-to-market for complex electronics.
FAQ
Q1: When does panelization make sense for small PCB orders?
A1: Panelization is highly recommended even for low quantities or prototypes, as single-board fabrication incurs high setup costs. It becomes even more valuable when scaling to medium or high-volume production.
Q2: What is the difference between V-cut and mouse bites?
A2: V-cut is cheaper and faster for straight-edged rectangular boards but adds more mechanical stress. Mouse bites offer greater flexibility for irregular shapes and protect sensitive components near edges, though at a higher cost.
Q3: How does panelization affect PCB assembly?
A3: Proper panelization improves assembly stability during SMT processes, ensures correct fiducial placement, and reduces risk of board damage or cracking during depaneling, leading to higher yields.
Q4: How does panelization impact lead time and prototyping?
A4: Well-designed panels shorten overall lead times by enabling batch processing and reducing individual handling. For rapid prototyping, panelization with shared tooling allows multiple design iterations on one panel, accelerating validation while controlling costs.
Q5: What are common mistakes in PCB panelization design?
A5: Frequent errors include placing V-cuts too close to components (risking damage from stress), insufficient tab strength causing early separation, missing or misplaced fiducials, and ignoring copper balancing which leads to etching inconsistencies. Always maintain manufacturer-recommended clearances and perform DFM checks.
Why does a single small PCB sometimes cost more than you expect?
Because fabricating boards one by one is inefficient.
Panelization combines multiple PCBs into one larger panel,so drilling, plating, solder mask, and reflow are processed together.
This makes production faster, cheaper, and more consistent.
After assembly, boards are separated using V-cut or mouse bites.
V-cut suits straight, regular boards and high-volume production,but adds more mechanical stress during depaneling.
Mouse bites work better for curved or irregular shapes, especially when components sit near the edge,reducing stress at higher cost.
What beginners often miss is that panelization affects assembly stability, clearances, and even whether boards crack.
Good panelization is part of good manufacturability.
