Why Flexible PCBs Need Stiffeners: Factory Guide to Controlled Rigidity
Key Moment
- 0:00 Intro: Why flexible circuits need stiffeners
- 0:23 Connectors: Rigidity for ZIF & board-to-board
- 0:40 SMT assembly: Preventing warpage during reflow
- 0:58 Mechanical durability: Protecting high-stress areas
- 1:16 Materials: Polyimide (PI) stiffeners
- 1:39 Materials: FR4 and stainless steel
- 2:05 Design trade-offs & closing
What This Video Covers
This factory video explains why flexible PCBs require localized stiffeners even though the circuits themselves are designed to bend. It shows how stiffeners deliver precise control over bend zones rather than making the entire board rigid. Key coverage includes three primary use cases: providing structural support and correct thickness for ZIF or board-to-board connectors, creating a flat stable platform during high-speed SMT pick-and-place and reflow soldering, and absorbing mechanical impact at push buttons, battery terminals, and mounting points to protect copper traces from fatigue cracking.
The video then examines the three most common stiffener materials—polyimide (PI) for thin, lightweight strength, FR4 for cost-effective rigidity under heavy components, and stainless steel for ultra-thin maximum stiffness plus optional grounding or thermal paths. Application methods range from automated high-volume alignment to manual fixture-based placement for prototypes and complex geometries. Engineers designing custom flex PCB assemblies or requesting a Flex PCB quote will gain practical DFM insight into balancing thickness, rigidity, thermal resistance, and cost. The same principles also apply when stiffeners support PCB assembly of components on flexible substrates used in medical devices, automotive electronics, and industrial control systems.
Key Highlights
- Stiffeners do not rigidize the entire flexible PCB; they create exact zones of controlled rigidity for connectors, SMT components, and high-stress mechanical interfaces while preserving intended bend areas.
- Material choice is application-driven: PI for minimal thickness and weight, FR4 for economical support under large connectors and heavy parts, and stainless steel for maximum stiffness in ultra-thin packages plus secondary electrical or thermal functions.
- Successful application depends on process: automated high-precision placement for volume production versus skilled manual fixture alignment for prototypes and tight-tolerance or complex-geometry designs.
Where Stiffeners Solve Critical Flex Circuit Challenges
Flexible circuits are engineered for dynamic or static bending, yet many functional areas demand the opposite behavior. Without localized reinforcement, the thin polyimide substrate and copper traces cannot withstand the forces encountered during connector mating, component assembly, or field use.
Connector insertion is the most common driver. ZIF connectors and board-to-board systems require a defined thickness and a flat, non-compliant surface so pins make reliable contact. A bare flex tail simply buckles or folds under insertion force, producing intermittent or open circuits. A stiffener restores the necessary rigidity and thickness tolerance exactly where the connector engages.
SMT assembly creates a second set of stresses. High-speed pick-and-place machines and reflow ovens subject the flexible substrate to rapid temperature changes and mechanical handling. Warpage or twisting during reflow can lift pads, cause solder bridging, or induce stress fractures in fine-pitch ICs, resistors, and LEDs. A properly placed stiffener turns the local area into a stable, planar platform that behaves like a conventional rigid board during assembly.
Mechanical durability is the third critical function. Areas that experience repeated contact—push-button zones, battery terminals, screw mounting points, or edge connectors—transmit impact and vibration directly into the copper. Over time this cyclic loading produces fatigue cracks. A stiffener acts as a local strain-relief structure, absorbing and distributing the energy before it reaches the conductive traces.
Stiffener Materials Compared: Polyimide, FR4, and Stainless Steel
Material selection is never about finding a single "best" option; it is a multi-variable trade-off among thickness, stiffness, thermal performance, weight, and cost.
| Material | Typical Thickness Range | Relative Rigidity | Key Advantages | Typical Use Cases | Relative Cost |
|---|---|---|---|---|---|
| Polyimide (PI) | 0.05–0.25 mm | Medium | Thin, light, thermally stable, easy to laser-cut | High-density flex, weight-sensitive designs, automated volume production | Medium |
| FR4 | 0.2–1.6 mm | High | Low cost, familiar processing, good flatness | Large connectors, heavy SMT components, cost-sensitive projects | Low |
| Stainless Steel | 0.05–0.3 mm | Very High | Extreme stiffness in minimal thickness, wear resistance, optional grounding/thermal path | Ultra-thin packages, high-wear interfaces, EMI or heat-spreading needs | High |

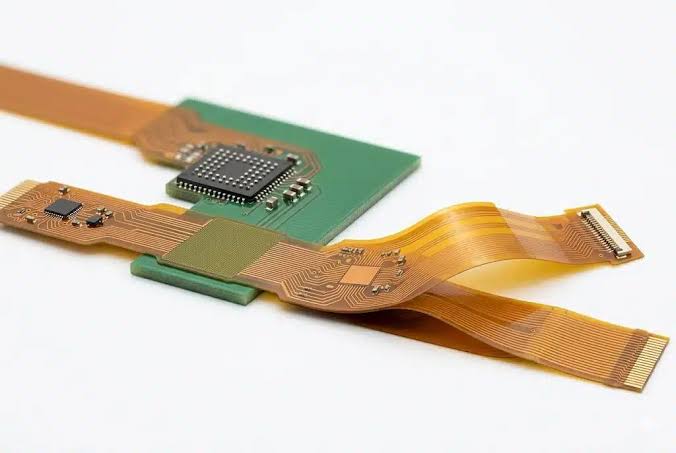

Polyimide remains the most frequently applied stiffener on the shop floor because it adds strength with almost no increase in overall stack height or weight. Automated vision systems can place and bond PI stiffeners at high throughput with excellent registration. FR4 is chosen when maximum rigidity is required under large connectors or heavy components and cost is a primary constraint; it is the same laminate used in conventional rigid boards, so process knowledge is already high. Stainless steel is reserved for designs that demand extreme stiffness in the thinnest possible profile or that can benefit from the metal’s secondary electrical or thermal conductivity.
How Stiffeners Are Applied in High-Volume and Prototype Production
In high-volume manufacturing, stiffener application is fully automated. Vision-guided systems align the stiffener to registration marks on the flex panel, apply adhesive (often pressure-sensitive or thermally activated), and press the assembly under controlled force and temperature. Cycle times are measured in seconds and placement accuracy is typically held to ±0.05 mm or better.
Prototype and low-volume runs, or designs with irregular geometries and tight clearances, still rely on skilled technicians. Alignment fixtures, optical microscopes, and manual pressure application remain common. The same adhesive systems are used, but process control depends more heavily on operator training and fixture design. Regardless of volume, the bond interface must be free of voids, bubbles, and contamination; any defect becomes a stress riser that can initiate delamination later in the product life cycle.
FAQ
Q1: When is an FR4 stiffener preferred over polyimide on a flexible PCB?
A1: FR4 is selected when the design requires higher absolute rigidity under large connectors or heavy SMT components and when cost is a stronger constraint than minimum thickness or weight. It is also useful when the stiffener thickness must match a standard rigid-board stack-up for mechanical mating.
Q2: Can stainless-steel stiffeners be used for both mechanical support and electrical grounding?
A2: Yes. Because the metal is conductive, many designs bond the steel stiffener to a ground plane or shield layer, providing simultaneous structural reinforcement and a low-impedance grounding or thermal path. Proper isolation or intentional connection must be defined in the stack-up.
Q3: What is the most common cause of stiffener-related failures in flexible circuits?
A3: Delamination or edge cracking caused by voids in the adhesive bond, abrupt thickness transitions, or insufficient strain relief at the stiff-to-flex interface. These defects appear during thermal cycling, repeated bending, or mechanical shock.
Q4: How does stiffener thickness affect ZIF connector performance?
A4: ZIF connectors specify a narrow thickness window for the inserted tail. The stiffener must bring the local stack-up into that window with tight tolerance; too thin and contact force is lost, too thick and insertion becomes impossible or damages the connector.
Q5: Are stiffeners compatible with high-volume SMT assembly of flexible PCBs?
A5: Yes. When correctly designed and applied, stiffeners create the flat, dimensionally stable zones required for reliable pick-and-place and reflow. Without them, warpage under heat frequently causes solder defects and yield loss.
If flexible circuits are designed to bend... why do engineers intentionally make parts of them completely rigid?
Here's the reality: A stiffener doesn't make the entire board rigid. It gives you precise control over EXACTLY where it can—and cannot—bend.
Today, we're inside the factory to look at why flexible circuits need stiffeners, how different materials work, and how they're actually applied.
So where do stiffeners actually help?Let's start with connectors. Inserting an FPCB into a ZIF connector or mating a board-to-board connector requires structural rigidity and precise thickness. Without a stiffener, the flex material would simply buckle under pressure, leading to poor pin contact.
Another major reason is SMT assembly.During high-speed pick-and-place and reflow soldering, flexible substrates can warp or twist under high heat. Adding a stiffener creates a flat, stable platform so components like ICs, resistors, and LEDs solder flawlessly without bridging or stress fractures.
And finally, there's mechanical durability. In areas subject to mechanical impact—like push buttons, battery terminals, or mounting points—a stiffener absorbs physical strain, preventing the fragile copper traces inside from fatigue and cracking.
So, what are these stiffeners made of? The most common material you'll see on the shop floor is Polyimide, or PI.
PI stiffeners add mechanical strength with minimal thickness and weight. In high-volume production, automated alignment systems can apply PI stiffeners with high precision.
However, for low-volume prototypes, complex geometries, or tight-clearance designs, skilled technicians apply them manually using precise alignment fixtures.
When maximum rigidity at a lower cost is needed, we use FR4. It's the same material used in standard rigid PCBs. FR4 stiffeners provide solid structural support under large connectors and heavy SMT components.
For ultra-thin spaces that demand extreme stiffness, Stainless Steel is the answer. Even at just a fraction of a millimeter thick, steel stiffeners offer unmatched rigidity and wear resistance. In some designs, metal stiffeners can also provide grounding or thermal pathways.
As an engineer, choosing the right stiffener isn't about finding the 'best' material—it's a constant balance between thickness, rigidity, thermal resistance, and manufacturing cost.
Flexible circuit design isn't just about making things bend—it's about mastering where to stay rigid.
