In production we treat FR4 PCB copper foil peeling as an adhesion failure that is stopped before the panel leaves the press. Process and CAM engineers lock the copper surface treatment chemistry and the lamination bond-line parameters so measured peel strength stays above the internal minimum—normally 1.0–1.4 N/mm for 1 oz foil. Most factories run daily peel coupons from every oxide or alternative treatment lot and reject any batch that falls short before it reaches lay-up. When the treatment or the press cycle drifts, the lot is held and the chemistry or pressure profile is corrected before the next panel is run.
Where the Copper-to-Resin Interface First Loses Strength

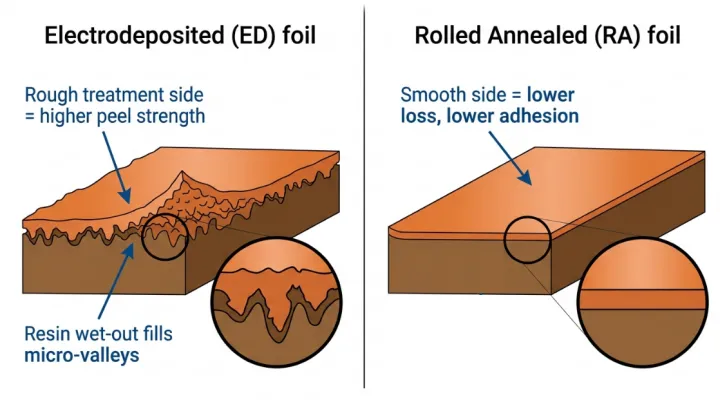

The bond between copper foil and FR4 resin depends entirely on the surface treatment applied to the foil. Standard electrodeposited copper carries a thin oxide or alternative adhesion layer that must chemically react with the resin during lamination. If that layer is incomplete, contaminated by fingerprints or process residues, or degraded by long storage in humid conditions, the interfacial strength drops. From a fabrication standpoint this is the primary origin of FR4 PCB copper peeling. Thermal expansion mismatch between copper and the resin matrix adds shear stress every time the panel is heated—whether in the press, during solder-mask cure, or at reflow. Mechanical stress from drilling, routing, or depaneling can open any weak interface that the thermal cycle has already loosened. These process realities force copper foil delamination PCB issues to appear even when the raw materials look acceptable on the incoming certificate.
Resin content and flow also matter. Low-resin prepregs or incomplete wetting leave microscopic voids at the copper surface; those voids become stress concentrators under later thermal load. Overly aggressive etching or micro-etch steps before oxide treatment can undercut the treatment layer and reduce the effective bond area. All of these factors sit inside the production flow, not in the design file.
What Happens When Peel Strength Falls Below the Process Limit
When adhesion is marginal, the board may pass initial electrical test yet fail later. During reflow or wave soldering the copper lifts, creating open circuits or intermittent contacts. In the field the same weak interface can open under thermal cycling or vibration, producing latent field failures that are expensive to diagnose. At the factory the defect usually surfaces during thermal-stress sampling or peel testing of coupons; by then the panel has already consumed plating, mask, and surface-finish capacity. Scrap rates rise and the press schedule is disrupted while the root cause is traced back to the treatment line or the lamination recipe. Copper foil delamination PCB problems therefore carry both yield loss and shipment delay.
How the Treatment Line and Press Keep Peel Strength Inside Spec

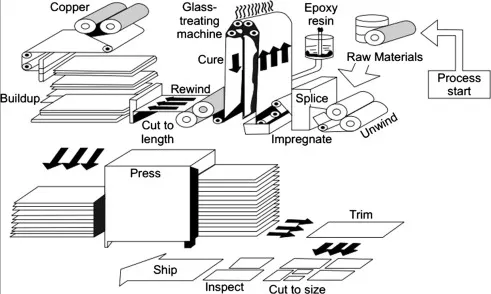

Most factories start with strict control of the copper surface treatment bath—black oxide, brown oxide, or alternative adhesion promoters. Concentration, temperature, immersion time, and rinse quality are locked to a documented window; any drift outside that window stops the line until the bath is corrected. Incoming foil is checked for treatment uniformity and shelf life. During lay-up the prepreg resin content is matched to the copper topography so full wetting occurs under the press cycle. Lamination pressure and temperature profiles are set to drive resin into the treated copper surface without generating excessive flow that could starve the bond line. Materials are pre-baked to remove moisture that would otherwise create vapor pressure at the interface.
Daily peel-strength coupons are taken from every treatment lot and every press load. If the measured value falls below the internal limit, the lot is quarantined and the chemistry or press recipe is adjusted before the next run. For thicker copper or high-layer-count boards the treatment time or the alternative adhesion chemistry is increased to maintain the same peel strength. These closed-loop controls are what keep FR4 PCB copper peeling from becoming a recurring defect on the production floor.
When the Factory Can Accept a Lower Peel-Strength Margin
Not every board requires the highest adhesion margin. Low-temperature applications that never see reflow above 200 °C and have no mechanical stress from connectors or vibration can run with the standard treatment and a slightly reduced sampling rate. Prototype lots that will not enter high-reliability qualification are sometimes allowed a lower peel-strength floor provided the customer accepts the residual risk. The trade-off is clear: shorter treatment time and lower process cost against a higher probability of later peeling under thermal or mechanical load. Once the design moves into volume production with automotive, industrial, or high-reliability requirements, the full treatment control and peel-test frequency are restored.
