In production we treat FR4 PCB resin flow as the controlled movement of molten resin from the prepreg into the copper features and inter-layer voids during the lamination cycle. CAM and process engineers set the target flow so that every copper track is fully encapsulated, every clearance is filled, and the final dielectric thickness stays inside ±10 % of nominal. When prepreg resin flow PCB is either excessive or insufficient we see thickness variation, voids or resin starvation on the micro-section. Most multilayer jobs are released only after the first-article cross-section confirms uniform fill and the correct residual resin content.
What Resin Flow Actually Does Inside the Press
Once the press reaches the resin melt temperature the prepreg softens and the resin viscosity drops sharply. Under applied pressure the liquid resin is forced laterally into the etched copper pattern and vertically into any low spots. The glass cloth remains largely stationary while the resin migrates. Flow stops when the resin gels and the cross-link reaction locks the geometry. The amount of movement is measured as the percentage of resin that leaves the original prepreg area and fills the surrounding features. Typical values for standard FR4 prepreg run 15–30 % depending on resin content, glass style and copper density.
How Prepreg Resin Content Sets the Available Flow Volume

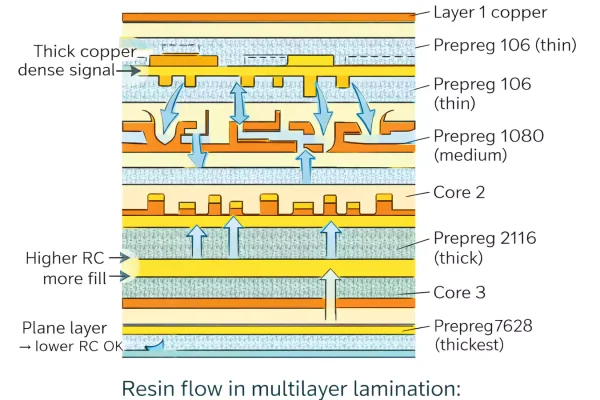

Resin content (RC) is the single largest material variable. A 1080 prepreg at 55 % RC carries far more flowable resin than the same style at 42 % RC. High-RC prepregs are chosen when the copper is dense or the clearances are narrow; low-RC materials are used for thin-core constructions where excess resin would increase thickness beyond tolerance. Glass style also matters: open weaves such as 106 or 1080 allow easier resin escape, while tight weaves such as 2116 or 7628 restrict lateral flow. Process engineers match the RC and glass style to the copper percentage on the adjacent layers so the final pressed thickness lands on the design value.
Copper area directly competes with the resin. Large solid planes act as dams that block lateral flow; sparse signal layers act as open channels that let resin travel farther. When one side of a core has 80 % copper and the opposite side only 20 %, resin is driven toward the open side and can leave the dense side starved. That imbalance is one of the most common sources of local thickness variation and voids in multilayer stacks.
What Goes Wrong When Resin Flow Is Excessive or Insufficient
Excessive flow pushes too much resin out of the prepreg, leaving the glass cloth resin-starved. The result is dry spots, poor bonding, measling after thermal stress, and dielectric thickness that falls below the minimum. In extreme cases the glass cloth can even touch the copper on the opposite side, creating a low-impedance path or CAF risk. Insufficient flow leaves unfilled clearances and air voids between traces. Those voids expand during subsequent reflow or thermal cycling, producing delamination, blistering or intermittent opens. Both conditions are caught on the first-article micro-section; if they appear across the panel the entire lot is at risk of scrap.
Thickness variation is the most immediate production impact. A 20 µm local difference in dielectric can shift controlled-impedance traces outside tolerance and cause registration problems on subsequent outer-layer imaging. Yield loss shows up as delamination rejects after thermal shock or as electrical failures on nets that cross a voided area.
How the Factory Controls Resin Flow During the Lamination Cycle
Material selection is the first control. We stock prepregs in multiple RC grades and assign them according to the copper density map generated by CAM. For high-copper layers we choose higher RC or multiple plies; for open layers we drop to lower RC to avoid excess thickness. Copper thieving or dummy fill is added on sparse layers so the flow demand is balanced across the panel.

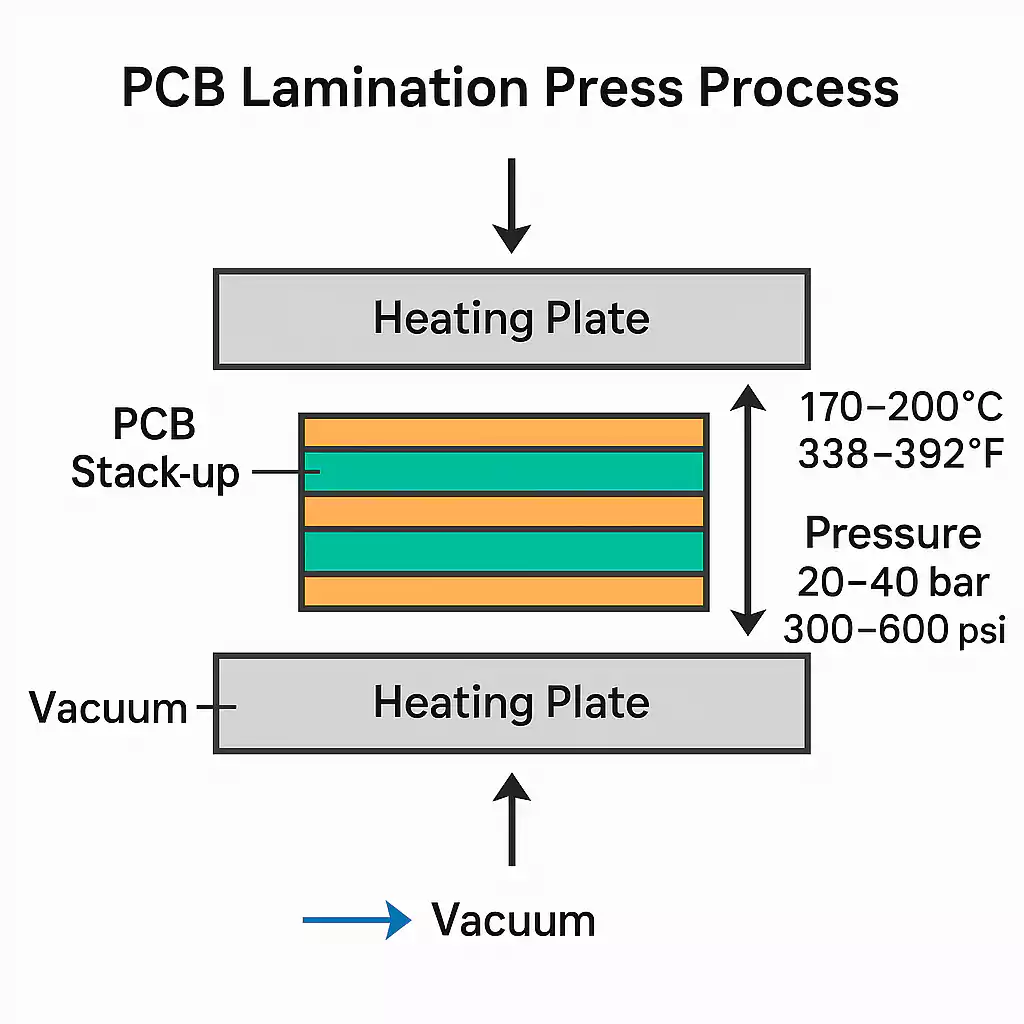

The press profile is then tuned. Heat-up rate through the melt zone is held at 2–4 °C/min so viscosity drops uniformly. Pressure is applied in stages: low pressure while the resin is still mobile to allow gentle fill, then full pressure once gelation begins to lock thickness. Vacuum is maintained throughout to pull air out of the clearances before the resin gels. Cool-down under pressure continues until the stack is well below Tg so the resin does not re-flow or create residual stress.
First-article panels are always micro-sectioned at multiple locations—edges, center, high-copper and low-copper zones. Residual resin content, dielectric thickness and void count are measured. If the flow is outside the window the prepreg RC or the pressure curve is adjusted before the production lot is released. For sequential lamination jobs each sub-lamination is verified independently so cumulative flow errors do not compound.
When the Factory Will Accept a Wider Flow Window
On thick boards with only through-hole technology and no impedance control we sometimes allow ±15 % thickness variation because the functional risk is low. Prototype quantities under 10 panels may ship with a flow-note if the customer confirms the design has large clearances and no fine-pitch features. Rigid-flex constructions are judged only in the rigid zones; the flex tails are permitted higher local resin movement. In all these cases the trade-off is accepted only when the customer understands that residual voids or thickness scatter may still appear after multiple reflow cycles.
From the fabrication side the decisive factors remain correct prepreg RC selection, copper-area balancing and a tightly controlled press cycle. When those three are managed, FR4 PCB resin flow stays predictable and prepreg resin flow PCB issues rarely escape into the finished multilayer board.
