In production we treat FR4 PCB solder mask adhesion as a locked process sequence rather than something the designer can fully control. The line runs a controlled micro-etch to create surface roughness, coats the liquid photoimageable mask within a tight open-time window, then follows the exact UV-plus-thermal cure profile for that ink. CAM engineers flag any panel that shows large unbroken copper planes or shiny copper notes without a corresponding surface-prep callout, because those boards almost always come back with adhesion complaints. Most factories simply refuse to release a lot until the cross-hatch tape test passes on the first article.
Why residual oxide and organic films keep forming after the final etch
The problem appears because the copper surface starts changing the moment it leaves the etch chamber. Even a short delay on the conveyor lets a thin oxide layer grow, and any residual dry-film chemistry or operator fingerprints leaves an organic film that blocks the chemical bonding sites the mask needs. FR4 itself outgasses a little water and resin volatiles when the panel hits the cure oven; if the mask has not yet fully cross-linked, that vapor pressure lifts the interface. Conveyor speed, spray pressure, and rinse-water quality all vary across a production day, so the same stack-up can show different roughness from morning to afternoon. The mask ink itself is formulated for a specific surface energy; once that energy drops below the threshold, mechanical interlocking alone is not enough to hold it through later thermal cycles.
From a fabrication standpoint this becomes sensitive on panels with mixed copper density. Large solid planes cool and oxidize at a different rate than fine tracks, so the etch chemistry that works on the tracks leaves the planes under-roughened. That is the exact condition that later produces solder mask peeling PCB along the edges of those planes.
What actually fails once the mask starts lifting
When adhesion is marginal we first see it at depaneling. The mechanical shock of routing or scoring peels the mask back from the copper edge, leaving bare copper that then oxidizes or causes shorts in assembly. In reflow the CTE mismatch between mask and copper pulls harder; the mask lifts in small blisters that look like white spots under AOI. Those blisters trap flux or allow solder to creep underneath, producing intermittent opens or contamination rejects at the customer. On high-volume lots the scrap rate climbs 8–12 % before anyone notices the root cause. Rework means stripping the entire panel in caustic, re-cleaning, and re-coating—extra days on the schedule and a cost that usually exceeds the original panel price. Shipment holds become routine once a customer starts returning boards with solder mask peeling PCB after their own thermal cycling.
The exact process sequence that keeps the mask locked to the copper

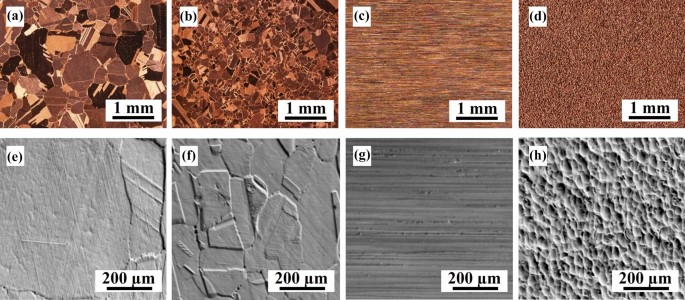

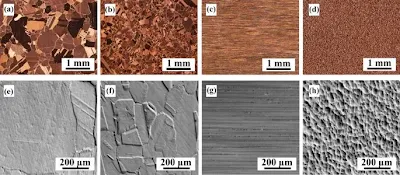

Most factories control FR4 PCB solder mask adhesion with three hard process gates. First the copper is micro-etched to remove 1.0–1.5 µm of metal and leave a surface roughness Ra of roughly 0.4–0.6 µm. That roughness range gives the mask enough mechanical grip without undercutting fine traces. Immediately after the final rinse the panels move into the coating machine; open time is held under four hours on standard lines and under two hours on high-reliability lines. Any longer and oxide starts to re-form.
The second gate is the cure itself. After UV imaging the panels go into a thermal oven set to the ink supplier’s profile—typically 150 °C for 45–60 minutes with oven uniformity held to ±5 °C. Some shops add a short plasma clean right before coating when the boards are destined for automotive or medical use; the plasma removes the last monolayer of organics and raises surface energy. The third gate is verification: every first article and every tenth panel in a lot gets a cross-hatch tape test per IPC-TM-650 method 2.4.28. Anything below the required adhesion rating is stopped and the etch chemistry or oven profile is adjusted before more panels are released.
CAM also applies a practical rule on large copper: if a solid plane exceeds about 25 mm × 25 mm we note it for the process engineer so the etch dwell time can be lengthened by 10–15 seconds on that lot. That extra etch compensates for the slower surface activation on heavy copper. None of these steps are optional once the lot is released to the solder-mask line; the sequence is written into the traveler and signed off at each station.
Where the process window can be opened without scrapping the lot
On simple single-sided boards or Class 2 consumer product where the customer has already accepted a lower thermal-reliability rating, we can stretch the open time to six hours and drop the plasma step. Boards with copper thicker than 2 oz sometimes need a longer micro-etch dwell; the extra metal removal is accepted because the adhesion gain outweighs the slight track-width loss. The trade-off is clear: any relaxation raises the risk of field peeling under repeated thermal cycles, so the customer must sign off on the reduced process window before the lot moves forward. High-reliability or automotive builds stay locked to the tightest parameters with no exceptions.
