In production we treat FR4 PCB delamination as a material-and-process control issue, not a design tweak that CAM can compensate after the fact. Incoming prepreg and core moisture content is checked and baked if needed, lamination cycles are locked to material-specific pressure-temperature-time profiles, and every multilayer panel goes through post-press visual and ultrasonic screening before drilling. When the stack-up shows high resin content or thin prepreg, we flag it in DFM and require the customer to accept a controlled bake-and-press sequence or switch to a higher-Tg system. That is the standard factory rule set for FR4 PCB delamination.
Where moisture and press deviation force separation between resin and copper
FR4 PCB delamination causes almost always trace back to the same production constraints. Prepreg and core absorb ambient moisture during storage or after cutting; if that moisture is not driven out before the press, it turns to steam at 180–200 °C and creates micro-voids at the resin-glass or resin-copper interface. Resin flow itself is sensitive to the actual pressure delivered by the press platens. A 5–10 % drop in pressure on the outer panels of a large stack, or a 5 °C lag in heat-up rate, leaves incomplete wetting of the copper foil. Once the resin gels, those unfilled areas stay as weak planes. Copper distribution imbalance makes it worse—heavy copper zones pull more heat and expand differently from the surrounding resin, so the bond line is already stressed before the panel leaves the press. These are process and material realities, not design choices; the press and the laminate simply cannot eliminate every local variation across a full production panel.
We also see the same mechanism when the prepreg is near its shelf-life limit or when the stack uses very thin 1080-style sheets. The resin content is lower, so any moisture or flow shortfall has less material left to fill gaps. In those cases the delamination risk climbs even if the press cycle looks nominal on the chart.
What shows up downstream when the bond line is already compromised
If the weak interface is not caught, the first visible sign is usually blistering or white spots after the first reflow or wave-solder pass. The trapped moisture expands again and the layers separate further. Electrical opens appear where plated through-holes lose contact with inner copper, or where high-current traces lift. Yield on multilayer boards can drop 8–15 % in a single lot once the problem is systemic. Scrap is not limited to the delaminated panels; the whole press load is often quarantined for re-inspection, which delays shipment by one to three days. In assembly the board may pass electrical test at room temperature and then fail after the second reflow, generating customer returns that are hard to root-cause without cross-sectioning. From a factory schedule standpoint, that is the real cost—lost capacity and extra handling.
How the press cycle and material controls are locked down on the floor

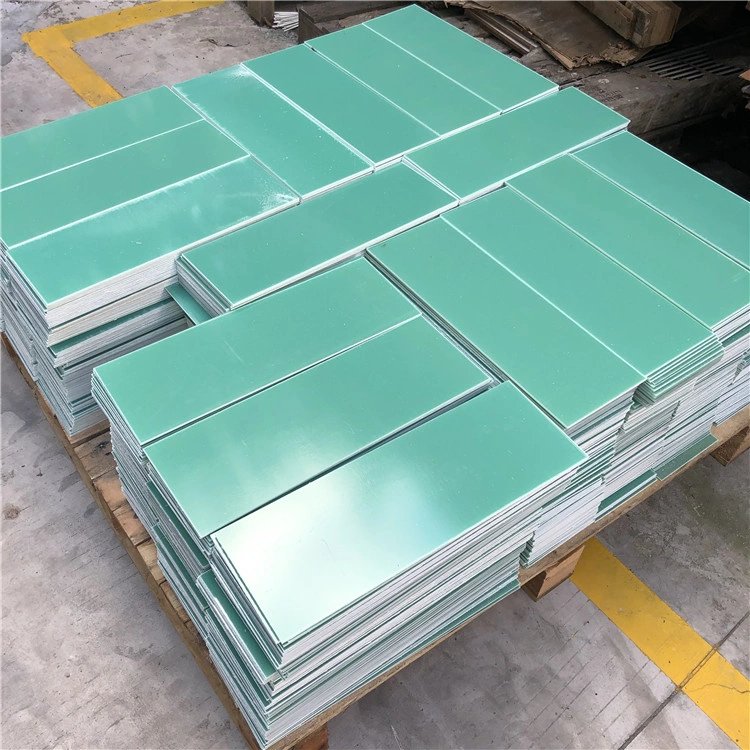

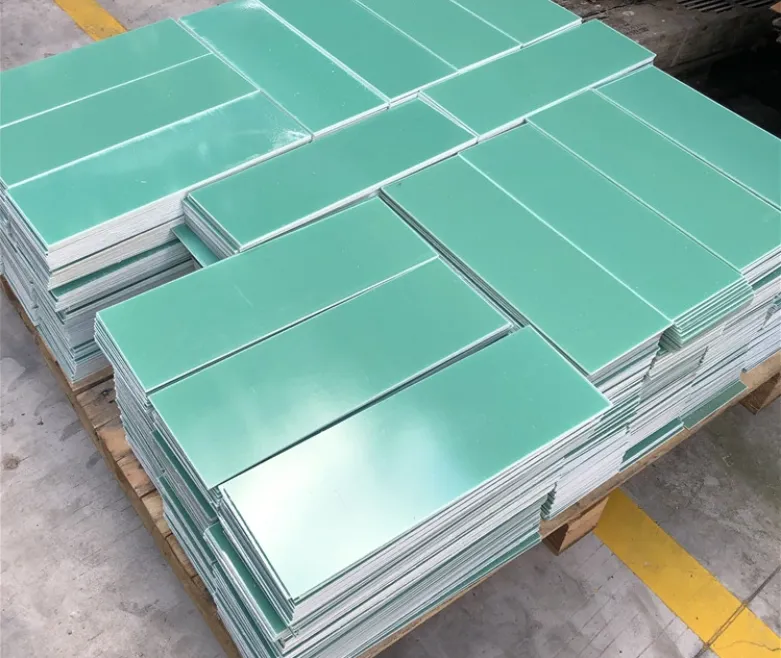

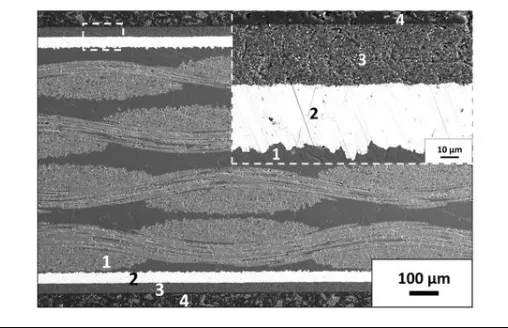

Most factories keep the problem under control with three practical measures. First, incoming prepreg and core are baked at 120–130 °C for 2–4 hours if humidity exposure exceeds the material data-sheet limit; residual moisture is verified by weight-loss measurement before stacking. Second, the lamination recipe is material-specific: heat-up rate held under 3 °C/min through the 140–170 °C window, peak temperature 185–195 °C for standard FR4, and pressure ramped only after the resin has started to flow. Vacuum is applied from the start of the cycle so trapped air and residual moisture are pulled out before the gel point. Third, every production lot has sacrificial coupons or edge strips that are cross-sectioned or scanned with scanning acoustic microscopy after cool-down. Any interfacial void larger than 50–75 µm or any measurable separation triggers a hold on the entire press load.
On the CAM side we do not "fix" delamination, but we do adjust the stack-up recommendation when the design uses multiple thin prepregs or heavy copper. We may add an extra 1080 sheet or switch to a higher-flow resin system so the bond line has more margin. Panelization also matters: large panels with uneven copper coverage are nested so that high-copper zones sit away from the outer edges of the press book where pressure variation is greatest. These steps are used because they address the actual process variables—moisture, resin flow, and local pressure—rather than trying to inspect every square millimeter after the fact.
When the factory accepts a lighter control package
Strict bake-and-vacuum sequences and 100 % acoustic inspection are relaxed for simple double-sided boards or four-layer constructions that never see peak reflow above 245 °C and use standard 2116 or thicker prepreg. In those cases the bond strength has enough margin that occasional small voids stay stable. High-volume consumer panels with moderate copper balance also run under a lighter sampling plan once the first three production lots pass. The trade-off is clear: lower process cost and faster throughput, but the customer must accept that the board is not qualified for repeated high-temperature assembly or for environments with extreme humidity cycling. When the design moves to six layers or more, or to any high-Tg or high-reliability application, the full control package is reinstated without discussion.
From the production floor the message is consistent. FR4 PCB delamination is managed by keeping moisture out, locking the press parameters to the laminate, and verifying the bond line before the panel is released for drilling. Designers who stay inside the material and process windows rarely see the problem; those who push thin prepreg, heavy copper imbalance, or extended moisture exposure force the factory into extra baking, tighter sampling, and occasional scrap. That is the practical boundary we work to every day.
