FR4 PCB Surface Preparation Before Lamination

Author : AIVON | PCB Manufacturing & Supply Chain Specialists

August 25, 2026


In production we treat FR4 PCB surface preparation as a non-negotiable gate before any panel enters the lay-up room. Process engineers clean the inner-layer copper, apply a controlled micro-etch or oxide treatment, and then verify the surface is free of fingerprints, oxide residues, and organic films. Most factories lock a maximum hold time of 4–8 hours between final rinse and lay-up; any panel that exceeds that window is re-cleaned. CAM and quality teams reject lots that show water-break failure or low peel coupons before the press cycle starts.

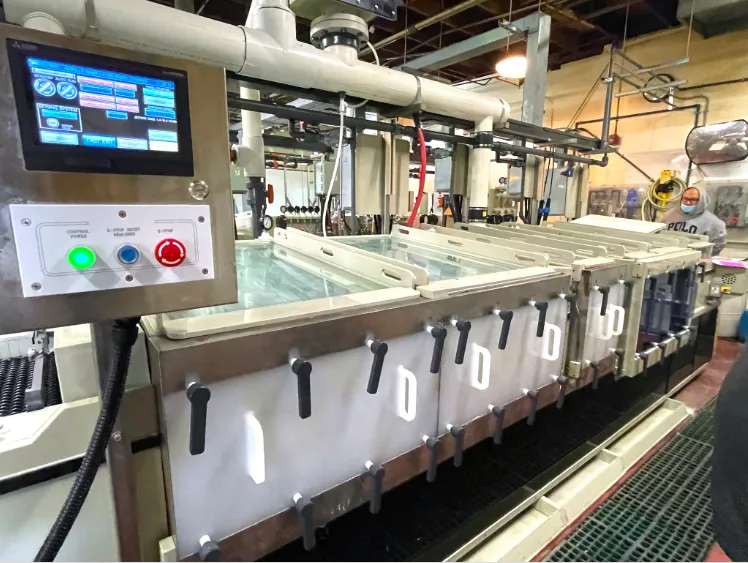

Why Inner Layer Copper Must Be Cleaned Before Any Treatment

Copper surfaces leave the imaging and etch lines carrying residual photoresist, developer salts, etch by-products, and airborne organics. These films block the subsequent roughening chemistry and prevent resin from wetting the copper during lamination. From a fabrication standpoint the clean step is not cosmetic; it is the first requirement for a reliable bond line. Alkaline cleaners followed by a mild acid rinse remove the bulk of the contamination. If this step is shortened or the bath is loaded beyond its capacity, the later micro-etch cannot create a uniform surface and FR4 PCB surface preparation fails at the root.

Water-break testing after the final rinse is the practical shop-floor check. A continuous water film indicates a clean hydrophilic surface; any beading means residual organics remain and the panel must return to the cleaner.

How Surface Roughening Actually Builds the Bond Line

Once the copper is clean, a controlled micro-etch or oxide treatment increases surface area and creates chemical sites that react with the B-stage resin. The goal is a uniform topography of 1–3 µm peak-to-valley height that the resin can lock into under heat and pressure. Black oxide, brown oxide, or alternative adhesion promoters are run inside tight concentration, temperature, and time windows. Over-etching undercuts the copper and weakens the interface; under-etching leaves a smooth surface that gives low peel strength. PCB lamination surface preparation therefore lives or dies on the stability of this treatment bath.

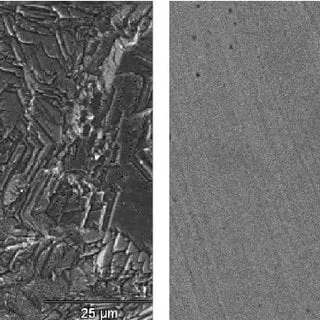

SEM-style cross-section comparison of untreated copper, properly micro-etched copper, and over-etched copper,

What Contaminants Do to Resin Adhesion on the Press

Any residual oil, fingerprint, or dried cleaner film becomes a barrier between copper and resin. Under press pressure the resin cannot wet that area, leaving a weak interface that later appears as blistering, delamination, or low peel strength. Moisture adsorbed on the treated surface generates vapor pressure during the heat ramp and forces the resin away from the copper. These defects are rarely visible after lamination; they surface during thermal stress testing or at the customer's reflow line. Contaminant control is therefore the single largest practical driver of bond reliability in FR4 PCB surface preparation.

How Factories Lock Surface Quality After Treatment

After the final rinse the panels are dried with clean, oil-free air and moved immediately into a controlled-humidity holding area. Operators wear gloves and avoid any contact with the treated copper. Peel-strength coupons are processed with every production lot; if the measured value falls below the internal minimum the entire batch is stripped and re-treated. Hold time between treatment and lay-up is strictly limited—normally no more than 8 hours in a clean environment. Any panel that shows water beading or visual staining is returned to the clean line. These shop-floor controls keep PCB lamination surface preparation inside the process window day after day.

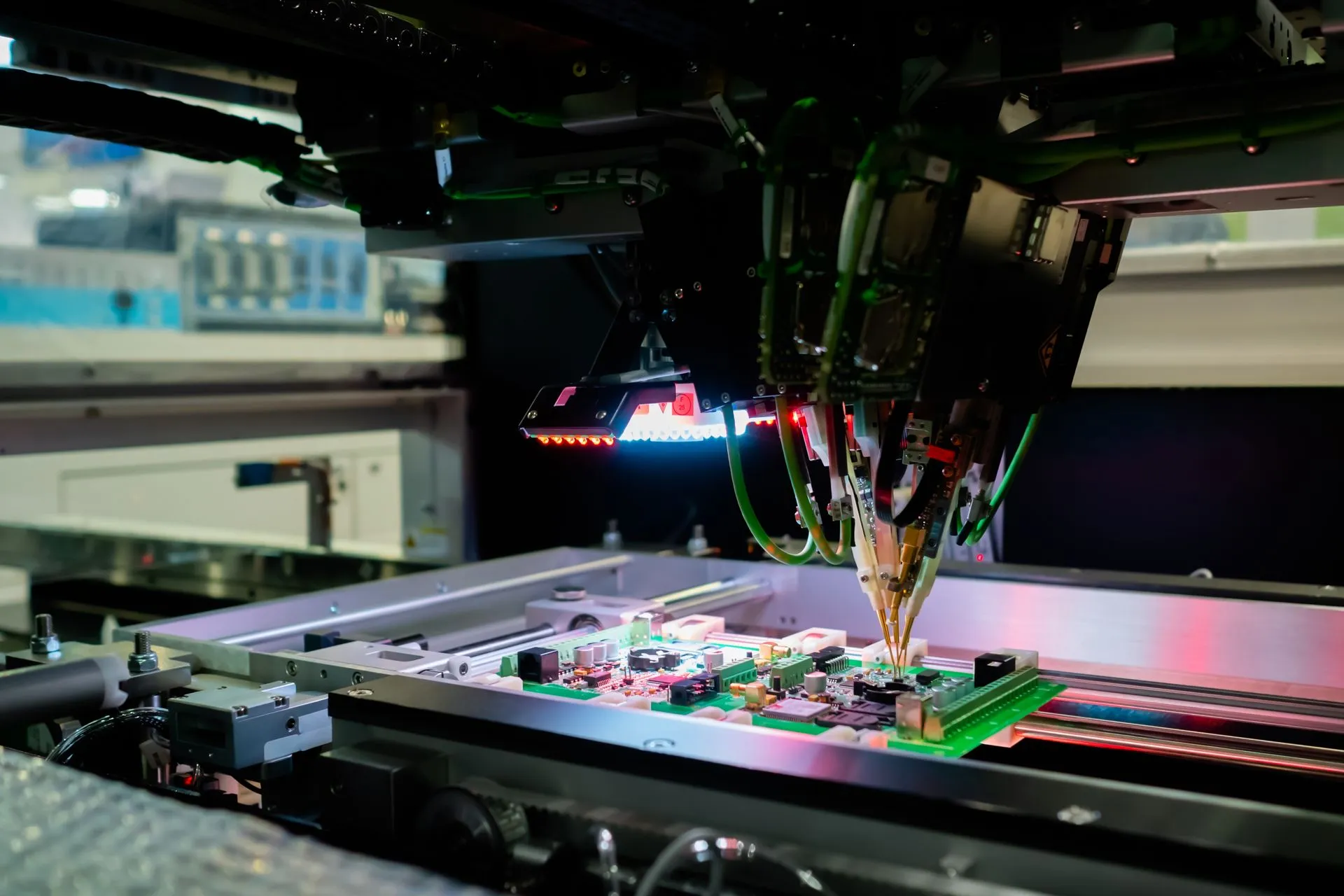

Flying Probe Tester Operation

When the Factory Can Shorten the Preparation Sequence

Not every board requires the full treatment sequence. Simple double-sided or low-layer-count designs that will never see high thermal stress can run a reduced micro-etch only, skipping the oxide step and shortening the clean cycle. Prototype lots that will not enter high-reliability qualification are sometimes allowed a longer hold time provided the customer accepts the residual adhesion risk. The trade-off is clear: shorter cycle time and lower chemical consumption against a higher probability of later delamination under thermal load. Once the design moves into volume production with automotive, industrial, or high-reliability requirements, the complete cleaning, treatment, and hold-time controls are restored.
