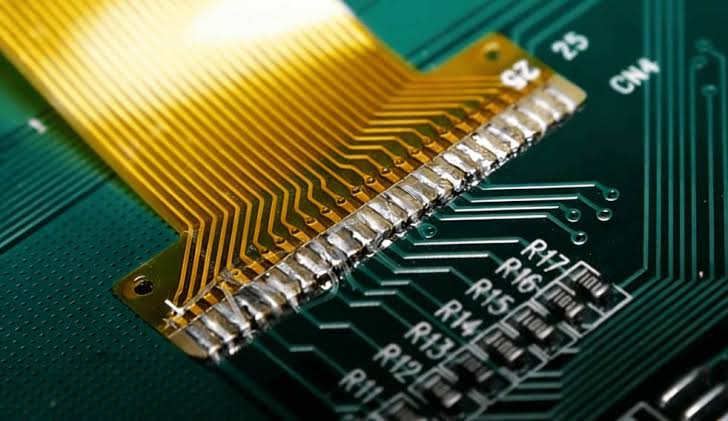

In production, FPC pad peeling during SMT is handled first at the CAM stage by checking coverlay opening size against the copper pad and verifying copper-to-polyimide adhesion. Most factories require a minimum coverlay overlap of 0.10–0.15 mm on every side of the pad so the coverlay itself anchors the copper. If the design leaves the pad edges exposed or the copper is thinner than 12 μm, the file is flagged. We either adjust the coverlay Gerber or return the design for revision before the panel is released. Surface treatment and adhesive system are checked next; anything that does not meet the peel-strength target for flex material is rejected or compensated in process.
Where the copper-to-PI bond and coverlay registration become the limiting factors
The root cause sits in the material stack and the process tolerances that come with it. Polyimide expands more than copper when the board reaches reflow peak temperatures of 240–260 °C. The only thing holding the pad down is the thin adhesive layer between copper and PI. When the coverlay opening is larger than the pad or registration drifts by even 0.05 mm, one side of the pad loses mechanical clamping. That unsupported edge becomes the starting point for lift. Thin copper (1/3 oz or less) has lower stiffness, so the same thermal stress peels it more readily. Coverlay lamination itself has registration limits; on large panels the cumulative error can leave pads partially uncovered even when the design looked correct on the single-image Gerber.
FPC pad peeling is one of the more frequent flexible PCB SMT failures we see when these three factors line up: marginal adhesion, insufficient coverlay overlap, and copper thickness at the lower end of the specification. The problem does not appear in rigid FR4 boards under the same reflow profile because the glass-reinforced laminate and thicker copper provide far higher bond strength and mechanical support.
What the reflow cycle actually does to a weakly anchored pad
During the reflow ramp the PI substrate expands faster than the copper. Shear force builds at the copper–adhesive interface. If the coverlay is not clamping the pad perimeter, the copper starts to lift at the edge. Once the pad begins to peel, molten solder can wick underneath and accelerate the separation. After the board cools, the pad may sit partially raised or completely detached. Component leads that were soldered to that pad now have an intermittent or open connection. Handling after reflow—depaneling, inspection, or shipping—often finishes the job and the pad comes free.
On the production floor this shows up as a sudden rise in opens or as pads that look intact under the microscope but fail electrical test after thermal cycling. Yield loss of 5–15 % on affected lots is common when the design margin is thin. Rework is limited; applying heat a second time risks further damage to the flexible base and neighboring pads. Most of the time the boards are scrapped, and the lot is delayed while the root cause is traced back to either material or design.
How factories keep the copper attached through the SMT process
CAM engineers enforce a hard rule on coverlay openings: the opening is drawn smaller than the pad so that coverlay material overlaps the copper by at least 0.10 mm, preferably 0.15 mm on all sides. This overlap acts as a mechanical clamp that resists the peel force generated during reflow. When the customer Gerber does not provide that margin, we either modify the coverlay layer or request a design change. Copper thickness is preferred at 18 μm or higher for any pad that will see SMT; thinner copper is accepted only when the coverlay overlap is increased and the adhesive system is upgraded.
Material selection is controlled at the purchasing and process level. Adhesive systems are qualified to a minimum peel strength of 1.0 N/mm after the full thermal history. Lamination parameters—temperature, pressure, and dwell time—are tightened for flex coverlay to improve the bond. Some lines add a short plasma treatment on the copper surface before coverlay application to raise surface energy and reduce voids at the interface. Panel design also matters: high-density pad areas are kept away from the edges of the working panel where registration error is largest.
In process control we run peel-test coupons on every production lot. If the measured peel strength drops below the internal limit, the lot is held and the lamination recipe is adjusted before the next panels are released. For the SMT side, we may recommend a lower peak temperature or a nitrogen atmosphere when the design is known to be marginal, but these are secondary measures. The primary control remains the mechanical anchoring provided by the coverlay and the integrity of the copper-to-PI bond.
When the strict overlap and thickness rules can be relaxed
Exceptions are granted for single-sided FPCs that carry only large pads and have a stiffener under the component area. In those cases the mechanical support from the stiffener reduces the stress on the pad, and an overlap of 0.05 mm is sometimes accepted. Designs that use low-temperature solder paste with a peak below 220 °C also see lower peel risk, so the standard copper thickness and coverlay rules can be loosened. When the customer specifies a known high-adhesion material system that has already been qualified on our lines, some of the CAM checks are bypassed. In every exception the trade-off is the same: reduced process margin and a higher chance that a small registration shift or material lot variation will produce peel. The decision is documented and the customer is informed of the residual risk.
From the factory side, the controlling factors remain coverlay overlap, copper thickness, and adhesive bond strength. When those three are kept inside the numbers above, FPC pad peeling during SMT stays at a manageable level and does not become a recurring flexible PCB SMT failure mode.
