SOP Rework for Correcting Wrong Chip Orientation on PCBs
What This Video Covers
This video demonstrates a complete SOP rework process for correcting a chip soldered in the wrong orientation — a common and costly SMT assembly error. Even when solder joints appear perfect, mismatched Pin 1 can cause immediate circuit failure upon power-up.
The procedure includes:
- Even heating and careful removal of the misoriented SOP chip
- Thorough cleaning of pads to remove old solder residue
- Precise realignment using Pin 1 markers
- Flux application and controlled hot air reflow for reliable new joints
Proper polarity verification before final soldering is emphasized to avoid repeated rework that risks pad or trace damage.
These techniques are vital for maintaining signal integrity and reliability in multilayer PCB, HDI PCB, and Rigid-Flex PCB assemblies used in medical devices, automotive electronics, and industrial control systems. Mastering SOP rework reduces scrap rates and supports efficient prototype iteration or field repair.
For complex assembly challenges or professional production, request an instant PCB quote or full turnkey PCB assembly services.
Key Highlights
- Wrong SOP orientation creates hidden failures despite visually good solder joints — always verify Pin 1 alignment.
- Safe rework involves even heating for removal, complete pad cleaning, and controlled hot air reflow with flux.
- Polarity checking before soldering prevents damage to components and pads in high-value PCB assemblies.
Why Incorrect SOP Orientation Creates Hidden Failures in SMT Assembly
Incorrect Pin 1 orientation on an SOP package frequently produces boards that pass visual inspection yet fail at functional test or in the field. The solder joints themselves may form correctly because the lead geometry and pad layout remain compatible, but the internal die connections are reversed. This leads to inverted power and ground pins, swapped differential pairs, or reversed control signals.
In production environments the error typically originates from placement machine programming mistakes, incorrect component orientation data in the pick-and-place library, or operator override during manual loading of reels. Once the board enters reflow, the defect becomes permanent until rework is performed.
On multilayer and HDI designs the consequences escalate. Reversed polarity can drive excessive current through thin traces or vias, causing localized heating that delaminates inner layers or opens microvias. In high-speed digital or analog circuits the reversed pins destroy signal integrity before any protective circuitry can react.
Early detection through AOI polarity checks or flying-probe electrical testing remains the most cost-effective control. When a misoriented SOP is discovered after reflow, the rework process described in this video becomes the only practical recovery method that preserves board integrity.
Complete Step-by-Step SOP Rework Process for Misoriented Chips

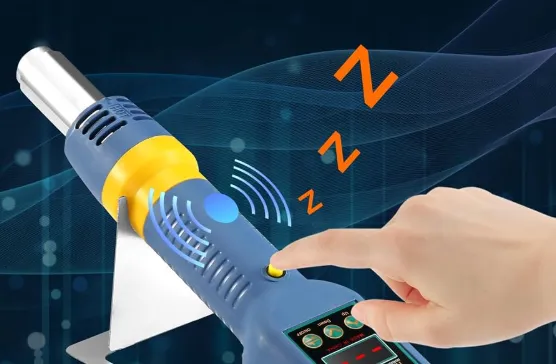

Successful SOP rework begins with even thermal distribution across the package and surrounding pads. A hot-air nozzle sized slightly larger than the component body delivers controlled heat while a vacuum pickup tool or fine tweezers prepare for lift-off. Temperature is raised gradually so that all leads reach liquidus simultaneously, minimizing mechanical stress on the copper pads.
After the package is removed, residual solder is cleared from every pad using a combination of desoldering braid and a clean soldering iron tip. Incomplete cleaning leaves uneven solder volumes that produce opens or shorts during the subsequent reflow.
The replacement component is aligned using the package’s Pin 1 indicator (dot, bevel, or laser mark) against the corresponding silkscreen or copper feature on the board. Flux is applied sparingly to promote wetting without creating excessive residue. Final reflow is performed with the same even heating profile used for removal, followed by visual and electrical verification of polarity and joint quality.
Repeating the polarity check immediately before the final reflow cycle is critical. A second orientation error on the same pads dramatically increases the probability of lifted copper or cracked vias, especially on boards with thin copper or high layer counts.
Pad Cleaning, Flux Application, and Controlled Reflow Parameters
Pad cleanliness directly determines joint reliability after rework. Residual solder that remains oxidized or contaminated with flux residue prevents proper intermetallic formation. Industry practice requires complete removal of old alloy followed by inspection under magnification to confirm that the pad surface is uniform and free of voids.
Flux selection follows the alloy and process temperature. No-clean fluxes formulated for lead-free alloys provide adequate activity while leaving minimal residue that could affect conformal coating or subsequent cleaning steps. Application must be limited to the pad area; excess flux under the package body can create voids or corrosion sites.
Reflow parameters for SOP packages typically target a peak temperature 20–40 °C above the solder liquidus, with a controlled ramp rate that avoids thermal shock to both the component and the PCB substrate. Excessive peak temperature or prolonged dwell time accelerates intermetallic growth and weakens the joint. Insufficient heat leaves cold joints that fail under thermal cycling or vibration.
Process documentation of exact temperature profiles, nozzle size, and dwell times enables consistent results across multiple rework stations and operators.
Equipment Selection and Temperature Profiles for Reliable SOP Rework
| Parameter | Recommended Range / Value | Risk if Outside Range |
|---|---|---|
| Peak reflow temperature | 245–260 °C (SnAgCu) | Cold joints or excessive intermetallic growth |
| Ramp rate | 1–3 °C/s | Thermal shock to package or pads |
| Nozzle diameter | 1.2–1.5× package body width | Uneven heating or adjacent component damage |
| Vacuum pickup force | Minimal (just sufficient for lift) | Pad lift or trace tear |
| Post-reflow inspection | 10–40× magnification + polarity check | Undetected opens or polarity errors |
Proper equipment matching reduces the number of rework cycles required and preserves the mechanical integrity of fine-pitch pads commonly found on modern SOP packages.
DFM Practices That Reduce Orientation Errors Before Assembly
Orientation errors are largely preventable through disciplined design-for-manufacturing practices. Clear, unambiguous Pin 1 markers on both the component library footprint and the PCB silkscreen eliminate ambiguity during machine programming and manual inspection.
Component polarity features should be consistent across the entire bill of materials. When multiple SOP packages of similar body size appear on the same board, distinct silkscreen outlines or polarity indicators help operators and AOI systems distinguish correct orientation.
Placement machine libraries must be validated against the physical component datasheet before first production run. A single incorrect rotation value in the library can propagate the same polarity error across an entire panel.
Finally, first-article inspection that includes both visual polarity verification and basic electrical continuity checks on critical pins catches orientation mistakes before full production quantities are committed.
Impact on Multilayer, HDI, and High-Reliability PCB Assemblies
In multilayer and HDI constructions the copper thickness on outer layers is often reduced and via structures are denser. Repeated thermal cycles during rework increase the risk of pad cratering or microvia failure. Therefore the number of rework attempts on any single location is typically limited to one or two cycles in high-reliability programs.
Medical, automotive, and industrial control boards frequently carry additional requirements for process documentation, operator certification, and post-rework cleaning validation. The techniques shown in the video align with these expectations by emphasizing controlled heating, complete residue removal, and final polarity confirmation.
When boards contain fine-pitch SOPs adjacent to large thermal masses or heat sinks, localized preheating of the board may be required to achieve uniform solder melting without overheating the package itself.
FAQ
Q1: What risks occur when an SOP chip is soldered backwards?
A1: Reversed polarity can cause immediate circuit malfunction, excessive current draw, or permanent damage to the component and surrounding circuitry, especially in dense HDI or multilayer designs.
Q2: How do you safely remove and replace a misoriented SOP chip?
A2: Use even hot air heating to melt solder, lift the chip carefully, clean pads thoroughly, realign Pin 1 correctly, apply flux, and reflow with controlled temperature to ensure reliable joints without lifting pads.
Q3: When is professional SOP rework recommended over in-house repair?
A3: For high-reliability applications such as medical devices PCB or aerospace PCB, or when dealing with fine-pitch components and expensive boards, professional rework minimizes risk of further damage.
Q4: What is the typical maximum number of rework cycles allowed on an SOP pad before reliability is compromised?
A4: Most high-reliability process specifications limit rework on any single location to one or two thermal cycles. Additional cycles increase the probability of copper pad lift, via cracking, or excessive intermetallic growth that reduces long-term joint strength.
Q5: How does residual solder volume affect the success of SOP reorientation?
A5: Uneven residual solder creates inconsistent joint volumes after reflow. Excess solder can produce bridges between adjacent leads, while insufficient solder results in opens. Complete pad cleaning followed by controlled flux and paste or wire addition restores consistent solder volume.
What happens if an SOP chip is soldered backwards?
At first glance, this SOP looks perfectly soldered.
But there's one problem.
It's facing the wrong direction.
The chip's Pin 1 doesn't match the PCB marking.
If powered on, it could cause the circuit to fail.
So how do we fix it?
The first step is to carefully remove the chip.
Heat it evenly, and lift it once the solder melts.
After removing the chip, the pads need to be cleaned to prepare for soldering again.
Next, rotate the SOP to the correct orientation and align Pin 1 carefully.
Apply flux and place the chip onto the PCB.
Then heat it evenly with hot air until the solder melts and the chip is securely soldered in place.
Always make sure the polarity is correct before soldering.
Like and follow for more PCB repair tips.
