Most layer-count mistakes on fine-pitch BGAs happen before the first via is placed. Engineers look at the pin count, glance at a standard 6- or 8-layer stackup that worked on the last board, and move on. Then layout starts and the inner rows simply will not escape.
HDI BGA escape routing is not a generic routing problem. It is a geometry problem first. Pitch, pad size, via type, and the physical clearance the fab can actually hold determine how many signals can leave each layer. Get that calculation wrong and you either add layers late or accept clearance violations that kill yield.
Pitch and Pad Size Set the Escape Channel Count
Start with the pitch. On a 0.5 mm BGA the space between adjacent pads is already tight once you subtract the pad diameter and the minimum copper-to-copper clearance. Drop to 0.4 mm and that space collapses further. At 0.35 mm or below, conventional through-hole vias become impractical for anything beyond the outer two rows.
Typical pad diameters for these packages sit between 0.22 mm and 0.30 mm. Add a 0.075–0.100 mm annular ring for a microvia and the effective keep-out grows. What remains between pads is the only channel the signal can use on that layer. On many 0.4 mm designs that channel is only wide enough for a single 0.075 mm trace with 0.075 mm clearance on each side—if the fab process window is perfect.

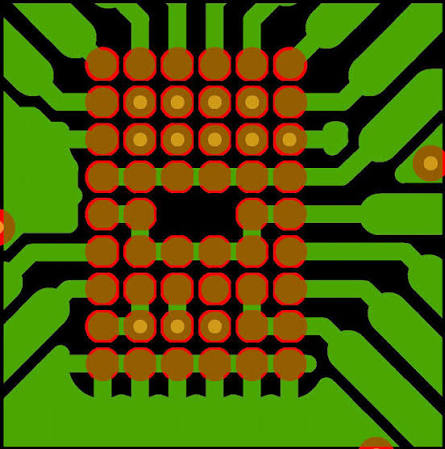

That is why the outer ring of balls can usually escape on the top layer with short dogbones or direct fan-out. Everything inside the second or third ring must go down. Each additional layer you open creates a new set of those narrow channels. The math is simple but rarely done early enough.
Via Structure Decides How Many Signals Leave Per Layer
Through vias from top to bottom waste real estate. On HDI the practical choices are staggered microvias, stacked microvias, or a combination of both with buried vias in the core.
Staggered microvias keep the via land on different layers offset. That preserves more routing space on the intermediate layers but forces the signal to travel horizontally before it can drop again. Stacked microvias give a vertical path and free the intermediate layers for more traces, yet they demand tighter process control and higher aspect-ratio laser drilling.

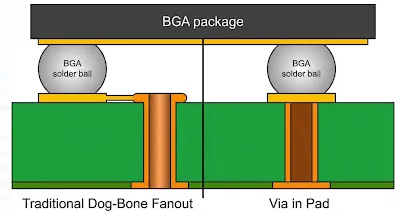

Via-in-pad (VIP) removes the dogbone entirely. The microvia sits inside the BGA pad. This recovers the channel that the dogbone would have occupied, so more signals can escape on the same layer. The cost is assembly risk: solder voids, flux entrapment, and the need for copper-filled or resin-filled vias that the fab must process correctly. Many shops still treat copper-filled VIP as a special process with yield impact.
Dogbone fan-out is safer for standard processes but consumes the very space you need for the next ring of escapes. On 0.4 mm and tighter packages the dogbone approach usually forces one extra signal layer compared with a well-executed VIP design.
Escape Routing Methods and the Layer Count They Force
There are only a few practical escape patterns once the vias are defined. Radial escape works for the outermost rows. Grid or channel routing is used deeper in. On high-density packages the inner-most pins often require sequential build-up layers with stacked microvias just to reach a plane or a lower routing layer without blocking everything above.
A useful rule of thumb from repeated DFM reviews: for a 0.5 mm pitch BGA with 0.25 mm pads and conventional microvias, four to six signal layers are usually enough if power and ground planes are shared efficiently. Drop to 0.4 mm and the same via technology typically needs six to eight signal layers, or a shift to stacked VIP to stay at six. At 0.35 mm the count climbs again unless the fab can support 50–60 µm microvias and 40 µm traces.
The layer count is not just about signal count. Every via transition adds a stub or a via inductance that must be managed. More layers also mean more registration tolerance stack-up. Laser-drilled microvias on sequential layers accumulate positional error. When the residual error exceeds the annular ring, the via opens or the clearance to adjacent copper collapses.
What Actually Breaks When the Layer Count Is Too Low
The first failure mode is clearance violation. Designers compress traces and spaces below the fab's guaranteed capability to force one more escape channel. That produces etch undercut, copper necking, or outright open circuits after plating.
The second is via reliability. Stacked microvias under thermal cycling develop cracks at the copper interfaces when the aspect ratio or the plating thickness is marginal. Boards that pass electrical test at the fab fail after a few hundred temperature cycles in the field.
Assembly yield drops next. Via-in-pad structures that are not properly filled leave voids under the BGA ball. Those voids become crack initiation sites during drop or thermal stress. Even filled vias can outgas if the fill material is not fully cured, creating solder joint defects that only appear after reflow.
Signal integrity is usually the quieter failure. Extra vias and longer horizontal dogbones on intermediate layers introduce stubs and impedance discontinuities that show up as eye closure only after the first prototypes are measured.
Practical Layer Estimation Before Layout Begins
Do the channel count first. Measure the available space between pads after subtracting pad diameter and the fab's minimum copper-to-copper clearance. Decide the minimum trace width and space the process can hold with acceptable yield. That gives the number of traces that can leave each layer per channel.
Count how many balls sit inside each successive ring. Subtract the signals that can escape on the surface. The remainder must be carried by the buried layers. Divide by the number of channels available per layer after vias and power pins are placed. That is the minimum signal layer count.
Then add the planes. Fine-pitch BGAs almost always need solid ground and power planes immediately adjacent to the signal layers for return path and decoupling. Skipping those planes to save layers is a common false economy; the SI problems that follow cost more than the extra two layers.
Finally check the fab's HDI capability matrix. A 1+N+1 construction with staggered microvias is widely available. Stacked microvias or any structure with more than two sequential laser builds still sits in a narrower process window and higher cost. If the calculated layer count requires that advanced process, confirm the supplier can hold the registration and plating thickness before locking the stackup.
Most designs that start with this calculation settle on a realistic layer count early. The ones that skip it end up either adding layers after placement is complete or accepting design-rule violations that surface as yield loss or field failures later.
HDI BGA escape routing is geometry and process capability first, software autorouter second. Get the channel math and the via structure right, and the layer count stops being a guess.
