Copper that sits too close to the outline is one of the fastest ways to turn a clean FPC design into a yield problem. The model looks fine. The DRC may even pass if the rule was set loosely. Then the laser or the die hits the edge and the copper suffers.
This is not a theoretical concern. It is a recurring finding in FPC DFM reviews. FPC trace to edge clearance and flexible PCB edge clearance directly control whether the outline process damages the circuit.
What Happens When Copper Runs Too Close to the Outline
The outline process on an FPC is either laser cutting or mechanical punching (or a combination). Both remove material. Both create heat or mechanical stress right at the edge.
When copper is inside the heat-affected zone of a laser or inside the shear zone of a punch, the copper itself can be ablated, torn, lifted, or left with residue. The polyimide and adhesive around it also suffer. The result is not always an open circuit on the first inspection. Often it is a reliability failure that appears later under flexing or environmental stress.
Designers place copper near the edge for packaging density or to maximize routing channels. That choice is understandable. The process does not care about the packaging density. It only responds to the physical interaction at the cut line.
Laser Cutting Damage to Edge Copper
Most modern FPCs are laser-routed. The laser beam has a finite width and a heat-affected zone beyond the kerf. Copper reflects and conducts heat differently from polyimide. When a trace or copper pour sits inside that zone, two things commonly occur.

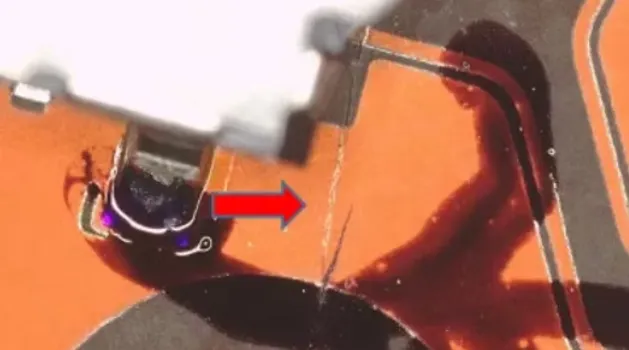

First, the copper can be partially vaporized or melted at the edge. This leaves a rough, thinned, or discontinuous conductor. Second, the laser energy carbonizes the polyimide and adhesive, producing a black edge. That black residue is conductive enough in many cases to create leakage paths or intermittent shorts, especially under humidity.
The closer the copper, the worse the interaction. A trace that ends 0.1 mm from the final outline is effectively inside the process window of most production lasers. The copper does not stay clean.
Punching and Mechanical Outline Risks
Die cutting or punching creates a different set of problems. The punch shears the material. Copper near the shear line can be stretched, torn, or delaminated from the polyimide. Thin rolled-annealed copper is especially vulnerable.
Even if the copper does not open immediately, the mechanical damage creates stress risers. Under repeated flexing those sites become crack initiation points. Exposed copper at the edge also becomes a corrosion risk and a potential shorting surface if conductive debris or moisture bridges to another conductor.
Punch tools also have clearance and wear. A design that relies on 0.15 mm copper-to-edge spacing leaves no margin once the die begins to wear or the material thickness varies within tolerance.
Black Edges, Exposed Copper, and Electrical Risks
Three failure modes appear most often when flexible PCB edge clearance is insufficient.

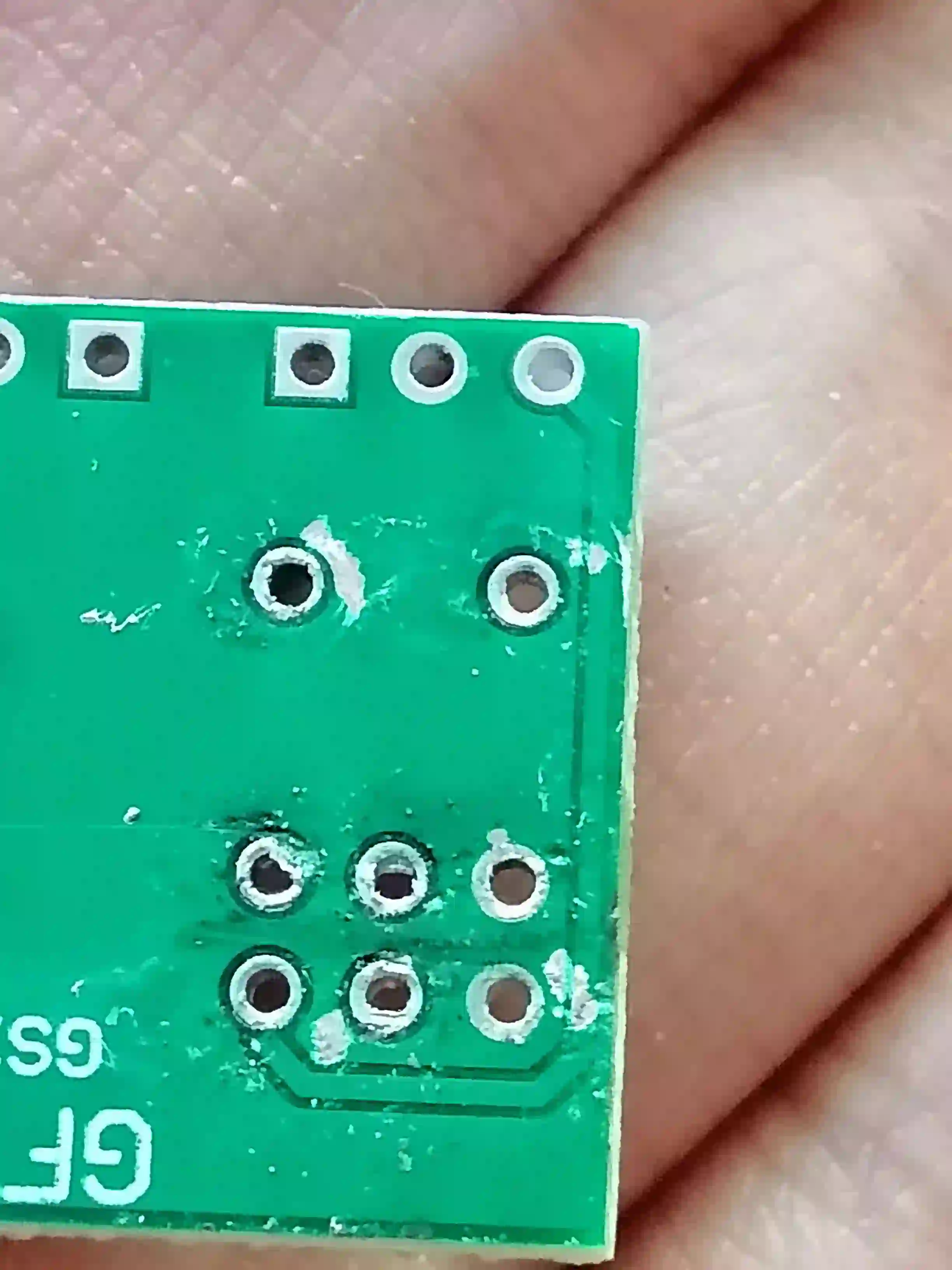

Black edge from laser carbonization. The residue sits on the cut face and can migrate. In high-impedance circuits or in humid environments it creates leakage. Cleaning helps but does not always remove the problem completely, and aggressive cleaning can damage thin copper or coverlay.
Exposed copper. When the laser or punch removes the dielectric and leaves copper at or beyond the edge, that copper is unprotected. It oxidizes, can short to adjacent metal in the assembly, and becomes a corrosion site. Coverlay cannot protect what has already been cut away.
Short circuits and intermittent opens. Conductive debris from the cut, combined with residual carbon or lifted copper flaps, produces hard or soft shorts. Thinning of the copper at the edge raises resistance and can open under flex or thermal cycling.
These are not rare edge cases. They are the typical findings when FPC trace to edge clearance is set below the process capability of the chosen outline method.
Why the Clearance Rule Is Often Violated
Several design pressures push copper toward the edge. Routing density in a narrow flex tail. Need to bring a ground pour or shield as close as possible to the connector. Desire to maximize usable area on a small panel. Copying a rigid-board rule that does not apply to laser or punch processes on polyimide.
CAD default clearances are sometimes set for rigid FR-4 mechanical routing, not for FPC laser. The DRC passes, the designer moves on, and the problem only appears at fabrication or at the customer's reliability test.
The process window is real. Laser beam diameter, focus, power, and speed all have variation. Material thickness and copper weight vary within tolerance. A nominal 0.2 mm clearance can become zero under combined process and material variation.
Practical Clearance Recommendations for FPC

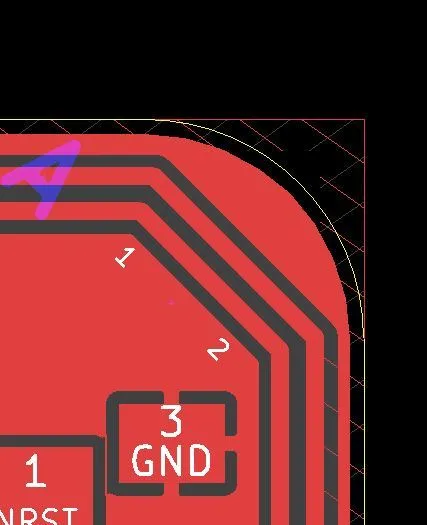

For laser-cut outlines the typical minimum copper-to-edge clearance that keeps the process stable is 0.3 mm. Many fabricators prefer 0.4 mm or more when copper is thick (1 oz or above) or when the laser is running at higher speed for cost. Critical high-reliability or fine-pitch designs often move to 0.5 mm.
For mechanical punch or die-cut outlines the clearance needs to be larger. 0.5 mm is a common starting point; 0.8 mm or more is safer when the copper is near a high-stress flex zone or when the die is expected to see long production runs.
These numbers apply to both traces and copper areas/pours. Solid copper near the edge behaves the same way as a trace under laser or punch. Coverlay openings should also respect the same edge distance so that the coverlay does not leave copper unprotected after the cut.
If the design absolutely requires copper closer than these values, the options are limited: change the outline process parameters (slower laser, different beam), add a secondary clean-up step, or accept lower yield and higher inspection cost. None of those options are free.
Design Checks That Catch the Problem Early
Before release, measure the actual copper-to-outline distance on every critical edge, not just the minimum reported by the DRC. Check both traces and pours. Verify that the clearance rule in the CAD tool matches the intended fabrication process (laser versus punch).
Confirm that any gold fingers, stiffener edges, or connector areas still maintain the required copper-to-edge spacing after the final outline is applied. Stiffeners and coverlay can shift the effective cut line if not accounted for.
If the panel contains multiple FPCs, also check the copper clearance to the panel scoring or laser separation lines. The same physics applies.
When in doubt, increase the clearance. The routing density loss is almost always cheaper than the scrap, rework, or field failures that result from edge copper damage.
Engineering Takeaway
Copper too close to the FPC outline interacts directly with the laser heat-affected zone or the mechanical shear zone. The typical consequences are black edges, exposed or damaged copper, shorts, and reduced flex life.
Maintain proper FPC trace to edge clearance and flexible PCB edge clearance—generally 0.3 mm minimum for laser and more for punch. Treat the clearance as a hard process rule rather than a soft design preference. That single constraint removes one of the most common and most expensive sources of FPC fabrication defects.
