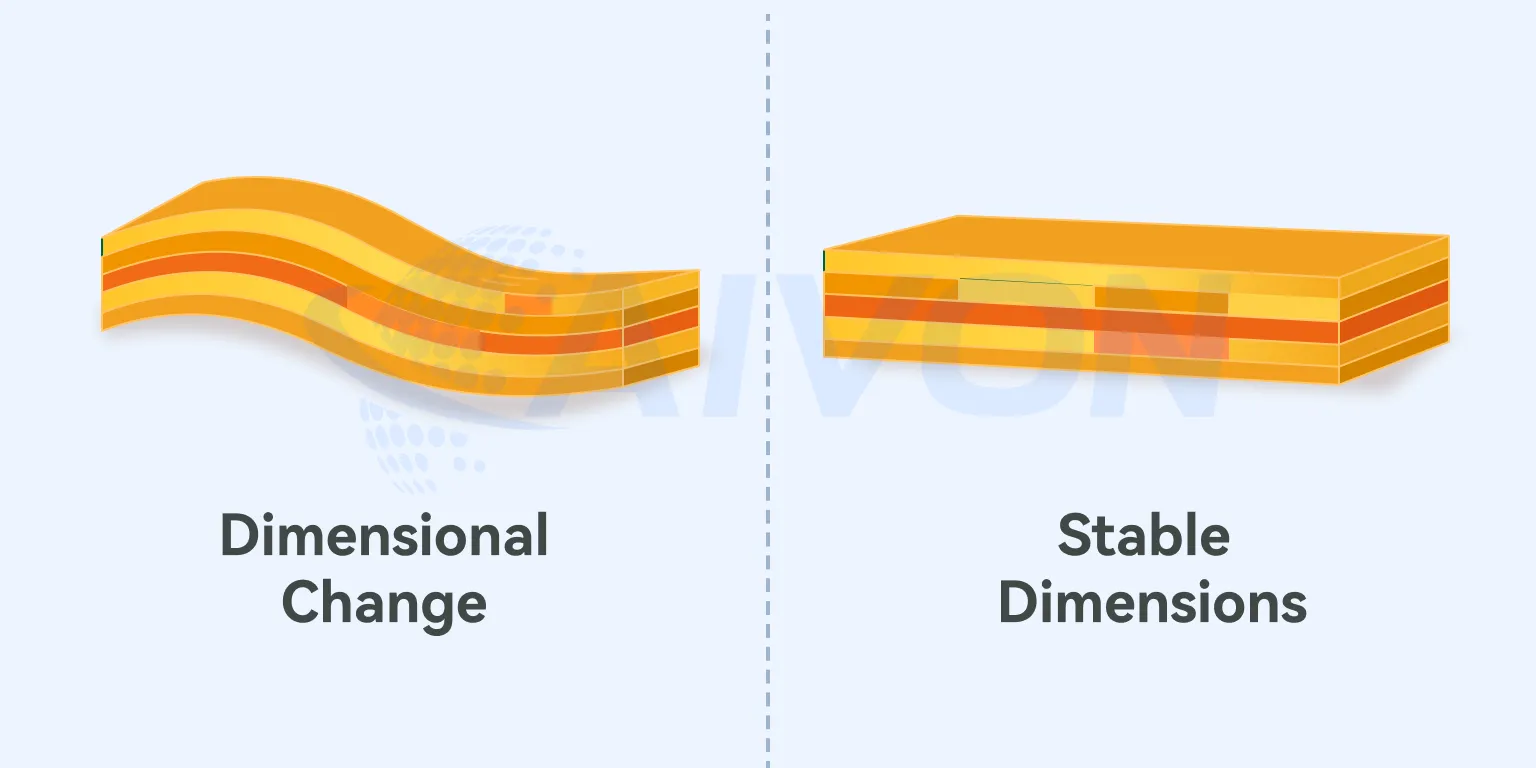

In FPC manufacturing, dimensional stability refers to the ability of a flexible circuit to maintain its designed dimensions and registration after lamination, baking, assembly, and other thermal or mechanical processes. Because FPCs use thin polyimide films, adhesive layers, copper foils, and other flexible materials, they are more susceptible to dimensional changes caused by heat, moisture, residual stress, and uneven material distribution than rigid PCBs. Even small dimensional shifts can affect hole positions, pad alignment, layer-to-layer registration, and connector fit, making dimensional stability a critical consideration for high-density and fine-pitch FPC applications.
Highlights
• Most dimensional change is predictable once material lot behavior, copper coverage, and lamination parameters are characterized; compensation then keeps features inside tolerance.
• Single controls rarely suffice, so material drying, process-window discipline, balanced design, and closed-loop measurement must work together.
• Formal pre-production verification on representative panels prevents the classic first-article surprise that forces artwork respins.
In this guide you will see how material properties, process variables, design choices, and environment interact; which controls deliver measurable registration improvement; how to set realistic specifications; and a practical qualification sequence before volume release.
What Is Dimensional Stability in FPC?
On the production floor you see the problem as measurable numbers. After lamination and cool-down the distance between two fiducials has changed. After the post-lamination bake it may move again. After laser routing the outline is no longer where the artwork said it would be. After a reflow simulation the pads have shifted relative to the holes.
Rigid boards built on glass-reinforced epoxy move far less because the glass cloth holds the resin in place. Thin polyimide has no such restraint, so the same adhesive and copper foil produce larger, more direction-dependent movement. Process-induced residual stress often outweighs the material’s own coefficient of thermal expansion. Once you treat the shift as a controllable process variable instead of a mysterious defect, the path to stable parts becomes clear.
What Causes Dimensional Changes in FPC?
Flexible circuits can change size at several points during production. The final amount of shrinkage or expansion usually comes from four main factors working together: the properties of the materials themselves, moisture and temperature, how the copper is distributed on the board, and the lamination and manufacturing processes. Once you understand how each of these affects the circuit, it becomes much easier to find the real cause of registration problems and choose the right fix.
|
Material factor |
Effect on dimensional stability |
|---|---|
|
PI thickness |
Thinner films generally respond more strongly to thermal and mechanical stress |
|
MD/TD orientation |
Can cause different dimensional changes in machine and transverse directions |
|
Moisture absorption |
Can cause expansion and later contraction during drying |
|
Copper foil type |
RA and ED foils relax differently during thermal cycles |

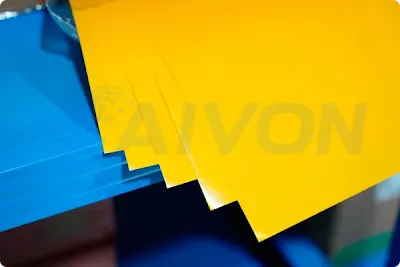

Material properties:
Polyimide film is the main base material in most flexible circuits. During its manufacturing process, the film retains some residual orientation, so it does not shrink the same amount in the machine direction and the transverse direction. When the film is heated for the first time in the lamination press, part of that residual stress relaxes and the film contracts. Different suppliers and even different lots from the same supplier can show noticeable differences in this behavior. Adhesive systems add another layer of movement. Acrylic adhesives flow more easily under pressure and shrink more during curing than epoxy systems. Both types pass through their glass-transition temperature while the press is cooling, locking residual stress into the stack. Copper foil also plays a role. Rolled-annealed copper starts with lower internal stress than electrodeposited foil, yet both types relax during thermal cycles and pull on the surrounding dielectric. Coverlay films and stiffener materials expand or contract at rates different from the base laminate, creating local distortion that often only becomes visible after the stiffener is attached or after reflow.

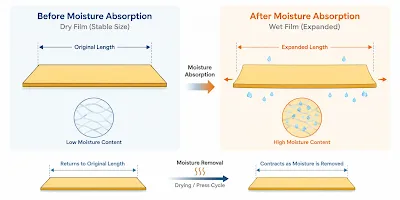

Moisture and temperature:
Polyimide can absorb measurable amounts of moisture from ambient air, with the actual moisture content depending on the film grade, storage conditions, and exposure time. The film expands while it is wet. When that moisture is later driven off during pre-lamination drying or during the press cycle itself, the film contracts by roughly the same amount. Incomplete drying is one of the most common reasons a panel continues to move after lamination.
Temperature changes produce a similar effect. At the high temperatures used in lamination, the polyimide expands more freely than the copper. When the press cools, the copper contracts less, leaving the polyimide under residual compression. Once the panel is unloaded, that compressive stress relaxes over several hours and the panel shrinks. Rapid temperature swings during storage or shipping can trigger the same residual-stress relaxation and cause further dimensional drift.
Copper distribution:
The amount and layout of copper on the panel have a strong influence on how much the circuit can move. High copper coverage locks the polyimide in place and limits free movement, so net shrinkage is smaller. Low copper coverage or large open areas of adhesive-coated polyimide allow greater contraction. When copper is unevenly distributed, between top and bottom layers or between the left and right halves of the panel, the shrinkage becomes differential. Instead of a simple uniform scale change, the panel develops bow, twist, or a trapezoidal shape. These distortions are especially troublesome for fine-pitch registration and outline accuracy.
How Manufacturing Processes Affect FPC Dimensional Stability
The lamination cycle itself is where most residual stress is created and locked in. Pressure, temperature ramp rate, vacuum quality, and especially the cool-down rate all affect the final dimensions. A rapid cool-down freezes more compressive stress into the polyimide; a controlled cool-down allows more of that stress to relax while the materials are still soft. Post-lamination baking removes remaining moisture but can add further shrinkage if temperature or dwell time is not tightly controlled. Later process steps continue to influence size. Laser or mechanical routing releases stress along the cut edge. Plating baths introduce additional tensile or compressive forces. Handling forces during depanelization, stiffener attachment, or automated transport can stretch the thin material and create permanent set. Each of these steps produces a measurable shift that appears immediately after the process is completed.

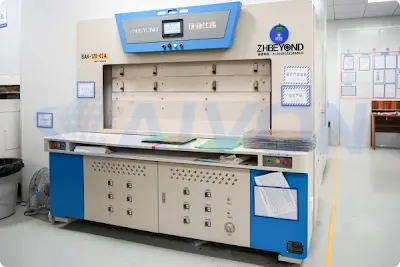

Lamination
Lamination is usually the biggest source of dimensional change. Typical FPC lamination cycles operate at elevated temperatures and controlled pressure for a defined dwell time, but the actual process window depends strongly on the adhesive system, stack-up, and material supplier. At these high temperatures the polyimide expands freely because its in-plane CTE is higher than copper's. Vacuum quality and pressure uniformity are critical at this stage. Poor vacuum or uneven pressure can leave voids or cause the adhesive to flow inconsistently, both of which create extra distortion that shows up later as registration drift.

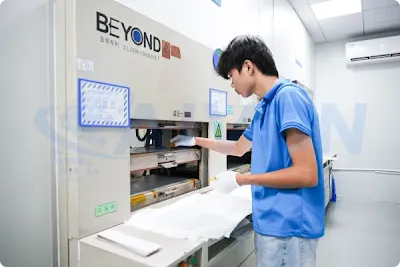

Cool-down phase
The real residual stress is locked in during cool-down. As the press temperature drops, the copper contracts less than the polyimide, leaving the polyimide under residual compression. Once the panel is unloaded, this compressive stress slowly relaxes over the next few hours and the panel shrinks. How fast the temperature falls makes a big difference: a rapid cool-down freezes more stress into the material, while a controlled, slower cool-down allows more of the stress to relax while the materials are still soft. This is why two panels that look identical after the high-temperature hold can end up with noticeably different final dimensions.

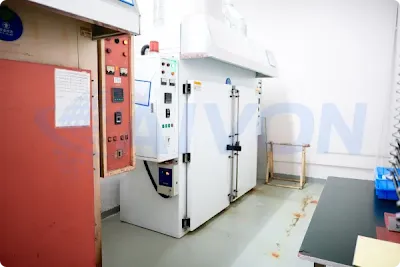

Post-lamination baking
After the panel leaves the press, a baking step is normally used to drive out remaining moisture. This step is necessary, but it can also add further shrinkage if the temperature or time is not tightly controlled. If the bake is too aggressive, the panel continues to contract; if it is too mild, residual moisture stays inside and causes movement later during assembly reflow. Ambient humidity and temperature during the time between lamination and baking can also affect how much the panel still moves.

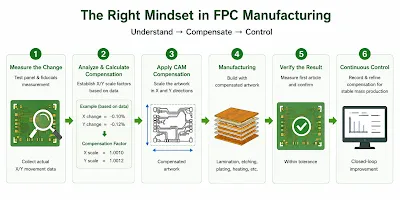

How Artwork Compensation Improves FPC Registration
Artwork compensation is one of the most practical ways to keep flexible circuits on size. Instead of treating dimensional change as an unavoidable defect, manufacturers deliberately scale the artwork so that the expected shrinkage or expansion during production brings the finished board closer to its intended dimensions. When done correctly, this method turns a predictable material movement into a controlled process variable. The approach usually follows five clear steps.
Step 1: Characterize Dimensional Movement
Before production, the manufacturer evaluates how the selected material stack-up moves during key thermal and fabrication processes. Historical production data can also provide a starting point for comparable material structures and process conditions.
Step 2: Establish X/Y Scale Factors
Because dimensional movement may differ between the X and Y directions, compensation factors are established separately for each direction. The factors are based on measured or validated production data rather than a universal shrinkage value.
Step 3: Apply Compensation in CAM
The calculated X/Y scale factors are applied to the artwork during CAM preparation. This intentionally adjusts the manufacturing data so that predictable dimensional movement during fabrication brings the finished circuit closer to its intended dimensions.
Step 4: Verify the First Article
For a new material stack-up, process condition, or other significant change, the first production panel can be measured after the relevant processes have stabilized. The results are used to verify whether the selected compensation factors are appropriate.
Step 5: Refine with Production Data
Measured dimensional results can be recorded and compared across production lots. When a consistent shift is identified, the compensation factors can be refined for subsequent production.
How to Verify FPC Dimensional Stability Before Mass Production
Before tool release or volume commitment, a structured sequence confirms capability:
1. Material qualification measures dimensional change of bare film and laminate under defined thermal/humidity cycles.
2. Process capability study on representative panels records critical features after each major step, such as lamination, bake, coverlay, routing.
3. Registration analysis uses optical or X-ray methods for layer-to-layer and feature-to-outline accuracy.
4. Simulated assembly thermal profile is followed by re-measurement.
5. Mechanical stress simulation is added if the part will experience flex or tension in use.
6. Statistical analysis and acceptance criteria are agreed with the customer.
Sample sizes and measurement locations are chosen to capture both center and edge behavior across the panel. Results are documented as the baseline for ongoing production monitoring.
AIVON Case: How Panelization Affected FPC Dimensional Stability

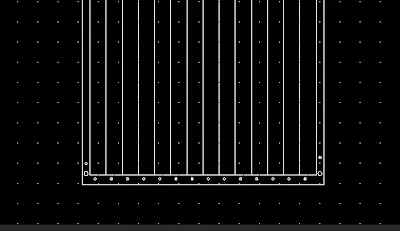

A customer requested a 1×30 strip panelization for a flexible circuit used in a high-volume assembly. The resulting panel was extremely long. During first-article production, the team found that dimensional change after lamination and baking could no longer be kept within tolerance. The long panel amplified both material shrinkage and residual stress, causing registration drift that affected punching accuracy. In addition, the oversized panel made it impossible to open production molds, blocking the path to volume manufacturing.
The engineer team of AIVON proposed a more practical panel layout of 120 × 619.6 mm that yielded 14 pieces per panel. This smaller, more balanced size brought the dimensional movement back into a controllable range, restored punching accuracy, and allowed standard tooling for mass production.
Lesson:
Conclusion
Dimensional stability is controllable when the interacting causes are understood and the process controls are applied systematically. The three highest-leverage actions remain rigorous material and process characterization, appropriate artwork compensation locked to measured data, and formal pre-production verification on representative panels.
FAQ
Q1: What registration tolerance is realistically achievable in volume FPC production?
A1: With disciplined material control, optimized process windows, and closed-loop scale factors, volume FPC production can routinely achieve the registration accuracy required for fine-pitch assembly. Exact tolerances depend on panel size and stack-up complexity, so process capability studies should be completed to confirm achievable limits before volume production.
Q2: Can stiffeners improve or worsen FPC registration accuracy?
A2: Stiffeners can stabilize local areas but may also introduce differential expansion relative to the surrounding flexible regions. Poor placement or unbalanced copper distribution around a stiffener can create localized distortion that becomes visible after attachment or reflow. Proper stiffener placement and balanced design help minimize these effects.
Q3: What environmental conditions during storage most affect finished FPC dimensions?
A3: High humidity can cause the polymer materials to absorb moisture and expand, while large temperature changes can drive thermal expansion and residual-stress relaxation. Controlled temperature and humidity, combined with moisture-barrier packaging, help maintain finished FPC dimensions until assembly.
Q4: What causes FPC shrinkage after lamination?
A4: The main cause is residual stress generated during cooling. At high temperatures, polyimide expands more than copper. As the press cools, copper contracts less than the polyimide, leaving the polyimide under compression. After the panel is unloaded, this stress can relax and cause dimensional shrinkage. Moisture removal and adhesive cure shrinkage can contribute additional movement.
