In production we treat FR4 PCB hole aspect ratio as a hard plating limit, not a design preference. CAM calculates it as finished board thickness divided by finished hole diameter and flags any via or PTH that exceeds 8:1 under standard FR4 process conditions. When the ratio climbs higher we either force a design change or move the job onto special plating chemistry and extended process controls. Most factories run the same rule because copper deposition simply stops being reliable once the hole gets too deep relative to its diameter.
How CAM actually measures aspect ratio before releasing a panel
We never use the drilled hole size for the calculation. The finished plated diameter is what matters because that is the geometry the plating bath has to fill. Thickness is taken from the final pressed stack-up, not the nominal core thicknesses. On a 2.0 mm board with a 0.25 mm finished via the ratio is already 8:1. Drop the finished diameter to 0.2 mm and it jumps to 10:1. CAM scripts run this check on every unique hole size against local board thickness; mixed-thickness panels or step-down areas get extra scrutiny because the local aspect ratio can exceed the global number.
Drill compensation is built into the same check. We typically open the drill by 0.075–0.10 mm so that after plating the hole lands on the customer's finished size. That compensation itself raises the aspect ratio the plating process has to handle, which is why we keep the finished-diameter calculation conservative.
Why the plating bath loses throwing power once the ratio climbs
Electroplating copper into a hole is a diffusion-limited process. Current density is highest at the hole mouth and drops toward the center. In a low-aspect-ratio hole the ion path is short and agitation can keep the chemistry fresh all the way through. Once the aspect ratio exceeds roughly 8:1 the middle of the barrel starts to starve. FR4 glass bundles and residual drill smear make the problem worse because they further restrict mass transport. Our vertical continuous plating lines use air agitation and high-throw additives that work reliably up to 8:1; beyond that the copper thickness in the center routinely falls 30–40 % below the surface thickness even when the bath is running at its best.
Desmear and electroless copper steps also become critical. Incomplete smear removal leaves glass fibers that act as barriers. If the electroless layer is thin or discontinuous in the middle of a high-ratio hole, the subsequent electrolytic plate never bridges the gap. That is why we see voids and thin spots concentrated at the mid-barrel on high-aspect-ratio panels.
What fails in the field when the ratio is left uncontrolled

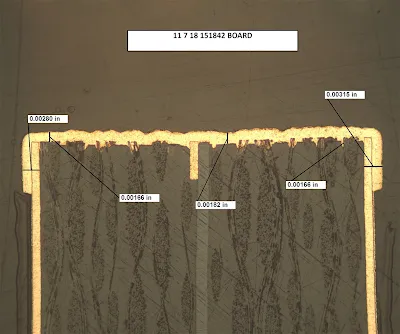

Thin copper in the middle of the barrel is the main failure mode. Under reflow or thermal cycling the thin section stretches and cracks, producing intermittent opens or complete barrel fractures. Electrical test on the finished board often still passes because continuity exists at room temperature; the failure appears later at the customer or in the field. Yield impact is immediate on the factory floor—cross-section samples fail the minimum copper thickness requirement (typically 20 µm or 25 µm depending on the class), panels get held, and rework is impossible once the outer layers are etched. Scrap rates climb and delivery dates slip while we negotiate a design change or special process with the customer.
Mixed hole sizes on the same panel make the problem harder. A few high-aspect-ratio vias force the entire panel onto a longer plating cycle or special chemistry, raising cost and cycle time for every board on that panel.
How we keep plating reliable when the design pushes the limit
First action is always the CAM review. We calculate every finished hole diameter against local thickness and issue a DFM note the moment any ratio exceeds 8:1. Preferred fix is to open the hole or reduce stack-up thickness so the finished aspect ratio stays inside the standard process window. When the customer cannot change the design we move to process compensation: pulse plating, higher copper concentration baths with specialized high-throw additives, longer plating times, and tighter control of current density. Cross-section frequency is increased—sometimes every panel instead of the normal sampling plan—and we require minimum mid-barrel copper thickness to be met before the lot is released.
Drill size is also adjusted. We open the tool more aggressively on high-ratio holes so the plating bath sees a slightly larger diameter while still landing on the customer's finished size after copper deposition. Panel design is reviewed at the same time; we try to keep high-aspect-ratio holes grouped rather than scattered across a large panel so the plating chemistry can be optimized for that zone.
For multilayer boards we also check sequential lamination options. Splitting a thick board into two thinner sub-assemblies can drop the aspect ratio of the through vias without changing the final thickness, but that only works when the layer count and impedance constraints allow it.
When we will run higher ratios and what it costs
Prototype and low-volume jobs can go to 10:1 or occasionally 12:1 if the customer accepts the special process, 100 % cross-section inspection, and higher unit cost. Production volumes stay at or below 8:1 for standard FR4 because the process window is too narrow and the risk of mid-barrel thinning becomes unacceptable. Laser-drilled microvias follow a different set of rules and are not covered by the same mechanical-drill aspect-ratio limits. When a design needs both high layer count and small holes we usually recommend sequential build-up or a technology change rather than forcing a single high-aspect-ratio through-hole process.
