In production we treat HDI copper balance as a hard CAM gate. Before any panel is released, the copper density map is checked layer by layer and region by region. When the difference between high-copper and low-copper zones on the same layer exceeds roughly 12–15 %, or when adjacent build-up layers show opposite density patterns, we stop the file. Dummy copper fills, non-functional pads, or solid plane extensions are added until the residual copper percentage is brought into the same range across the usable panel area. Only after that compensation is locked do we release the job to drilling and plating.

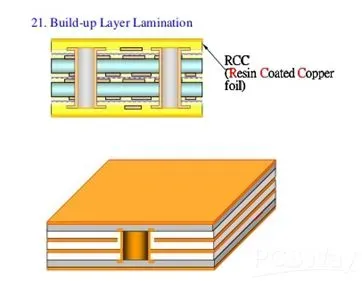

The imbalance appears because sequential build-up and fine-line plating amplify any density difference that the designer left in the artwork. In a typical 2+N+2 or 3+N+3 stack the outer layers see the highest current density during electrolytic plating. Sparse copper regions draw more current and plate thicker; dense regions plate thinner. At the same time the etch process removes copper faster in the low-density zones because the etchant is less depleted. The net result is that the finished copper thickness and the residual copper percentage diverge even further from the original design. During each lamination cycle the resin flows toward the low-copper side, the glass-cloth reinforcement stretches unevenly, and the CTE mismatch locks a residual stress into the panel. That stress is what later shows up as bow and twist.
If the imbalance is left uncontrolled the panel comes out of the press with measurable warpage. On 0.6 mm or thinner HDI cores we routinely see 0.8–1.5 % bow when copper density differs by more than 20 % between the top and bottom of a sequential layer. That warpage exceeds most customer flatness limits and forces the boards into the rework oven or the scrap bin. Plating thickness also drifts: the low-density zones can end up 8–12 µm thicker than the high-density zones, which then creates etch undercut differences and impedance variation on the fine lines. Laser via registration suffers because the panel is already distorted before the next build-up step. At assembly the same boards show solder-mask registration shifts and component coplanarity problems. The net yield drop on an uncontrolled HDI lot is typically 8–15 % and the delivery schedule slips by at least one week while the remaining panels are flattened or the job is restarted.
The practical fix starts on the CAM station. We first calculate residual copper percentage for every layer and every 50 mm × 50 mm sub-region of the panel. Any zone that falls outside the 45–65 % window for outer layers or the 35–55 % window for inner build-up layers receives non-functional copper. The fill pattern is usually a 0.3 mm or 0.4 mm hatched grid that does not interfere with laser drilling or electrical nets. When the design already has large solid planes we mirror the plane geometry on the opposite side of the sequential stack so that the copper moments cancel. Panelization itself is also adjusted: if one customer array sits in a high-density corner we rotate or flip the array so the overall panel density becomes more uniform. After the artwork is balanced we still apply process-side compensation. Plating current density is lowered by 10–15 % on the first outer-layer plate cycle to reduce the thickness delta, and the etch compensation factor is set higher on the sparse-copper layers so that the finished line width stays within tolerance. Final inspection includes a flatness check on every panel; anything beyond 0.75 % is either pressed again or rejected.
HDI copper balance is therefore not a design preference; it is a production necessity driven by the physics of sequential plating and lamination. The same density rules apply whether the board is a simple 1+N+1 or a complex 4+N+4, because the plating and press steps do not care about the layer count—they only respond to local copper area.
Exceptions are limited. On rigid-flex HDI where the flex zone must remain copper-free we accept a larger local imbalance and compensate by increasing the stiffener thickness or by adding a temporary copper foil that is later etched away after lamination. Boards that will be used only as interposers and will never see reflow may be released with 18–20 % density difference if the customer signs a warpage waiver. In all other cases the factory keeps the copper density window tight because the cost of a warped HDI panel is higher than the cost of a few extra dummy fills. When the design cannot be balanced by CAM the job is returned to the designer with a clear density map and a request to redistribute copper before the next revision.
