When routing wide buses on a PCB, drawing traces one by one is inefficient and error-prone. Cadence Allegro provides interactive multi-trace routing to move an entire group of nets in parallel, while maintaining a defined pitch and honoring design rules. This article outlines a practical workflow for multi-trace routing and describes how to control the spacing between traces during routing to balance density, manufacturability, and signal-integrity requirements.
Preparation: Fanout and Bus Grouping
Before starting multi-trace routing, fan out the target nets from their dense regions—commonly BGA packages—so that each net has a short escape segment leading to a staging area. In Allegro, it is helpful to give the group of nets a bus attribute (for example, naming them with a consistent bus vector such as DQ[0:7]) so they can be managed as a set. Pull all net ends to a convenient location to form a neat, aligned set of starting points. This preparation simplifies selection and helps the router maintain parallelism as the traces are moved together.

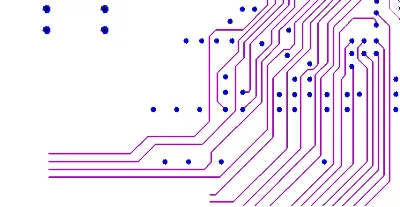

Figure 1 | Fanout of all traces before multi-trace routing
Interactive Multi?Trace Routing
To route multiple traces simultaneously, use the Route > Connect command. Window-select the aligned trace heads that will be moved together. Once the heads are selected, start routing and Allegro will drag the selected nets in parallel, maintaining their relative positions. This greatly accelerates bus routing and helps ensure clean, consistent paths through constrained areas.

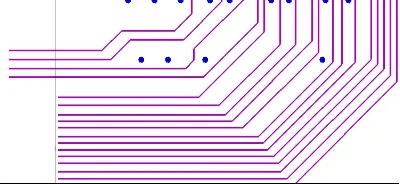

Figure 2 | Multi-trace routing example
Adjusting Spacing During Multi?Trace Routing
While routing a group of traces, you can adjust the spacing on the fly. Right-click during interactive routing and select Route Spacing. A dialog will appear with three spacing control modes. Choosing the appropriate mode depends on whether you want to preserve the fanout pitch, fit through tight areas with minimum legal spacing, or enforce a specific pitch to manage coupling or manufacturability.

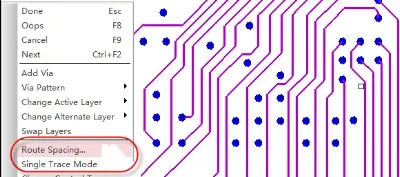

Figure 3 | Accessing Route Spacing during multi-trace routing
Understanding the Three Route Spacing Modes
The Route Spacing dialog typically provides the following options:
-
Current Space. The router preserves the existing pitch defined by the current fanout or the relative positions of the traces at the time of selection. Use this when you have already staged the traces with the desired spacing and want to maintain it throughout the route. This is often convenient after a controlled fanout from a BGA where the initial pitch is already set by the escape pattern.
-
Minimum DRC. The router automatically reduces the spacing to the minimum allowed by the active design rules to squeeze through tight regions while remaining DRC-clean. This is useful under dense components, between via fields, or when navigating narrow channels. Because Minimum DRC can bring traces very close together, consider spreading them back out in open areas to manage crosstalk once the bottleneck is passed.
-
User-defined. You specify an explicit trace-to-trace spacing value. Enter the desired pitch in the Space field and the router will maintain that spacing as it drags the traces in parallel. This mode is ideal for enforcing a consistent bus pitch based on signal-integrity or manufacturing preferences. It gives deterministic control regardless of the current fanout pitch or minimum DRC rules.
Figure 4 | Multi-trace spacing configuration options
Constraint Management and Repeatability
Multi-trace routing works best when net widths and spacings are governed by consistent constraints. In Allegro, define width and spacing rules through the Constraint Manager and assign them to the bus nets via net classes or constraint sets (Csets). This ensures:
-
Trace width and spacing consistency. Widths follow the assigned Cset, while spacing limits the router’s Minimum DRC behavior. This prevents accidental use of incorrect widths or illegal spacings during fast interaction.
-
Reusable bus configurations. When multiple buses need similar treatment, attaching a common Cset ensures repeatability across the design.
-
DRC visibility. Any deviation from the rules will be flagged immediately. If you must temporarily push to Minimum DRC to traverse a congested area, you can later spread the traces back to the target user-defined spacing for better SI and manufacturability.
When using User-defined spacing, keep in mind that this setting controls the pitch among the selected traces during the current routing operation. After completing the route, the global constraints still govern overall DRC compliance.
Practical Workflow Tips
To get the most out of multi-trace routing, consider the following workflow strategies:
-
Align and stage the trace heads. After fanout, pull all participating trace heads to a straight, aligned staging line. The neater the starting formation, the cleaner the parallel route that follows. This also makes window selection reliable and reduces accidental inclusion of unwanted nets.
-
Plan the path and breakpoints. Identify choke points (between via arrays, under shielding cans, or around connectors) and choose the spacing mode accordingly. You might use Minimum DRC through the choke point and switch back to Current Space or User-defined in open regions.
-
Handle obstacles progressively. If a parallel group encounters an obstacle that only affects a subset of traces, route the majority as a unit past the obstacle, then finish the remaining traces individually or in a smaller group. This avoids over-constraining the entire bus because of a single blockage.
-
Maintain layer discipline. Keep a consistent layer strategy for the bus to simplify return paths and reduce impedance discontinuities. If layer changes are required, consider grouping via transitions at the same locations to keep the parallel structure and minimize skew.
-
Use DRC feedback. Allegro’s live DRC helps ensure that even quick multi-trace moves remain within the legal envelope. Leverage it to avoid rework and ensure the route is manufacturable from the outset.
Signal-Integrity Considerations for Bus Spacing
Spacing choices have direct signal-integrity implications. Closer traces increase capacitive and inductive coupling, which raises near-end and far-end crosstalk. Conversely, greater spacing reduces coupling and improves eye openings, but consumes valuable area and may complicate routing in dense regions.
In practice, buses frequently require different spacing strategies along their length:
-
Under BGAs and tight escapes. Minimum DRC spacing is often unavoidable to break out from dense pin fields. After escaping, it is good practice to increase spacing to the intended user-defined target for most of the interconnect length.
-
Intermediate and long runs. Use User-defined spacing to enforce a stable pitch that balances density and crosstalk mitigation. Keeping a consistent parallel spacing simplifies skew control, reduces unpredictable coupling variations, and helps maintain uniform impedance environments.
-
Approaching receivers. As traces converge on the destination component, maintain the defined spacing as long as possible. Only compress to Minimum DRC at the final approach if pin pitch forces it, and keep these compressed segments short to minimize coupling hotspots.
The ability to switch quickly among Current Space, Minimum DRC, and User-defined during routing allows you to optimize each segment of the bus for both physical constraints and signal integrity without breaking the overall flow.
Common Pitfalls and How to Avoid Them
-
Accidentally mixing nets. When window-selecting trace heads, confirm that only the intended nets are included. Assign clear colors or use net filters to avoid dragging non-bus traces along for the ride.
-
Overreliance on Minimum DRC. Minimum DRC is invaluable in tight spots but can leave long sections with increased coupling. After clearing bottlenecks, switch back to Current Space or User-defined and spread the traces where possible.
-
Ignoring constraint alignment. If widths and spacings aren’t consistently set in the Constraint Manager, multi-trace routing may produce legal but inconsistent routes that vary by segment. Set Csets in advance to minimize surprises.
-
Uneven via transitions. Staggered layer transitions within a bus may introduce skew and make parallel moves harder. Where feasible, coordinate via locations for the group to keep the structure coherent and minimize differential length impact.
Summary
Multi-trace routing in Cadence Allegro is a powerful method for efficiently routing buses while maintaining clean topology and predictable spacing. A pragmatic flow is to fan out and stage the bus, select the aligned heads, route the traces in parallel with Route > Connect, and control their pitch using Route Spacing:
-
Use Current Space to preserve the staged fanout pitch.
-
Use Minimum DRC to navigate tight channels while staying legal.
-
Use User-defined to enforce a specific spacing for signal integrity and manufacturability.
Coupled with solid constraint management and situational adjustments for obstacles and choke points, this approach reduces routing time, improves consistency, and helps meet both physical and electrical design goals for complex buses.
