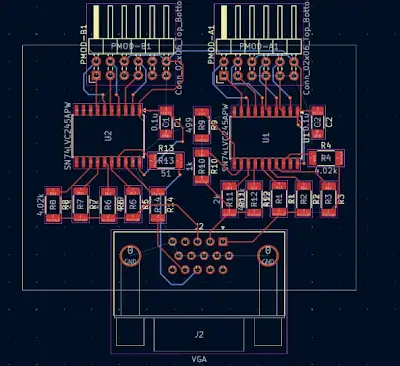

VGA OUT PCB Design: Key Layout and Routing Rules

VGA OUT PCB Design: Key Layout and Routing Rules

VGA remains a commonly encountered analog display interface, particularly in legacy display systems and designs that still need to support CRT monitors or LCD panels with VGA input. Because VGA carries analog RGB video signals, PCB layout has a direct influence on signal quality. Trace length, impedance environment, return-current paths, crosstalk, grounding, and the placement of termination and protection components all need to be considered during PCB design.

The VGA_R, VGA_G, and VGA_B channels are especially sensitive to routing conditions because they carry the analog video information. At the same time, VGA synchronization signals and connector-facing signals require appropriate filtering and ESD protection. A practical VGA OUT PCB layout should therefore keep the analog signal path short, maintain a controlled and well-defined return path, separate VGA routing from aggressive high-speed or RF signals, and place supporting components close to the locations where they are most effective.

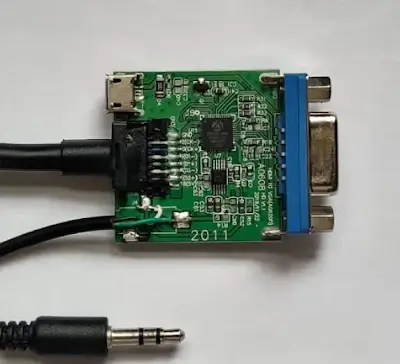

VGA OUT PCB Placement and Routing Rules

1. Keep the VGA Connector Close to the Conversion IC

In the overall PCB placement, position the VGA connector as close as practical to the conversion IC. The primary objective is to keep the VGA_R, VGA_G, and VGA_B analog traces short between the IC and connector.

A shorter analog signal path reduces the amount of PCB area occupied by sensitive video traces and limits the distance over which those traces can interact with other signals. It also makes it easier to maintain a consistent routing environment and provide a continuous ground reference.

The placement should therefore be considered at the beginning of the PCB layout rather than after the major components have already been positioned. The VGA connector and conversion IC should form a compact signal path, with the associated filtering and protection components arranged around that path.

2. Place IC Decoupling Capacitors Directly at the Power Pins

Every decoupling capacitor associated with the conversion IC power supplies should be placed next to its corresponding power pin. The physical distance between the power pin and capacitor should be kept as short as practical.

This placement keeps the local power path compact and supports the intended function of the decoupling network. Instead of grouping all capacitors in a convenient but distant location, each capacitor should be associated with the specific supply pin it serves.

For a VGA conversion circuit, this is particularly important because the conversion IC is directly involved in generating or processing the video signals. A clean and well-organized power distribution layout provides a better foundation for the analog signal path.

3. Place the 75 Ω VGA Pulldown Resistors Close to the IC

Each VGA_R, VGA_G, and VGA_B signal requires a 75 Ω pulldown resistor with 1% tolerance. These three resistors should be placed as close as possible to the conversion IC.

The location of these resistors matters because they are part of the VGA signal path rather than merely general-purpose passive components. Keeping them close to the IC avoids unnecessarily extending the portion of the trace associated with the termination arrangement.

The three RGB channels should also be laid out consistently. Similar component placement and routing geometry help maintain a uniform signal environment across the red, green, and blue channels.

4. Use Wide, Matched RGB Traces

The VGA_R, VGA_G, and VGA_B traces should be made as wide as practical. A width of 12 mil or greater is recommended for these traces. The routing should also maintain close length matching between the three channels, with intra-group length mismatch limited to no more than 200 mil.

Keeping the RGB traces relatively wide and consistent helps establish a predictable routing structure. More importantly, the three video channels should be treated as a group rather than routed independently according to whatever space happens to remain on the PCB.

When routing the RGB group, maintain similar trace conditions from the conversion IC toward the VGA connector. Avoid unnecessary detours that cause one color channel to become significantly longer than the others.

5. Add a Ground Fence Along the RGB Signal Path

VGA_R, VGA_G, and VGA_B should be ground-fenced along their full routing paths. Ground vias should be placed along the fence at intervals of no more than 300 mil. These vias connect the surrounding ground structure and help maintain a controlled environment around the sensitive analog video traces.

The ground fence should follow the RGB routing rather than being concentrated only around the connector or IC. This creates a more consistent grounded boundary along the signal path.

The return-current environment is an important part of PCB signal routing. A signal trace cannot be considered independently from the reference structure around it. Maintaining the ground structure along the VGA routing path therefore helps keep the analog video channels separated from nearby sources of interference.

6. Route VGA RGB Traces Over a Ground Plane

The PCB layer directly adjacent to the VGA_R, VGA_G, and VGA_B routing should be a ground plane rather than a power plane.

A continuous ground reference provides a more predictable environment for the analog traces and supports the return-current path associated with the signal. Using a power plane directly adjacent to these sensitive video traces can create a less desirable reference structure for the VGA routing.

This rule should be considered together with the ground-fence requirement. The ground plane provides the underlying reference structure, while the ground vias provide additional grounding around the signal path.

7. Keep VGA Routing Away from High-Speed and RF Signals

The VGA RGB traces should be physically separated from aggressive high-speed nets such as LCD and DRAM signals. Do not route VGA_R, VGA_G, or VGA_B on a layer immediately adjacent to these high-speed signal groups.

VGA traces should also avoid unnecessary layer transitions near high-speed nets. Do not place VGA vias immediately next to high-speed routing, and avoid routing the VGA traces through areas occupied by inductors.

RF signals and RF components should likewise be kept away from the VGA routing. The objective is to prevent sensitive analog video traces from sharing routing space with signal or component areas that can introduce unwanted interference.

A practical layout approach is to establish the VGA routing region early and keep it separated from LCD, DRAM, RF, and inductor areas. This is preferable to routing the VGA signals through unused gaps after the high-speed portions of the board have already been completed.

8. Place HSYNC and VSYNC RC Filters Near the VGA Connector

The VGA_HSYNC and VGA_VSYNC signals should pass through their RC filters close to the VGA connector. The corresponding traces should not exceed 6 inches in length.

Keeping the filters near the connector places the filtering function close to the interface where the signals leave the PCB. The routing should also avoid unnecessary meanders and detours that increase the total signal path.

Because the synchronization signals and RGB video signals form different parts of the VGA interface, their supporting components should be placed according to their individual signal-path requirements rather than grouped together solely for placement convenience.

9. Place TVS Protection at the VGA Connector

Every signal associated with the VGA connector should have a TVS protection device placed as close to the connector as possible. The intended protection topology is:

VGA connector → TVS → IC pin

This arrangement ensures that an external ESD event encounters the TVS device before reaching the conversion IC. The TVS device therefore needs to be positioned at the connector side of the protection path rather than placed close to the IC with a long unprotected trace extending toward the connector.

The traces connecting the TVS device should not contain stubs. An unnecessary branch in the protection path can increase the physical length of the ESD discharge path and make the protection structure less direct.

The TVS ground pins also require a strong connection to the PCB ground structure. Add ground vias directly at the TVS ground connections, using at least two 0.4 x 0.2 mm vias to strengthen the ESD discharge path.

The connector-to-TVS-to-IC arrangement should therefore be treated as a complete protection structure. Connector placement, TVS placement, signal routing, and TVS grounding all need to work together rather than being designed independently.

Practical VGA PCB Layout Sequence

A consistent placement sequence can make these requirements easier to implement. Start by positioning the VGA connector and conversion IC close to each other. Next, place the RGB pulldown resistors near the IC and position the HSYNC/VSYNC RC filters near the connector. The TVS devices should then be placed directly around the connector so that the external interface reaches the protection devices before the IC.

After the major components are placed, route VGA_R, VGA_G, and VGA_B as a matched group. Keep the traces short and at least 12 mil wide where practical, maintain the required intra-group length relationship, and surround the routing with ground vias at intervals of no more than 300 mil. The adjacent reference layer should remain a ground plane.

Finally, check the surrounding PCB areas for LCD, DRAM, RF, and inductor-related routing. VGA traces should not pass through these sensitive or interference-prone regions. Also verify that TVS connections do not contain stubs and that the TVS ground connections use the specified via arrangement.

VGA OUT PCB Design Checklist

• Keep the VGA connector close to the conversion IC.
• Place each conversion-IC decoupling capacitor next to its corresponding power pin.
• Use a 75 Ω, 1% pulldown resistor for each VGA_R, VGA_G, and VGA_B channel.
• Place the RGB pulldown resistors close to the conversion IC.
• Use VGA RGB traces that are 12 mil or wider where practical.
• Keep intra-group RGB length mismatch within 200 mil.
• Ground-fence the full VGA RGB routing path.
• Place ground vias along the fence at intervals of no more than 300 mil.
• Use a ground plane as the layer adjacent to the VGA RGB traces.
• Keep VGA routing away from LCD, DRAM, RF signals, RF components, and inductor areas.
• Avoid placing VGA layer-transition vias next to high-speed nets.
• Place HSYNC/VSYNC RC filters close to the VGA connector and keep those traces within 6 inches.
• Place TVS protection devices as close to the VGA connector as possible.
• Maintain the protection path as VGA connector → TVS → IC pin.
• Avoid stubs on the TVS signal connections.
• Use at least two 0.4 x 0.2 mm ground vias at the TVS ground connections.

Conclusion

VGA OUT PCB design depends on more than simply connecting the connector to the conversion IC. The analog RGB channels require short, wide, consistently routed traces with appropriate termination, grounding, and length matching. Their routing environment should also be isolated from high-speed digital signals, RF circuitry, and other potential interference sources.

Protection and filtering components are equally important. The RGB pulldown resistors should remain close to the IC, HSYNC/VSYNC filters should be placed near the connector, and TVS devices should form a direct connector-to-protection-to-IC path with a low-impedance ground connection. Applying these layout rules together provides a more controlled PCB environment for VGA video signals and helps reduce routing-related signal integrity and ESD protection problems.
