How to Test the Switch-Node (SW) Signal in a DC-DC Converter

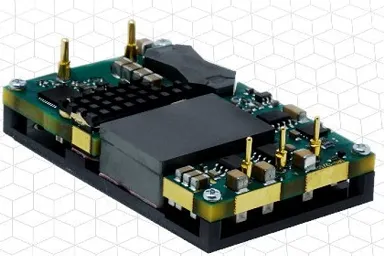

In power electronics, a DC-DC converter changes DC energy from one voltage level to another. During that conversion, the switch-node signal (SW) has to be correct if the converter is to meet its efficiency and stability targets. SW is not a secondary debug waveform. It is the node that shows whether the power switch is turning on and off as intended, whether the loop is remaining stable, and whether noise from switching is staying within the design intent.
The methods below are used to test the SW signal so that reliability issues can be found before the supply is released. Basic instruments cover waveform shape, frequency content, and load-step behavior. Advanced methods are reserved for locating discontinuities or judging interaction with nearby circuits.
Why the SW Signal Matters
The SW signal is the waveform at the switching device of the DC-DC converter, usually a MOSFET. In a buck converter this node sits between the high-side and low-side switches and the inductor. In other topologies the physical arrangement changes, but the role of SW does not: it is the pulsed voltage created by the switch action that the magnetics and the output filter then convert into a regulated DC rail.
That pulse train sets when the switch is on and off. Duty cycle therefore controls the conversion ratio. Rise time and fall time control how much time the device spends in the high-loss transition region and how much high-frequency energy is launched into the board. Distortion, ringing, or an unexpected duty shift is evidence that the converter is not operating on the waveform the design assumed.
SW testing is done to confirm that the waveform matches the design specification and to look for problems that appear only under real operating conditions. A converter that looks quiet at light load can ring at full load. A duty cycle that is correct at room temperature can walk as the inductor current and the control loop change. Capturing SW under those conditions is how those issues are made visible before release.
Common Test Methods
Oscilloscope measurement
Viewing SW on an oscilloscope is the most direct method. With the probe on the switch node, the waveform is visible. Rise time, fall time, and duty cycle are the parameters to check against the design.
The measurement is only as good as the probe connection. SW is a fast edge on a low-impedance power node. A long ground lead adds inductance, inflates ringing that is not present on the board, and can hide or exaggerate the true transition. A short tip-and-ground connection at the switch node keeps the captured edge closer to the voltage the MOSFET and the inductor actually see.
Rise time and fall time are compared with the intended switching behavior. Edges that are much slower than designed increase transition loss. Edges that are much faster launch more high-frequency content into the SW copper and into nearby nets. Duty cycle is compared with the conversion ratio required at that input and load. Unexpected pulse-width jitter, missing pulses, or a duty cycle that will not settle points to control, bootstrap, or layout problems that will not be obvious from a DC voltmeter on the output alone.
The same capture should be repeated at the operating corners that matter for the product: minimum and maximum input, light and heavy load, and the ambient conditions used in the specification. SW that is acceptable at one corner is not proof that it remains acceptable at the others.
Spectrum analysis
A spectrum analyzer is used to look at SW in the frequency domain. That measurement finds harmonics or noise, especially in higher-power applications. It also gives a precise reading of switching frequency so the operating frequency can be compared with the specification.
The time-domain waveform shows shape. The spectrum shows how that shape is distributed in frequency. Harmonics of the switching fundamental, broadband noise, and unexpected spurs are easier to quantify on an analyzer than on an oscilloscope grid. In higher-power converters those harmonics matter both for efficiency and for the amount of energy that can couple into analog, RF, or cable ports.
Switching-frequency confirmation is not a formality. A converter that has left its intended frequency, because of jitter, mode change, or an unstable loop, will not match the filter and EMI assumptions used in the design. Spectrum analysis of SW, or of a tightly coupled sense of SW, is a direct check of that frequency against the specification.
Load-transient response
In use, a DC-DC converter must handle load steps. Changing the load and watching how SW responds is a check of stability and dynamic behavior under different operating conditions.
A load step changes inductor current and forces the control loop to adjust duty cycle. SW is where that adjustment appears. If the loop is stable, duty cycle moves and then settles. If the loop is marginal, SW can show prolonged duty bounce, bursty pulse-width changes, or a shift into a different operating mode that was not intended at that load.
The output-voltage transient is still required, but it does not replace the SW measurement. The output filter hides some of the switch-node motion. Watching SW during the same step shows whether the converter is regulating by a controlled duty change or by a waveform that is already breaking up. Tests should include the step sizes and slew conditions that the product will see, not only a slow bench adjustment of an electronic load.
Advanced Test Methods
Time-domain reflectometry
Time-domain reflectometry (TDR) is an advanced method. Reflected waveforms are used to identify a mismatch or a fault at the switch node. It is useful for locating a problem, but it needs specialized instruments and skill.
SW copper, vias, and device packages form a short transmission structure. A discontinuity, an open via, a cracked solder joint, a layout neck-down, reflects energy. TDR makes those reflections visible as a function of distance along the path. That is why the method is a location tool rather than a substitute for the oscilloscope waveform check. It is applied when the time-domain SW shape already looks wrong and the physical site of the fault is not obvious.
Crosstalk testing
At the system level, crosstalk testing of SW matters. By applying interference from other signals onto the SW net, the interaction between different parts of the system can be judged, and the converter can be checked for correct operation in a crowded environment.
SW is both an aggressor and a victim. As an aggressor it can couple into nearby analog and digital nets. As a victim it can pick up disturbance from other switched loads, clocks, or cables. Crosstalk testing treats that two-way interaction as a system property. The converter is not finished when SW looks clean on an isolated evaluation board. It still has to keep the correct on/off waveform when the rest of the product is switching around it.
The practical check is to operate the neighboring aggressors while SW and the regulated output are monitored. Duty-cycle disturbance, added ringing, or a change in switching frequency under that interference is evidence that the SW node is not isolated enough for the intended environment.
Using the Methods Together
Testing the SW signal of a DC-DC converter is a required step if the power system is to run as designed. Oscilloscope measurement confirms edge timing and duty cycle. Spectrum analysis confirms switching frequency and exposes harmonics. Load-transient tests confirm that SW remains a controlled waveform when the load changes. Time-domain reflectometry is available when a mismatch or fault must be located. Crosstalk tests confirm that the same node still behaves when the rest of the system is active.
Combining those checks is an effective way to find latent problems and raise reliability. The same set belongs in both design characterization and production or qualification screening, so the converter stays stable across the operating conditions it will see after release. SW is the waveform that makes those conditions visible. Measuring the output voltage alone leaves the switching action unverified.
