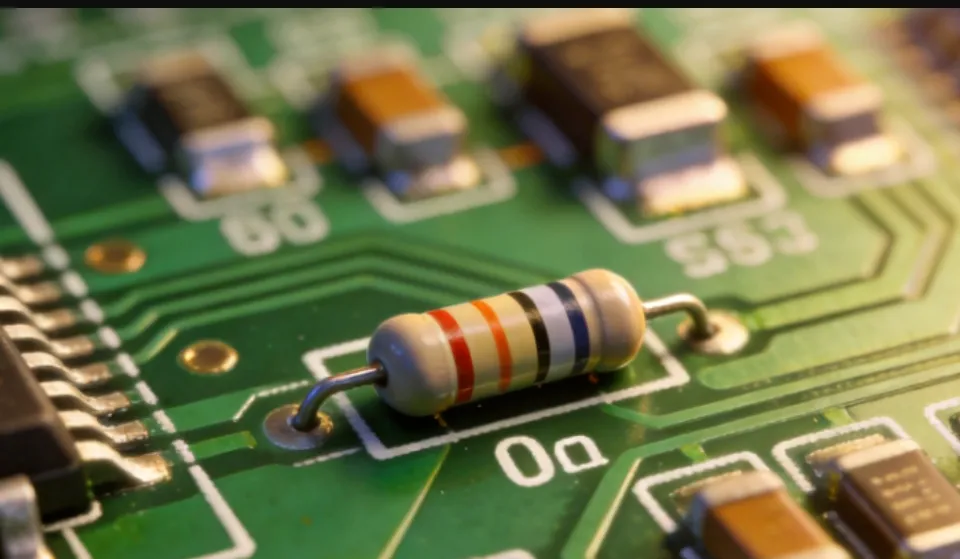

Ask many engineers about a 0 Ω resistor and the first reply is: it is just a jumper, so a wire would do. In hardware design its role is broader than that. The resistance is close to zero, but the part can still do jobs that a plain short does not replace.
A 0 Ω resistor is not there only to conduct. It also carries debug flexibility, signal-integrity options, and EMC measures. The uses below are the ones that are easy to overlook.
1. Single-Point Ground Isolation
In a mixed-signal system, digital ground and analog ground are routed separately and then joined at one point. A 0 Ω resistor is a convenient device for that joint.
Why not use a wire
Shorting digital ground and analog ground with a wire looks simple, but it can form a ground loop, and high-frequency noise can couple both ways along that path. A 0 Ω resistor has very low DC resistance, yet at high frequency, from tens of megahertz upward, it shows some inductive impedance and can limit the transfer of that high-frequency noise.
Application points
Place the 0 Ω resistor at the meeting point of digital ground and analog ground. DC potential stays common, and high-frequency noise still sees some isolation. If the system needs stronger isolation, a ferrite bead can replace it. A 0 Ω resistor still has an advantage in cost and debug flexibility.
2. Debug Reserve and Configuration Switching
During hardware debug, a signal often has to be opened or steered onto another path. A 0 Ω resistor is a practical reserved part for that work.
Signal-path switching
If a net may need to go to more than one destination, put a 0 Ω resistor on each path in the schematic. During debug, stuffing one and leaving the other open steers the signal. That is cleaner than a flying wire or a cut trace.
Function options
Some products enable a protection circuit or a sensor only for certain customers. A 0 Ω resistor used as a configuration jumper is enabled by soldering and disabled by leaving it off. It costs less than a DIP switch and is more reliable than a flying wire.
3. A Low-Cost Option in EMC Work
In EMC corrective work, a 0 Ω resistor is often used as a low-cost change.
Series element in a filter network
A 0 Ω resistor in series with a signal or power line has almost no DC impedance. At high frequency, package and pad parasitic inductance still present some impedance. That impedance can form a simple LC filter with a bypass capacitor and suppress noise in a given band.
Reducing loop area
When the signal return path is long, a 0 Ω resistor can provide a nearby return and shrink the loop area. A smaller loop radiates less and is less sensitive to outside interference. That point matters in high-speed design.
4. Current Sensing and Protection
A 0 Ω resistor can also be used for simple current sensing and overcurrent protection.
Simple current sampling
The marked value is zero, but the part usually has tens of milliohms of parasitic resistance. Where accuracy is not critical, that resistance can be used for current sampling. Measure the drop across it and estimate the current. For a precise measurement, use a dedicated sense resistor.
Fuse substitute
In a low-current path, a 0 Ω resistor can act as a simple fuse. If the current is too high, the part burns first from excess power and protects the downstream circuit. Reliability and accuracy are far below those of a dedicated fuse, but the practice is not rare in cost-sensitive consumer products.
5. Impedance Matching and Signal Integrity
Impedance matching is central in high-speed design. A 0 Ω resistor cannot provide precise matching, but it can still help in some cases.
Series termination
A 0 Ω resistor in series at the source of a high-speed line has a small value, but together with the driver output impedance it can form a source-termination resistance. In some cases that combination can reduce reflection and improve signal quality.
Reserved footprint for debug
Leave a 0 Ω footprint on the signal line. If reflection appears during debug, replace it with a resistor of a suitable value. That is more flexible than soldering a fixed resistor from the start and leaves room for later tuning.
6. Hot-Plug and Power-Up Sequencing
In a system that must support hot-plug, a 0 Ω resistor can be used to influence power-up timing.
Delayed power-up
A 0 Ω resistor in series at the power input, with the downstream decoupling capacitors, can form a simple RC delay. The delay is short, in the microsecond range, but in a timing-tolerant design it can stagger the turn-on of several modules and reduce inrush current.
Isolation during hot-plug
At a hot-plug interface, a 0 Ω resistor can provide some isolation. When the connector is inserted live, it can limit the surge current and protect the downstream circuit. Higher-demand designs still need a TVS and a dedicated hot-swap controller as well.
Summary
A 0 Ω resistor is not only a jumper. Single-point grounding, debug reserves, EMC work, current sensing, impedance options, and hot-plug protection all use it. Used well, it can improve circuit behavior, cut debug cost, and add design flexibility. The next time a board is drawn, it is worth asking whether that 0 Ω resistor can do more than close a net.
