DDR training failures, occasional system lock-ups, unstable address and command signals... When these issues appear, many engineers first suspect the device, timing, or power supply. In a daisy-chain topology, what actually distorts the signal can sometimes be nothing more than a missing termination resistor at the far end.
On the same board and the same address line, what happens to the eye diagram if the only change is whether a termination resistor is installed? The following dual-channel DDR3 1-to-8 simulation case makes the difference clear.
The conclusion first: in this case, adding a 39 Ω termination matching resistor opens the eye diagram clearly. After the resistor is removed, eye width and eye height narrow rapidly, and overall signal quality fails.
01 | What Problem Does the Termination Resistor Actually Solve?
When a high-speed signal travels along a PCB trace, the trace can no longer be treated as an ordinary wire. It must be treated as a transmission line. As soon as the signal meets an impedance discontinuity, a reflection occurs. The effect is similar to an echo formed when sound hits a wall.
When the reflected wave superimposes on the original signal, it produces overshoot, undershoot, and edge jitter. In severe cases, both eye width and eye height are compressed, and the receiver can no longer judge high and low levels reliably.
The core function of a termination matching resistor is to present a suitable impedance at the end of the signal path so that reflected energy is absorbed instead of bouncing back and forth between the two ends of the line.
02 | Test Conditions: One A3 Address Line, Two Comparison Cases

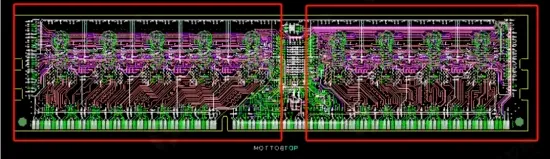

This case uses a dual-channel DDR3 1-to-8 daisy-chain topology with devices mounted on both sides of the board. The signal starts at driver U21, passes through eight DDR devices in sequence, and finally reaches the end of the net.
Simulation net: address line A3. Simulation software: SigXplorer. Stimulus frequency: 533 MHz.
Signal quality is judged mainly from the eye diagram. The more the eye opens, the larger the effective sampling window and the more stable the signal.
03 | With Termination: The Eye Diagram Opens Clearly

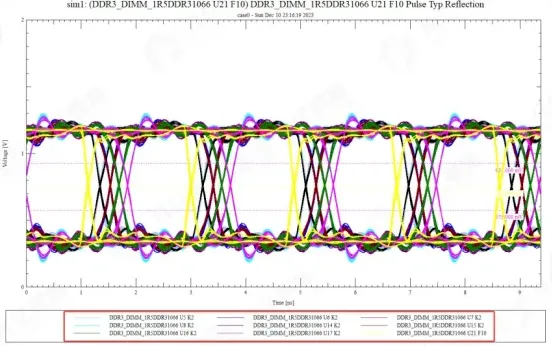

First look at the result with the termination resistor installed. The eye opening is relatively clear, eye width and eye height are maintained, and the signal does not fall through the critical VIH (high-level input voltage) and VIL (low-level input voltage) thresholds. The overall waveform remains valid.
Differences still exist at different device locations.

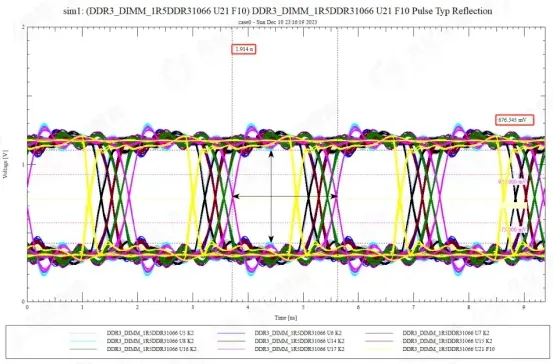

U5 and U14, closer to the driver, have cleaner signals with little overshoot and undershoot. Devices nearer the far end show larger waveform swing, but they remain within an acceptable range.
04 | Without Termination: The Eye Diagram Closes Quickly

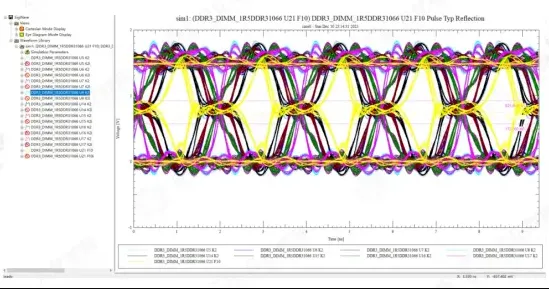

Remove the termination resistor and the gap appears immediately. Overall eye width and eye height narrow significantly. The time the signal stays valid between VIH and VIL is very short, and the usable sampling window at the receiver is greatly compressed.
What is easier to misread is this: the devices closest to the driver are the most disordered, and the eye almost collapses into a blob. The farthest devices look relatively clearer, but they still show obvious overshoot and undershoot, and the result remains unacceptable overall.
05 | Why Is the Near End Worse?
The reason is not complicated. Without a termination to absorb reflections, the signal travels back and forth between the two ends of the line. Locations near the driver see multiple reflections stacked together, so the interference is more severe.
A far end that looks "slightly better" does not mean the link is already reliable. It only means the degree of reflection superposition differs by location. As long as eye-diagram margin is insufficient, system stability still cannot be guaranteed.
The key point: a termination resistor does not "dress up" the waveform. It changes the boundary condition at the end of the transmission line. When the match is appropriate, the signal no longer reflects strongly after it reaches the far end. Without a match, reflected waves keep stacking, and the eye diagram naturally gets worse.
06 | A Quick Comparison: What Changes With and Without Termination?
- Eye opening: with termination → eye width and eye height stay relatively clear; without termination → both narrow clearly, with local disorder
- Threshold margin: with termination → the signal stays in the valid range overall; without termination → valid hold time is very short
- Location difference: with termination → near end is better, far end is slightly worse; without termination → the near end suffers more reflection interference
- Final judgment: with termination → the signal is usable in this case; without termination → overall signal quality fails
07 | Conclusion: Add the Resistor When Needed, but Do Not Copy the Value Blindly
This simulation case shows directly that, in a DDR3 daisy-chain topology, a missing matching resistor at the far end significantly increases reflection and severely degrades eye quality. After a suitable termination resistor is added, signal integrity improves clearly.
Engineering note: 39 Ω is specific to this case and should not be applied directly to all DDR designs. The termination value must match the actual transmission-line impedance to obtain better reflection suppression.
The reliable approach is not to add a resistor by habit. Combine the specific topology and trace impedance in simulation, then confirm margin with the eye diagram. In high-speed digital design, termination matching is often not an optional refinement. It is a key step that determines whether the link can operate stably.
Have you seen a DDR debug case in which the near end looked worse than the far end?
