Where Automotive HDI Justifies the Extra Manufacturing Effort Over Standard HDI
From the fabrication side, standard HDI serves most consumer and industrial needs with good balance of density, cost, and yield. Automotive HDI demands upgraded materials, tighter process controls, and far more rigorous validation to survive under-hood conditions, vibration, and long-term reliability requirements. Choose standard HDI for cost-driven, moderate environment applications and automotive-grade when the board must deliver 10–15 years of failure-free performance in harsh automotive settings.

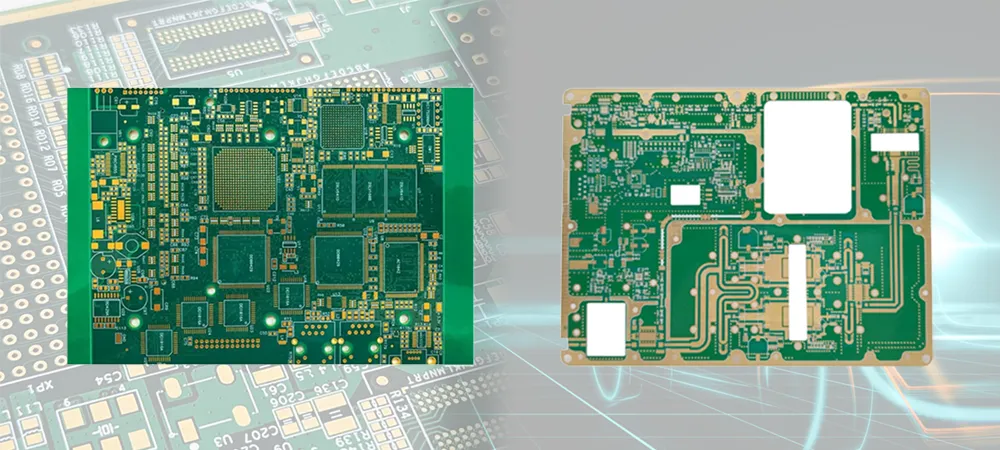

Standard HDI vs Automotive HDI: Key Manufacturing Comparison
| Aspect | Standard HDI | Automotive HDI |
|---|---|---|
| Base Materials | Standard FR-4, Tg 130-150°C | High-Tg FR-4 (≥170°C), low-CTE, often halogen-free |
| Reliability Focus | Moderate life, consumer/industrial | 10-15+ years, extreme thermal/mechanical stress |
| Testing Requirements | Standard IPC, sampling | AEC-Q100, IATF 16949, extensive stress testing |
| Process Controls | Standard lamination & plating | Tighter registration, enhanced via fill, vacuum lamination |
| Cost Impact | Lower material & validation cost | 30-60% higher due to materials and qualification |
| Typical Applications | Smartphones, wearables, networking | ADAS, powertrain, infotainment, safety systems |
Decision Matrix: Choosing Between Standard and Automotive HDI
| If your priority is... | Better Choice | Why |
|---|---|---|
| Lowest cost and fast time-to-market | Standard HDI | Higher yields, simpler supply chain, standard processes |
| Long-term reliability in harsh environments | Automotive HDI | Superior thermal stability and mechanical durability |
| High-volume consumer electronics | Standard HDI | Better panel utilization and lower material costs |
| Automotive safety or power systems | Automotive HDI | Meets AEC-Q and extended life qualification |
| Balanced performance for industrial use | Standard HDI | Sufficient for most non-automotive HDI needs |

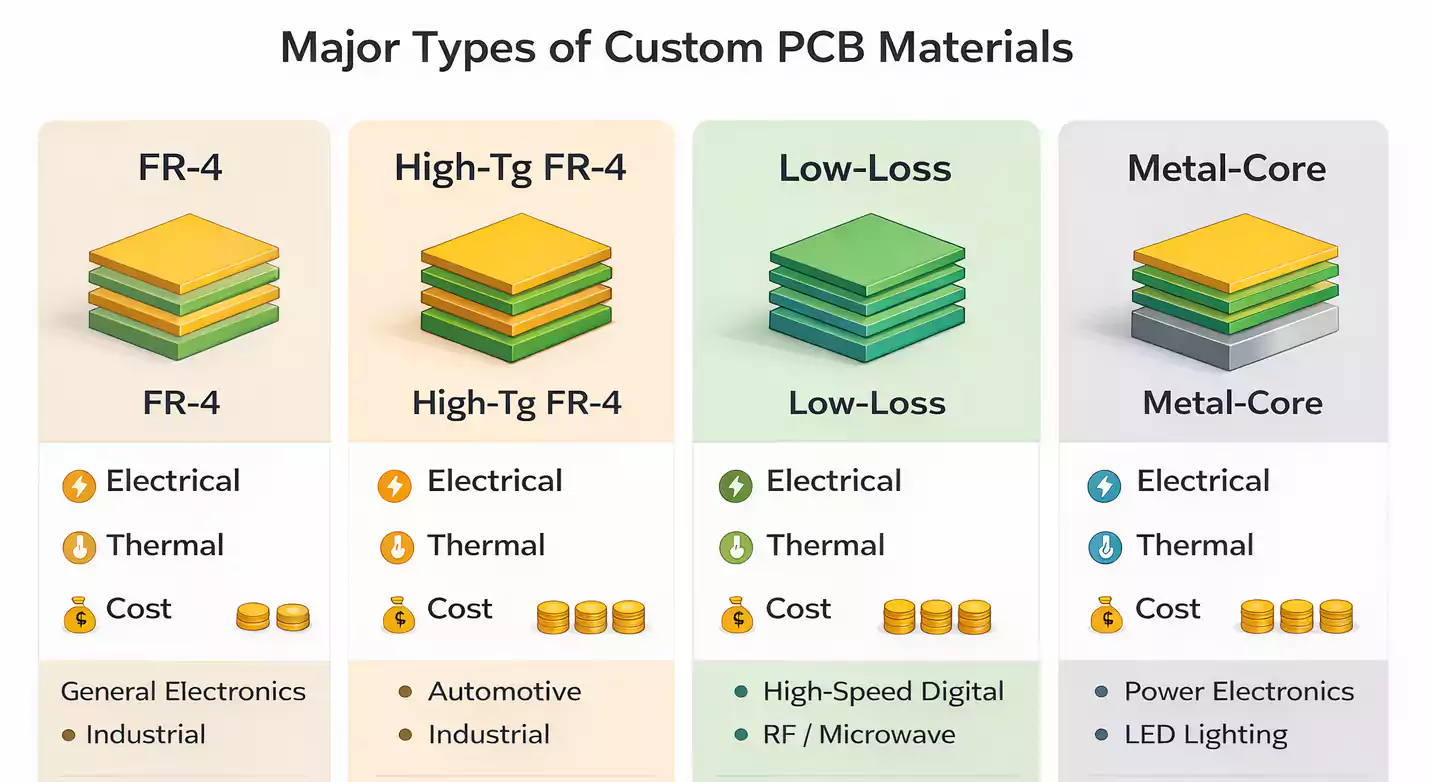

Material Selection: Why Automotive HDI Requires Upgraded Laminates
Material differences show up immediately during CAM review and lamination. Standard HDI typically runs on conventional FR-4 with Tg around 130-150°C, delivering acceptable performance for consumer environments. Automotive HDI pushes us toward high-Tg materials (170°C+), lower CTE, and often halogen-free formulations to handle -40°C to 150°C swings and vibration.
These upgraded resins increase material cost and require adjusted press cycles to avoid delamination. In production, we see better dimensional stability with automotive-grade materials, but they demand tighter process windows during sequential lamination for HDI builds.
Reliability Requirements: Surviving Automotive Operating Conditions
Reliability is where the two diverge most. Standard HDI targets consumer or industrial life cycles of a few years with moderate stress. Automotive HDI must endure 10-15 years of thermal cycling, humidity, vibration, and salt exposure. This drives thicker copper plating on microvias, enhanced via filling (often ≥95%), and stricter registration tolerances to prevent opens or shorts under mechanical load.
During fabrication, automotive orders require additional CAF testing and thermal shock validation that standard HDI rarely sees. Yield tends to be lower because any minor void or registration issue that passes standard inspection fails automotive criteria.

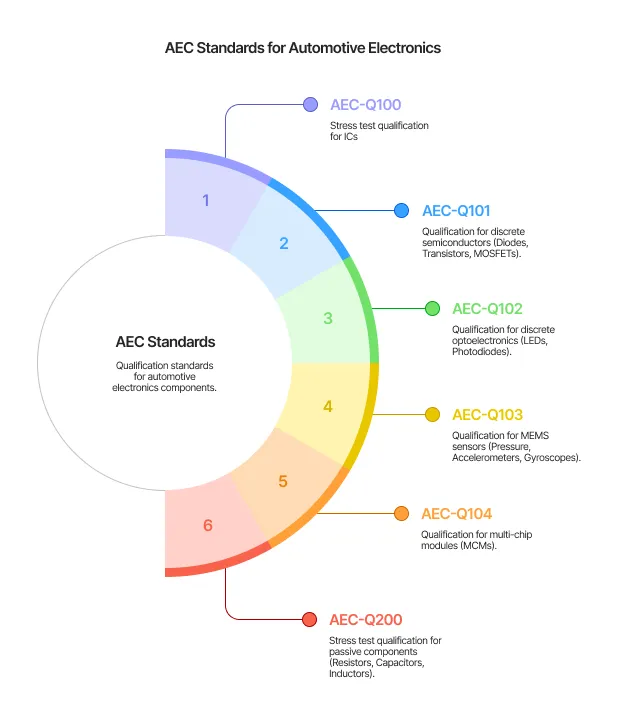

Testing and Qualification: From Standard IPC to AEC-Q Standards
Testing protocols highlight the gap. Standard HDI relies on IPC-6012 Class 2/3 with sampling, AOI, and basic electrical tests. Automotive HDI mandates full IATF 16949 compliance, AEC-Q100 qualification, extensive thermal cycling (1000+ cycles), vibration/shock testing, humidity bias, and salt spray validation. This extends validation time significantly but ensures field reliability.
In the factory, we perform more cross-section analysis and 100% X-ray on critical vias for automotive HDI. The added steps catch defects early but increase lead time and cost compared to standard flows.
Process Requirements: Tighter Controls in Automotive HDI Production
Process differences become clear in lamination and plating. Standard HDI uses conventional sequential builds with acceptable tolerances for consumer density. Automotive HDI often requires vacuum-assisted lamination, improved desmear, and enhanced copper filling to achieve void-free microvias. Surface finishes lean toward ENEPIG for better long-term solderability under heat and humidity.
These controls reduce panel utilization slightly and demand more frequent process monitoring, but they deliver the process capability needed for automotive qualification.
Factory Perspective on Standard vs Automotive HDI Orders
In production, we evaluate these options mainly through DFM review and material availability. Standard HDI flows smoothly with high throughput and consistent yields using our baseline HDI lines. Automotive HDI triggers dedicated qualification runs, PPAP documentation, and locked process parameters. Most manufacturers recommend standard HDI unless the end application requires automotive certification. The trade-off is clear: higher reliability at the expense of cost, lead time, and complexity.
Which Option Should You Choose?
Choose Standard HDI if you:
- Target consumer electronics, networking, or general industrial applications
- Need cost-effective high-density interconnects with standard reliability
- Operate in moderate temperature and vibration environments
- Prioritize fast turnaround and volume production efficiency
Choose Automotive HDI if you:
- Design for ADAS, powertrain, safety, or under-hood systems
- Require compliance with AEC-Q100 and IATF 16949
- Need proven long-term performance under extreme conditions
- Can accept higher costs for superior durability and traceability
Frequently Asked Questions
Q1: How much more expensive is automotive HDI compared to standard HDI?
A1: Typically 30-60% higher due to premium materials, extended testing, and stricter process controls. The premium varies with volume and complexity.
Q2: Can standard HDI materials be used in automotive applications?
A2: Generally no for safety-critical systems. Higher Tg, lower CTE, and full AEC-Q qualification are usually required for reliability under automotive stresses.
Q3: What surface finish is preferred for automotive HDI?
A3: ENEPIG is commonly recommended for its excellent long-term solderability and corrosion resistance in harsh environments.
Q4: How do via filling requirements differ?
A4: Automotive HDI often requires near 100% void-free fill on microvias for reliability under thermal cycling, while standard HDI allows more flexibility.
Q5: Is IATF 16949 certification mandatory for all automotive HDI?
A5: Yes for Tier suppliers and safety-critical parts. It ensures process consistency and traceability beyond standard ISO 9001.
