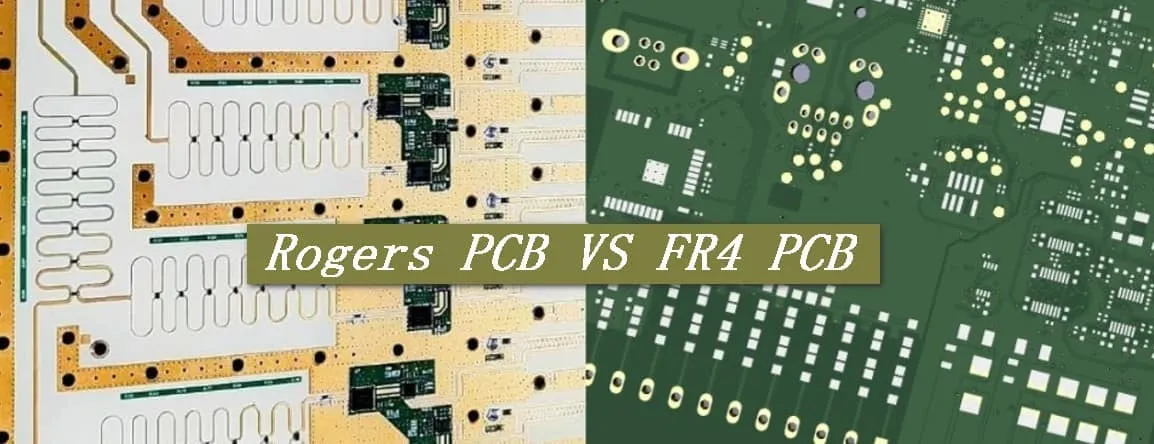

When FR4 Still Wins and When Rogers Becomes the Production Choice
From a fabrication standpoint, the FR4 vs Rogers PCB decision is not a brand contest. It is a loss-budget, Dk-stability, and scrap-cost decision. FR4 remains the better manufacturing choice for most digital, power, and short-channel boards below about 1-2 GHz, where every shop can run the material, panels are cheap, and a few tenths of a dB do not move first-pass yield. Rogers becomes the better choice when insertion loss, phase match, or lot-to-lot impedance start to dominate — typically RF filters, antennas, radar front ends, and long microwave lines where FR4 Dk wander is no longer acceptable.
One manufacturing detail matters before the comparison starts. "Rogers" on a drawing usually means RO4000 hydrocarbon-ceramic grades such as RO4003C or RO4350B, which process much closer to FR4. PTFE grades such as RT/duroid 5880 or RO3003 sit in the same catalog but are a different factory problem: special hole-wall prep, slower drills, and higher scrap. We normally recommend treating RO4000 and PTFE as two different Rogers options, not one material family with one price.
What Separates FR4 from Rogers on the Shop Floor
| Factor | FR4 | Rogers (typical RO4000 / PTFE range) |
|---|---|---|
| Dk @ 10 GHz | ~4.2-4.6, lot-dependent | 2.2-3.48 typical; ±0.05 on common RO4000 grades |
| Df @ 10 GHz | ~0.018-0.025 | ~0.0027-0.0037 (RO4000); ~0.0009-0.0013 (PTFE) |
| Practical frequency window | DC to ~1-2 GHz for most RF work | 1-40 GHz common; PTFE used into mmWave |
| Thermal behavior | Tg 130-180°C; k ~0.3 W/m·K | RO4000 Tg >280°C; higher k on many grades |
| Manufacturing complexity | Standard process, widest process window | RO4000 is FR4-like; PTFE needs special prep |
| Laminate cost vs FR4 | Baseline | ~5-12x for RO4000 sheets; higher for PTFE |
| Finished-board cost | Baseline | Often ~3-5x all-Rogers; hybrid often ~1.5-2.5x |
| Lead time / stock | On the shelf almost everywhere | Common thicknesses stocked; odd cores add days |
| Typical applications | Consumer, industrial control, short digital links | RF modules, antennas, radar, PA boards, filters |
Which Option Wins When the Priority Changes
| If your priority is... | Better choice | Why factories lean that way |
|---|---|---|
| Lowest board cost and fastest build | FR4 | Stocked cores, standard press, lowest scrap cost |
| Stable impedance above a few GHz | Rogers | Dk is specified and held; FR4 Dk moves with resin and glass |
| Long RF traces or tight loss budget | Rogers | Df is several times lower, so line loss stays inside the budget |
| Mass production of non-RF product | FR4 | Rogers premium never pays back if the channel is short and slow |
| RF on outer layers only | Hybrid FR4 + Rogers | Puts expensive dielectric only where the field lives |
| mmWave / ultra-low loss | Rogers PTFE grades | RO4000 is often not enough once loss and Dk at 24-77 GHz dominate |
| Lead-free automotive RF | RO4350B-class Rogers | Better thermal rating and UL V-0 than RO4003C in many AVLs |
Why Dk and Df Decide the Quote Before the Layout Does
The first real difference in any FR4 vs Rogers comparison is not "RF quality." It is how tightly Dk and Df are controlled. Standard FR4 Dk at 10 GHz typically sits around 4.2-4.6 and moves with resin content, glass style, and supplier. Df around 0.02 is normal. That is acceptable for digital edges and short analog runs. It is a problem when a filter, coupler, or antenna was modeled at a single Dk value.
Rogers RO4003C is specified at Dk 3.38 ±0.05 with Df about 0.0027 at 10 GHz. RO4350B sits at Dk 3.48 ±0.05 with Df about 0.0037. PTFE grades go lower still — RT/duroid 5880 near Dk 2.20 and Df 0.0009. During CAM review, that tighter Dk window is what lets us hold ±5% impedance without guessing resin flow the way we do on FR4. The trade-off here is price: you are buying a dielectric that was made as an RF part, not as a general-purpose epoxy sheet.
Df is the loss number purchasing feels later as "the RF board did not pass." At 10 GHz, FR4 dissipation is several times higher than RO4000 and an order of magnitude higher than many PTFE grades. Short traces hide that. A 50 mm feed line or a multi-stage filter does not. We normally recommend running the line-loss budget at the real frequency before anyone writes Rogers on the fabrication notes. If the extra loss on FR4 still sits inside the margin, the factory should stay on FR4.
Where High-Frequency Performance Stops Being a Datasheet Argument
High-frequency performance is where FR4 vs Rogers PCB differences show up in measured boards, not in marketing plots. Insertion loss on a 50 Ω microstrip at 10 GHz is commonly in the 0.7-1.0 dB/inch range on ordinary FR4 and closer to 0.2-0.3 dB/inch on RO4350B, depending on copper and geometry. That gap compounds with length. A 20 mm interconnect may still pass on FR4. A 150 mm RF run or a corporate-feed network usually will not.
Phase and filter center frequency are the other factory failures. FR4 Dk can shift several percent with frequency, temperature, and moisture. A coupled-line filter designed at 5.8 GHz can walk off-channel when the next FR4 lot runs a different resin content. Rogers grades hold Dk much closer across frequency and temperature, which is why RF houses specify them even when raw loss is not the only issue.
There is a middle band people overspend in. Below about 1 GHz with short traces, FR4 is usually enough. Between 1 and 3 GHz the call depends on line length and whether the circuit is a resonator or just a feed. Above that, most shops will push Rogers or a hybrid before promising RF yield on standard FR4.
Thermal Behavior Is Not the Same Problem on Both Materials
Thermal performance in this comparison is easy to misread. FR4 is limited by Tg and Z-axis expansion. Standard grades soften near 130-140°C; high-Tg FR4 near 170-180°C. Thermal conductivity sits around 0.3 W/m·K. That is adequate for most logic boards and a constraint on power amplifiers and dense RF heat sources.
RO4000 grades list Tg above 280°C and Td well above typical FR4. Thermal conductivity on RO4350B is roughly 0.6-0.7 W/m·K — better than FR4, still not a metal-core board. Z-axis CTE is lower than standard FR4 on several Rogers grades, which helps plated holes through multiple reflows. PTFE is a different thermal animal: some grades have high Z-CTE and need careful via design even though electrical loss is excellent.

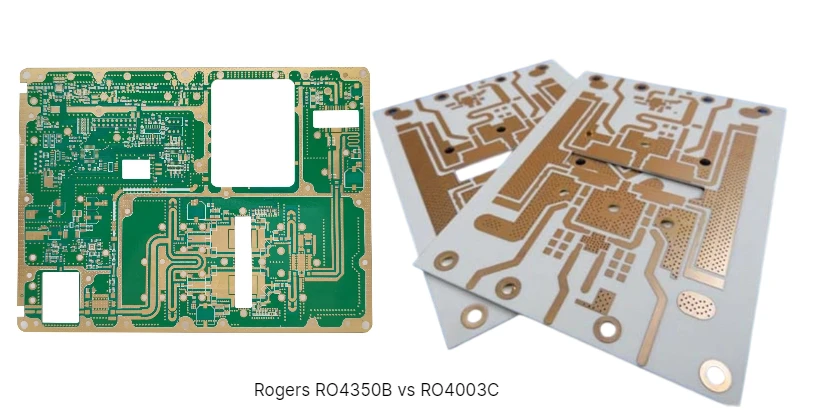

Lead-free assembly is why RO4350B shows up more often than RO4003C on automotive and industrial RF. RO4003C is the lower-loss, lower-cost RO4000 workhorse, but many AVLs want the V-0 / higher-temperature grade for SAC305. From a fabrication standpoint, that is an assembly and listing decision, not an RF-loss decision. Mixing the two in one stack without checking bondply and press recipe is a common CAM flag.
Why One Rogers Grade Runs Like FR4 and Another Does Not
Manufacturing difficulty is the dimension that separates a 7-day Rogers job from a 14-day Rogers job. RO4003C and RO4350B were built to press and drill on FR4 equipment. Standard mechanical drilling, chemical desmear, and familiar plating chemistry usually work. Press temperature sits near a normal FR4 cycle. That is why hybrid FR4 + RO4000 stackups are practical: one press window can bond both systems if the bondply is chosen correctly.
PTFE Rogers is not that process. Drill smear, hole-wall activation, and dimensional movement all change. Plasma or other PTFE-specific prep is normal. Press recipes are tighter, and sequential lamination is less forgiving. Yield tends to decrease when a shop that only runs FR4 treats 5880 like 4350B. The scrap is expensive because the core itself is expensive.
Even RO4000 is not free process-wise. Ceramic fill wears bits faster than standard epoxy, and RF geometries still need etch compensation and impedance coupons. Most PCB manufacturers can run RO4000; fewer should be trusted with thin PTFE. During DFM we price the process that grade requires — not a generic "Rogers PCB" line item.
Where Cost and Applications Diverge on the Same Panel Size
The cost comparison is the number buyers remember and the number they often mis-scale. RO4000 laminate commonly runs about 5-12x a comparable FR4 sheet. PTFE is higher still. Finished-board price does not multiply by the same factor, because drilling, plating, mask, and test still dominate a large share of an FR4 quote. In production, we typically see all-Rogers RO4000 boards land around 3-5x an equivalent FR4 board at prototype and small-lot quantities. Hybrid constructions — Rogers on the RF layers, FR4 on the rest — often land closer to 1.5-2.5x and are the construction most factories recommend once the RF sits on the outer layers only.
Applications follow that math. FR4 covers consumer electronics, industrial I/O, power supplies, and most digital product. Rogers shows up on RF power amplifiers, antenna boards, GNSS and Wi-Fi front ends, filters, couplers, automotive radar, and satellite or test hardware. If the board is 80% digital routing with one RF connector and a 15 mm matching network, a hybrid is usually the manufacturing answer. If every layer is an RF cavity or a millimeter-wave line, all-Rogers or PTFE is the honest spec.
Lead time tracks stock, not mythology. Common RO4350B / RO4003C thicknesses are widely held in Asia. Odd dielectric heights, heavy copper Rogers, or PTFE bond films add days and sometimes vendor allocation. Brand-locked drawings ("Rogers only, no equivalent") are what turn a routine RF board into a materials hunt. We normally recommend allowing a listed equivalent when the electrical window matches, and locking the brand only when qualification already used that exact core.
How CAM and the Press Line Actually Score FR4 vs Rogers
During CAM review, FR4 vs Rogers is scored against stack-up, line length, impedance notes, and whether the customer already named a grade. A drawing that only says "Rogers" is incomplete. We need the exact system, core thickness, copper weight, and whether PTFE processing is expected. A drawing that says "FR4" on an 8 GHz filter is also incomplete — someone will either over-process a cheap material or under-perform an RF spec.
Process stability still favors FR4. Panel utilization is similar at the same outline, but scrap cost is not. One mis-etched FR4 panel is annoying. One mis-etched Rogers panel is a materials write-off. That is why shops add coupon real estate, tighter etch compensation, and sometimes 100% impedance reporting on Rogers jobs. Tooling considerations include bit wear on ceramic-filled cores and separate drill programs if PTFE is in the same order mix.
Inspection requirements rise with the material price. RF boards often need impedance plots, sometimes TDR, and lot-tied material certs. Hybrid boards need a press recipe that does not starve FR4 prepreg or over-flow Rogers bondply. What factories usually recommend is blunt: stay on FR4 until the RF budget says no; use RO4000 when you need FR4-like processing with RF Dk; use PTFE only when loss at high GHz forces it; use hybrid when only some layers carry RF.
Which Material Should Go on the Fabrication Drawing
Choose FR4 if you:
- Are building digital, power, or short analog boards where loss at a few GHz is not the limiter
- Need the lowest unit cost, the widest supplier base, and the shortest standard lead time
- Can live with Dk variation and ±10% impedance on ordinary geometries
- Have no RF filter, antenna, or long microwave line that was modeled on a Rogers Dk
Choose Rogers if you:
- Need stable Dk, low Df, or phase-critical RF paths that FR4 cannot hold
- Are building RF modules, antennas, radar, PA boards, filters, or long microwave lines
- Must keep impedance and filter center frequency repeatable across lots
- Can accept the laminate premium, extra coupons, and tighter CAM control
Choose a hybrid if you:
- Want most of the Rogers electrical benefit without paying for all-Rogers cores
- Can accept the extra CAM work to match bondply, CTE, and press recipe
Do not write only "Rogers" or only "FR4 high frequency" on the drawing. Name the grade, thickness, and whether equivalents are allowed. That single line is what keeps the factory from substituting a cheaper epoxy or an unneeded PTFE core.
Questions That Come Back After the First Rogers Quote
Q1: Is Rogers always better than FR4 for high-frequency boards?
A1: No. Rogers is better when Dk stability and low Df matter. FR4 is better when the channel is short, the frequency is modest, and cost or lead time dominate. A 2.4 GHz module with a 10 mm match may still belong on FR4. A 10 GHz filter usually does not.
Q2: How much more does a Rogers PCB cost than FR4?
A2: The laminate can be 5-12x FR4 for common RO4000 sheets. The finished board is often closer to 3-5x for all-Rogers and 1.5-2.5x for a hybrid. PTFE and odd thicknesses push the premium higher. Material is only part of the quote; scrap risk is the rest.
Q3: Can Rogers RO4000 be processed like FR4?
A3: Closely enough that most FR4 shops can run RO4003C and RO4350B with adjusted press and drill wear. PTFE Rogers is not in that group. If the drawing says Rogers and the grade is 5880 or RO3003, expect a different process route and a longer cycle.
Q4: Should I use RO4003C or RO4350B?
A4: RO4003C is usually the lower-loss, lower-cost RO4000 choice. RO4350B is the more common lead-free / V-0 / automotive pick. Choose from the assembly and listing requirement first, then from Df. Do not mix them in one press unless the stack-up has been qualified.
Q5: When is a hybrid FR4 plus Rogers stack-up worth it?
A5: When RF lives on one or two layers and the rest of the board is digital or power. Putting Rogers only where the field is cuts laminate cost without giving up the controlled Dk on the RF layer. It adds CAM and press attention, but it is how most production RF boards stay affordable.
Q6: At what frequency should I stop using FR4?
A6: There is no single cutoff. Short 2.4 GHz traces often survive on FR4. Long lines, resonators, and anything modeled around a tight Dk usually leave FR4 somewhere between 1 and 3 GHz. Above that, plan on Rogers or a documented low-loss substitute and confirm with the loss budget, not a rule of thumb.
