Introduction to Magnetically Controlled Soft Robots
Magnetically controlled robots represent a rapidly advancing class of miniature soft robotics designed for minimally invasive medical procedures. These devices use external magnetic fields for wireless actuation, enabling precise navigation and interaction within complex biological environments such as the gastrointestinal tract.
Recent research from Professor Chen Huawei's team at Beihang University demonstrates a sophisticated approach that integrates in-situ motion programming with onboard pose sensing, significantly enhancing functionality in non-visual environments.
Key Design Innovations

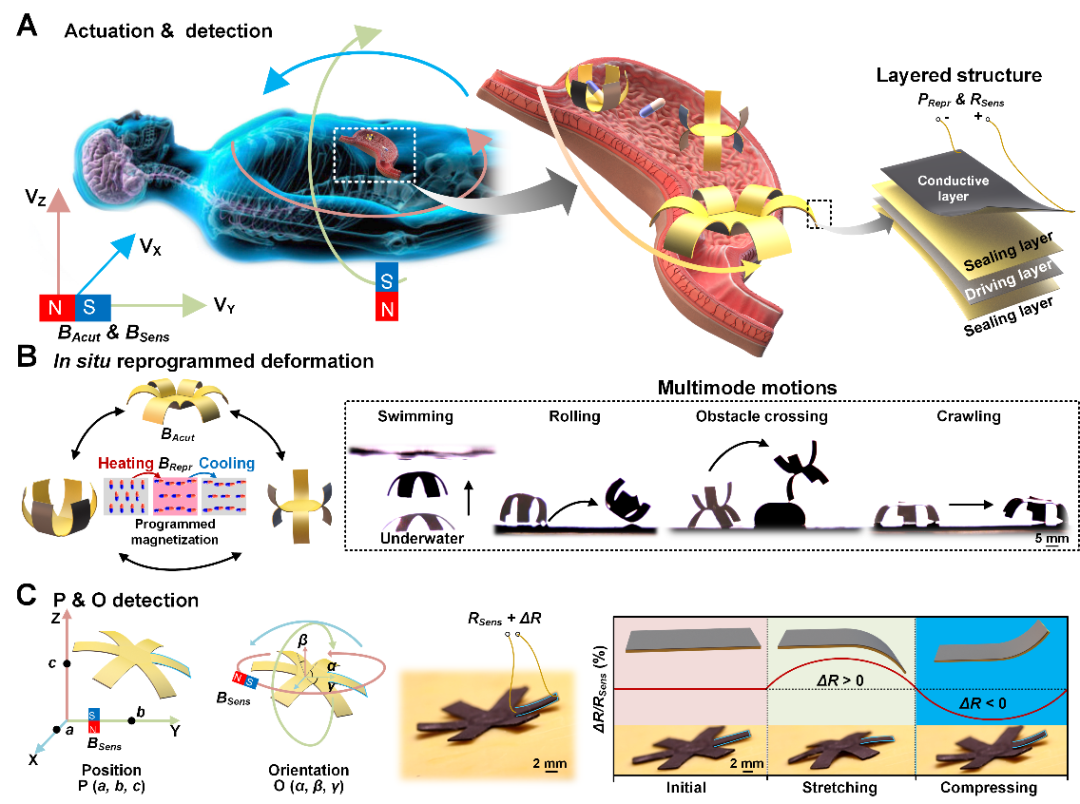

The core innovation lies in a multilayer carbon-magnetic thin-film material fabricated via 4D spray printing. This composite couples:
- Electrothermal Magnetization: Allows programmable changes in magnetic properties through controlled heating.
- Resistive Strain Sensing: Provides real-time feedback on the robot's deformation and orientation.

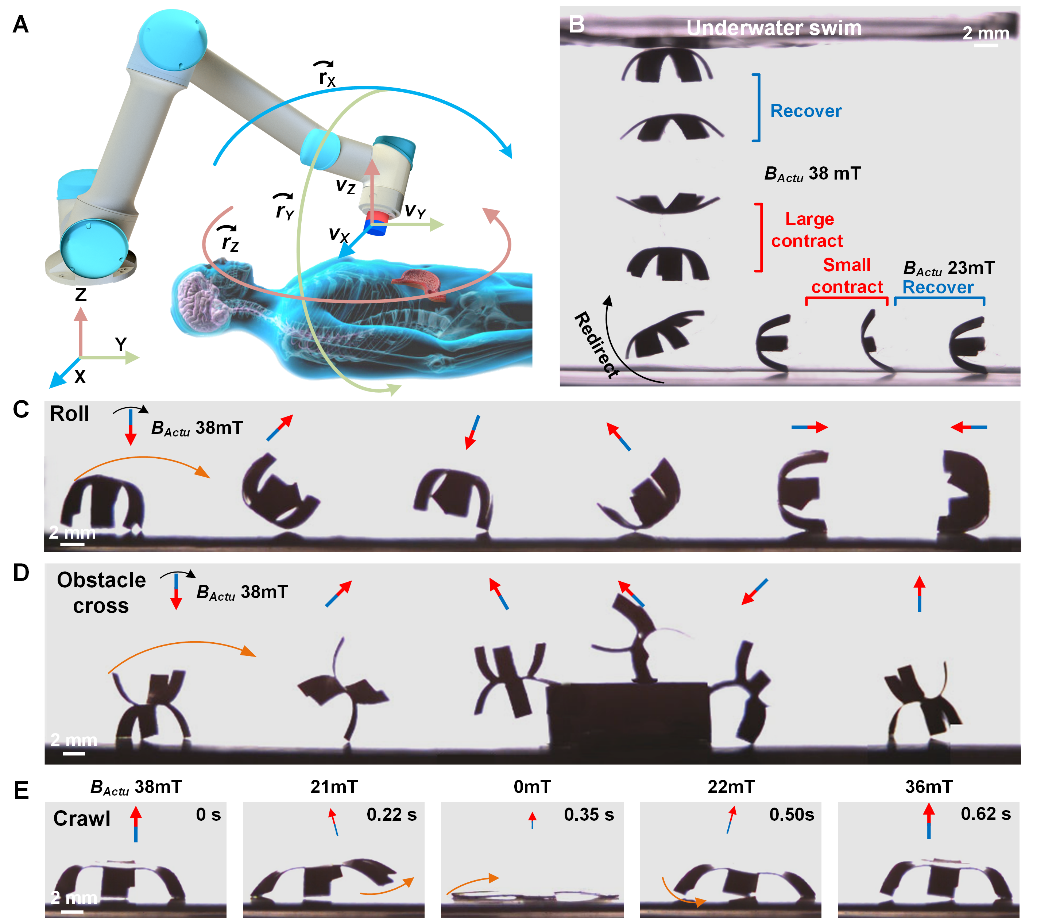

This integration enables multimodal actuation (crawling, rolling, attachment/detachment) while simultaneously delivering position and orientation data without relying solely on external imaging.
Fabrication Process: 4D Spray Printing
4D printing extends traditional 3D printing by incorporating time-dependent shape or property changes. In this case:
- Spray printing deposits precise layers of carbon-based conductive materials and magnetic particles.
- The resulting thin-film structure responds dynamically to thermal and magnetic stimuli.
- In-situ reprogramming allows the robot to adapt its motion modes during operation, improving adaptability to varying anatomical constraints.
This fabrication method supports scalable production of compliant, multifunctional microstructures suitable for medical use.
Performance Benefits in Medical Applications
The combination of multimodal locomotion and integrated sensing offers several advantages for gastrointestinal robotics:
- Enhanced adaptability to complex paths and manipulation tasks.
- Accurate operation in dark, fluid-filled, or visually obstructed environments.
- Support for advanced functions such as targeted drug delivery, controlled release, and in-situ tissue inspection.
- Reduced reliance on continuous external imaging, lowering procedural complexity and radiation exposure.
These capabilities point toward more precise, multifunctional magnetically driven medical robots.
Electronics and Flexible PCB Challenges in Miniature Soft Robots
Embedding functionality into millimeter-scale soft robots requires advanced microelectronics that maintain performance under repeated deformation:
- Stretchable and Flexible Circuits: Must endure high strain without cracking or losing conductivity.
- Integrated Sensing: Resistive strain gauges and signal conditioning circuits integrated directly into the robot body.
- Wireless Compatibility: Minimal onboard electronics optimized for magnetic field interaction and low-power operation.
- Biocompatibility: Materials and assembly processes that meet stringent medical standards.
Role of Flexible PCBs and Manufacturing in Magnetically Controlled Robots
High-performance flexible printed circuits (FPCs) and rigid-flex solutions are essential for realizing these miniature systems:
- Ultra-Thin Flexible Substrates: Polyimide or specialized stretchable materials support conformal integration with soft robot bodies.
- High-Density Microelectronics: HDI techniques enable embedding of sensors, traces for strain sensing, and interfaces for magnetic elements.
- Reliability Under Deformation: Designs incorporating strain relief, redundant pathways, and robust bonding for cyclic loading.
- Miniaturized Assembly: Precision processes for attaching micro-components, thin-film deposition compatibility, and hermetic sealing.
- Medical-Grade Manufacturing: Full traceability, cleanroom capabilities, and compliance with ISO 13485 standards to support clinical translation.
Electronics manufacturing partners with expertise in medical flexible circuits help bridge advanced materials research with reliable, producible robotic platforms.
Industry Outlook
As fabrication techniques like 4D printing mature alongside flexible electronics, magnetically controlled soft robots are poised to transform minimally invasive medicine. Continued improvements in sensing accuracy, actuation control, and scalable manufacturing will accelerate adoption in drug delivery, diagnostics, and therapeutic applications.
FAQ
Q1: What is 4D spray printing in robot fabrication?
A1: It is an advanced additive manufacturing process that creates materials with time-dependent properties, enabling programmable shape and magnetic behavior changes.
Q2: How does integrated pose sensing work?
A2: Resistive strain sensing in the carbon-magnetic thin film provides real-time feedback on deformation and orientation, combined with external magnetic control.
Q3: Why are flexible PCBs critical for these robots?
A3: They enable reliable integration of sensing, actuation, and control electronics within highly deformable, biocompatible miniature structures suitable for medical environments.
