In the micro world of PCB layout, we often obsess over trace width and drill size, yet overlook a small but critical detail: how the pads of 0603 (imperial) and smaller SMT chip resistors and capacitors are connected. These tiny components may look insignificant, but if a pad is tied directly into a large copper area, the temperature imbalance during reflow can easily trigger tombstoning or cold/insufficient solder joints.
This article explains how to apply thermal relief to give these components a more uniform thermal environment during reflow.
1. Rules at a Glance: The Thermal Relief "Iron Law" for Small Chip Components
For SMT chip components sized 0603 (imperial) or smaller:
-
Mandatory: If a pad connects to a large copper area (copper pour/plane), that pad must use thermal relief.
-
Objective: Reduce temperature differences between the two ends during reflow and prevent tombstoning and soldering defects.
What is thermal relief?

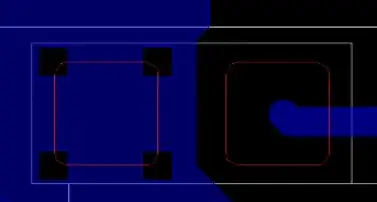

Instead of making a solid connection between the pad and the copper plane, thermal relief uses a small gap and a few narrow "spokes" to connect the pad to the plane. This limits heat flow so the pad does not act as a heat sink tied to the full plane.
2. Why Do Small Chip Components Need Thermal Relief?
Consider a 0603 resistor whose pads are both tied to a large ground copper pour. What happens in the reflow oven?
2.1 Thermal Capacity Mismatch and Temperature Imbalance
-
Large copper pour: It behaves like a large thermal sponge. As the oven ramps up, it absorbs considerable heat and sheds heat quickly due to its area.
-
Small chip: It has very low thermal mass, so it heats and cools rapidly.
-
Consequence: If a pad is directly bonded to a large plane, the two ends can heat at different rates. One end may reach liquidus and reflow earlier while the other end remains cooler. As solder solidifies, the cooler end can exert a stronger pull, lifting the component and causing tombstoning (one end raised).
2.2 Uneven Solder Melting Drives Tombstoning
Tombstoning is one of the most common defects for small components. Fundamentally, it arises from:
-
Unbalanced wetting force between the two ends.
-
When one pad's solder melts earlier, surface tension pulls the component toward that end. If the opposite pad melts later, it may be "left behind," leading to the part tipping upright.
2.3 How Thermal Relief Helps
By reducing the solid copper contact area between the pad and the plane, thermal relief slows heat conduction into the plane. This helps:
-
Keep both pads heating more synchronously during reflow.
-
Promote more uniform solder melting, balanced wetting forces, and flat, stable placement.
3. Practical Design: How to Implement Thermal Relief
While details can vary by manufacturer and stack-up, the following general practices are widely applicable:
3.1 Connection Style
-
Cross pattern (spoked): The most common style. The pad is connected to the plane with two orthogonal narrow spokes. Many designs use two or four spokes in a cross-like pattern.
-
Diagonal spokes: Sometimes used, but a cross pattern is typically more robust and predictable.
-
Avoid solid copper tie-ins: Do not flood-connect the pad directly to the plane. That defeats the purpose of thermal relief and invites temperature imbalance.
3.2 Spoke Width
-
Spoke width is commonly in the range of 0.2–0.3 mm (approximately 8–12 mil).
-
Narrower spokes improve thermal isolation but reduce mechanical robustness and current-carrying cross-section. Select a width that balances thermal behavior and mechanical/electrical requirements.
3.3 Pad Size
-
Even with thermal relief, the pad size should follow standard geometry for the package. For example, a 0603 pad is commonly around 1.0 mm × 0.5 mm.
-
If your design uses both solder-mask-defined (SMD) and non-solder-mask-defined (NSMD) options, keep pad dimensions consistent to maintain solderability and process uniformity across variants.
4. Common Pitfalls and How to Avoid Them
Myth 1: "Small components are fine; just tie the pad directly to the plane."
-
Reality: Small components are more sensitive to temperature imbalance. The "heat-sink" effect of a large pour can be fatal to 0603, 0402, or 0201 parts during reflow.
Myth 2: "Thermal relief will hurt conductivity."
-
Reality: For typical chip resistors and capacitors in the 0603-and-smaller range, operating currents are low (often well below 1 A), and the small reduction in copper cross-section from thermal relief does not impair electrical performance in typical use.
Myth 3: "Every chip part must have thermal relief."
-
Reality: Thermal relief is required when a pad connects into a large copper area such as a ground or power plane. If a pad connects only to a narrow trace or a small local pour, thermal relief is generally unnecessary.
Recommended Approach
-
Assess first: Does the pad connect to a large copper area (GND plane, power plane, large copper pour)?
-
Apply relief: If yes, add thermal relief to that pad.
-
Follow provided patterns: If the manufacturer supplies specific thermal relief patterns or design drawings, follow them closely.
5. Summary: Small Detail, Big Impact
In PCBA manufacturing, small details matter. A proper thermal relief implementation on a 0603 resistor can be the difference between a robust build and widespread tombstoning. The goal is not added complexity; it is thermal balance and higher solder yield.
When laying out small chip components like 0603, 0402, or 0201, always ask: "Are any of these pads tied to large copper areas, and if so, have I added thermal relief?"
