A recent 4-layer FR4 order highlighted how small details in breakaway tab design and legend placement can introduce significant production and handling risks. Through targeted engineering questions during CAM review, our team clarified stamp hole spacing, silkscreen proximity to pads, and panelization details, ensuring stable manufacturing and assembly for this 50-piece run.
Compact 4-Layer FR4 Design with V-Score and Stamp Holes
This board ( #FR4-20260410-025 ) used TG150 FR4 material at 1.6mm finished thickness with 1oz copper layers, lead-free HASL surface finish, green solder mask, and white silkscreen. Panelized in a 5x2 array combining V-cut and routing, the design required careful attention to mechanical breakaway features and legend application to support reliable depanelization and downstream soldering processes.
From a DFM perspective, compact panels with stamp holes (mouse bites) and dense legend elements often carry hidden risks that automated checks may overlook. Early review helped identify parameters that could compromise board integrity during handling or affect solder joint quality.
Tight Stamp Hole Spacing Triggering Breakaway Concerns
The original data specified 0.8mm stamp holes with only 0.1mm spacing between perforations. During CAM analysis, our engineer observed that this configuration would likely result in insufficient web strength in the finished panel. Such tight spacing increases the probability of premature separation during routing, shipping, or manual handling before assembly.

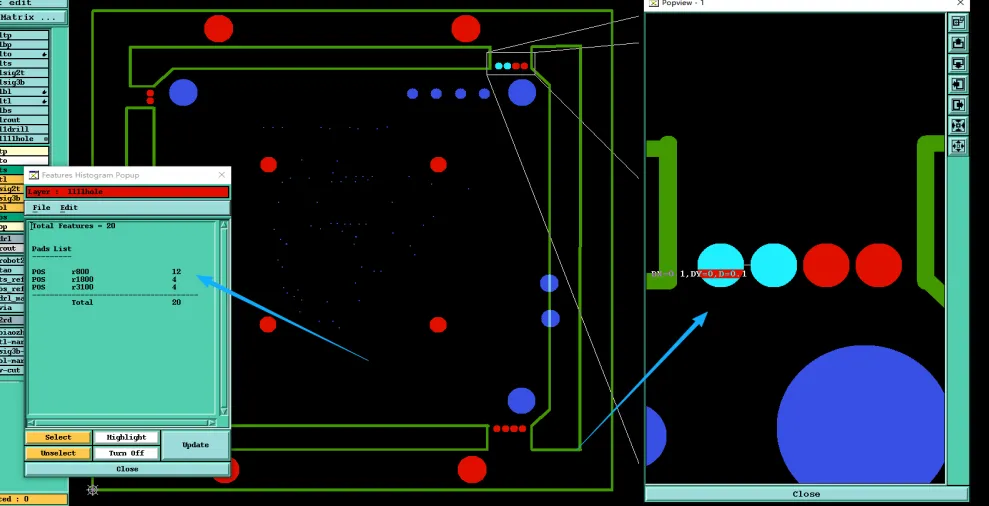

Figure 1: the stamp holes space for the 0.8mm is 0.1mm
If left unchanged, boards could break apart unintentionally, leading to edge damage, component misalignment risks, or complete scrap. The team recommended verification and potential adjustment of the breakaway tab geometry to balance easy depanelization with sufficient structural integrity during production flow.
Legend Placement Proximity to Pads and Overlap Issues
Multiple legend characters were found overlapping or positioned extremely close to component pads. This is a frequent manufacturability flag because silkscreen ink near or on pads can interfere with solder paste deposition, stencil release, or fillet formation during reflow. The engineering observation noted characters that would directly impact soldering reliability if not addressed.

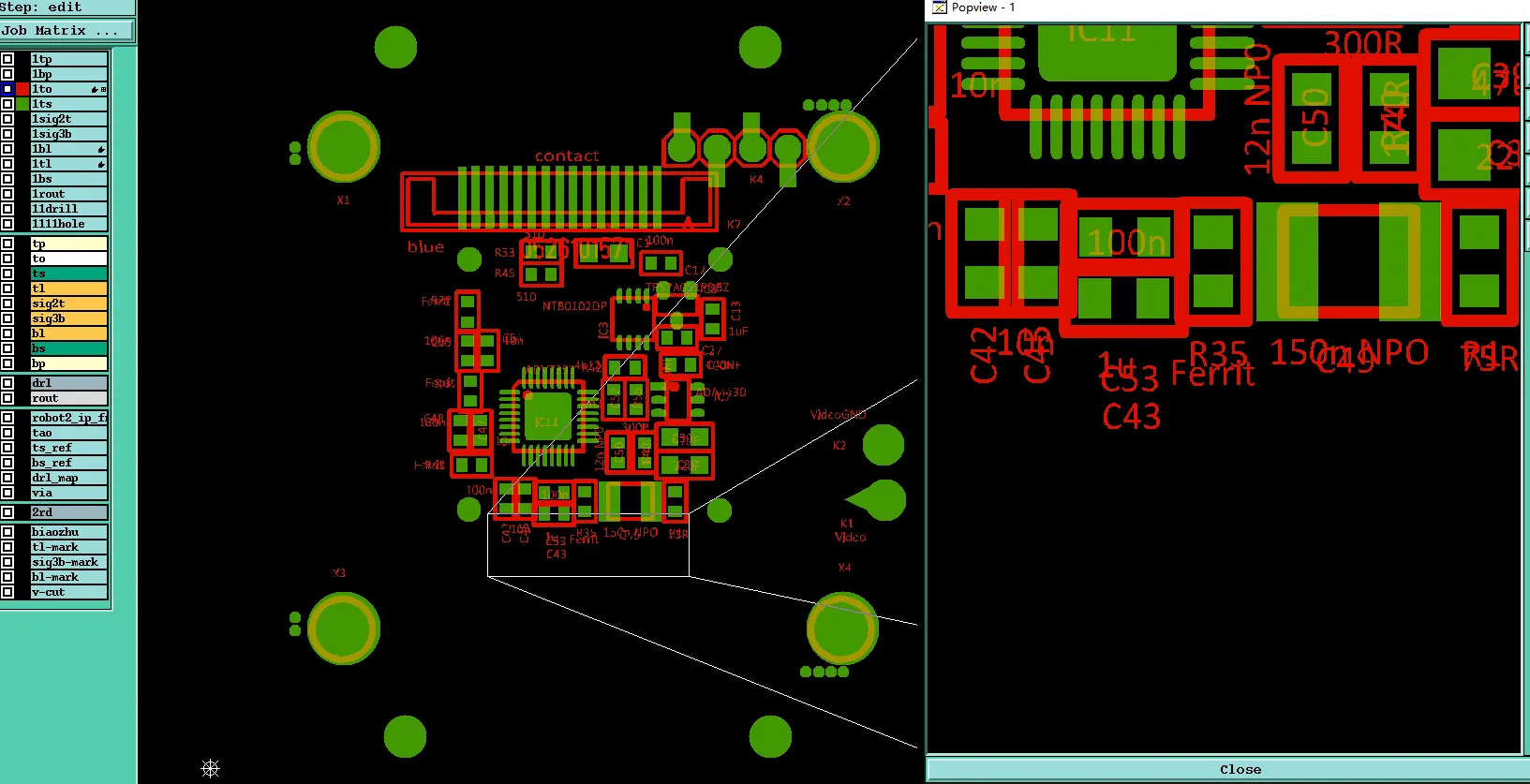

Figure 2: part of the legends are overlapped

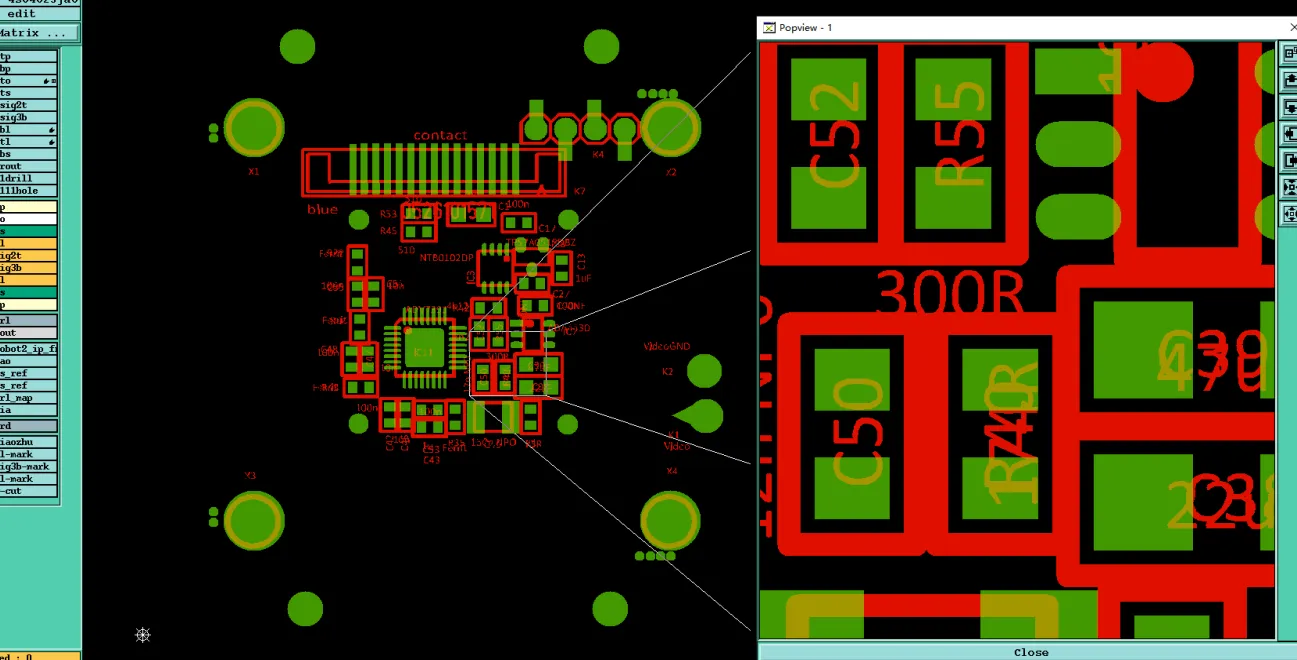

Figure 3: part legends are on the pads or too close to the pads
Confirmation was sought on whether relocation was feasible or if the design required tolerance adjustments. The customer response guided final handling, preventing potential open joints or weak connections in the assembled product.
| Risk Area | Observed Condition | Primary Concern |
|---|---|---|
| Stamp Holes | 0.8mm holes, 0.1mm spacing | Premature panel separation |
| Legend Elements | Overlapping or near pads | Solderability interference |
| Panelization | 5x2 V-cut + routing | Depanelization stability |
Inner Layer Anomaly and Panelization Verification
Additional review identified a potential irregularity on the SIG2T inner layer that warranted confirmation. Panelization compatibility with the proposed 5x2 array using combined V-scoring and routing was also verified to ensure no interference with fiducials or critical features. These checks, while secondary, reinforced overall file integrity before production release.

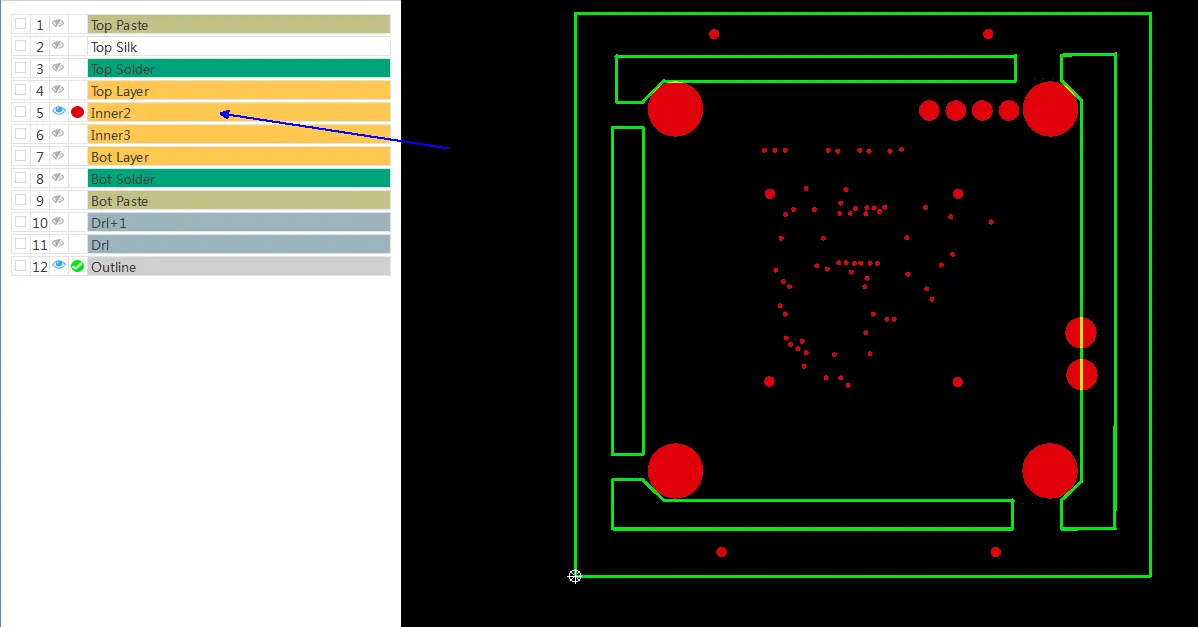

Figure 4: inner layer sig2t
Yield and Reliability Impacts of Unresolved Design Details
Ignoring the tight stamp hole spacing could have caused uncontrolled breakage during material handling or transport, resulting in boards with damaged edges or misaligned components. Legend overlap near pads risks solder mask or ink contamination of solderable surfaces, leading to poor wetting, weak joints, or tombstoning during SMT assembly. Such defects often manifest as intermittent failures or reduced product lifespan.
Based on IPC-A-600 acceptability criteria, silkscreen encroachment on pads typically qualifies as a defect that affects Class 2 assembly reliability. Similarly, inadequate breakaway tab strength deviates from common IPC-2221 guidelines for mechanical features, increasing scrap potential in small runs like this 50-piece order.
| Potential Issue | If Ignored Consequence | Reliability Effect |
|---|---|---|
| Tight Stamp Holes | Premature breaking during handling | Edge damage, assembly scrap |
| Legend Near Pads | Ink on solder areas | Weak joints, field failures |
Realistic Failure Scenarios Avoided by Engineering Input
Without clarification, the 0.1mm web between stamp holes could fracture during V-scoring or panel movement, producing boards with jagged edges that complicate automated assembly or create debris risks. Legend characters on pads might cause solder paste to repel or form insufficient fillets, resulting in open circuits or high-resistance connections that pass initial testing but fail under thermal cycling.
In a production environment, these issues compound quickly — one broken panel can cascade into multiple scrapped boards, while soldering defects lead to costly rework or customer returns. Our focus remained on realistic outcomes tied to the observed file conditions rather than theoretical extremes.
DFM Recommendations and Resolution Path
The team proposed confirming stamp hole spacing feasibility and exploring minor geometry adjustments if needed for better web strength. For legend elements, options included relocation where possible or acceptance of adjusted tolerances. Panelization was reviewed and confirmed suitable for the V-cut plus routing approach.
These suggestions were shared with clear rationale linked to handling durability and assembly compatibility. The customer provided timely confirmations, including file approvals and acceptance of the proposed panel setup. This collaborative process updated the manufacturing parameters efficiently, allowing production to advance without lingering uncertainties.

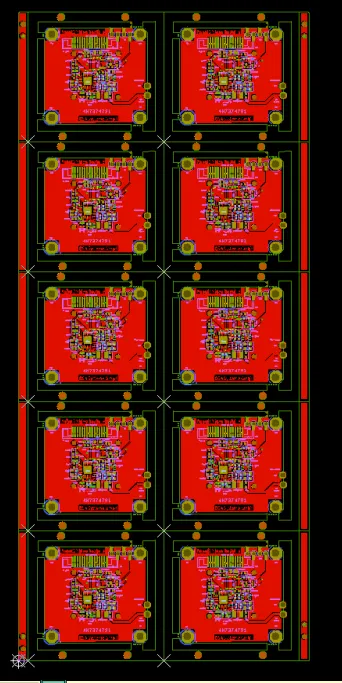

Figure 5: proposed panel setup
Strengthening Production Outcomes Through Targeted DFM
This review reinforced that proactive identification of mechanical and legend-related risks prevents downstream problems that are far more expensive to correct. By addressing stamp hole strength and silkscreen placement early, the design achieved better alignment with fabrication and assembly realities, supporting consistent quality even in smaller batch sizes.
Design teams benefit greatly from engaging DFM expertise before final data release, particularly when incorporating breakaway features or dense annotations. Such partnerships minimize variability and enhance overall product reliability from the start of the manufacturing journey.
FAQ:
Q1: Why does tight spacing between stamp holes create breakage risks?
A1: Very thin webs (such as 0.1mm) lack sufficient mechanical strength to withstand panel movement, V-scoring stresses, or handling. This can cause premature separation, leading to damaged edges and difficulties in automated placement.
Q2: How can legend characters near pads affect soldering?
A2: Ink on or too close to pads interferes with solder paste adhesion and reflow, often resulting in insufficient fillets, bridging, or non-wetted areas. DFM adjustments help maintain clean solderable surfaces for reliable joints.
Q3: What role does panelization review play in yield protection?
A3: Verifying V-cut and routing combinations with stamp holes ensures tabs hold during production but separate cleanly afterward. Poor configuration increases scrap from broken boards or rough edges that complicate assembly.
Q4: When should designers flag potential inner layer anomalies?
A4: Early CAM review catches rendering or data translation issues on inner layers. Confirmation prevents etching or registration problems that could lead to open circuits or impedance variations.
Q5: Why is DFM especially valuable for mechanical breakaway features?
A5: Stamp holes and tabs involve trade-offs between depanelization ease and structural stability. Engineering input aligns these features with real process capabilities, reducing handling defects and improving overall reliability.
