During CAM review of a high-frequency 2-layer Rogers RO4350B board measuring 35.6 mm by 120.7 mm and only 0.254 mm thick, our engineering team identified vias located directly inside IC surface-mount pads. From a DFM perspective, this Via-in-Pad configuration created an immediate risk of solder voids, incomplete pad surfaces, and assembly failures. The primary concern was manufacturing stability and long-term solder joint reliability rather than basic fabricability. Without clarification, the finished boards could have entered SMT with defective pads that produce cold joints or desoldering under thermal stress.
The order ( #ROG-20260310-047 ) specified Rogers RO4350B material, 0.254 mm thickness, 1 oz copper on both sides, green solder mask on the top side only, no solder mask on the bottom, white silkscreen, immersion silver finish, single-piece shipment with no process edge, and a 14-day delivery window. Quantity was 15 pieces. These parameters are common for compact RF designs, yet the combination of an ultra-thin core, missing bottom solder mask, and vias inside IC pads required explicit engineering confirmation before production release. This case forms part of a practical Rogers 4350B PCB Design Guide focused on preventing hidden fabrication and assembly risks.
Why This Ultra-Thin Rogers Design Required Immediate DFM Scrutiny
Our CAM engineer began by overlaying the drill data against the copper and solder-mask layers. Multiple vias were found centered or partially inside IC component pads. On a 0.254 mm Rogers core the plated via barrels occupy a significant portion of the pad area. After plating and surface finish the pad surface becomes discontinuous, leaving voids or depressions that trap air or flux during reflow.
Simultaneously the absence of bottom-side solder mask raised a second concern: Rogers RO4350B is known to yellow when left unprotected under prolonged exposure to light or heat. Copper features and pads also approached the board outline too closely, risking edge exposure after contour routing on a Rogers board with zero process edge. Slot size mismatches between mechanical layers added a further verification point.

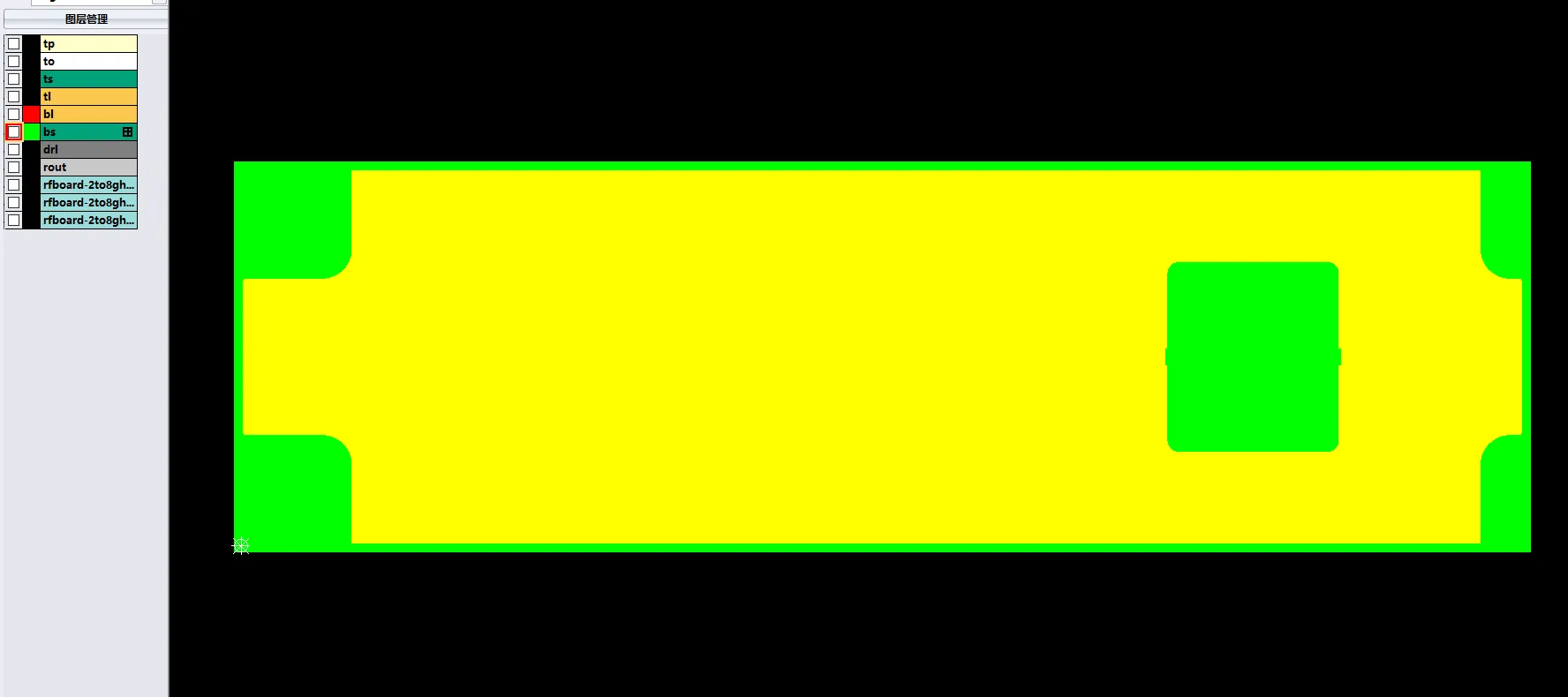

Figure 1: the boards will be manufactured without bottom layer solder mask

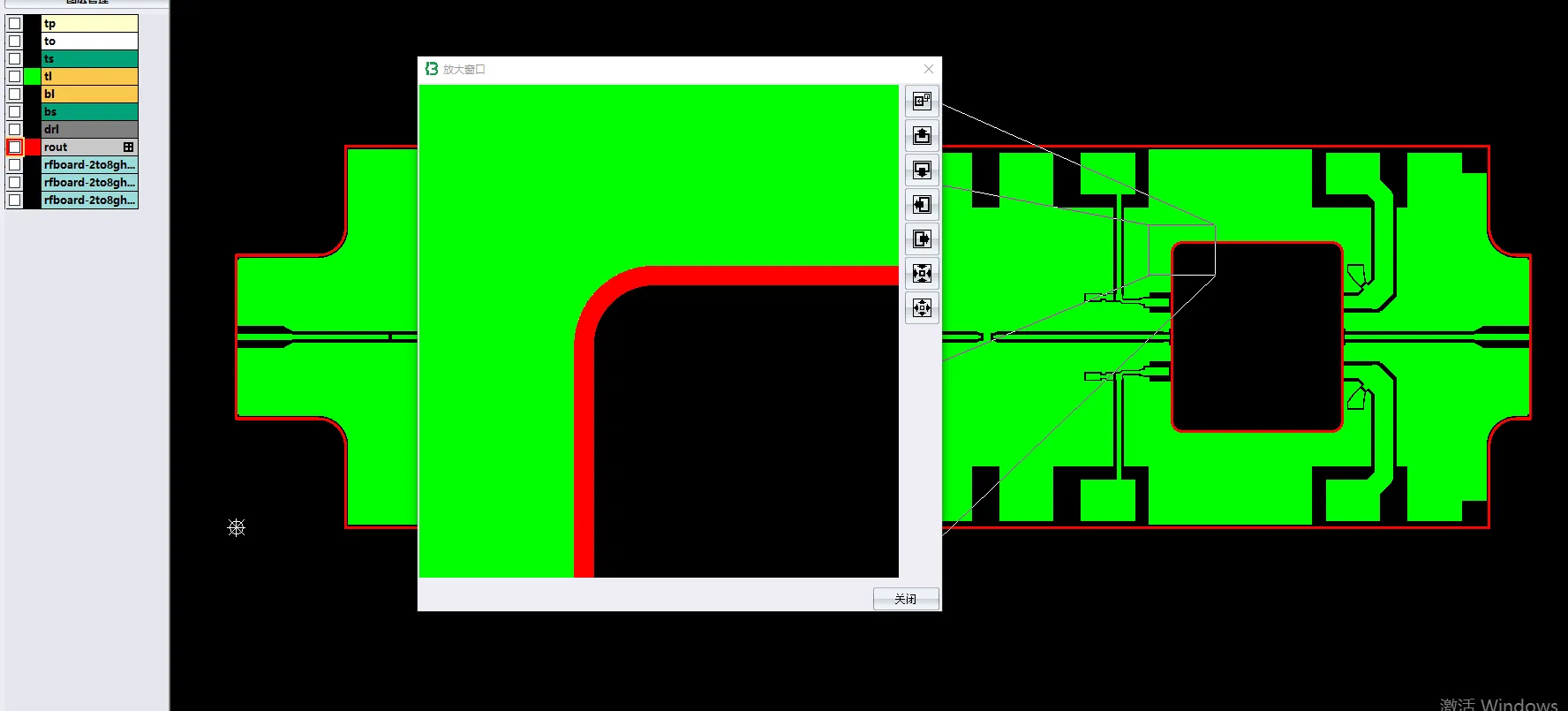

Figure 2: the copper is too close to the board outline
Risk indicators included the extremely thin dielectric, immersion-silver finish (which has limited shelf life), single-piece shipment without edge protection, and the presence of vias inside fine-pitch IC pads. On high-frequency material these factors compound rapidly into both cosmetic and functional defects.
| Feature Observed | Condition in Files | Primary DFM Risk |
|---|---|---|
| Vias inside IC pads | Multiple locations | Pad voids, solder defects |
| Bottom solder mask | Completely absent | Substrate yellowing |
| Copper and pad to outline | Insufficient clearance | Edge exposed copper |
Table 1 records the key observations that triggered the Engineering Question.
Via-in-Pad, Substrate Yellowing and Edge Clearance as Core Risks
The highest-priority risk was vias designed inside IC surface-mount pads. After plating the via barrel creates a cavity or depression within the pad. During SMT the solder paste can wick into the via, producing voids, incomplete fillets, or weak joints that later fail under thermal cycling. The second major risk was the complete absence of bottom-side solder mask on Rogers RO4350B, which allows the substrate to yellow under normal handling and storage conditions. The third risk involved copper and pads lying too close to the board outline on a panel with zero process edge, guaranteeing exposed copper after contour routing.

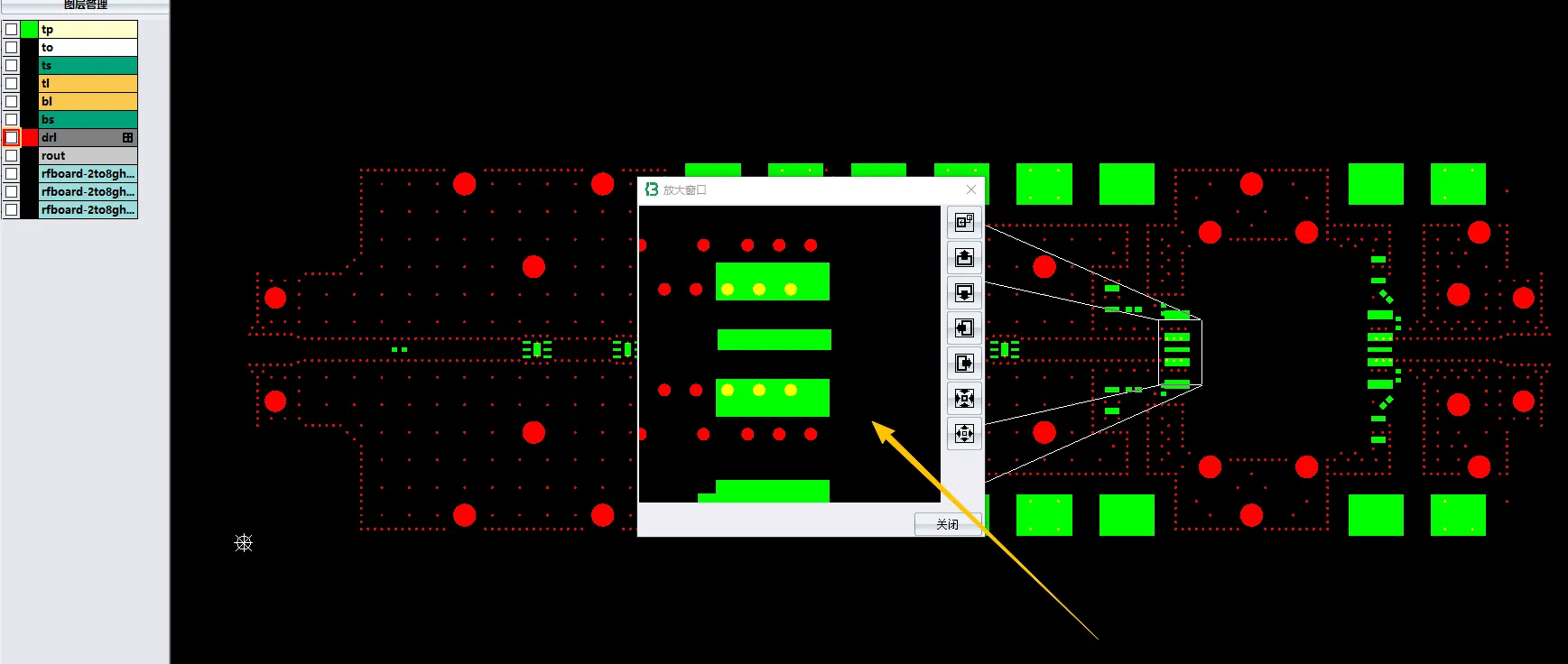

Figure 3: some vias in your design are placed on IC SMD pads
Secondary items included oversized solder-mask openings that would allow markings to print on copper or gold surfaces, and inconsistent inner-slot dimensions between mechanical layers. These required confirmation but did not carry the same assembly-critical weight as the Via-in-Pad and yellowing issues.

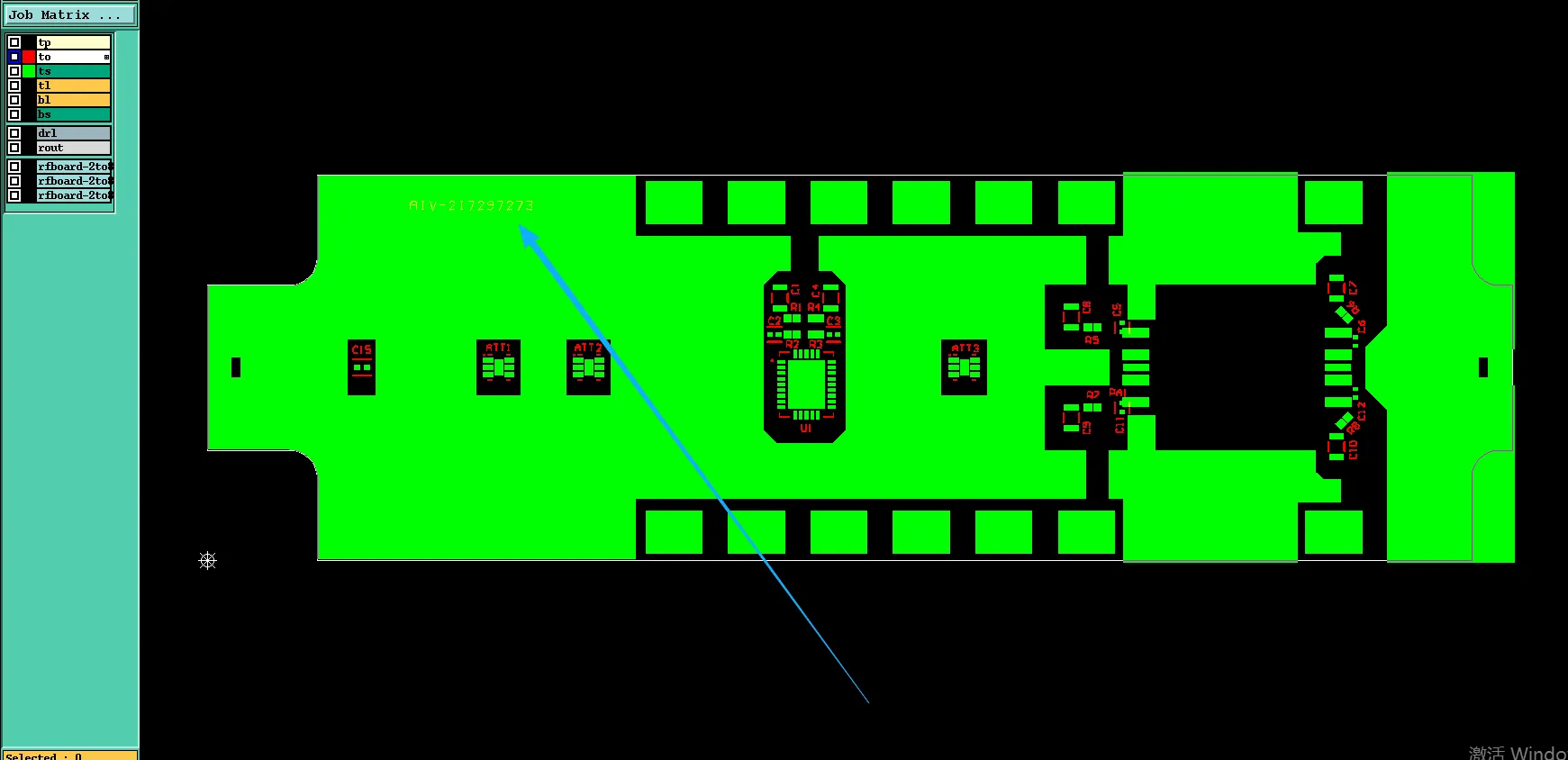

Figure 4: marking will be placed on the surface
From a DFM perspective the priority sequence was clear: decide whether resin-filled vias were required to restore pad planarity, confirm acceptance of substrate yellowing, and establish copper-trim rules for the outline before any material was committed.
How Via-in-Pad and Missing Solder Mask Compromise Yield and Reliability
If production had continued without addressing the vias inside IC pads, the finished immersion-silver surfaces would have contained voids or residual plating depressions. During reflow the solder paste would partially disappear into the open via, leaving insufficient solder for a reliable joint. The result is cold solder joints, tombstoning of small components, or intermittent opens that may pass initial electrical test yet fail after thermal cycling. On a high-frequency board these defects also introduce local impedance discontinuities.
The absence of bottom solder mask allows Rogers RO4350B to yellow under ambient light and elevated temperature. Although the yellowing is primarily cosmetic, it can be rejected by customers expecting uniform appearance and may indicate accelerated aging of the dielectric surface. Based on IPC-A-600 considerations, exposed substrate and non-uniform appearance are often classified as process indicators that affect customer acceptance.
Copper and pads left too close to the outline on a zero-edge board produce ragged or fully exposed copper after contour routing. This condition invites corrosion, shorting against metal housings, and visual rejects. The combination of defective pads, yellowed substrate, and edge exposure would have generated high scrap rates and potential field returns.

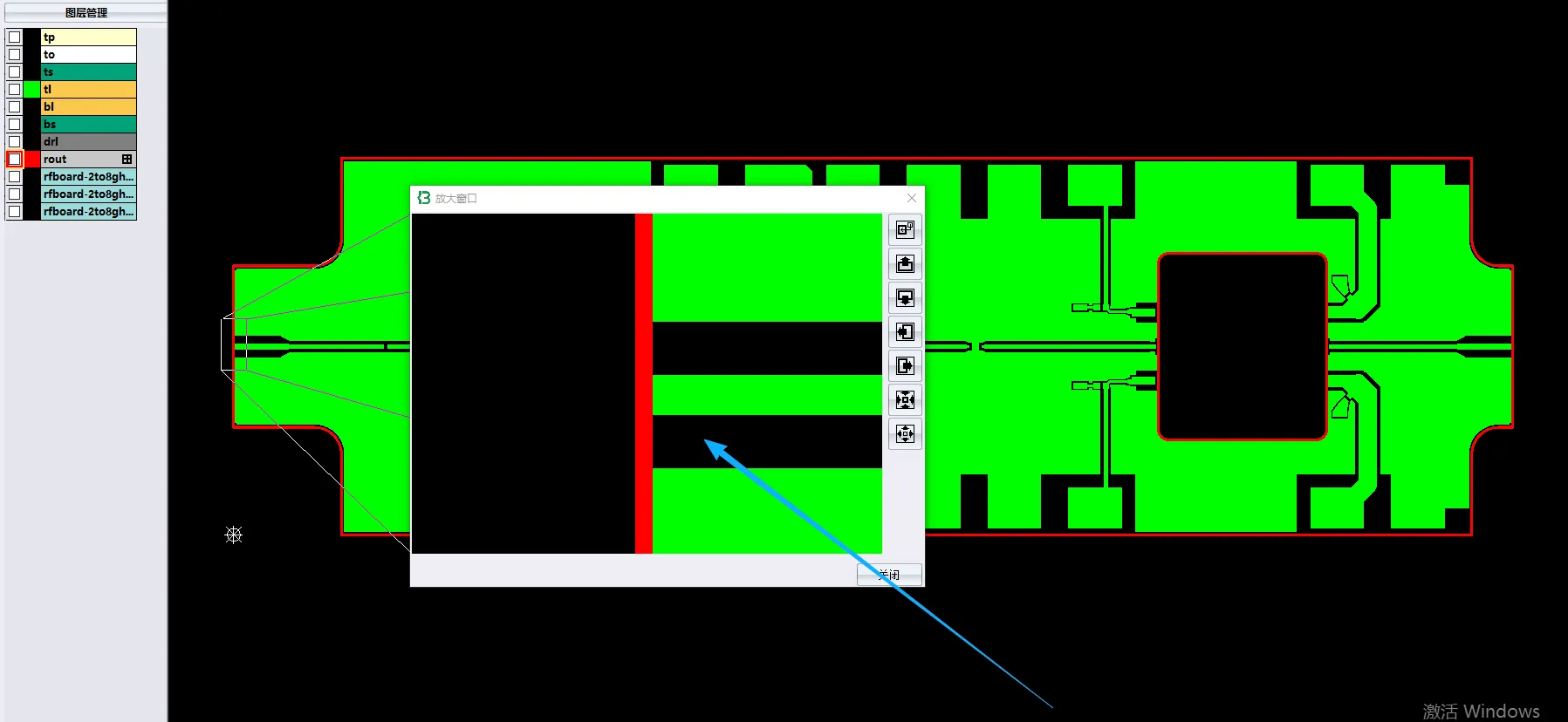

Figure 5: the pad is too close to the board outline
| Potential Failure Mode | Root Cause Linked to EQ | Production or Field Impact |
|---|---|---|
| Solder voids and cold joints | Vias inside IC pads | Assembly rejects, field intermittents |
| Substrate yellowing | No bottom solder mask | Cosmetic rejects, perceived quality loss |
| Edge exposed copper | Insufficient copper-to-outline clearance | Corrosion, shorting, visual scrap |
| Pad surface defects | Open vias under SMT pads | Desoldering under thermal stress |
Table 2 maps each realistic failure mode to the Engineering Question items.
Failure Scenarios the Engineering Team Sought to Prevent
Had the vias remained open inside the IC pads, boards reaching the SMT line would have shown incomplete pad surfaces. Solder paste would wick into the barrels, producing voids that weaken the joint. Under subsequent thermal cycling the joints could crack or lift, generating field failures that are difficult to attribute to the original via design. On a high-frequency circuit these intermittent opens also degrade signal integrity.
Leaving the bottom side without solder mask would have allowed progressive yellowing of the Rogers substrate during storage and handling. Customers frequently reject yellowed boards even when electrical performance remains intact, creating unnecessary scrap and schedule delays.
Copper and pads left at the outline would have produced exposed copper after contour routing on a board with no process edge. The exposed edges would oxidize rapidly under immersion silver, increasing the risk of corrosion and potential shorting in the final assembly. All three scenarios share a common origin: insufficient design-for-manufacturing detail at the via, mask, and outline interfaces.
Preventive Actions Confirmed During the DFM Exchange
Our engineering team issued a prioritized Engineering Question that first addressed the vias inside IC pads. The recommendation was to apply resin-filled vias (plugged and planarized) so that the pad surfaces would remain continuous and free of cavities. This process restores a flat, solderable surface and eliminates the risk of solder wicking.
For the missing bottom solder mask the team explained that Rogers RO4350B will yellow without protection and requested confirmation of acceptance. The customer acknowledged the condition. Copper-to-outline and pad-to-outline clearances were resolved by confirming controlled copper trim or acceptance of limited edge exposure, depending on functional requirements. Oversized solder-mask openings for markings and the mechanical-layer slot inconsistency were clarified through simple confirmation of Rogers PCB design intent.
With these decisions locked, the CAM data were updated: critical vias were coded for resin fill and planarization, the bottom-side mask absence was documented as accepted, edge clearances were adjusted, and the files were released under the 14-day schedule. The revised design retained all high-frequency performance characteristics while eliminating the primary assembly and cosmetic risks.
| Action Item | Customer Decision | Manufacturing Benefit |
|---|---|---|
| Vias inside IC pads | Resin-filled and planarized | Continuous pad surface, no solder voids |
| Bottom solder mask absence | Yellowing accepted | Documented cosmetic condition |
| Copper and pad to outline | Controlled trim or limited exposure | Reduced edge defects |
Table 3 documents the closed decisions that converted a high-risk Rogers design into a manufacturable and assembly-ready product.
Building Trust Through Early Via and Mask Verification
This case demonstrates that Via-in-Pad features on ultra-thin Rogers RO4350B boards are not minor layout details; they constitute a direct threat to solder-joint integrity and long-term reliability. By identifying the open vias inside IC pads during CAM review and confirming resin fill, the engineering team protected both first-pass assembly yield and field performance. Explicit documentation of substrate yellowing and edge-clearance rules further reduced the chance of late-stage rejects.
Designers working with Rogers 4350B or similar high-frequency materials are encouraged to avoid open vias under SMT pads, apply solder mask to both sides whenever possible, maintain adequate copper-to-outline clearances, and request early DFM feedback on via treatment and mask coverage. These practices convert potential manufacturing and assembly problems into controlled, documented decisions before production begins.
Proactive verification of Via-in-Pad and substrate protection remains one of the highest-leverage actions a DFM team can take when releasing high-frequency Rogers boards.
FAQ
Q1: Why do vias inside IC pads create assembly risks on Rogers boards?
A1: The open via barrel creates a cavity within the pad. During reflow, solder paste wicks into the hole, leaving voids or insufficient solder for a reliable joint. On thin Rogers material the effect is amplified and can lead to cold joints or desoldering under thermal stress.
Q2: What is the purpose of resin-filled vias in this situation?
A2: Resin fill followed by planarization restores a continuous, flat pad surface. This prevents solder wicking, eliminates voids, and provides a reliable soldering platform for fine-pitch IC components.
Q3: Why does Rogers RO4350B yellow without bottom solder mask?
A3: The material is sensitive to light and heat exposure. Without solder-mask protection the substrate surface gradually changes color. Although primarily cosmetic, the yellowing is frequently rejected by customers expecting uniform appearance.
Q4: How does insufficient copper-to-outline clearance affect a zero-edge board?
A4: Contour routing removes material exactly at the defined outline. Any copper that reaches or crosses this line is left exposed or ragged, creating corrosion sites and potential shorting hazards against metal enclosures.
Q5: Can open vias under pads pass electrical test yet still fail in the field?
A5: Yes. Initial continuity may be present, but the weakened solder joint can crack or lift after thermal cycling or mechanical stress, producing intermittent opens that appear only after the product is in service.
Q6: How can designers avoid similar issues on future Rogers 4350B boards?
A6: Keep vias outside SMT pads or specify resin fill and planarization, apply solder mask to both sides when possible, maintain adequate copper-to-outline clearances, and request early DFM review of via treatment and mask coverage. These steps form the core of a reliable Rogers 4350B PCB Design Guide.
