Modern electronic systems—from AI accelerators and data-center servers to flagship smartphones and automotive ADAS platforms—depend on sophisticated memory subsystems to deliver data to processors with minimal latency and maximum efficiency. For PCB designers and manufacturers, selecting and implementing the appropriate memory technology involves far more than datasheet specifications. It requires careful attention to PCB layout constraints, signal integrity, thermal dissipation, power delivery networks, material selection, stack-up optimization, and manufacturing processes that ensure long-term reliability under real-world operating conditions.
Memory Hierarchy and Its Impact on PCB Architecture

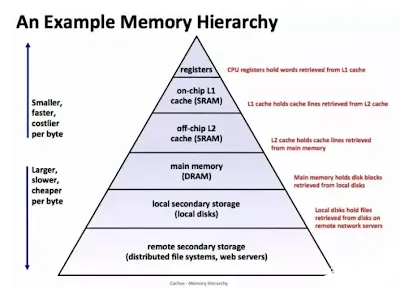

The memory hierarchy—CPU registers and on-chip cache at the top, followed by main memory (typically DRAM), and secondary storage (NAND flash or HDDs) at the bottom—directly influences PCB floorplanning and routing strategies. Higher levels offer speed but limited capacity, while lower levels provide density at the cost of access latency. Effective hierarchy design minimizes data movement across the board, reducing the number of high-speed traces, vias, and layers required.
On PCBs, this translates to strategic placement of memory devices close to processors to shorten interconnect lengths. Cache and main memory demand controlled-impedance routing and minimal via stubs to preserve signal integrity. Secondary storage interfaces, such as those supporting UFS or NVMe, often require careful power sequencing and decoupling to manage inrush currents and EMI. Virtual memory extensions further emphasize the need for robust PCB-level error detection and correction features, such as ECC support in DDR implementations.
DDR DRAM Standards: PCB Layout and Electrical Considerations

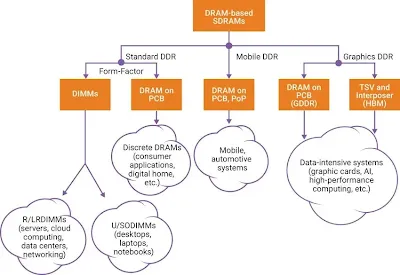

JEDEC defines three primary DDR categories—standard DDR, mobile/low-power DDR (LPDDR), and graphics DDR (GDDR/HBM)—each imposing distinct requirements on PCB design.
Standard DDR targets servers, networking, and consumer applications with wider channels (typically 64-bit) and higher densities. DDR4 and the emerging DDR5 deliver data rates up to 3200 MT/s and beyond, operating at lower voltages (1.2 V and ~1.1 V respectively). PCB designers must address tighter timing margins, on-module voltage regulators, and enhanced RAS features. Recommended practices include optimized stack-ups with dedicated power/ground planes, precise length matching for address/command buses, and fly-by topology routing to minimize skew. Higher densities also drive the need for thicker copper layers or additional planes for power integrity.
Mobile DDR (LPDDR) prioritizes power efficiency for battery-powered and automotive applications. Narrower channels (16- or 32-bit) and advanced low-power states (including deep-sleep modes in LPDDR5) reduce energy consumption. LPDDR5 supports data rates up to 6400 MT/s at ~0.6–1.1 V I/O. PCB implications include dual-channel configurations requiring independent command/address routing, careful management of simultaneous switching noise (SSN), and EMI mitigation through proper grounding and shielding. Automotive-grade designs further demand extended temperature range materials and robust thermal vias.

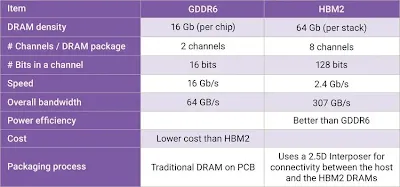

Graphics DDR addresses extreme bandwidth needs in GPUs, AI accelerators, and high-performance computing. GDDR standards achieve high per-pin rates (up to 16 Gbps in GDDR6) through point-to-point connections, while HBM uses wide, low-speed channels with vertical stacking. GDDR5/GDDR6 PCB designs require more pins and higher voltages in earlier generations, influencing connector and routing density. Transitioning to newer standards often necessitates PCB respins due to pinout and electrical differences.
High-Bandwidth Memory (HBM) and Advanced 3D Integration on PCBs

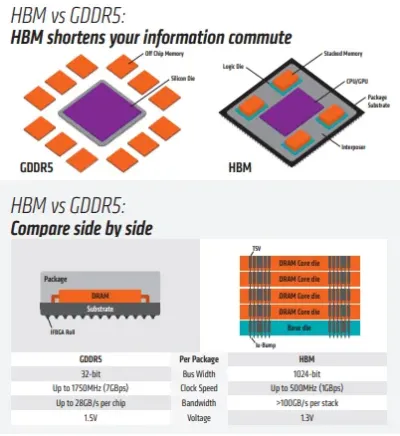

HBM represents a paradigm shift for bandwidth-intensive applications. By stacking multiple DRAM dies vertically using through-silicon vias (TSVs) and microbumps, HBM delivers massive aggregate bandwidth (hundreds of GB/s) at lower power and smaller footprint than traditional GDDR. Generations have progressed from HBM1 (128 GB/s) through HBM2/HBM2E to HBM3 and HBM3E (up to 8 Gbps per pin, 16–24 GB per stack, and bandwidth exceeding 800 GB/s).
From a PCB perspective, HBM integration typically relies on silicon interposers and advanced packaging such as CoWoS (Chip-on-Wafer-on-Substrate). This shortens interconnects, reduces latency, and improves energy efficiency but places stringent demands on the host PCB: fine-pitch routing, high-density interconnect (HDI) layers, precise via drilling for TSV alignment, and superior thermal management to dissipate heat from stacked dies. PCB stack-up must accommodate the interposer and support high-speed differential pairs or wide buses while maintaining signal integrity across temperature variations. Manufacturing considerations include yield optimization for fine features, lamination processes compatible with TSV structures, and copper thickness choices that balance current-carrying capacity with impedance control.
Non-Volatile Memory Options: Flash, FRAM, and PCB Reliability Implications
NAND and NOR flash dominate secondary storage due to high density and cost-effectiveness, appearing in UFS modules for smartphones and SSDs for enterprise systems. However, their limited endurance (typically 10^3–10^6 program/erase cycles) and higher write energy influence PCB-level wear-leveling implementations and power delivery design.
Ferroelectric RAM (FeRAM/FRAM) offers compelling alternatives for applications requiring high endurance (>10^12–10^15 cycles demonstrated at advanced nodes), fast byte-addressable writes, and ultra-low power.

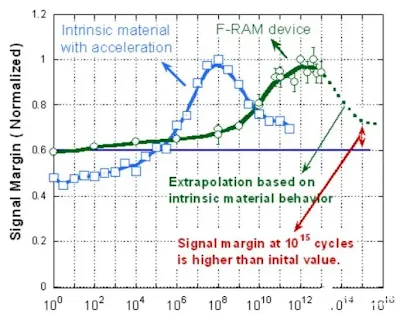

Unlike flash, which relies on charge trapping, FeRAM uses polarization switching in ferroelectric materials such as PZT. This enables RAM-like behavior with non-volatility, making it suitable for frequent-write scenarios in industrial, automotive, and medical PCBs. PCB integration benefits from standard interfaces (compatible with EEPROM footprints) but requires attention to voltage sequencing and noise immunity to preserve polarization states. Endurance analysis at the device and material levels confirms robust performance, with signal margins remaining viable even after extreme cycling, supporting reliable operation in harsh environments.
Addressing the Memory Wall Through PCB and System Co-Design

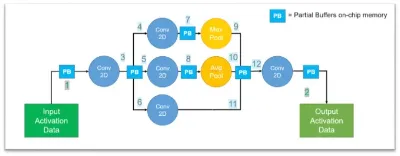

Rapid growth in AI model sizes has outpaced DRAM bandwidth improvements, creating the “memory wall.” Solutions span algorithm optimization, model compression, and hardware architecture innovations such as partial-buffer designs and parallel streaming that reduce external DRAM accesses. On the PCB side, these translate to optimized memory controllers (e.g., supporting LPDDR5 at 8 Gb/s), wider bus configurations (64/128/256-bit), and on-chip buffering strategies that minimize high-speed trace counts and layer usage.
High-density modules, such as those enabled by 32 Gb DDR5 dies, further push PCB capabilities toward 1 TB+ DIMMs using 3D stacking (e.g., 8-Hi configurations). This reduces the need for excessive TSV stacking in some cases, lowering power and simplifying routing, but demands PCBs with enhanced thermal dissipation (thicker copper, thermal vias, or metal-core substrates) and precise impedance control across more layers.
Future Trends and PCB Manufacturing Readiness
Emerging directions—including distributed/cloud storage, DNA/nanoscale media, and compute-in-memory architectures—will continue to influence PCB requirements. HBM adoption in AI servers is accelerating, driving demand for advanced packaging-compatible boards. Semiconductor storage density increases and 3D stacking techniques require PCBs with finer features, better warpage control, and materials supporting higher frequencies and thermal loads.
For PCB manufacturers, success lies in partnering early on stack-up definition, material qualification (FR4 variants, high-Tg laminates, or specialized dielectrics), via technology (laser/mechanical drilling, filled vias), and surface finishes that support fine-pitch memory interfaces. Reliability testing at the board level—covering thermal cycling, vibration, and signal integrity under load—ensures memory subsystems meet application demands across automotive, telecom, industrial, and consumer segments.
