Upgrading system memory in modern PCs involves far more than selecting higher-capacity DIMMs. From a PCB engineering perspective, successful RAM upgrades depend on careful motherboard layout, signal integrity optimization, power delivery network design, and thermal management to support higher speeds, larger capacities, and tighter timing margins. Effective PCB design directly determines whether a system can fully exploit the performance benefits of newer DDR generations or larger cache hierarchies.
DDR Memory Standards and PCB Routing Requirements for Upgrades
When evaluating RAM upgrades, key questions center on compatibility, speed, capacity, and channel configuration. DDR4 and DDR5 modules impose progressively stricter requirements on the host PCB. DDR5 operates at lower voltages with on-module voltage regulators and higher data rates, demanding tighter impedance control, precise length matching on address/command buses, and fly-by topology routing to minimize skew. PCB stack-ups must incorporate additional power and ground planes to maintain signal integrity across wider channels while supporting the increased pin counts of modern DIMM connectors.
Designers must also consider trace routing density around memory slots. High-speed differential pairs for data lanes require continuous reference planes and minimal via stubs to reduce reflections. As upgrade paths move toward higher capacities (e.g., 64 GB+ per DIMM), thicker copper layers or embedded power planes become necessary to handle increased current demands without excessive voltage drop.
Fastest Memory Technologies and PCB Signal Integrity Optimization
Among consumer memory options, DDR5 currently offers the highest practical bandwidth for desktop and workstation platforms, with data rates exceeding 6000 MT/s. Achieving these speeds on the PCB requires low-loss dielectric materials, optimized via structures, and rigorous impedance matching across the entire memory channel. Earlier generations such as DDR4 remain viable for cost-sensitive upgrades but limit peak performance due to higher voltage operation and slower signaling.
PCB layout decisions directly influence achievable memory frequency. Controlled-impedance routing, proper termination schemes, and strategic placement of decoupling capacitors near the memory controller and DIMM slots are essential to suppress simultaneous switching noise and maintain eye openings at high speeds. Thermal considerations also grow in importance; faster memory generates more heat, requiring copper pours, thermal vias, and adequate airflow paths on the motherboard to prevent throttling.
CPU Cache Hierarchy and Its Influence on PCB Power Delivery and Proximity

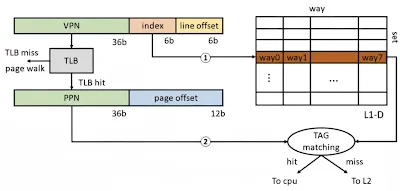

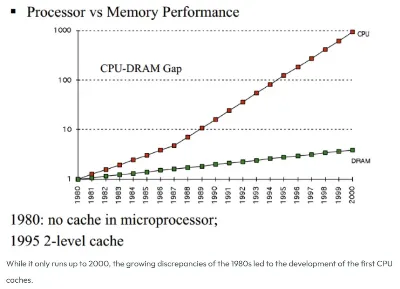

Cache size significantly affects CPU performance by reducing memory access latency. Larger L3 caches on modern processors reduce the frequency of off-chip DRAM accesses, easing the bandwidth pressure on the memory subsystem. On the PCB, this translates to optimized power delivery networks that supply clean, low-noise voltage to both the CPU package and nearby memory modules. Proximity between the CPU and memory slots becomes critical; shorter interconnect lengths improve signal integrity and reduce the need for aggressive equalization techniques.
Designers must balance cache benefits with board-level constraints. High-layer-count motherboards with dedicated cache-related power planes and low-inductance decoupling networks help maintain stable operation during bursty workloads. In multi-socket or high-core-count systems, careful floorplanning ensures that cache-coherent interconnects and memory channels do not introduce excessive crosstalk or EMI.
Practical PCB Guidelines for Reliable RAM Upgrades
Successful upgrades require attention to motherboard stack-up, material selection (high-Tg laminates for thermal stability), and via technology (back-drilling or filled vias for high-speed signals). Automotive or industrial PCs further demand extended-temperature materials and vibration-resistant constructions. Signal integrity simulations covering worst-case temperature and voltage variations help validate upgrade paths before production.
Early collaboration between system integrators and PCB manufacturers enables optimized designs that support both current and future memory technologies without costly respins.
Conclusion
PC RAM upgrades ultimately succeed or fail at the PCB level, where layout constraints, signal integrity, power delivery, and thermal management determine whether higher-speed or higher-capacity memory can deliver its promised performance. As DDR5 adoption accelerates and cache hierarchies continue to grow, rigorous stack-up design, controlled-impedance routing, and advanced manufacturing techniques become indispensable. Aivon's expertise in high-performance multilayer and HDI PCB fabrication provides the technical foundation needed to build motherboards that fully support today's and tomorrow's memory upgrade paths with maximum reliability and yield.
