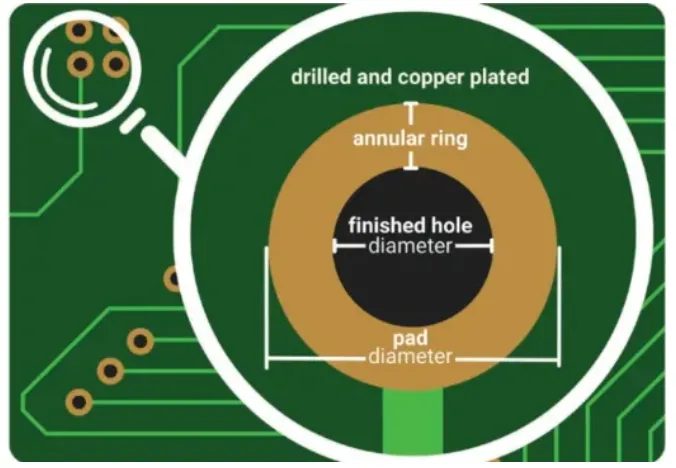

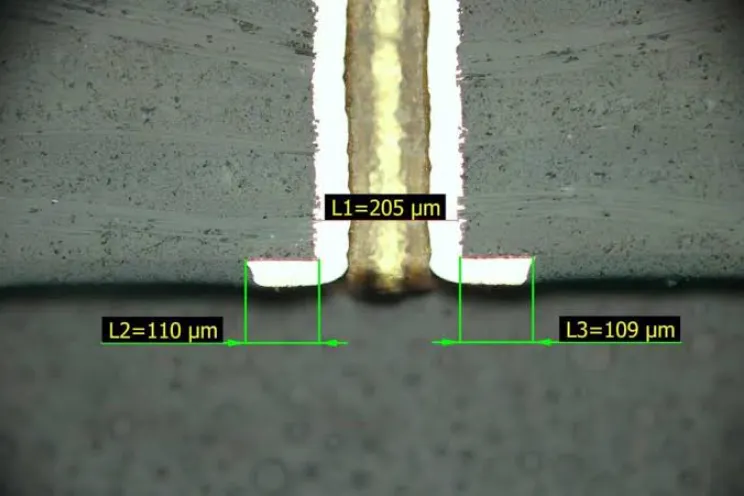

The annular ring is the copper that remains around a drilled hole after the drill has passed through the pad. On FR4 boards it is the only continuous copper path that holds the plated barrel to the outer layers. When the effective ring drops below a few tenths of a millimeter, the joint becomes a weak point under thermal cycling and mechanical stress. Most failures I flag during DFM start with a pad that looked adequate on the CAD screen but left almost nothing after real drill offset.
Minimum annular ring on FR4 is not a theoretical number. It is what survives after the drill walks, the material expands, and the plating process finishes. Designers who set pad diameter equal to finished hole size plus a fixed 0.15 mm or 0.2 mm frequently discover the copper has broken out on one side once the board is fabricated.
How Drill Position Offset Eats the Copper Ring
Every mechanical drill has positional tolerance. On a typical FR4 production panel the true hole location can shift ±0.05 mm to ±0.10 mm relative to the artwork, sometimes more when the stack is thick or the entry material is soft. That shift is measured from the center of the intended pad. The annular ring that remains on the side opposite the offset is therefore reduced by the full amount of the walk.
If the designed ring was only 0.10 mm, a 0.08 mm positional error leaves 0.02 mm on one side and a breakout on the other. The plated barrel is still electrically continuous at first inspection, but the copper is now hanging by a thin fillet. Under reflow or subsequent thermal cycles that fillet cracks.
Mechanical Drill Tolerance on FR4 and What It Really Means
Hole size tolerance and position tolerance are separate. Finished hole diameter on FR4 is commonly held to ±0.05 mm or ±0.075 mm for standard drills. Position, however, is governed by the registration system, spindle run-out, and panel stretch. Most fabricators quote a positional capability of ±0.075 mm for outer layers under normal conditions. When the board is thicker than 1.6 mm or uses high-Tg FR4, the effective tolerance widens because the material moves more during drilling heat.
CAM engineers therefore calculate the worst-case remaining ring as:
(Pad diameter – Finished hole diameter) / 2 – Positional tolerance.
If that number is negative, the drill will break out of the pad on at least one side. Even a calculated 0.05 mm remaining ring is marginal; plating thickness variation and copper etch undercut can remove another 0.02–0.03 mm.
Practical Minimum Annular Ring Values for FR4
IPC-6012 Class 2 allows an external annular ring of 0.05 mm minimum after all tolerances, but that is the absolute acceptance limit, not a design target. In production the boards that survive thermal stress testing almost always start with a designed external ring of 0.15 mm or greater for standard vias and 0.20 mm or greater for vias that will see repeated reflow or mechanical load.
Internal layers can run slightly tighter because the copper is constrained by the laminate, yet the same positional error still applies. Many shops therefore ask for 0.125 mm minimum designed ring on internal layers as well when the stack exceeds six layers.
For microvias the numbers change, but pure mechanical vias on FR4 still follow the rules above. Designers who shrink pads to gain routing density frequently ignore the cumulative effect of drill wander plus etch factor. The result is a board that passes electrical test yet fails after a few hundred thermal cycles.
What Happens When the Annular Ring Is Too Narrow
Breakout itself is not always an automatic scrap. A partial breakout may still plate and pass continuity. The real problem appears later. The copper-to-barrel interface has lost area. Any CTE mismatch between the FR4 resin and the copper barrel concentrates stress at the remaining thin copper. Cracks initiate at the knee of the barrel and propagate into the outer layer copper.
During assembly the same thin ring can lift when the via is subjected to multiple reflow passes or when a press-fit pin is inserted. Solder wicking into a partially open barrel further weakens the joint. In the field the failure mode is intermittent open or rising resistance under temperature swing.
I routinely see boards that were designed with 0.10 mm nominal ring show 30–40 % of vias with less than 0.03 mm remaining copper on one side after fabrication. Those vias pass flying-probe test yet become the first failures in thermal shock.
Reliability Risks That Appear Only After Assembly
The plated barrel expands and contracts differently from the surrounding FR4. When the annular ring is intact the stress is distributed around the full circumference. When one side is missing, the stress concentrates on the remaining copper and the resin interface. After 500–1000 thermal cycles between –40 °C and +125 °C the thin copper separates. The open is often only a few micrometers wide and closes again at room temperature, making it difficult to catch with standard electrical test.
Mechanical vibration or board flexure accelerates the same mechanism. A via that still has copper on three sides can survive; a via reduced to a narrow crescent usually does not.
Layout Adjustments That Actually Protect the Ring
Start with the finished hole size, not the drill size. Add the fabricator's stated positional tolerance, then add a design margin of at least 0.05 mm. For most FR4 work that produces a designed external annular ring of 0.15–0.20 mm. On dense boards where every tenth of a millimeter counts, talk to the shop about their actual capability on the specific stack-up rather than assuming the catalog number.
Keep non-functional pads on internal layers if the design allows; they give the drill a larger target and reduce the chance of breakout. When routing density forces smaller pads, increase the copper weight or request tighter positional control. Both cost more, but the cost is lower than field returns.
For vias that will see press-fit connectors or high mechanical load, go larger still. A 0.25 mm designed ring is cheap insurance.
Finally, check the fabrication drawing notes. If the drawing claims "annular ring per IPC Class 2" without stating a designed value, the fabricator is free to accept breakout as long as the remaining copper meets the minimum after process. That is rarely what the designer intended.
The FR4 PCB annular ring is one of the few features whose adequacy cannot be verified by visual inspection of the finished board alone. Once the copper is gone, the only remaining evidence is a reliability problem that appears weeks or months later. Setting the pad large enough at layout time is still the cheapest and most reliable solution.
