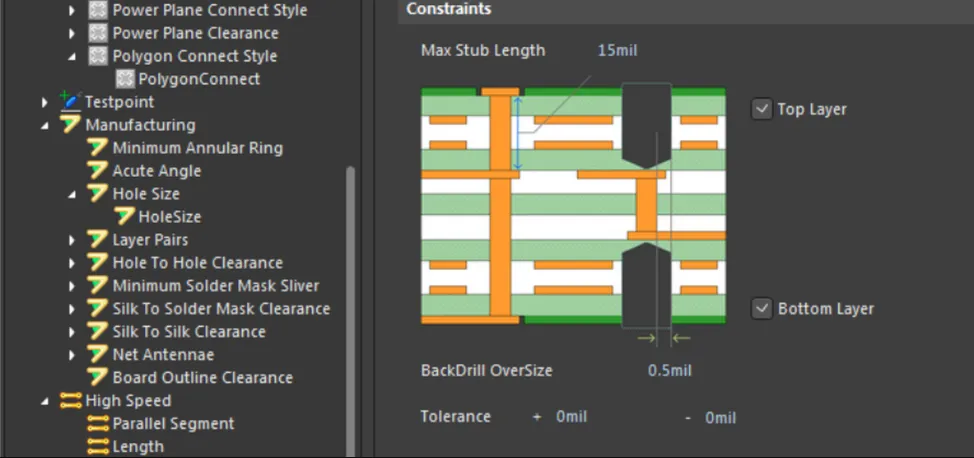

Selecting the backdrill start and stop layers does not mean the finished stub will meet spec. The EDA tool supplies an ideal layer interface. The fabricator drills to a depth that includes lamination variation and mechanical depth-control error. If those two sides are not closed with the same tolerance loop, a cross-section can still show residual copper that is too long.
When a high-speed through-hole connects only some of the layers, the unused plated barrel acts like an open stub. Backdrilling removes that barrel copper from the board surface with a larger bit. The purpose is not "drill the hole deeper." It is to keep the remaining stub within an acceptable range.
The engineering judgment is clear: layer names only set the theoretical direction. Stub length is the acceptance object. Stackup thickness, stop depth, oversize, and the fabricator's depth-control capability must be confirmed together.
Translate the layer pair into actual drill depth
Top, Bottom, or a given signal layer in software is only a logical name. Manufacturing must accumulate solder mask, copper foil, dielectric, and target-layer position from the entry face into a physical depth, then program the mechanical backdrill.
The same layer name does not sit at the same physical location in every stackup. Pressed dielectric thickness also has tolerance. If design hands over only a layer pair and no stub requirement, the fabricator may run a conventional depth-control process. The result can meet "drill near that layer" without meeting the stub limit the high-speed channel needs.
A backdrill table should therefore include entry direction, connection-stop layer, theoretical depth, and allowed stub. After a stackup revision, recalculate the table. Do not reuse values from the old version.
Stub length comes from two stacked tolerances
Stop too shallow, and longer barrel copper remains below the target layer. Drill too deep, and the active connection layer can be damaged or hole-wall reliability weakened. Backdrill is not "deeper is better." It is a process window between two boundaries.
One end of that window is the allowed stub. The other is target-layer copper thickness, remaining dielectric, and drill-depth tolerance. When lamination variation and mechanical depth-control error point the same way, the worst-case stub is clearly longer than the nominal value.
During drawing review, draw the worst-case section directly: shift the target layer once toward the entry face and once away from it, then add drill-depth tolerance. Looking only at the nominal section is the easiest way to miss this boundary combination.
Oversize removes barrel copper. It does not set depth
Backdrill diameter is usually larger than the original through-hole so plated copper on the wall can be removed reliably. Oversize that is too small can leave a ring of barrel copper. Oversize that is too large invades nearby copper, pads, or adjacent nets.

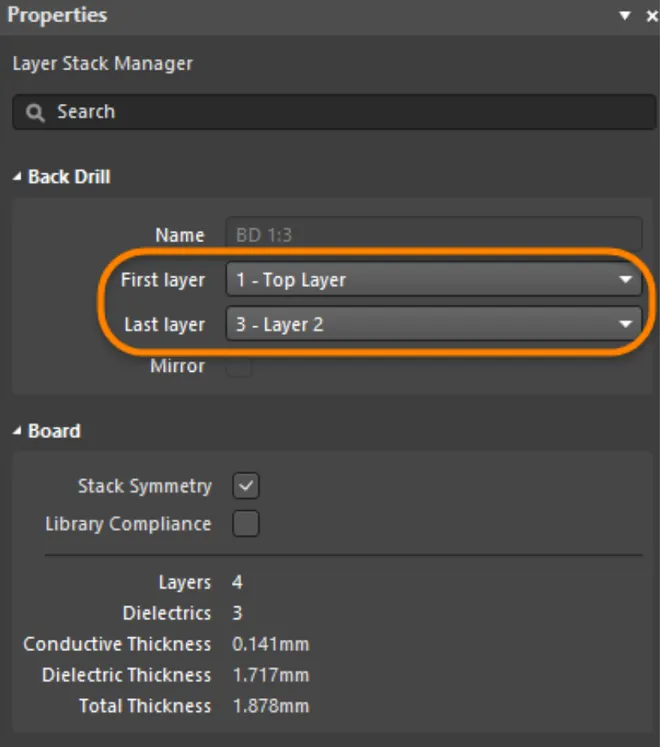

First Layer, Last Layer, and backdrill direction in the software properties must match the fabricator's entry face. On dual-sided backdrill, the two-end rules cannot be swapped. If the same through-hole connects different layers, do not copy one generic depth.
Diameter and depth are two independent checks. One rule can set stub length correctly and still leave barrel copper because oversize is insufficient. Oversize can also be adequate while a shallow depth leaves a long stub.
Complete four sign-offs before freezing manufacturing data

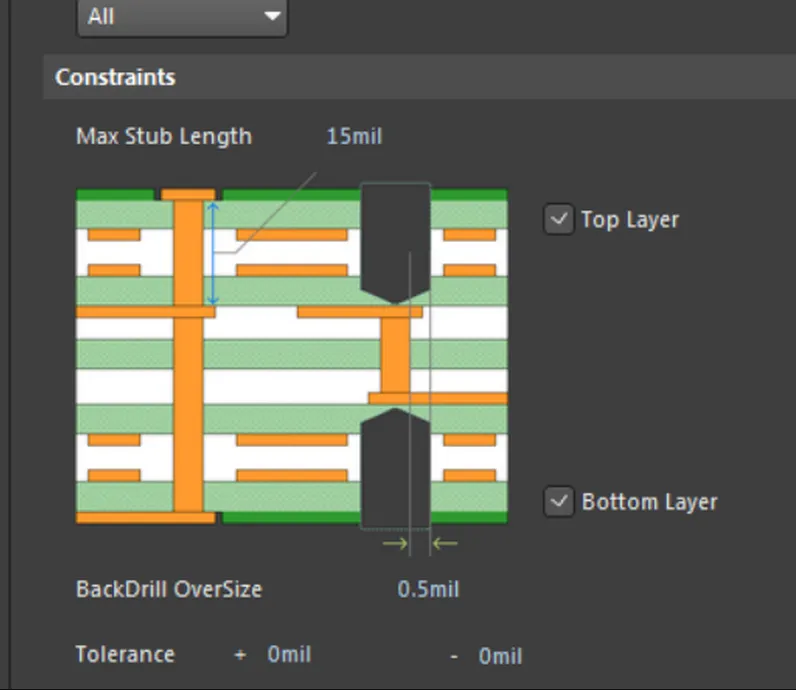

First export a via-by-via or rule-by-rule backdrill table listing net, entry face, original diameter, backdrill diameter, target layer, and maximum stub. Then have the fabricator sign off the actual depth-control method: mechanical depth, X-ray layer targeting, or another process control.
Then check clearance after oversize, especially in BGA escape, differential vias, and dense power-ground via fields. Backdrill changes the finished hole shape. Passing ordinary drill DRC does not mean enough spacing remains after oversize.
On the first lot, cross-section critical channels, run TDR, or use an equivalent method agreed by both sides, and feed measured stubs back into the manufacturing specification. If stackup, board thickness, or supplier changes, run that verification again.
Finally treat maximum stub as a controlled manufacturing characteristic, not as note text. Backdrill is closed only when design rules, process sign-off, and first-article results point to the same number.
Backdrill must also match the layers the signal actually connects. If a through-hole already ends on an inner layer, the stub on the other end must be removed. If the net still branches on a deeper layer, copying a neighboring hole's backdrill depth can destroy active barrel copper. The high-speed via list should be generated from net connectivity, not by applying one layer pair across a board region.
For a differential pair, both holes should use the same backdrill conditions. The same nominal depth with one hole deep and one shallow turns the differential structure into an asymmetric stub. Besides a single-hole stub limit, watch pair-to-pair depth consistency, antipad shape after oversize, and whether return-ground vias keep the original reference path.
Backdrill layers, the drill table, and the notes in the manufacturing files must be the same version. Updating only the EDA rule without re-exporting NC Drill, or changing only the drill table without synchronizing the mechanical drawing, leaves conflicting information for manufacturing. Before release, use CAM or a standalone viewer to check hole coordinates, diameters, entry face, and target depth item by item.
First-article cross-section points should be representative holes with the thinnest dielectric, the deepest backdrill, or the tightest clearance, not a hole that is merely easy to cut. If one board has multiple layer pairs and dual-sided backdrill, sample the worst combination of each. Only then can the result support later lots, rather than proving that one ordinary hole was drilled correctly.
A later change to board-thickness tolerance or dielectric material should also trigger a backdrill review. Unchanged hole coordinates do not mean unchanged physical layer positions. An old depth-control program cannot be reused as-is.
Conclusion
Choosing the correct backdrill layers only completes the logical definition. Finished high-speed via stub length is set by actual stackup thickness, mechanical stop position, and the worst-case tolerance combination.
Before the next release, do not only screenshot the software rule. Draw one critical through-hole as a worst-case section, then have the fabricator sign off depth control and first-article verification. Excessively long stubs should not wait for a finished-board cross-section to appear.
Does your backdrill acceptance currently look at layer pairs, or have you already specified maximum stub length?
