Adding a teardrop at the root of a via is often taken to mean "this joint is already reinforced." In pilot production, the copper neck at the hole can still be too narrow, the trace can open locally after etch, or the board can go intermittently open after flexing.
That is not a contradiction. A teardrop repairs the abrupt geometry change where a trace meets a pad or via. Remaining margin is still set by drill offset, etch, copper thickness, nearby clearance, and the direction of mechanical load.
Drawing review should therefore not stop at "is there a teardrop." It should ask how much effective copper cross-section remains after the teardrop, and whether new sharp corners or clearance problems have been created around it.
A teardrop reinforces the root
When a trace enters a round via directly, width changes abruptly from narrow to wide. A teardrop joins the two with a gradually widening copper area so the weakest root has more copper width.
On boards with a small drill offset, that extra copper increases connection margin. It can also spread some of the local stress during repeated hand soldering, connector mating, or board flex.
Object, style, width, and length in the software are only geometric definitions. They do not automatically know finished hole size, drill wander, or etch compensation at the factory. Design and process still need a joint review.
A teardrop is present. The narrowest copper neck still matters
If the hole drills off toward the incoming trace, effective annular ring can be squeezed. The teardrop outline looks wide, yet the copper neck left between the hole wall and the trace can still be very small.
Etch continues to change that narrowest location. When outer-layer fine lines, small pads, and heavy copper appear together, do not judge from the ideal copper edge on the EDA screen alone.

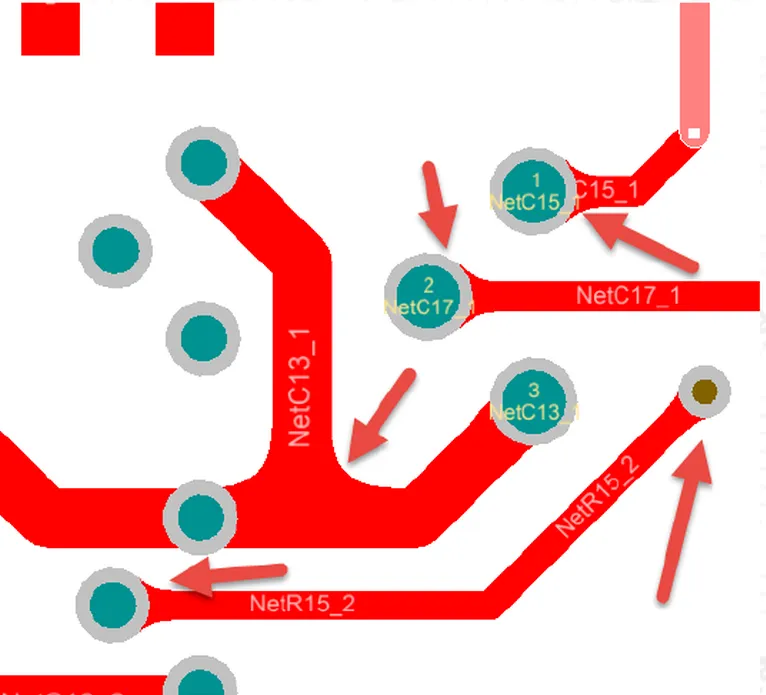

When viewing a local area, display hole size, pad, solder mask, and copper trace together. What must be protected is not a visually pleasing teardrop outline. It is a copper path that stays continuous under worst-case deviation.
Larger parameters can create side effects
Teardrop length and width set too large invade nearby objects. Clearance that previously passed can be consumed. In dense areas they can also create fine sharp corners, copper forks, or irregular overlaps with a pour.
A comparison of solid copper and hatched copper points to another issue: belonging to the same net geometrically does not mean a stable connection is actually formed. Small copper islands, isolated copper, and extremely narrow connections all need extra cleanup.
After teardrops are added automatically, rerun clearance, small-island, and unconnected-copper checks. "Add successful" in the tool only means the operation finished. It does not mean the local area has passed manufacturability review.
Lock the margin with four actions before release
First look at the narrowest copper neck, not the widest part of the teardrop. Second, recheck remaining annular ring with finished hole size and the fabricator's drill-offset capability. Have the fabricator sign off special pads when needed.
Third, rerun DRC with emphasis on clearance between teardrops and adjacent nets, pours, and solder-mask openings. Fourth, zoom the automatic repair result and confirm there are no isolated islands, floating copper, or necks that have been cut.
At connectors, heavy parts, process-edge locations, and areas expected to flex, also look at load direction. A teardrop added on one side while stress enters from the other may not provide the intended reinforcement.
When possible, sample critical pads on the first lot under a microscope and compare them with the designed copper edge. That finds the real neck after drill offset and etch stack up more readily than production files alone.
Treat through-holes and buried/blind vias separately. Through-hole barrel copper runs through the board and is affected together by drill offset, plating thickness, and solder thermal cycles. Microvia reliability also depends on laser-hole bottom shape, stacked-via structure, and fill quality. Both can receive teardrops, but the manufacturing risk is not the same model. Do not copy one set of length and width values.
Fine-pitch BGA escape is where the conflict shows most clearly. After a teardrop spreads outward, it can consume clearance to an adjacent pad or differential pair. Shortening it to dodge that clearance may leave almost no extra neck. Prefer finished annular ring and critical-net clearance first, then decide which vias deserve a teardrop and which locations should be improved by enlarging the pad or adjusting the escape.
On high-speed nets, also confirm that the teardrop has not turned a critical joint into an uncontrolled copper shape. A small local widening is usually not the main issue on ordinary digital boards. On high-frequency, impedance-sensitive, or tightly length-matched channels, the geometry change should still enter impedance and return-loss review. A reliability fix must not be paid for with another critical electrical metric.
When manufacturing data is released, put designed hole size, pad diameter, minimum finished annular ring, and allowed drill offset for critical vias into the process communication table. If the fabricator proposes hole compensation or pad adjustment, design must return to the original local area and recheck clearance. Do not only accept an automatically modified Gerber. That keeps teardrops, pads, and process compensation on the same acceptance boundary.
Electrical test passing on the first board also does not mean the local copper neck is already reliable enough. For critical interfaces and loaded vias, combine cross-section, microscopy, or continuity after controlled flex to verify the design assumption, then feed the result into the next revision of the rules. Teardrop parameters then become a company specification backed by manufacturing evidence, not a software default.
Conclusion
Teardrops are useful. They are not one-click reliability. They raise geometric margin at the connection root. Drill, etch, clearance, and mechanical stress can still consume that margin.
After the next automatic teardrop pass, do not export Gerbers immediately. Find a region with dense holes, fine lines, and tight nearby clearance. Inspect it again by the narrowest copper neck and the worst-case deviation. That is the acceptance step that actually puts teardrops into production.
