Copper pour fills unused areas of a PCB layer with copper, typically tied to ground or a power net. These filled regions are also known as copper flooding. Beyond "filling empty space," copper pour directly affects signal integrity, electromagnetic compatibility (EMC), thermal behavior, and mechanical stability. Choosing between a solid fill and a hatched (grid) pour is not a one-size-fits-all decision; the right approach depends on electrical frequency content, current levels, manufacturing process, and system-level EMI requirements.
What Is the Purpose of Copper Pour?
When properly connected, copper pour serves multiple engineering objectives:
- Reduce ground impedance: Expanding the cross-section of the ground return reduces inductance and resistance, lowering ground bounce and improving noise immunity.
- Lower DC drop on power rails: Filling with copper on power nets reduces IR drop, improving power-delivery efficiency.
- Minimize loop area: A pour tied to ground around signal paths provides a closer return path, shrinking the loop area and reducing radiated emissions and susceptibility.
- Enhance shielding: A continuous copper region can act as an electrostatic shield when appropriately grounded.
- Improve mechanical stability during assembly: Many fabricators prefer fills to balance copper distribution, helping the PCB resist warpage during soldering. However, poorly implemented fills can have the opposite effect.
In high-frequency designs, the return path and how a pour is tied into the overall ground system become critical. A poorly grounded copper region can inadvertently function as an antenna, radiating energy rather than suppressing it. Conversely, a well-stiched copper pour reinforces the reference plane and aids both emissions control and immunity.

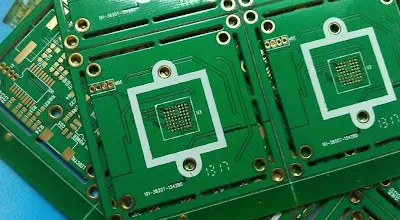

Figure 1 | Example of copper pour regions on a PCB. Properly tying these regions to the main ground plane through frequent stitching vias turns them into effective return paths and shields.
High-Frequency Behavior and Return Path Control
At high frequencies, PCB traces behave as transmission lines with distributed capacitance and inductance. When a trace length approaches a significant fraction of the wavelength of the noise (or signal) in question, radiation risk increases. A practical rule of thumb is that when the physical length exceeds approximately λ/20, the structure can exhibit antenna-like behavior and radiate.
This has two immediate design implications:
- Do not assume any region labeled "ground" automatically behaves as a low-impedance reference. It must be connected to the main ground plane through frequent and robust connections.
- Use stitching vias to tie pours to the ground plane at intervals less than λ/20 along their perimeters and near critical traces. On multilayer boards, this ensures a well-defined, low-inductance return path and prevents isolated copper from acting as a slot antenna.
When copper pour is handled correctly, it increases current-carrying capability and contributes to EMI control. When handled poorly, it can propagate or radiate noise.
Two Common Copper-Pour Forms
Two basic forms are widely used:
- Solid copper pour (large-area fill)
- Hatched or grid copper pour (a mesh pattern)
Whether a solid or hatched pour is "better" depends on design priorities. Each has distinct electrical, thermal, and mechanical trade-offs.
Solid Copper Pour: Benefits and Risks
Solid copper pour provides the most effective reduction in impedance and the best electrostatic shielding. Because it maximizes cross-sectional area, it also supports higher DC and AC currents, making it a natural choice for low-frequency power distribution and return paths with significant current.
However, solid pours can present manufacturing challenges. During wave soldering or other high-temperature assembly processes, a large continuous copper area may expand differently from surrounding materials. This thermal mismatch can cause the board to warp or, in severe cases, create blistering. To mitigate this, designers often introduce relief slots within solid pours to distribute thermal stress and reduce localized expansion pressure.

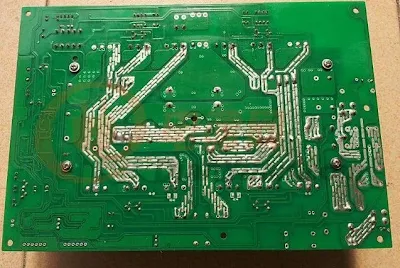

Figure 2 | Solid copper pour with stress-relief slots. Strategically placed slots help relieve thermal stress during soldering, reducing the likelihood of warpage or blistering.
Another consideration is current-return geometry for high-speed signals. While solid copper is advantageous for low impedance, it can create unintended slots or cavities if not connected correctly to the main reference plane. Plan the pour boundary and via stitching so the return path remains continuous. Avoid floating "islands" of copper—small, unconnected regions—which can resonate and radiate.
Hatched (Grid) Copper Pour: Benefits and Risks
A hatched pour creates a mesh of orthogonal traces instead of a continuous sheet. This pattern reduces total copper area, which brings several practical benefits:
- Lower risk of warpage and blistering during soldering due to reduced copper area exposed to heating.
- Some level of EMI shielding, though not as complete as a solid plane.
- Reduced capacitive coupling to adjacent structures compared to a solid pour, which can be advantageous in certain sensitive analog or capacitive sensing applications.
For example, in capacitive touch circuits, a dense solid ground directly under or around the sensor can increase parasitic capacitance and reduce sensitivity. A hatched ground can provide a degree of shielding while limiting added capacitance, balancing noise control with sensing performance.

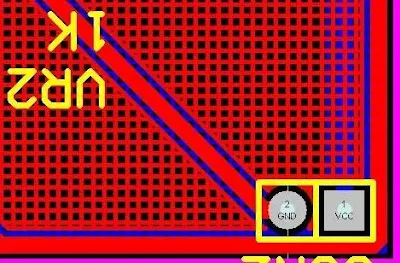

Figure 3 | Hatched copper pour near capacitive touch circuitry. The mesh helps limit parasitic capacitance while still providing partial shielding and a defined return path when well grounded.
That said, the grid's individual conductors have finite width and spacing, and thus a characteristic "electrical length." As operating frequency rises, these mesh elements can behave as distributed conductors. When their electrical length aligns unfavorably with the frequency content of the system, the grid can resonate and radiate, significantly degrading circuit performance. At lower frequencies, the grid behaves more like a benign reference network. At higher frequencies, the inductance and potential resonance of the mesh can become problematic.
Hatched pour also offers less current-carrying capability than a solid fill. If the design requires robust power distribution or very low ground impedance—especially for low-frequency, high-current paths—a solid pour remains the better fit.
Choosing Between Solid and Hatched Copper Pour
Selection should be driven by the electrical and manufacturing context:
- High-frequency, EMI-sensitive designs: A hatched pour can be used to control parasitic capacitance and thermal stress, but only when thoroughly and frequently stitched to the main ground plane. Evaluate whether the mesh's electrical dimensions remain well below the wavelengths of concern. In truly high-speed situations, a solid reference plane on an internal layer often outperforms any top-layer pour for return-path control.
- Low-frequency or high-current designs: Solid pour is typically preferred to minimize IR drop and ground impedance and to provide strong electrostatic shielding, with thermal relief slots added as necessary for manufacturability.
- Capacitive sensing and other sensitive analog circuits: A hatched pour can offer a measured compromise—some shielding with reduced parasitic capacitance—provided it is grounded correctly and does not introduce resonant structures at operating frequencies.
In all cases, remember that any pour labeled "ground" must be an actual low-impedance ground at the frequencies of interest. Relying on a single ground connection point is risky. Instead, use frequent ground ties so the pour participates as a genuine reference plane with a controlled return path.
Practical Design Guidelines
- Plan the return path: Route signals with a continuous ground reference beneath or adjacent to them. Use pours to reinforce, not replace, a proper ground plane in multilayer stackups.
- Use stitching vias liberally: Tie copper pours to the main ground plane at intervals shorter than λ/20 along edges and near fast signal transitions. Add stitching around cutouts, along board edges, and adjacent to critical traces.
- Avoid floating copper: Remove isolated "islands" or explicitly connect them to ground through vias. Floating copper can resonate and radiate.
- Manage thermal stress in solid pours: Add slots or divide very large areas to reduce risk of warpage and blistering during soldering. Coordinate with your fabricator's preferences.
- Consider parasitics for sensitive nodes: In analog front ends or capacitive touch sensors, avoid placing large solid ground pours directly beneath sensitive structures. Use hatched pours or controlled clearances to balance shielding and parasitic capacitance.
- Beware of unintended slots: Keep ground continuity across the board. Slots or long narrow gaps in ground regions can create high-inductance return paths and slot antennas.
- Match the pour to the net: For power nets, solid pours reduce IR drop. For ground nets, pours—solid or hatched—must be thoroughly connected to the main ground system to be effective.
Summary
Solid copper pour delivers maximum reduction in ground and power impedance and the strongest electrostatic shielding, making it well suited for low-frequency and high-current sections of the design. However, it may require thermal relief slots to ensure manufacturability and to control board warpage. Hatched pour can reduce thermal stress and parasitic capacitance while still providing some shielding, which can be advantageous for EMI-sensitive or capacitive sensing circuits—provided the mesh dimensions and via stitching are engineered to prevent resonance and ensure a low-inductance ground connection.
Ultimately, neither approach is universally "better." Choose the pour style based on operating frequency, current levels, EMI targets, sensor sensitivity, and assembly process constraints. Combine careful return-path planning with disciplined via stitching and copper balancing to make the pour a true ally for signal integrity, power integrity, and reliable manufacturing.
