A single-board outline that fits the enclosure does not mean the board can pass directly through stencil printing, placement, and reflow equipment. When components sit close to the board edge, the contour is irregular, or a stable datum is missing, process edges restore the mechanical conditions required for transport, clamping, fiducial recognition, and depaneling.
The board outline may already match the mechanical envelope, and every component may fit. The assembly house still asks for an extra ring of "board with no circuitry" on all four sides or on two sides. The area grows and the unit cost appears to rise, so many people treat the request as a conservative manufacturing rule. The real judgment is this: a functional board that fits the product is not necessarily a board that production equipment can grip in a stable way.
When the long edge has no continuous transport zone, components extend into the rail envelope, the board shape is irregular, or fiducials have nowhere to sit, the process edge provides a repeatable mechanical coordinate. First draw the conveyor direction, clamp range, fiducials, depaneling method, and component overhang. Only then can you decide whether to add process edges and on which sides, instead of applying a fixed width.
Equipment Contacts the Board Edge First, Not the Circuit
Solder-paste printers, pick-and-place machines, and reflow ovens must deliver the board to a defined position. Conveyor chains or rails usually support the board along two edges, and the clamp zone must avoid components, solder joints, and protruding connectors. If the functional-board edge is fully occupied by parts, the equipment has no continuous, flat, sufficiently strong load-bearing surface.
The process edge moves that mechanical function outside the product outline: it takes transport and location loads when the panel enters the equipment, then is separated after assembly by V-score, routed slots, or mouse bites. It does not participate in the final electrical function, but it directly affects print registration, placement stability, and the risk of board collision.
Whether a process edge has value depends on which equipment contact condition it solves.
Irregular Boards Make "Can Be Made" Easy to Mistake for "Easy to Run"
Arcs, notches, narrow necks, and local projections in the board outline are not necessarily difficult to machine, but they may provide no stable parallel edges for continuous transport. If the equipment contacts a different location each time, the board can yaw, lift, or jam. Occasional passage is not the same as acceptable line takt and positional repeatability.

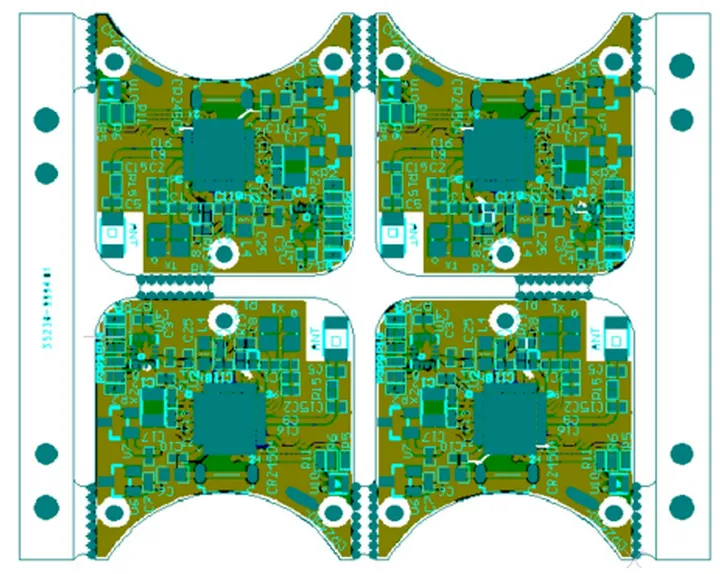

In that case, process edges can temporarily restore the outer contour to a regular rectangle, and connecting tabs can hold the functional boards in the panel. Tab locations must also avoid fragile components, board-edge antennas, connector load zones, and positions where burrs are not allowed after depaneling.
- First check the outline: are there continuous, parallel, load-bearing transport edges?
- Then check the components: no height or overhang may enter the equipment clamp range.
- Finally check depaneling: connection points must not transfer stress near sensitive components.
Fiducials Also Need Stable Mechanical Coordinates

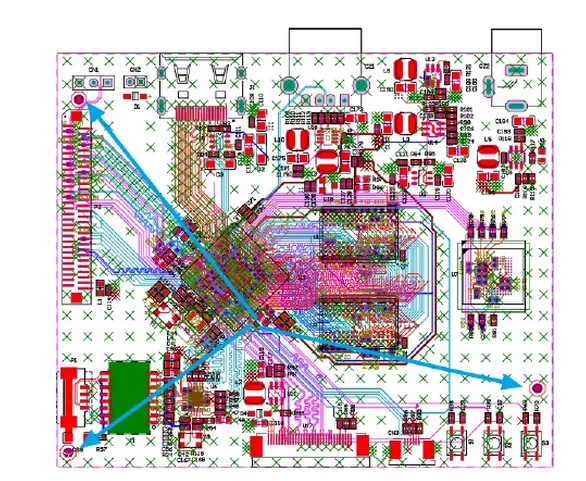

A pick-and-place machine reads fiducials to convert design coordinates onto the actual board surface. If a datum is close to an irregular edge, disturbed by copper background or silkscreen, or clustered too tightly on the panel, recognition accuracy and rotation correction both suffer. Process edges are often used to provide clean, stable, paired visual areas.
A fiducial is not "good enough once it is placed on the edge." Confirm whether the datum is panel-level or board-level, the camera window and keep-clear required, whether both sides must be recognized, and the fabricator's and placement line's specific rules for location and quantity. Experience dimensions in reference material can only help find problems. Final values must be confirmed on the target production line.
Single-Variable Check: Temporarily Delete the Process Edges

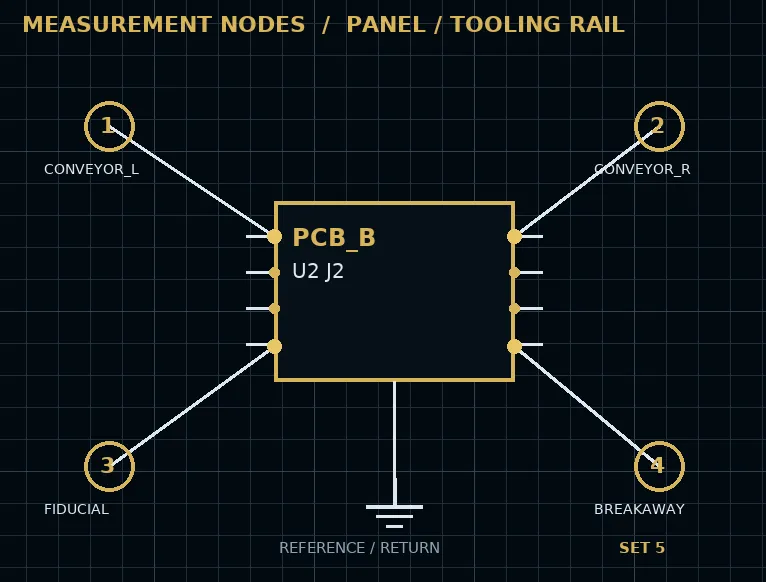

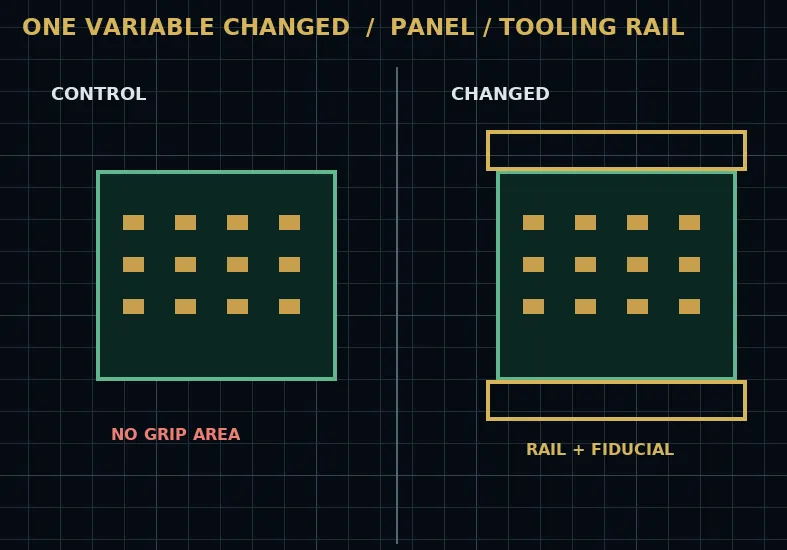

During review, copy the panel and delete only the process edges, without moving any component. Along the planned transport direction, check: are two continuous load-bearing edges still present? Will the outermost components hit the rails? Is there stable support during stencil printing? Do fiducials and locating holes still fall in recognizable areas? If any one of these fails immediately, the process edge is not decoration.
Only if every condition still holds after deletion is there reason to keep compressing. You can retain only two transport edges, or change panel orientation, rotate units, or move connecting tabs. The goal is not to make process edges as wide as possible, but to meet a defined assembly motion at the lowest cost.
- Draw the transport direction. Do not assume the long side of the board is automatically the conveyor edge.
- Mark clamp keep-out zones and include the tallest and most overhanging components in the check.
- Confirm with the production line and lock width, fiducial, and locating rules to actual equipment capability.
Do Not Write Process Parameters as Permanent Constants
Process-edge width, board-edge keep-out, fiducial clearance, and depaneling structure all change with board thickness, panel size, equipment, and supplier capability. Writing one project's values into every footprint template will over-design the next board or still leave it short. A more robust approach is to keep rule items marked "to be confirmed with manufacturing."
Review records should also state the reason: which edge is used for transport, which location is used for positioning, and which set of connecting tabs controls depaneling. Then, when the fabricator proposes a change, the designer can tell whether it is restoring a process condition or accidentally cutting into a mechanical, electrical, or antenna boundary.
Judging the Boundary
Small-batch hand-soldered prototypes that never enter machine transport may not need a full process edge. Once the board enters stencil printing, automatic placement, or continuous reflow, mechanical datums should be treated as design inputs.
When reviewing a panel, first ask: which two edges will the equipment use to carry this board in? If the drawing has no stable answer, restore the production boundary before discussing how much material can be saved.
Conclusion
A process edge is not a surplus outer ring on the functional board. It is the interface structure between the product outline and assembly equipment. The transport, clamping, visual location, and depaneling tasks it carries can all be mapped onto a specific mechanical path.
What can truly be saved is not every process edge, but area that has no defined task. Draw the rails, fiducials, locating holes, connecting tabs, and depaneling stress together, and how much process edge to keep becomes clearer than copying an experience value.
When your board is required to add process edges, is the issue transport, fiducial recognition, or depaneling stress?
