In HDI manufacturing, HDI PCB design with copper thickness options requires engineers to consider electrical requirements together with plating, etching, and registration capability. Copper thickness is not simply a material specification; it affects trace geometry, impedance, microvia reliability, panel current distribution, and the manufacturing window available to the factory. For this reason, copper thickness should be reviewed during PCB design and CAM preparation rather than only after fabrication begins.
In production we pull every HDI job into PCB CAM and run a full copper thickness review before releasing the panels. CAM engineers check outer layer copper targets against the stackup, then verify sub-outer layers for via plating continuity. We adjust plating recipes based on actual panel utilization and copper distribution patterns rather than just accepting the designer's nominal callout. This HDI copper thickness control step prevents downstream etch and registration problems that show up consistently when thickness varies beyond our process windows.
Outer Layer Thickness Control in HDI PCB Panel Plating

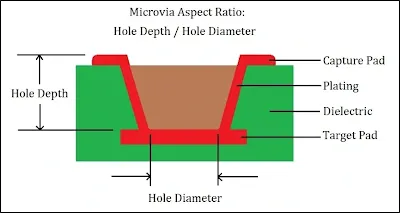

Outer layer thickness control is particularly important in HDI panel plating because the outer layers may receive additional copper deposition during microvia and pattern-plating processes. What we typically see on the CAM side is that outer layers in HDI boards receive additional plating cycles to ensure microvia reliability. The copper thickness on the surface ends up thicker than inner layers because of the pattern plating or button plating sequences needed for fine features. High-density areas with many microvias pull more current during electroplating, creating natural variation across the panel. Factories run 1.5 oz or heavier outer copper targets on many HDI jobs to compensate for the etch factor that removes side walls during final etching.
Copper Thickness Control Across Sub-Outer Layers in Multilayer HDI Builds
Sub-outer layers see multiple lamination and drilling steps before final outer plating. Each lamination cycle adds thermal stress that can slightly thin the copper foil through oxide reduction and press flow. When the designer specifies tight HDI copper thickness control on these layers, we must account for material movement between press cycles. Registration holes and tooling pins experience minor shifts that become more critical when copper thickness affects trace impedance and via stub control. In a precision multilayer HDI PCB design with copper thickness options, these small dimensional changes become more important because copper thickness, dielectric thickness, and layer registration interact across the complete stackup. The CAM review therefore needs to evaluate copper targets layer by layer rather than treating the board as a single uniform copper structure.
How Plating Current Distribution Affects HDI Copper Thickness Uniformity
Electroplating influence shows up strongest around dense via fields and under high copper area percentages. Current crowding around microvia entrances causes dog-boning or uneven barrel thickness. On panels with mixed feature sizes, thinner copper areas plate faster while heavy copper zones lag. We monitor this with production test coupons placed at panel corners and center. When incoming designs push the limits of HDI PCB copper thickness control, the plating bath parameters need tighter monitoring of additives and current density to maintain copper thickness within the specified process tolerance across the panel. From a design perspective, copper distribution should be considered before fabrication because the artwork itself influences plating behavior. Large differences in copper area between functional regions can create local thickness variation, making HDI PCB design with copper thickness options particularly dependent on panelization, copper balancing, and plating compensation.
Panel utilization impact on thickness uniformity
Low utilization panels with large open areas experience faster edge plating buildup. This forces us to either add thieves or adjust mask openings. High utilization HDI panels with tight spacing limit solution flow, reducing throwing power inside deeper microvias. CAM teams calculate average copper density per layer and flag jobs where outer layer density differs significantly from sub-outer layers.
Copper Thickness Limits That Shape HDI PCB Design and CAM Review
Our equipment has fixed process windows for copper deposition rate and etch uniformity. Production lines establish final outer copper targets according to the board design, stackup, plating process, and required finished copper thickness. Pushing beyond this range hits the limits of both plating rectifiers and etching chemistry control. Fine-line etching can become more challenging as copper thickness increases, particularly when the design requires tight trace width and spacing control. Because the etch factor widens traces more than expected, eating into the minimum spacing required for HDI routing.
How Copper Thickness Variation Affects HDI Registration and Drill Accuracy
Thicker copper layers increase the overall stack stiffness, changing how material expands during lamination. This shows up as layer-to-layer misregistration during sequential drilling. When HDI copper thickness control is ignored, we see via breakout on inner layers or reduced annular ring dimensions on outer layers. Production data from hundreds of runs confirms that changes in copper thickness can contribute to measurable dimensional movement in the X-Y plane, depending on the stackup and process conditions.
Consequences of skipping copper thickness checks in production
Jobs that bypass detailed review often hit yield drops during final etching. Traces end up narrower than designed, causing impedance drift outside tolerance. Microvia barrels can develop thin spots that fail thermal stress testing or IST coupons. Solder mask alignment suffers because thicker copper creates higher topography, leading to exposed copper or mask cracking at trace edges. In assembly, this translates to poor solder joint formation and higher rework rates on the line.
We have seen panels scrapped entirely when outer copper significantly exceeded the target, forcing complete re-fabrication after the first electrical test failure. Drilling deviation compounds the problem because thicker copper resists clean hole formation and increases smear that requires more aggressive desmear, further attacking the already stressed copper.

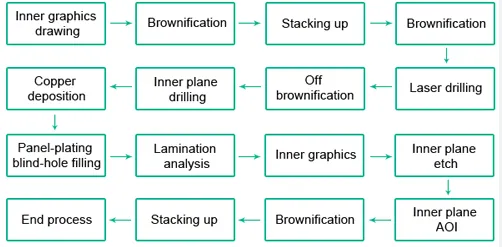

PCB CAM Adjustments for HDI Copper Thickness and Plating Control
Most factories handle this by building compensation tables in CAM based on historical panel data. At AIVON, the review can include layer-by-layer etch compensation, plating time, current density, and panel utilization before production release. For HDI copper thickness control, plating time and current density get modified per job. Button plating or semi-additive processes receive extra attention on outer layers to maintain trace width after etch.
Panel design strategies that support tighter control

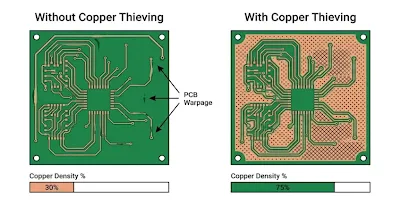

We recommend balanced copper distribution across layers during panelization. Adding copper thieving patterns in non-functional areas helps stabilize plating current. Tooling hole placement avoids dense copper zones to minimize localized stress. These adjustments allow us to maintain consistent thickness without slowing down the line for frequent bath chemistry corrections.
Precision Multilayer HDI PCB Design With Copper Thickness Options
A precision multilayer HDI PCB design with copper thickness options should define copper requirements at both the design and manufacturing stages. Different layer functions may require different copper thickness targets depending on current capacity, impedance, routing density, and plating conditions. CAM engineers can then evaluate whether the specified copper distribution is compatible with panel utilization, plating capability, and final etching requirements.
Copper thickness should also be considered together with trace width and spacing. Heavier copper can increase etch compensation requirements and affect the final geometry of fine-line HDI routing. For multilayer designs with different copper targets, early DFM review allows the factory to identify potential conflicts between electrical requirements and manufacturing process windows before panel release.
When HDI PCB Design With Copper Thickness Options Allows More Process Flexibility
Exceptions get approved mainly on prototype runs with fewer than four sequential laminations or when the design uses standard 1 oz copper throughout. Low volume jobs with relaxed impedance tolerances also allow more flexibility since we can monitor closely and adjust in real time. The trade-off is higher risk of scrap if the first panel shows issues, but experienced designers who provide clear stackup drawings with min/max acceptable values help us make these calls quickly.
For high-volume production, we rarely relax the review because the cost of field failures far exceeds the engineering time spent upfront. When a design must push limits, we request the designer's acceptance of potential yield reduction and provide measured data from the qualification panels before full production release.
From the shop floor, consistent copper thickness control remains an essential part of HDI PCB design with copper thickness options. When design targets, CAM compensation, panel utilization, plating conditions, and etching capability are evaluated together, manufacturers can reduce unexpected variation across drilling, plating, and final etching.
