Controlled impedance does not stay fixed once trace width is locked. Dielectric thickness, reference planes, copper thickness, and nearby same-layer copper together determine the electric-field distribution. After copper is poured beside a trace, the impedance calculation condition has already changed as soon as that copper is close enough.
On the same high-speed net, the width is unchanged and the layer is unchanged, yet the fabricator recalculation or field-solver result differs from the earlier revision. Overlay the two versions and the most visible change is often only an extra patch of ground copper beside the trace. The calculator is not unstable. The impedance boundary has actually changed.
Many beginners treat impedance as a function of trace width and dielectric thickness, and treat copper pour as nothing more than fill in empty areas. In reality, the electric field terminates on every nearby conductor. Once adjacent copper enters the field region, it becomes part of the transmission-line structure, and the original model is no longer complete.
Why the Electrical Structure Has Already Changed When Trace Width Has Not
The characteristic impedance of a single-ended trace comes from the combined action of inductance and capacitance per unit length. Trace width, copper thickness, dielectric constant, and distance from the trace to the reference plane all change those two quantities. When same-layer copper moves closer, a new coupling boundary is added. Similar geometry does not mean the same field environment.
If the original model was calculated as microstrip or stripline, and close coplanar ground copper is later added on both sides of the trace, the structure is already closer to a transmission line with coplanar conductors. Continuing to use the original width table is equivalent to explaining the new geometry with the old model.
Through Which Path Does Adjacent Copper Affect Impedance?

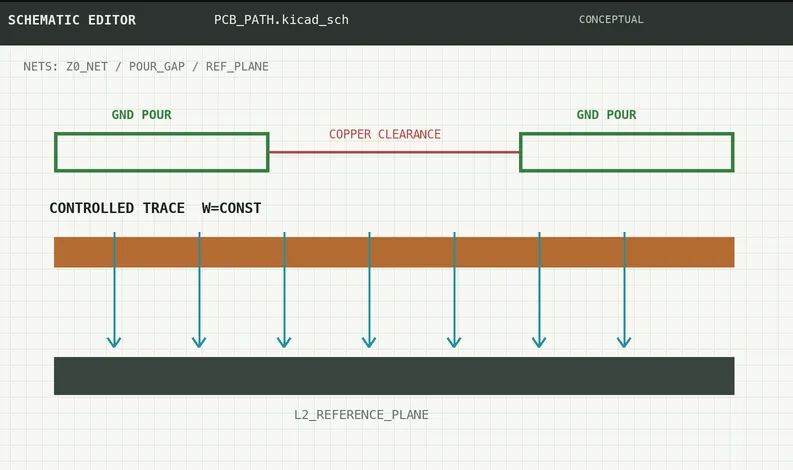

When the signal switches, an electric field is established between the trace and the reference plane. After grounded copper on both sides moves closer, part of the field couples to the same-layer copper instead, and capacitance per unit length usually changes with it. Return current may also spread from a single reference plane onto the same-layer copper and its grounding vias.
The result should not be simplified to "copper pour always raises impedance" or "always lowers it." Direction and magnitude depend on copper spacing, distance to the reference layer, whether the copper is reliably grounded, solder-mask coverage, and the actual stackup. The reliable engineering method is to let a field solver answer from the real cross-section.
How to Run a Single-Variable Comparison That Yields a Conclusion
Copy the same controlled-impedance segment. Keep layer, width, copper thickness, and dielectric unchanged, and modify only the net spacing from the trace to same-layer copper. Place three cross-sections—no copper, farther copper, and closer copper—under the same solver conditions, and observe whether impedance converges with spacing. Change only pour spacing in one run so the source of the change is known.
Also confirm that the copper is tied to the reference system through nearby ground vias. Copper that is nominally named GND but returns to the reference plane through a long path at high frequency may not behave as an ideal grounded boundary. Before the model treats it as ideal ground, the layout connection must support that assumption.
For inner-layer stripline, also inspect copper shapes on adjacent layers. If the reference layer is locally voided, or a large pad or plane edge appears beside the trace, the field redistributes as well. An impedance table that records only width and does not keep the cross-section location makes it hard for later engineers to reproduce the original calculation conditions.
Do Not Review Layout Against Trace-Width Rules Alone

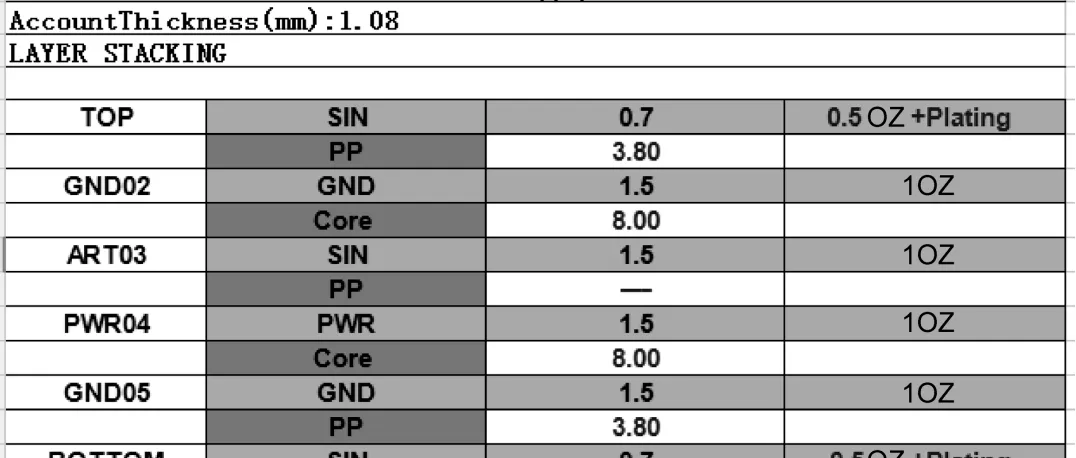

- Lock the stackup first: confirm that production dielectric thickness, copper thickness, and reference planes match the calculation inputs exactly.
- Then check lateral boundaries: measure the real net spacing from the trace to same-layer copper, pads, vias, and shield-can solder feet.
- Check vertical continuity: the trace must not cross a split in the reference plane, and layer transitions need a proper return-path transition.
- Return to the fabricator impedance coupon: confirm the final Gerber cross-section together with the impedance table, so late-layout copper pour does not keep using the old value.
Impedance Control Must Lock the Entire Cross-Section
Trace width is only the easiest variable to see, not the only variable. Adjacent copper, pads, and vias can change impedance continuity as soon as they enter the field region.
Before the next copper pour, rerun the controlled-impedance cross-section. If pour spacing changes and impedance changes with it, write the net spacing into the rules instead of blaming the fabricator recalculation.
Do your impedance rules also limit the net spacing from a controlled-impedance trace to same-layer copper?
