High-speed PCB engineers see the same pattern: the higher the frequency and the faster the rate, the more the design fails on a small detail. The detail that is easiest to miss, and often the most damaging, is the via.
A through-hole that is handled poorly can cause reflection, attenuation, delay, and EMI. Signal integrity collapses, and the board will not run, will not pass test, or will not stay stable.
The notes below cover how vias affect a high-speed PCB and what to change in layout.
1. First, the Via Types on a PCB
A multilayer PCB needs layer-to-layer interconnect. A via is the vertical channel between layers. By how far it penetrates, there are three main types:
- Through-hole: it goes through the full board. It is the most common and lowest-cost option, used for interconnect or as a locating hole.
- Blind via: it joins the surface to selected inner layers and does not exit the opposite side. It is used on high-density HDI.
- Buried via: it sits only between inner layers and is invisible on the surface. It is formed before lamination and is used only when density is extreme.
2. Ground Vias Are What Protect a High-Speed Signal
By function, vias include signal vias, power vias, ground vias, and thermal vias. In high-speed design, the ground via is the part that actually matters.
Every high-speed signal needs a return path. When the signal changes layers and the return takes a long detour:
- Impedance becomes discontinuous
- Reflection appears
- Loop area grows
- EMI radiation rises sharply
Place a ground via next to the signal via so the return current has a short path and the loop stays small.

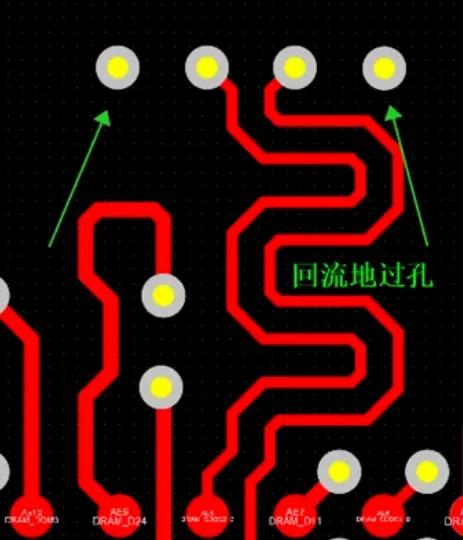

Differential pairs need symmetry and ground vias on both sides
When a differential pair changes layers, place ground vias on both the P and N sides. That keeps the return structure symmetric, the impedance consistent, and the pair more immune to interference.

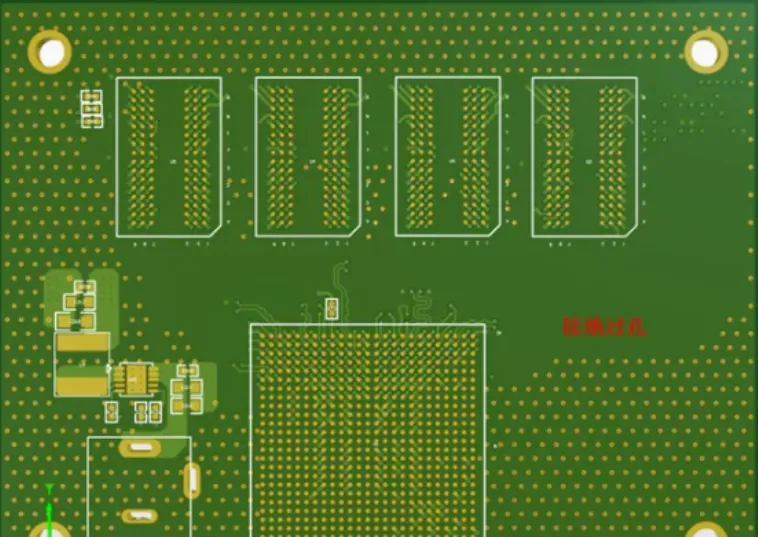

Three ground-via conclusions, with pad and antipad held fixed
- A larger drill → lower insertion loss, less reflection, a more stable signal
- Closer to the signal → lower loss and a shorter return path
- More ground vias → lower overall loss and better shielding
For a critical high-speed layer change, place enough ground vias close to the signal via.
3. Do Not Pack Vias So Tightly That the Plane Breaks
A common assumption is that more vias, packed tighter, are always better. That is wrong.

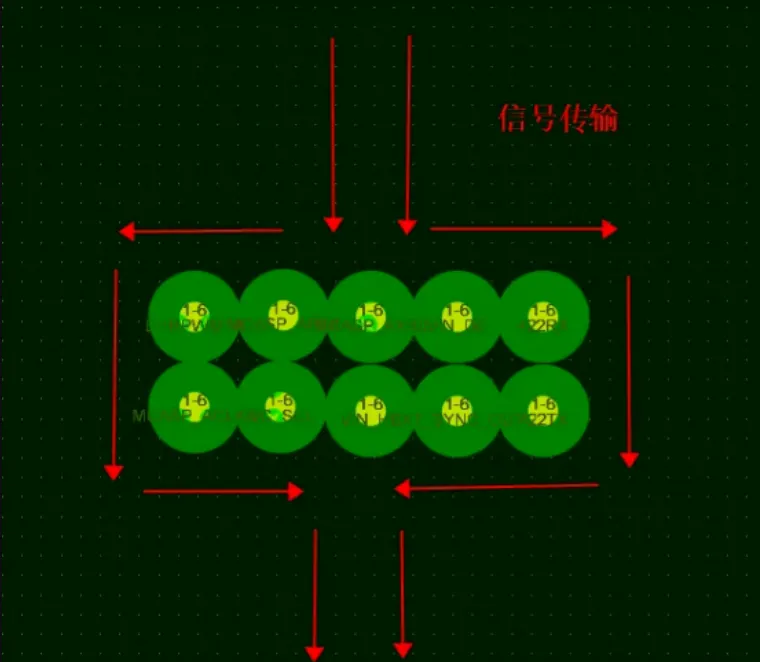

Vias crowded together cut the copper of the reference plane and cause:
- A longer signal path
- A clear increase in propagation delay
- Impedance variation and lower signal quality

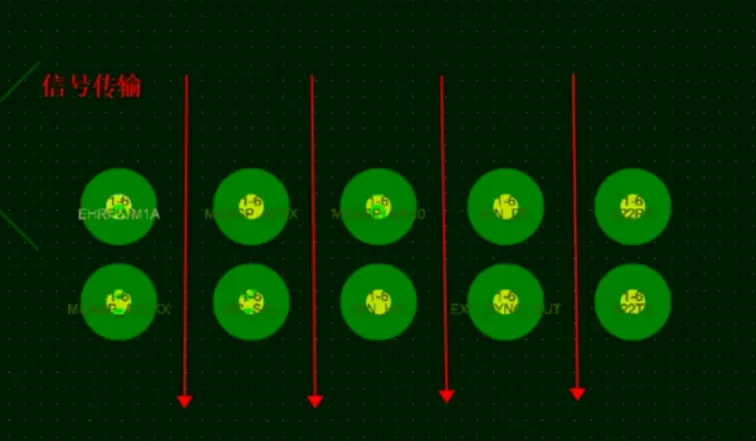

Meet the connection need, then open via spacing enough to keep the ground or reference plane continuous so the signal stays fast and stable.
4. Four Rules for High-Speed Via Design
- Change layers less often and use fewer vias. If the signal can stay on one layer, keep it there.
- When a layer change is required, place a ground via next to the signal via.
- On ground vias: drill large enough, place close enough, and use enough of them.
- Do not cluster vias. Keep spacing reasonable and protect a continuous reference plane.
The via is small, but it sits on the critical path of high-speed signal integrity. When it is designed correctly, reflection, loss, and radiation stay lower, and the board is more likely to run, pass test, and hold in production.
