In production we treat FR4 PCB etching undercut as a predictable lateral etch that must be compensated before the panel enters the etch line. CAM engineers apply a fixed undercut allowance based on the measured copper thickness and the historical etch factor of the line, then lock conveyor speed, spray pressure, and etchant chemistry so the actual undercut stays inside the process window. Most factories target an undercut of 0.2–0.4 times the copper thickness on each side; any deviation triggers an immediate speed or concentration adjustment before the next panel is run.
Why Isotropic Etch Forces Undercut Even on a Stable Line

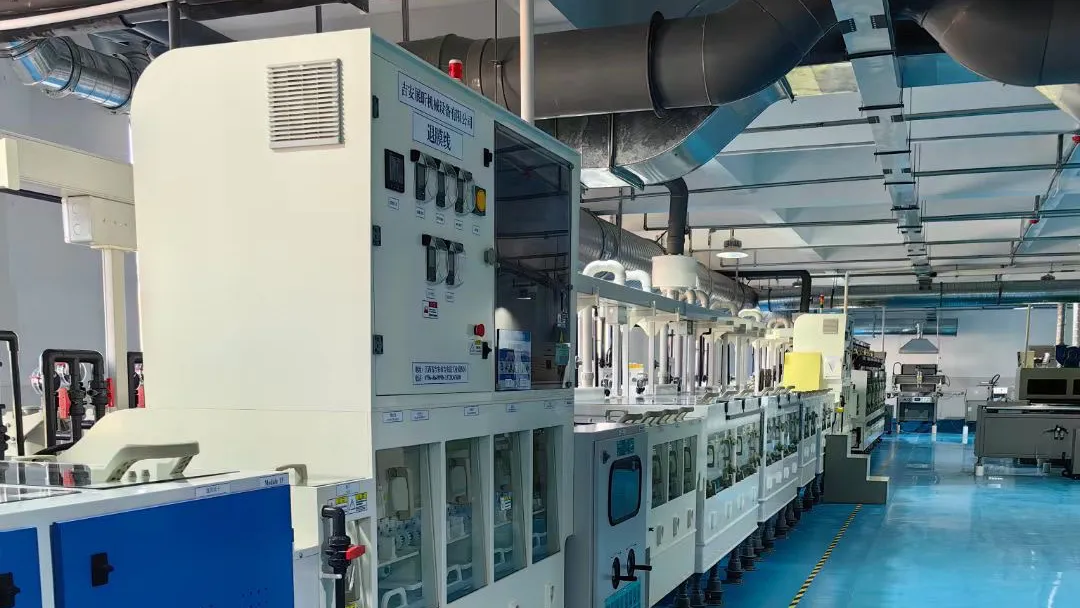

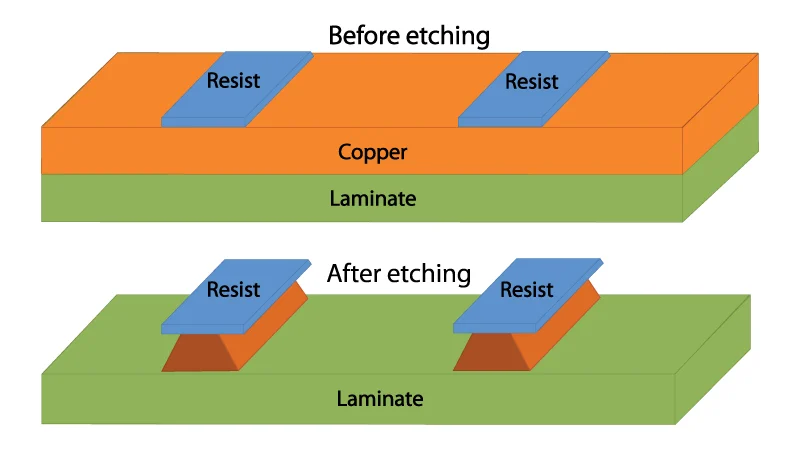

The fundamental limit is that acid or alkaline etching of copper is isotropic. While the etchant removes copper vertically to clear the spaces, it also attacks sideways under the resist edge at roughly the same rate. On FR4 the copper foil thickness sets the required etch time: 1 oz copper typically needs 40–60 seconds of active spray, while 2 oz copper can require 90–120 seconds. That extra dwell time directly increases the lateral undercut. Etchant concentration drift, temperature variation across the panel, or uneven spray pressure from nozzle wear all stretch the undercut further. From a fabrication standpoint these process variables make FR4 PCB etching undercut unavoidable; the only question is how tightly it is controlled.
Copper thickness and designed line width interact directly. Narrow traces on thick copper leave less margin for undercut before the remaining conductor width falls below the electrical or mechanical limit. Resist adhesion also plays a role: if the dry-film edge is slightly undercut by developer or if the resist softens under prolonged etchant exposure, the effective undercut grows faster than the copper thickness alone would predict. These are the real production drivers behind PCB etching undercut causes, not design intent.
What Excessive Undercut Leaves on the Finished Board
When undercut exceeds the compensated value, the finished trace width is narrower than the artwork. Controlled-impedance lines shift outside tolerance, high-current traces lose cross-section and heat up, and fine-pitch pads can lose enough copper that soldering becomes unreliable. In extreme cases the undercut creates a necked region that opens under thermal cycling or mechanical stress. AOI may pass the board if the remaining width is still above the absolute minimum, yet the lot fails at the customer's electrical or reliability test. Scrap appears late, after the panel has already consumed plating and solder-mask capacity, so the cost impact is higher than a simple etch reject.
How the Etch Line and CAM Close the Undercut Window
CAM starts with a copper-thickness-dependent compensation table. For standard 1 oz FR4 the artwork is typically widened 0.4–0.6 mil per side; for 2 oz the compensation rises to 0.8–1.2 mil per side. These numbers are derived from the etch factor measured on the specific line (vertical etch depth divided by lateral undercut). Once the panel is in the etch chamber the conveyor speed is set so the copper clears with a small over-etch margin, usually 10–15 %. Spray pressure is balanced front-to-back and top-to-bottom; pressure differences larger than 0.2 bar across the panel are corrected immediately. Etchant chemistry is held inside a tight band—typical cupric chloride systems run at 140–160 g/L Cu²⁺ and 1–2 N HCl, with temperature locked at 45–50 °C. Any drift outside these limits changes the etch rate and therefore the undercut.
Real-time control uses etched test coupons or differential thickness probes at the exit of the chamber. If the measured undercut drifts above the upper limit, conveyor speed is increased or concentration is adjusted before the next panel. Post-etch AOI checks critical nets for remaining width; any systematic undercut triggers a process hold and a recalibration of the compensation table. These closed-loop steps are what keep FR4 PCB etching undercut inside the design tolerance on a production line.
When the Factory Can Accept a Wider Undercut Window
Not every board needs the tightest undercut control. Low-speed digital designs with traces wider than 8 mil and no impedance requirement can run with reduced compensation and a slightly faster conveyor, cutting cycle time and etchant consumption. Prototype lots that will never see high current or tight electrical tolerance are often allowed a higher undercut limit provided the remaining copper still meets the minimum width specified by the customer. The trade-off is clear: looser process parameters lower cost and increase throughput, but they raise the risk of late electrical failures. Once the same design moves into volume production with controlled impedance or high-reliability requirements, the full compensation and chemistry control set is restored.
