In production we treat FR4 PCB layer registration as the measured offset between any two copper layers after the full process stack is complete. CAM engineers check it first on the inner-layer coupons and again after outer-layer imaging and drilling. Standard multilayer work runs to ±75 µm for Class 2 and ±50 µm for tighter Class 3 or HDI. When the measured shift exceeds that window we either apply a corrective scale factor on the next panels or scrap the lot. The primary long-tail drivers we watch are FR4 PCB layer registration and PCB layer misalignment caused by material movement and process stack-up error.
What Layer-to-Layer Registration Actually Means on the Shop Floor

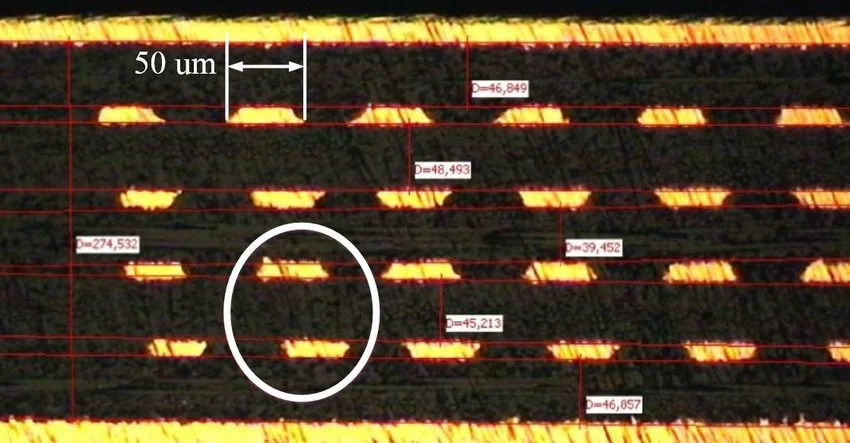

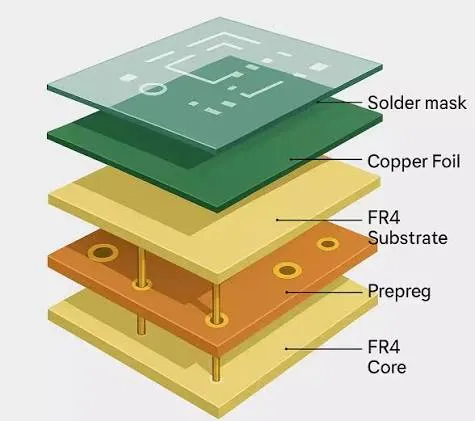

Registration is simply how well every copper feature on layer N lines up with the corresponding feature on layer N+1 after lamination, imaging and drilling. We measure it with optical targets or X-ray on dedicated coupons placed at the panel corners and center. Inner-layer to inner-layer alignment is the tightest because those cores are etched and then pressed; outer-layer to inner-layer is slightly looser because the outer image is exposed against the already-laminated stack. Most factories hold inner-to-inner within ±50–75 µm and outer-to-inner within ±75–100 µm on standard FR4.
How Material Dimensional Change Drives the Bulk of the Offset
FR4 cores and prepregs are not dimensionally stable. After etch the copper is removed, residual stress in the glass-resin system relaxes, and the panel shrinks. Typical X-Y shrinkage on a 0.1–0.2 mm core runs 0.03–0.08 % depending on resin content, glass style and residual copper. Bake cycles and humidity swings add another 0.01–0.03 %. When the CAM scale factor does not match the actual material movement of that specific lot, the inner layers arrive at lamination already out of true with each other. Once the press closes, that offset is locked in and becomes permanent PCB layer misalignment.

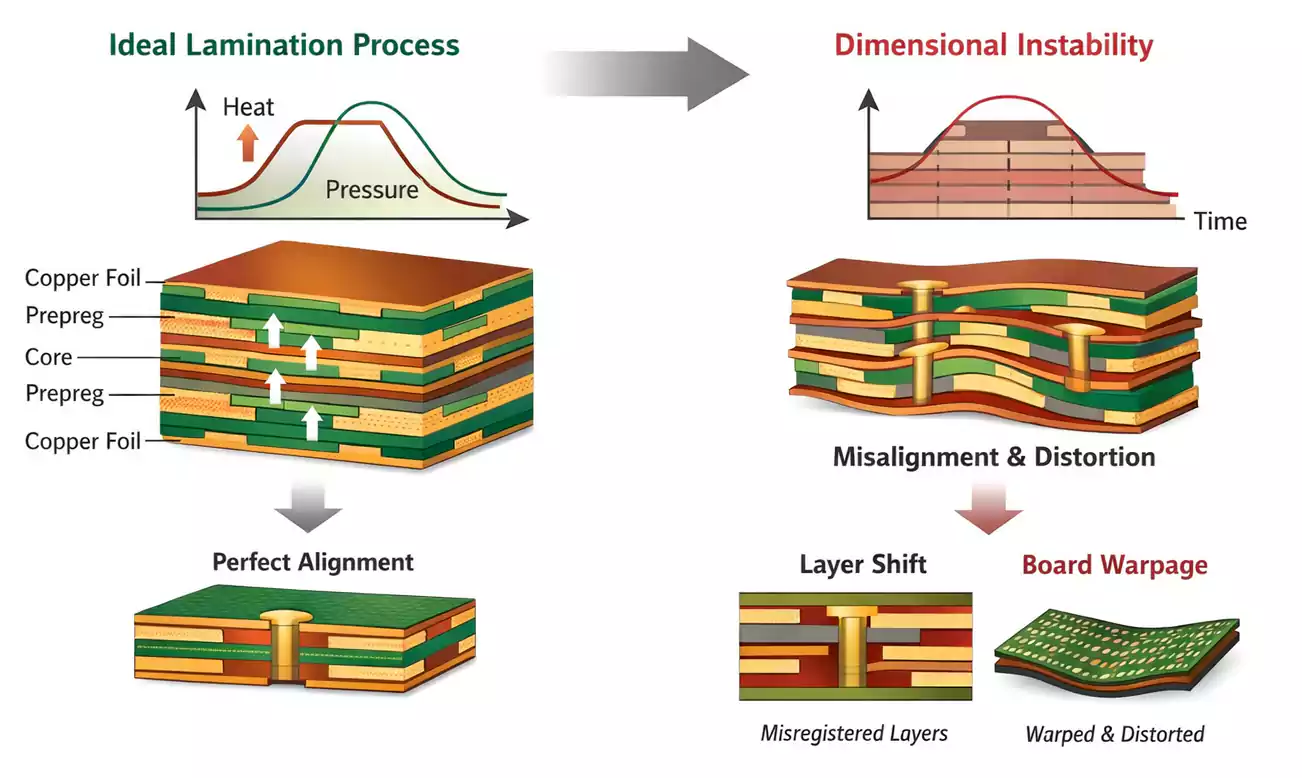

Lamination itself adds further movement. Heat and pressure cause the prepreg to flow; the cores can shift a few tens of microns relative to the tooling pins if the pins are worn or the pin-to-hole clearance is excessive. Rapid pressure ramps or uneven temperature across the platen exaggerate the shift. After cool-down the entire stack has a new, slightly different scale than the individual cores had before pressing.
Where Exposure, Drilling and Tooling Introduce Additional Error
Outer-layer exposure is done against the laminated panel. If the inner-layer targets have already shifted, the outer artwork is aligned to a compromised datum. Contact or laser direct imaging systems still carry their own registration tolerance of ±10–25 µm. Drill machines then use either mechanical pins or X-ray to locate the stack; pin wear or X-ray edge-detection error adds another 15–30 µm. When all these vectors point in the same direction, the final via-to-pad annular ring can drop below the minimum and the board fails electrical test or reliability stress.
What Fails Downstream When Registration Is Left Uncontrolled
Insufficient annular ring is the first visible failure. Breakout or tangential drill hits appear on the inner pads; high-resistance or open vias show up at electrical test. On fine-pitch BGA or 0.4 mm pitch parts the misaligned vias create uneven solder joints and early field failures. Yield loss is immediate: panels that exceed the registration coupon limit are either reworked (rare) or scrapped. Customer returns for intermittent opens after thermal cycling are common when the offset was borderline and only revealed itself under stress.
How the Factory Actually Recovers and Tightens FR4 PCB Layer Registration
First action is material-specific scaling. Every new lot of core is etched, baked and measured; the actual X and Y shrinkage percentages are fed back into the CAM system so the next artwork is pre-compensated. We keep historical scale libraries by glass style, resin system and copper weight. For critical jobs we run a first-article panel, measure the coupons, then apply a second corrective scale if needed.
Tooling is controlled tightly. Pin diameters are checked daily; clearance between pin and tooling hole is held under 25 µm. Sequential lamination jobs use optical or X-ray targets for each sub-lamination step rather than relying on mechanical pins alone. Drill programs are generated from the measured inner-layer targets rather than the nominal CAD data when the shift exceeds 40 µm. Post-lamination X-ray verification of the registration coupons is mandatory on every multilayer panel before outer-layer imaging begins.
Process parameters are locked: lamination heat-up rate ≤ 3 °C/min through the Tg region, pressure ramp staged to avoid sudden flow, and cool-down under pressure until below 100 °C. Humidity-controlled storage of cores and prepregs between etch and lay-up keeps moisture-induced movement predictable.
When the Factory Will Accept a Wider Registration Window
On thick boards (>2.0 mm) with large pads and through-hole only technology we sometimes relax to ±100 µm because the annular ring still remains adequate. Prototype quantities under 10 panels may ship with a measured registration note if the customer confirms the design has sufficient pad-to-drill clearance. Rigid-flex constructions are evaluated only in the rigid zones; the flex tails are allowed higher local movement. In every case the trade-off is clear: wider registration tolerance reduces scrap but raises the risk of marginal annular rings under thermal stress, so the customer must accept the reduced reliability margin.
From the fabrication side the controlling factors remain material movement prediction, accurate tooling, and closed-loop measurement after every critical process step. When those three are managed, FR4 PCB layer registration stays inside the required window and PCB layer misalignment rarely becomes a yield problem.
